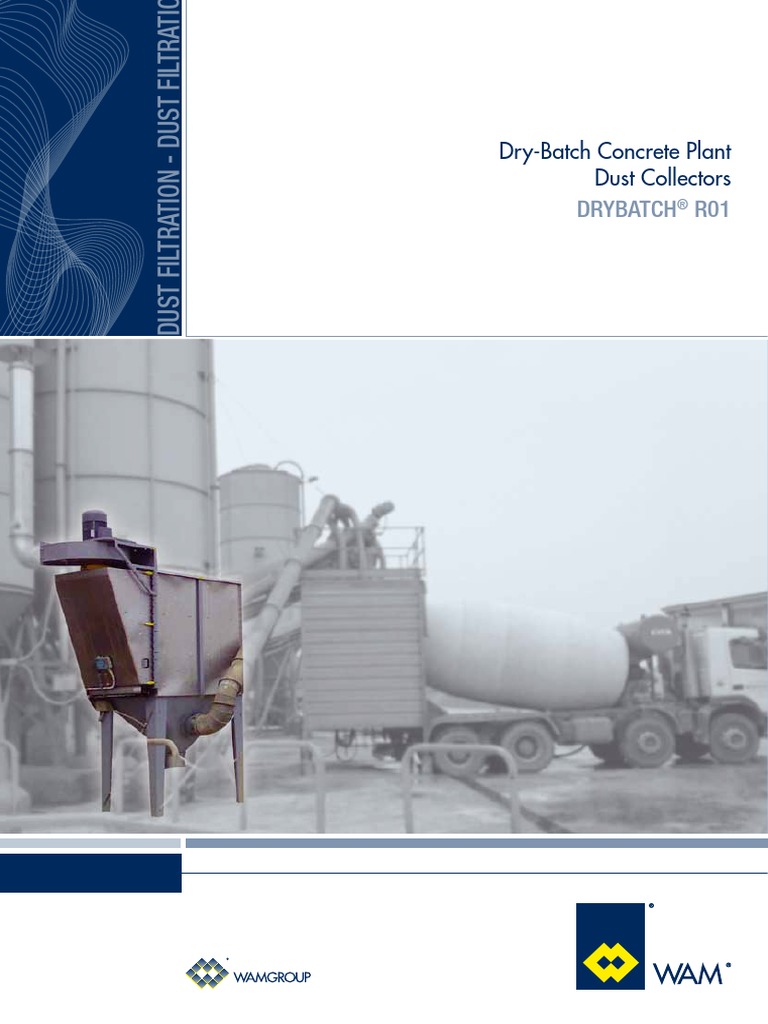

DUST FILTRATION - DUST FILTRATI Dry-Batch Concrete Plant

Dust Collectors
DRYBATCH® R01
 The DRYBATCH® R01 Dust Collector has been specially

Dry-Batch Concrete
Plant Dust Collectors
DRYBATCH® R01
designed for dust collection from the truck mixer inlet
zone in dry batch plants during filling of the truck mixer.

Features
• The installation do not require special foundations
• The access door, supported by a robust hinge, allows free and easy access to the filter element, reducing the
maintenance time.
• Reduced overall dimensions due to the special geometry and positioning of the filter elements.

• After market availibility of filter elements • Easy replacement of the filter elements
• Easy handling of filter elements through the access door

• Compressed air consumption: 210 l/min • Air jet cleaning system inside maintenance
access door
DUST EMISSION
< 10 mg/Nm3
Benefits

► LOW MAINTENANCE COSTS AND OPERATIONS

► LOWER ENERGY CONSUMPTION COMPLIANT WITH

HEALTH AND SAFETY
► HIGHER WORK SAFETY CONDITIONS FOR THE OPERATOR STANDARD

► PROLONGED LIFE DURATION

Technical Data
2,853 125 1,220

125
1,740

229

309
273

503.5
322

2
∅1
365
402

750

4,083
SPAZIO PER MANUTENZIONE
1,700
1,065

273 1,700
48°

63°
378

378

273
830

1,450
1,075

1,075
273
623

623
1,780
120
120 12*125

102.5
20 20
Ø10
1,145
1,065

9*100

1,700
102.5

POLYGONAL SHAPE DUST COLLECTOR Horizontal

FILTER ELEMENT Pocket

FILTER SURFACE 54 m2

FILTER MEDIA Polyester felt 500 gr/m2

CLEANING SYSTEM Reverse air jet (min. 5 - max. 6 bar)

TIMER Electronic multivoltage 24 V - 260 V DC/AC 50/60 Hz

SOLENOID VALVE NUMBER 12

DIFFERENTIAL PRESSURE DEVICE Electronic with display and exit 4-20 mA

FAN 11 kW

FAN MAXIMUM AIR CAPACITY 6,000 m3/h

CASING AND DOOR MATERIAL STAINLESS STEEL 304

SEAL FRAME MATERIAL Carbon steel powder-coated RAL 7001

 063002249 September 2012 Rights reserved to modify technical specifications.

Applications

GROUND INSTALLATION
WEIGH HOPPER INSTALLATION
