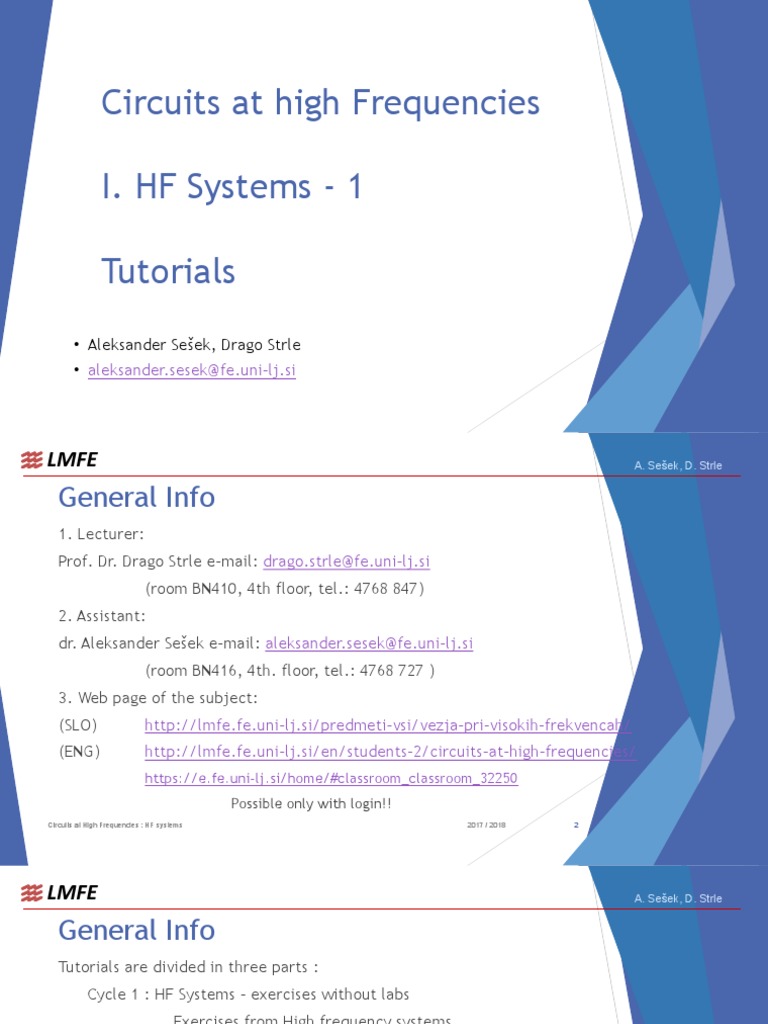

Circuits at high Frequencies

I. HF Systems - 1

Tutorials
• Aleksander Sešek, Drago Strle
• aleksander.sesek@fe.uni-lj.si
LMFE A. Sešek, D. Strle

General Info
1. Lecturer:
Prof. Dr. Drago Strle e-mail: drago.strle@fe.uni-lj.si
(room BN410, 4th floor, tel.: 4768 847)
2. Assistant:
dr. Aleksander Sešek e-mail: aleksander.sesek@fe.uni-lj.si
(room BN416, 4th. floor, tel.: 4768 727 )
3. Web page of the subject:
(SLO) http://lmfe.fe.uni-lj.si/predmeti-vsi/vezja-pri-visokih-frekvencah/
(ENG) http://lmfe.fe.uni-lj.si/en/students-2/circuits-at-high-frequencies/
https://e.fe.uni-lj.si/home/#classroom_classroom_32250
Possible only with login!!
Circuits at High Frequencies : HF systems 2017 / 2018 2
LMFE A. Sešek, D. Strle

General Info
Tutorials are divided in three parts :
Cycle 1 : HF Systems – exercises without labs
Exercises from High frequency systems
Cycle 2 : TL lines – exercises without labs
Exercises from Transmission lines which covers:
- Reflections on lines
- Smith diagram
- Impedance matching
Cycle 3 : ADS simulations – only labs
Laboratory work with ADS simulation program
- seven exercises
Circuits at High Frequencies : HF systems 2017 / 2018 3
LMFE A. Sešek, D. Strle

HF Systems : Capacity of channel

1. Band limited Gaussian channel operates in presence of Gaussian noise.

IN OUT
Ideal
+ BPF

White Gaussian
noise

Input signal is at -60 dBm level and noise is at -90 dBm level.
The bandwidth which is needed is 40MHz. What is capacity of
the channel?

Circuits at High Frequencies : HF systems 2017 / 2018 4

LMFE A. Sešek, D. Strle

HF Systems : exercises
2. Homodyne receiver

𝑢𝑅𝐹 = 1𝜇𝑉 ∙ sin(1.88 × 1010 𝑡)

𝑢𝐿𝑂 = 1𝑉 ∙ sin(1.88 × 1010 𝑡)

LNA = 60 dB
What must be the LPF filter pole? Is there any other component needed for better
output signal.
Circuits at High Frequencies : HF systems 2017 / 2018 5
LMFE A. Sešek, D. Strle

HF Systems : exercises
3. Heterodyne receiver

𝑢𝑅𝐹 = 1𝜇𝑉 ∙ sin(1.8913 × 1010 𝑡)

𝑢𝐿𝑂 = 1𝑉 ∙ sin(1.885 × 1010 𝑡)

LNA = IFA = 20 dB
What kind of filters must be implemented and what are their pole frequencies ?

Circuits at High Frequencies : HF systems 2017 / 2018 6
