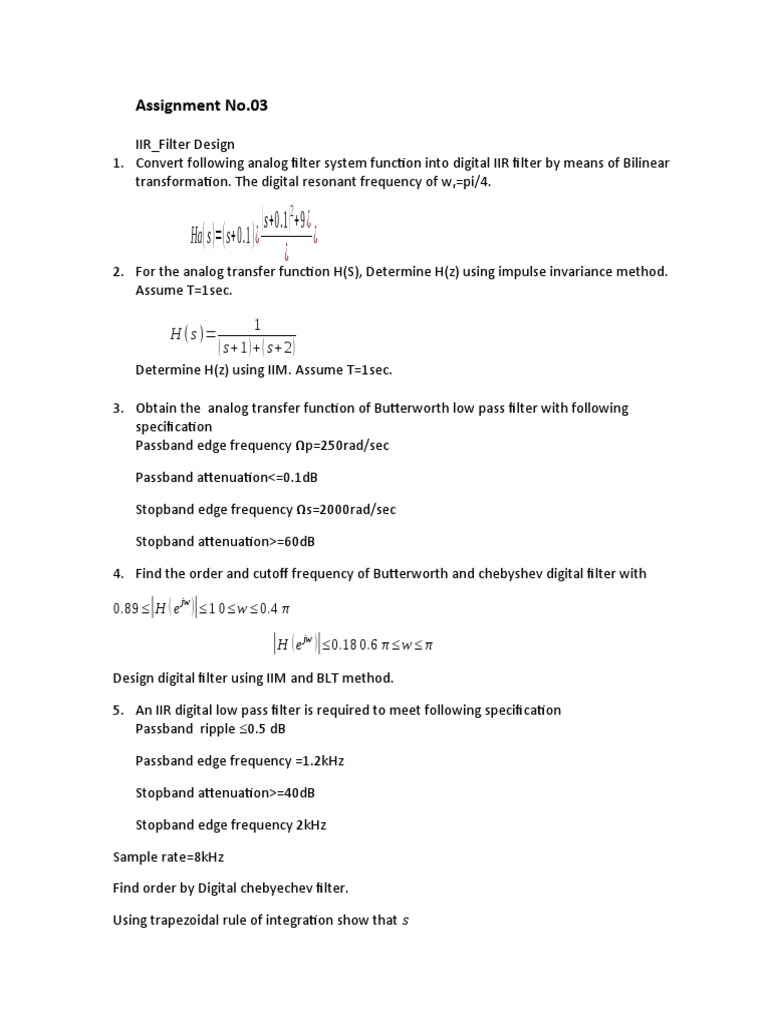

Assignment No.

03

IIR_Filter Design
1. Convert following analog filter system function into digital IIR filter by means of Bilinear
transformation. The digital resonant frequency of wr=pi/4.

( s +0.1)2+9¿
Ha(s)=(s+0.1)¿ ¿
¿
2. For the analog transfer function H(S), Determine H(z) using impulse invariance method.
Assume T=1sec.

1
H (s )=
( s+1 ) + ( s+2 )
Determine H(z) using IIM. Assume T=1sec.

3. Obtain the analog transfer function of Butterworth low pass filter with following
specification
Passband edge frequency Ωp=250rad/sec

Passband attenuation<=0.1dB

Stopband edge frequency Ωs=2000rad/sec

Stopband attenuation>=60dB

4. Find the order and cutoff frequency of Butterworth and chebyshev digital filter with

0.89 ≤|H ( e jw )|≤ 1 0≤ w ≤ 0.4 π

|H ( e jw )|≤0.18 0.6 π ≤ w ≤ π
Design digital filter using IIM and BLT method.

5. An IIR digital low pass filter is required to meet following specification

Passband ripple ≤0.5 dB

Passband edge frequency =1.2kHz

Stopband attenuation>=40dB

Stopband edge frequency 2kHz

Sample rate=8kHz

Find order by Digital chebyechev filter.

Using trapezoidal rule of integration show that s

 FIR_Filter Design

6. Determine the filter coefficient hd(n) for the desired frequency response of low pass
filter given by
−π π
H ( e jw )=e−2 jw ≤w≤
4 4
π
¿0 ≤w≤π
4
Also find transfer function using rectangular window.
7. Design a normalised LP FIR filter having phase delay 4 and least attenuation is 40 dB in
sideband. Also obtain magnitude and phase response.
