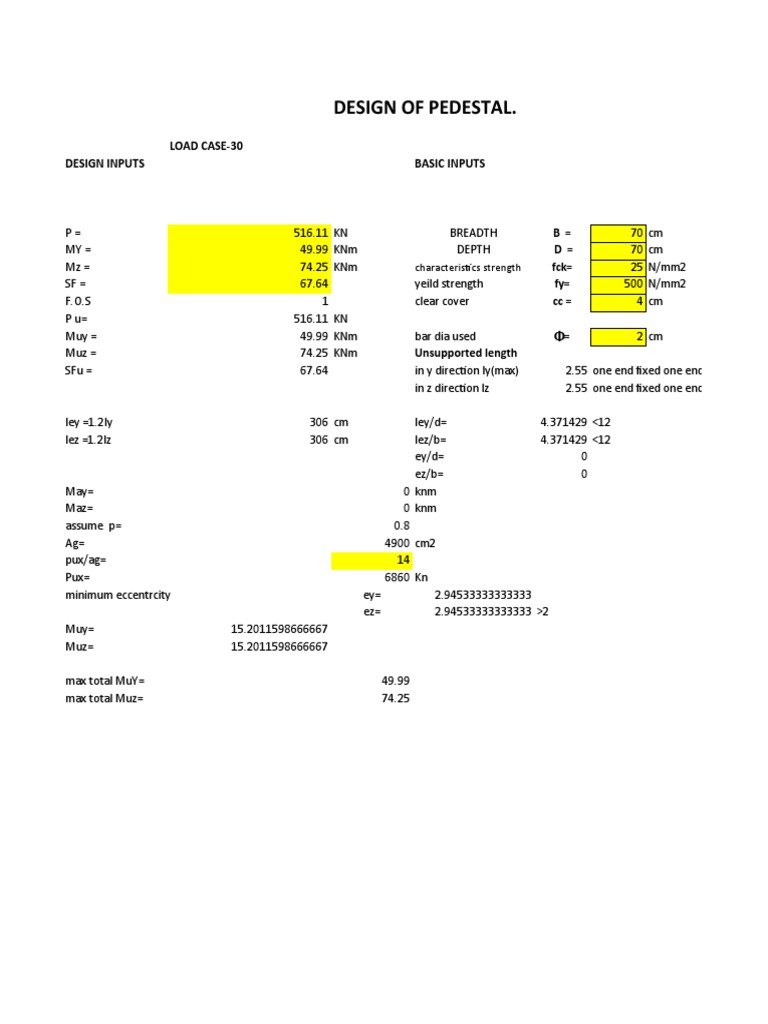

DESIGN OF PEDESTAL.

LOAD CASE-30
DESIGN INPUTS BASIC INPUTS

P= 516.11 KN BREADTH B = 70 cm
MY = 49.99 KNm DEPTH D = 70 cm
Mz = 74.25 KNm characteristics strength fck= 25 N/mm2
SF = 67.64 yeild strength fy= 500 N/mm2
F.O.S 1 clear cover cc = 4 cm
P u= 516.11 KN
Muy = 49.99 KNm bar dia used Φ= 2 cm
Muz = 74.25 KNm Unsupported length
SFu = 67.64 in y direction ly(max) 2.55 one end fixed one end free
in z direction lz 2.55 one end fixed one end free

ley =1.2ly 306 cm ley/d= 4.371429 <12


lez =1.2lz 306 cm lez/b= 4.371429 <12
ey/d= 0
ez/b= 0
May= 0 knm
Maz= 0 knm
assume p= 0.8
Ag= 4900 cm2
pux/ag= 14
Pux= 6860 Kn
minimum eccentrcity ey= 2.94533333333333
ez= 2.94533333333333 >2
Muy= 15.2011598666667
Muz= 15.2011598666667

max total MuY= 49.99


max total Muz= 74.25
UNIAXIAL MOMENT CAPACITY OF SECTION ABOUT Y-Y AXIS.
assume p(% of steel) 0.8
d'= 5 p/fck 0.032
d'/D= 5/70 0.071428571428572

Pu/fckBD = (516.11/(25*70*70))*10 0.0421314286


Mu/(fckBD2)= 0.065 from chart82

Muy1= 0.065*25*70*70^2/10^3 557.375 KNm

UNIAXIAL MOMENT CAPACITY OF SECTION ABOUT Z-ZAXIS.

d'/D= 5/70 0.071428571428572


Mu/(fckBD2)= 0.065 FROM CHART 83
Muz1= 0.065*25*70*70^2/10^3 557.375 KNm

CALCULATED VALUES
CHECKS GIVEN PERMISSIBLE VALUES OF(FROM CHART)

Pu/Pux= 0.0752346939 Pu/Pux= 0.075235


Muy/Muy1= 0.0896882709 Muy/Muy1= 0.089688
Muz/Muz1= 0.1332137251 Muz/Muz1= 0.91 from chart64

IF ABOVE CALCULATED VALUES MORE THAN VALUES GIVEN IN CHART


INCREASE P% OF STEEL

CALCULATION OF REINFORCEMENTS
As= 0.8*700*700/10000 39.2 CM2
d 700
no of bars required =39.2/(3.14*2^2*0.25) 13 b 700
provided As= 16NOS 20 DIA BARS 50.24 CM2 (percent of reinforcement provided=
1.025306

CHECK FOR SHEAR.


100As/bd= (2^2*3.14*0.25*100*4)/(70*70)
= 0.256326530612245 %
β= 11.3244524973884
τc= 0.368733291281712 shear capacity of section = 18.06793 T
from table 61 of sp16
Vu 6.764 T
Vus -11.303931273 T
sv NOMINAL REIN mm
Area of nominal reinforcement.
Asv= 0.4*b*sv/0.87fy 155.10317131 mm2
hence provide5L 10 mm stirrups @ 200mm c/c
Area of shear reinforcement provided=. 251.2 mm2
