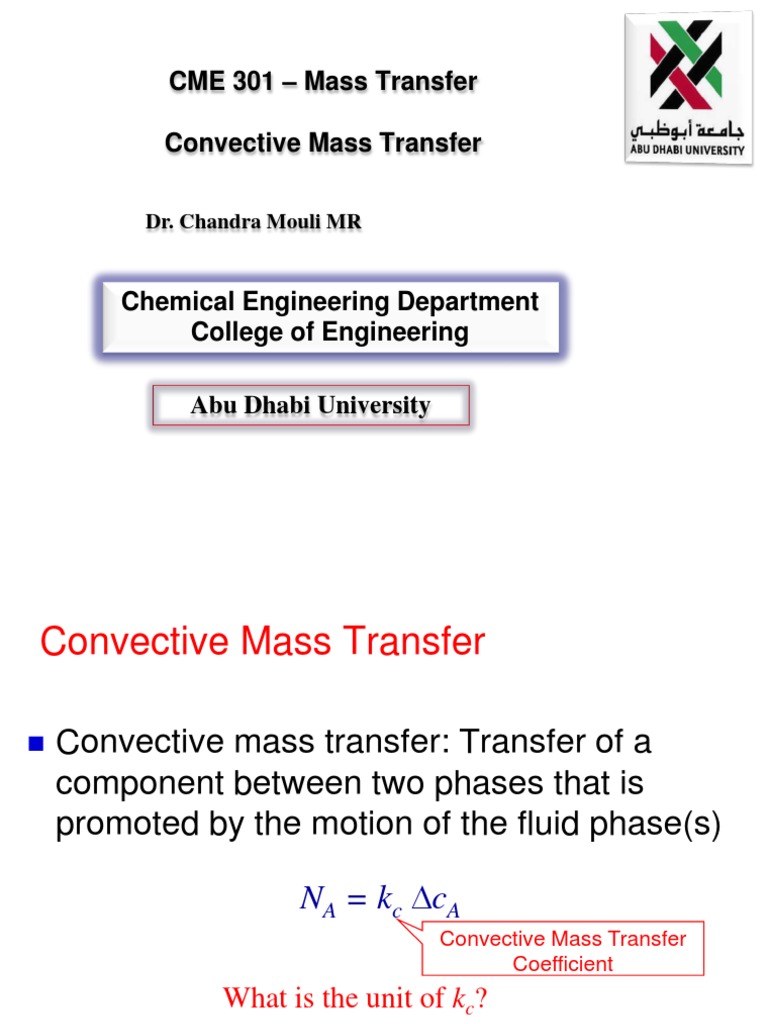

CME 301 – Mass Transfer

Convective Mass Transfer

Dr. Chandra Mouli MR

Chemical Engineering Department

College of Engineering

Abu Dhabi University

Convective Mass Transfer

 Convective mass transfer: Transfer of a

component between two phases that is
promoted by the motion of the fluid phase(s)

NA = kc ∆cA
Convective Mass Transfer
Coefficient
What is the unit of kc?
 It is analogous to convective heat transfer:
q/A = h ∆T 2
 kc and h are related to:

 Properties of the fluid

 Dynamic characteristics of the flowing fluid
 Geometry of the system of interest

3
Parameters for Analysis of Convective
Mass Transfer
 Analogy Between Momentum, Heat and
Mass Transfer:

1. Momentum Diffusivity = ν = µ/ρ [=] L2/t

2. Thermal Diffusivity = α = kth/ρ Cp [=] L2/t
3. Mass Diffusivity = DAB [=] L2/t

4
 Concentration Boundary Layer

 In the case of fluid flowing past a surface, there will

be a layer, sometimes extremely thin, close to the
surface wherein the flow is laminar  Molecular
mass transfer will always be present in any
convective process through such boundary layer.

 If the fluid flow is laminar, then all of the transport

will be by molecular means.
 If the fluid flow is turbulent, eddies will move the
material physically  higher mass transfer rates
are associated with turbulent conditions
5
 Velocity and concentration profiles:

v∞

[cA∞ – cAs]
y
v=v(y) [cA – cAs] = f(y)

At the height of the velocity/concentration boundary

layer, the bulk conditions will apply

6
Two General Cases of Convective Mass
Transfer

1. Two immiscible fluid phases in contact

(transferred “A” is soluble in both phases)

2. Fluid contacting a solid surface (solid acts

as a source or a sink)

7
1. Two immiscible fluid phases in contact (“A” is
soluble in both phases)

 This process is known

as interphase
convective mass
transfer:
1. Gas-Liquid Contact
(e.g., absorption,
stripping, evaporation)

2. Liquid-Liquid Contact
(e.g., liquid-liquid
extraction)
8
2. Fluid contacting a solid surface (solid
acts as a source or a sink)
z=δ z=0
Porous Solid
cA0 (Molecular Transfer)

L = characteristic
length of solid

cAs
NAz
NAz = -DAB cA
NAz = kc (cA0 – cAs)
+ cA V

Fluid Boundary
Layer

 At steady state, cA0 and cAs are constant, and

 At the thickness of the boundary layer (z = δ):
NAz(convection) = NAz (molecular diffusion) 9
 dc A
kc ( c A0 − c As ) =
− DAB + c AV
dz

Multiply both sides by L, rearrange:

molecular mass
 d [ c A − c As ] 
− 
kc L  dz  z =0 transfer resistance
=
Sh = =  c A 0 − c As 
DAB   convective mass
 L 
transfer resistance
Sherwood Number
(dimensionless)

10
Methods for Evaluating Convective Mass
Transfer
1. Dimensional analysis coupled with
Experiments

2. Exact boundary layer analysis

3. Analogy between momentum, energy and

mass transfer

11
1. Dimensional Analysis of Convective
Mass Transfer
 Target: finding dimensionless groups which
affect the mass transfer behavior.

 Solution:
Sh = f(other dimensionless groups),

 Experiments needed to determine

functionality
12
Dimensionless Groups for Convective
Mass Transfer

Schmidt Number :
ν momentum diffusivity Analogous to Prandtl Number
=
Sc =
DAB mass diffusivity (Pr) in Heat Transfer

Lewis Number : Reynolds Number :

α thermal diffusivity =
v.L inertial flow
=
=
Le = Re
DAB mass diffusivity ν viscous flow

Analogous to Nusselt Sherwood Number :

Number (Nu) in Heat kc L convective mass transfer rate
=
Sh =
Transfer DAB diffusive mass transfer rate
13
Peclet Number for Mass Transfer :
v.L
= =
PeAB Re.Sc
DAB

Grashof Number for Mass Transfer :

L3 g ∆ρ A
GrAB =
ρ

14
Example 1. Forced Convection

Step 1: Define the effective variables

No. Variable Symbol Dimensions
1 Diameter D L
2 Fluid density ρ M.L-3
3 Fluid viscosity µ M.L-1. t -1
4 Fluid velocity v L . t -1
5 Diffusivity DAB L2. t -1
6 MT Coefficient kc L . t -1
6 variables 3 Dimensions
15
Example 1. Forced Convection
 For forced convection, the three
dimensionless groups [Sh, Sc, Re] are
sufficient to describe the mass transfer
behavior How can we determine
 Sh = f(Sc, Re) this functionality?

 Experiments can be done by varying only Re

and Sc and observing the variations in Sh

16
Example 2: Natural Convection

Step 1: Define the effective variables

No. Variable Symbol Dimensions
1 Characteristic length L L
2 Fluid density ρ M.L-3
3 Fluid viscosity µ M.L-1. t -1
4 Buoyancy g∆ρΑ M.L-2. t -2
5 Diffusivity DAB L2. t -1
6 MT Coefficient kc L . t -1
6 variables 3 Dimensions
17
 Sh = f(Sc, GrA,B)

L.kc ρ DAB 1
π1 = = Sh π2 = =
DAB µ Sc
L ρ g ∆ρ A
3
π3 = = GrA, B Grashof No. for
µ 2
natural convection

18
2. Exact Analysis of Concentration
Boundary Layer
 Assuming:
(1) constant cT and DAB, (2) RA = 0, (3) st.st. 
v.cA = DAB 2cA

∂c A ∂c A  ∂ 2cA ∂ 2cA 
vx + v y = DAB  2 + 2 
∂x ∂y  ∂x ∂y 

Boundary Conditions:
(1) cA = cAs @ y = 0 (2) cA = cA∞ @ y = ∞
19
 Solution:
dc A  Re x 
= ( c A∞ − c As ) 0.332 
dy y =0  x 
⇒ Flux :
dc A  Re x 
N Ay = − DAB − DAB ( c A∞ − c As ) 0.332
= 
dyy =0  x 
= kc ( c As − c A∞ )
20
 DAB 
⇒ kc = 0.332 Re x 
x
kc x
or =Sh = 0.332 Re0.5 x (for Sc = 1)
DAB

If Sc ≠ 1 

kc x
=
Sh = 0.332 Re x Sc
12 13

DAB
21
 Mean mass transfer coefficient (kc,av) over a
plate of width W and length L is obtained by
integration over area:
Moles transferred (wA) = f A kc (cAs - cA∞) dA
= WL kc,av (cAs - cA∞)

kc ,av x Local (average) Sh

=
ShL = 0.664 Re L Sc
12 13
No. at distance x
DAB
22
3. Mass, Energy and Momentum
Transfer Analogies
 If we have heat transfer coefficient (h)  we can
calculate the mass transfer coefficient (kc), and
vice versa
 All analogies require:
1. Constant physical and chemical properties
2. No generation of energy or mass (no homo. reaction)
3. Velocity profile is not affected by mass transfer
4. No viscous dissipation (no energy loss due to
momentum)
5. No homogeneous reaction occurs

23
 A. Reynolds Analogy

f = skin friction factor

24
B. Chilton-Colburn Analogy
{Sc ≠1, Pr ≠1}

25
Flat Plate

26
Flow Through Pipes

27
 Specific Correlations for Fixed
Configurations
Chapter 28 gives detailed correlations for calculating
the mass transfer coefficients (Laminar and
Turbulent) for:
1. Flat Plates
2. Single Spheres
3. Spherical bubble swarms
4. Single Cylinders
5. Flow through pipes
6. Wetted wall column
7. Packed and fluidized beds
8. Stirred tanks
28
Example

29
Example

30
Example

31
