Single Stone Honing Tools

Single Stone Honing Tools

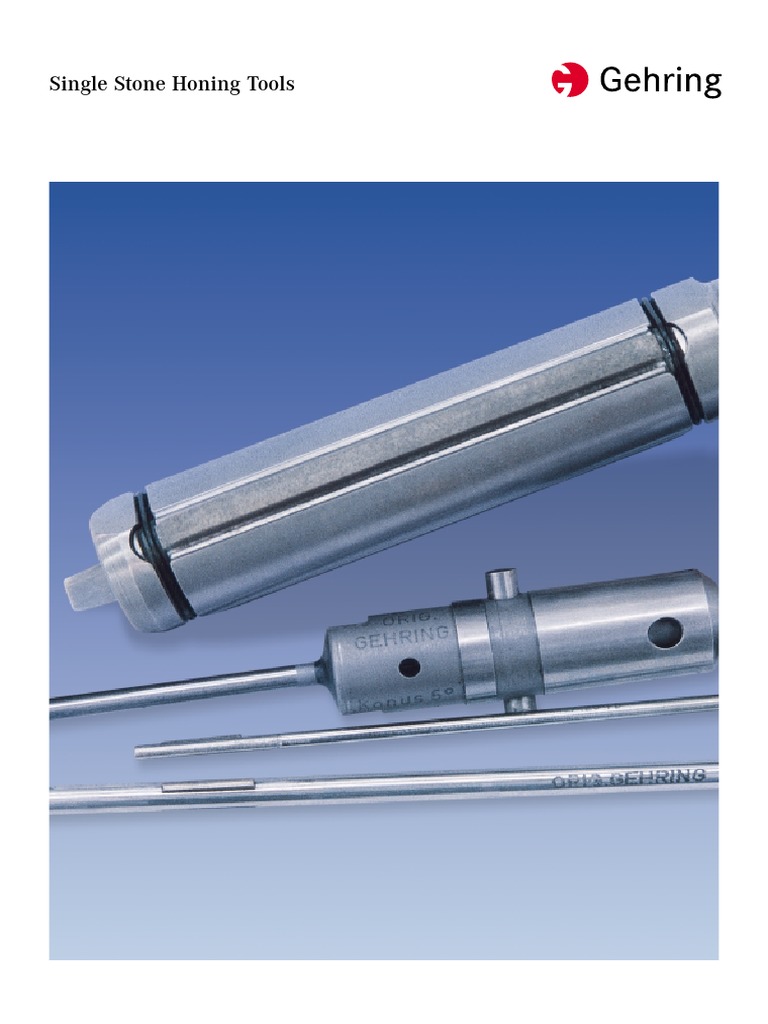

Single stone honing tools are used, over its entire length. The automatic Range of application:
when highest demands on the straight- retraction of the cone is carried • Small bores
ness of the bores are required and in out by the coupled system ”cone/ • Difficult machining conditions
case of difficult bore conditions. Opti- feed“. Guiding and support of the • Stack honing
mum honing results are obtained due tool is carried out by asymmetrically
to the high degree of rigidity combined arranged diamond or hard metal Application examples:
with long honing stones. shoes or, for small diameters, with • Injection pump components
appropriate wear-resistant coated • Control bushes
The single stone honing tool is faces on the back of the tool. • Hydraulic and pneumatic
characterized by a cutting, expan- housings
dable honing stone. The tool body Single stone honing tools can also be
contains only one honing-stone slot equipped with extended shafts for
and has therefore excellent stability. counter guidance, which are coated
The honing stone is fully supported with a wear-resistant layer.

Example of designation: TE 25.00- 1 1- 60- 350

Model
Nominal diameter
Number of shoes
Number of cones
Length of honing stone
Connection length

a
L

D d h4

cutting guiding shoes honing cone body coupling


medium diamond or shoe
tungsten carbide

2
Design 1 Design 2 Design 3
with coated back cutting medium cutting medium
cutting medium diamond/CBN diamond/CBN
diamond/CBN guide: diamond/tungsten carbide guide: diamond/tungsten carbide

Honing Dimension Dimension Design Honing shoes Dimension


diameter* a x b [mm] c [mm] diamond/ retraction d [mm]
[mm] diamond/CBN tungsten carbide

2.0–2.4 0.8 – I Bush 17


2.5–3.9 1 – I Bush 17

4 –4.9 1.5 1 II Bush 17


5 –5.9 1.5 2 II Bush 17
6 –9.9 2 2 II Bush 17

10 –11.9 2 × 1.5 2 III Bush 17


12 –15.9 3 ×2 3 III Bush 17
16 –17.9 4×3 4 III Bush 17
18 –19.9 4×3 4 III Spring 17
20 –23.9 5×4 5 III Spring 17
24 –27.9 6×4 6 III Spring 17
28 –31.9 6×4 6 III Spring 20
32 –36.9 6×6 6 III Spring 23
37 –45.9 6×6 6 III Spring 28
46 –54.9 6×6 6 III Spring 32

*The nominal honing diameter and the connection length of the abrasive as well as the guiding shoes must be determined
according to each workpiece. Please contact us for clarifying your special machining requirements.

3
Gehring GmbH & Co. KG

Gehringstraße 28
Position as of: 09/2003

D - 73760 Ostfildern
Telephone: +49 711/34 05-0
Telefax: +49 711/34 05-2 95

Homepage:www.gehring.de
E-Mail: info@gehring.de
