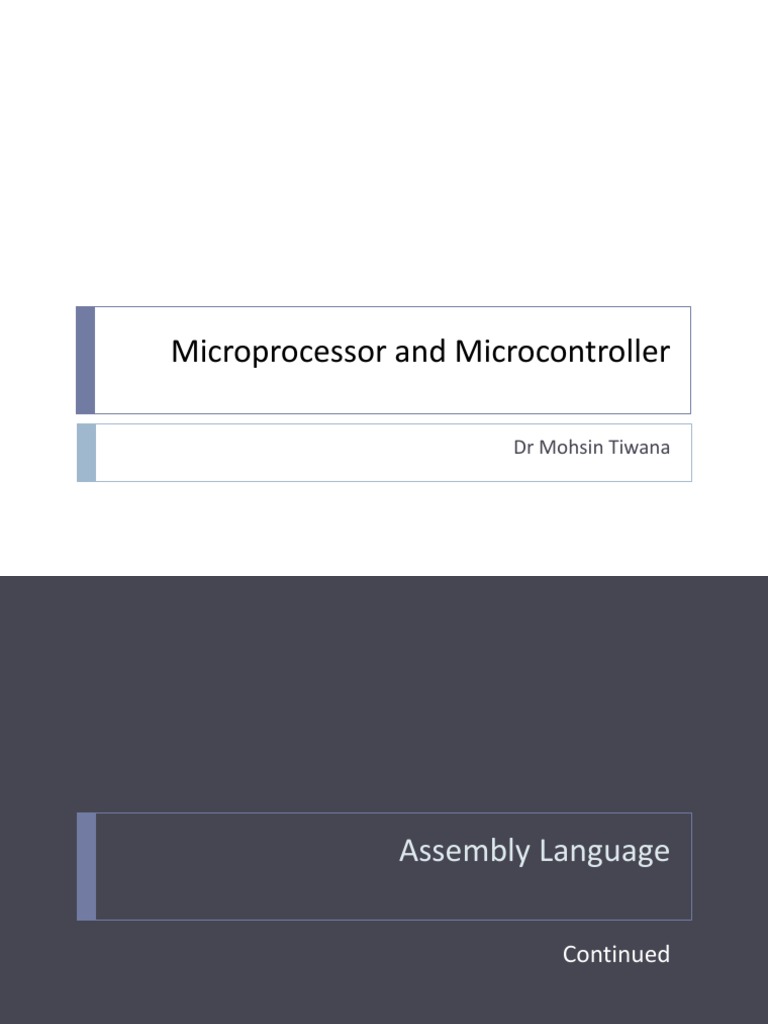

Microprocessor and Microcontroller
Dr Mohsin Tiwana
Assembly Language
Continued
2
Assembly Language
 Addressing Modes
 Types of Instruction
1. Arithmetic
2. Logical
3. Data Transfer
4. Boolean Variables
5. Program Branching
3
Addressing Modes
4
MOV Summary
 MOV [Destination],[Source]
Examples
 MOV A,#55H ; A will be loaded with 55H
 MOV R2, A ; Load value of A in R2
5
1. Immediate Addressing
 Value to be stored in memory immediately follows the
operation code in memory
Or
 The instruction itself dictates the value to be stored in
memory
 Example
MOV A, #20h
 Accumulator will be loaded with the value that
immediately follows; in this case 20h
6
 It is very fast
 Value to be loaded is included in instruction
 The value to be loaded is fixed at compile time – its not

very flexible
7
Examples
 MOV A,#25H
 MOV R4,#62H
 MOV B,#40H
 COUNT EQU 30
 MOV A,#COUNT
 MOV P1,#34
8
Important
 MOV A, #FH ; gives error
 MOV A, #0FH ; OKAY
9
2 . Direct Addressing
 Value to be stored in memory is obtained by directly
retrieving it from another memory location
 Example
MOV A, 30H
 The above instruction will read data from RAM address

30H and put that data in A.
10
 Generally fast, although the value to be stored is not
included in the instruction
 Its quickly accessible since value is stored in 8051’s

Internal RAM
 Much more flexible than immediate addressing. Value to

be loaded is whatever it is found at that location – which
may be variable
 Entire 128 bytes of RAM (0 to FF) can be accessed

11
Examples
 MOV R0, 40H
 MOV 56H, A
 MOV R4, 7FH
12
3. Indirect Addressing
 Also called indirect register addressing
 Very powerful and flexible addressing
 Example
MOV A, @R0
 This instruction analyzes the value of R0. A will be loaded with

value from RAM whose address is found in R0
 For example if R0 holds value 40H and RAM address 40h holds
value of 67H. Then A will have value of 67H
13
 Only R0 and R1 can be used for this purpose
 MOV A,@R0
 MOV @R1, B
 Note: ‘@’ sign is compulsory in order to use Indirect

addressing
14
 This mode makes data access dynamic instead of static
(as in case of direct addressing)
 Only R0 and R1 can be used
 Since these registers are 8 bit, use is restricted to internal

RAM only
15
4. Register Addressing
 In register addressing mode, we directly use the value
stored in register
 8051 has 8 working registers (of the currently active

register bank) R0 to R7
 Examples
MOV A, R7
MOV A, R5
 Contents of R7 and R5 will be moved in above
instructions
16
4. Register Addressing
 Easy to use register name instead of address
 Source and destination registers should match in size
 Move between A and registers is allowed

MOV A, R4 ; OKAY
 Move between registers is not allowed

MOV R7, R4 ; gives error
17
5. Relative Addressing mode
 Used with certain jump instructions
 8 bit signed offset is used, range for jumping is -128 to

127 location
 SJMP [label]
18
6. Absolute Addressing
 Used only with ACALL and AJMP instruction
 It allows branching within 2K limit (11 bit)
19
7. Long Addressing
 Used only with LCALL and LJMP instruction
 Allows branching within 64K limit (16 bit)
20
8. Index Addressing
 Used with JMP and MOVC instruction
 Use base register (either PC or DPTR) and an offset (the
accumulator) in forming the effective address
 MOVC A, @A + DPTR
 JMP @A + DPTR
 It is used for look up table

 Previously we studied how its stored
 We’ll cover its usage later on
21
Instruction Types
22
Types of Instructions
1. Arithmetic
2. Logical
3. Data Transfer
4. Boolean Variable Manipulation
23
1. Arithmetic Instructions
 Addition
 Subtraction
 Multiplication
 Division
 Increment
 Decrement
24
1. Arithmetic Instructions - Addition
ADD
 Addition
 Add A, source ; Add source to A
 Add A, #data ; Add data to A
 Destination operand is always register A
Example
 mov a,#5 ; Set a = 5
 mov b,#10 ; Set b = 10
 Add a,b ; what will be contents of a?
25
ADDC
Addition with carry
 Used in case of adding 16 bit numbers
 High byte and Low Byte are added separately using 2

instructions
 If there is a Carry out from addition of low bytes, it has to

be added in sum of high bytes
26
ADDC
Addition with carry
 Example
Write a program to add two 16 bit numbers 2CE7H and

558DH
27
ADDC
Write a program to add two 16 bit numbers 2CE7H and 558DH
CLR C ;clear carry flag. CY = 0

MOV A, #0E7H ; Load lower byte of 1st number
ADD A, #8DH ; Add lower byte of 2nd number
; now A = 74H and CY = 1;
MOV R0,A ; Move lower byte of sum in R0
MOV A, #2CH ; Load higher byte of 1st number
ADDC A,#55H ; Add with carry
; 2C + 55 + 1 (carry) = 82 H
MOV R1, A ; Move higher byte of sum in R1
28
1. Arithmetic Instructions - Subtraction
SUBB
SUBtract with Borrow
 Subtraction with borrow
 Uses carry flag to read if there is any borrow or not
 Format
SUBB A, Source ; A = A – source – CY
 Before the subtraction, Carry flag means Borrow

 If carry = 0, there is no carry
 If carry = 1, there is a borrow
 Note: There is no subtraction instruction without borrow in

8051 (many microprocessors have it)
29
SUBB
 After the operation

 Carry = 0 if result is POSITIVE
 Carry = 1 if result is NEGATIVE
 Negative result is stored in format of 2’s complement
30
SUBB
 Example
clr C
mov a,#25h
mov r1,#10h
subb a,r1
 What will be value of A?
31
SUBB
 Example
clr C ; set carry flag = 0

mov a,#25h ; A = 25h
mov r1,#10h ; r1 = 10h
subb a,r1 ; a = a – r1 = 25 – 10 = 15

 15h
 Carry = 0
32
SUBB
 Example
setb C
mov a,#25h
mov r1,#10h
subb a,r1
33
SUBB
 Example
setb C ; set carry flag = 1

mov a,#25h ; A = 25h
mov r1,#10h ; r1 = 10h
subb a,r1 ; a = a – r1 – 1 = 25 – 10 – 1 = 14

 14h
 Carry = 0
34
SUBB
 Example
clr C
mov a,#10h
mov r1,#20h
subb a,r1
35
SUBB
 Example
clr C ; set carry flag = 0

mov a,#10h ; A = 10h
mov r1,#20h ; r1 = 20h
subb a,r1 ;a = F0h

 F0h = 1111 0000. Taking 2’s complement (by inverting and adding 1)
 = 0000 1111 + 1 = 0001 0000 = 10h
 Carry = 1. Showing it is a negative number
36
1. Arithmetic Instructions - Multiplication
MUL
 Multiplication
Format
MUL AB
 Multiplies A and B
 Operands must be in A and B
 Result
 A has Low byte
 B has high byte
37
MUL
 Multiplication
Example
mov a,#16
mov b,#4
mul ab
What will be value of A and B?
38
MUL
 Multiplication
Example
mov a,#16
mov b,#4
mul ab

 A = 40h = 64
 B=0
39
1. Arithmetic Instructions - Division
DIV
 Division
Format
DIV AB
 Divide A by B
 Operands must be in A and B
 Result
 A has Quotient
 B has Remainder
40
DIV
Example
mov a,#16
mov b,#4
div ab
41
DIV
Example
mov a,#16
mov b,#4
div ab

 A = 4h
 B=0
42
1. Arithmetic Instructions - Increment
INC
 Increment
Format
INC source
 Adds 1 to source
 Example
 mov r1,#55h
 inc r1
 R1 = 56h
43
1. Arithmetic Instructions - Decrement
DEC
 Decrement
Format
DEC source
 Subtracts 1 from source
 Example
 mov r1,#55h
 dec r1
 R1 = 54h
44
1. Arithmetic Instructions
Important
 Play with arithmetic instructions and see the results
 Good to revise Binary Arithmetic first
45
2. Logical Instructions
 AND
 OR
 Exclusive OR
 Clear
 Complement
 Rotate
 Left
 Right
 SWAP
46
2. Logical Instructions - AND
AND
 Format
ANL destination, source
 Result
destination = destination AND source
 The “destination” is normally Accumulator
47
AND
 Example
mov a,#74h
anl a,#0Fh
What will be value of A?
48
AND
 Example
mov a,#74h
anl a,#0Fh

A = 04h
49
2. Logical Instructions - OR
OR
 Format
ORL destination, source
 Result
destination = destination OR source
50
OR
 Example
mov a,#74h
orl a,#0Fh
51
OR
 Example
mov a,#74h
orl a,#0Fh

A = 7Fh
52
2. Logical Instructions - XOR
XOR (Exclusive OR)
 Format
XRL destination, source
 Result
destination = destination XOR source
53
XOR
 Example
mov a,#74h
xrl a,#0Fh
54
XOR
 Example
mov a,#74h
xrl a,#0Fh

A = 7bh
55
2. Logical Instructions - CLEAR
CLEAR
 Format
CLR operand
 Result
operand = 0
 The “operand” may be Accumulator, carry flag (C), any IO

Port Bit etc
56
2. Logical Instructions - CLEAR
CLEAR
 Example
mov a,#74h
clr a

A=0
57
2. Logical Instructions - COMPLEMENT
CPL
 Format
CPL operand
 Result
All bits of operand inverted
 The “operand” may be Accumulator, carry flag (C), any IO

Port Bit etc
58
CPL
 Example
mov a,#74h
cpl a
59
CPL
 Example
mov a,#74h
cpl a

A = 8Bh
60
2. Logical Instructions – Rotate Left
RL (Rotate Left)
 Format
RL A
 Result
RL: All bits of A shifted to left
 LSB is replaced by MSB
MSB LSB
61
2. Logical Instructions – Rotate Left
RLC (Rotate Left through Carry)
 Format
RLC A
 Result
 Carry bit is included in rotation
CY MSB LSB
62
2. Logical Instructions – Rotate Right
RR (Rotate Right)
 Format
RR A
 Result
All bits of A shifted to right
MSB is replaced by LSB
MSB LSB
63
2. Logical Instructions – Rotate Right
RRC (Rotate Right through Carry)
 Format
RRC A
 Result
 Carry flag is included in rotation
MSB LSB CY
64
2. Logical Instructions – Rotate
Use of Rotate
 Used in bit manipulation
 Rotate Left used as Multiplication
 Rotate Right used as Division
 Less memory required

 Much faster
65
2. Logical Instructions – SWAP
SWAP
 Format
SWAP A
 Result
Swaps lower and higher nibbles
 Works only with accumulator
66
SWAP
 Example
mov a,#74h
swap a
67
SWAP
 Example
mov a,#74h
swap a

A = 47h
68
3. Data Transfer
 MOV
 Addressing Modes
(Already Covered)
 MOVC
 XCH
 PUSH
 POP
69
3. Data Transfer – MOVC
MOVC
 Used to read data (look-up tables etc) stored in ROM
 How to save data in ROM?

 Dbit, DB, DW etc
 Format
MOVC destination, source
 Destination is mostly A
 Source is in ROM
70
MOVC
 Example
Write a program which reads a number from port1 and

sends its square to p2 continuously
71
MOVC
Write a program which reads a number from port1 and sends its
square to p2 continuously
ORG 00h
mov dptr,#300h
Label: mov a,p1
movc a, @a + dptr ; Index Addressing Mode
mov p2,a
jmp Label
ORG 300h
sq: db 0,1,4,9,16,25,36,49,64,81,100
end
72
3. Data Transfer – XCH
XCH
 Exchanges the contents of operands
 Format
XCH A, source
 Example
Mov a,#15h ; A = 15h
Mov r1,#0FEh ; R1 = FEh
XCH a,r1 ; swaps data of A and R1
; A = FEh and R1 = 15h
73
3. Data Transfer – PUSH
PUSH
 Used to Push or store data onto stack
 Stack Pointer (SP) stores the address of current stack

location.
 At power up, SP = 07
 First number will be stored at 08 and so on
 When data is stored (using PUSH) command, SP is

incremented automatically
74
PUSH
 RAM locations 08h to 1Fh

can be used for stack
 RAM locations 20h to 2Fh

are bit-addressable locations
 More space if SP is set to point to

30h to 7Fh i.e. general purpose RAM
75
PUSH
 Format
PUSH expression
 expression must be
 Number of a register
 1 for R1
 2 for R2 and so on
 Address
 Symbol referring to an address
 Note: Accumulator cannot be used with PUSH statement
76
PUSH
 Format
PUSH expression
 Example
Push 3 ; Push contents of R3

Push 1 ; Push contents of R1
Push 55h ; Push value stored at memory location 55h
77
3. Data Transfer – POP
POP
 Format
POP expression
 expression must be
 Number of a register
 1 for R1
 2 for R2 and so on
 Address
 Symbol referring to an address
 Retrieves the value the last value stored by PUSH

 Automatically decrements the SP
78
POP
 Example
mov r7,#85h
mov 80h,#5h
PUSH 7
PUSH 80h
POP 1
POP 75h
mov a,75h
What is this program doing?
79
POP
 Example
mov r7,#85h ; R7 = 85h

mov 80h,#5h ; Store 5h at memory location 80h
PUSH 7 ; Store R7 using PUSH

PUSH 80h ; Store contents of location 80h
POP 1 ; Retrieve last pushed value in R1. R1 = 5h

POP 75h ; Retrieve the current value in stack and save
; it in memory location 75h
mov a,75h ; A = contents of location 75h. A = 85h
80
 CLR
 CLR bit
 Clears the bit i.e. makes the bit = 0
 Examples
 CLR C
 CLR P0^3
 SETB
 SETB bit
 Sets the bit i.e. makes the bit = 1
 Examples
 SETB C
 SETB P2^0
81
 ANL
 ANL bit1,bit2
 Takes logical AND of both bits
 Example
 anl c,P1^7
 ORL
 ORL bit1,bit2
 Takes logical OR of both bits
 Example
 orl c,P3^5
 CPL
 CPL bit
 Inverts the value of bit
 Example
 CPL P0^0
82
 CALL and RET
 Unconditional
 AJMP
 SJMP
 LJMP
 Conditional
 CJNE
 DJNZ
 JZ
 JNZ
 JB
 JNB
 JC
 JNC
83
5. Program Branching – CALL and RET
CALL and RET
 Used to Call Subroutines (SR)
 Format
CALL name ; Calling Subroutine
RET ; Return from SR
 If SR is Interrupt Subroutine (ISR), return is:
RETI ; Return from interrupt SR
84
CALL and RET
 Example
ORG 00h
Call fn1 ; Calling Subroutine fn1
Call fn2 ; Calling Subroutine fn2
Jmp $ ; Infinite Loop
fn1: ….
….
RET What if infinite loop is
fn2: … omitted?
…
RET
85
CALL and RET
Important
 When SR is being executed, PSW can be changed

 Carry Flag
 Auxiliary Carry
 Overflow etc
 All required registers are stored before calling SR and retrieved

after the SR has finished
 PSW
 A
 B
 R0 – R7
86
CALL and RET
Important
 Saving Required registers
1. PUSH them in stack before calling SR

2. POP them from stack after returning from SR
87
5. Program Branching – Unconditional Jumps
SJMP
 Can jump 128 to 127 (8 bit signed) from current address
SJMP REL; REL is 8 bit offset
AJMP
 Can jump to any address represented by 11 bits
AJMP Addr11
LJMP
 Can jump to any address represented by 16 bits
AJMP Addr16
JMP
 We can write JMP and assembler will convert it to
appropriate jump
88
5. Program Branching – Unconditional Jumps
SJMP, AJMP, LJMP
 Example
Org 00h
Main: mov a,#23h
mov a,#25h
mov a, #27h
jmp main ; Automatically decides the appropriate
; Jmp
end
89
5. Program Branching – Conditional Jumps
CJNE
 Compare and Jump if NOT Equal
CJNE A, expression, Label
DJNZ
 Decrement and Jump if NOT Zero
DJNZ, register, Label
JZ
 Jump if Accumulator is Zero
JZ Label
JNZ
 Jump is Accumulator is NOT Zero
JNZ Label
90
JB
 Jump if Bit is set
JB bit, Label
JNB
 Jump if Bit is Not set
JNB bit, label
JC
 Jump if Carry is set
JC Label
JNC
 Jump if Carry NOT set
JNC Label
91
CJNE
 Compare and Jump if NOT Equal
CJNE expression1, expression2, Label
 expression1 may be
 A
 Register (R0 – R7)
 expression2 may be
 Number
 Address
92
CJNE
 Example
mov a,#01h
main: INC a
CJNE A, #09h, main
Jmp $

93
DJNZ
 Decrement and Jump if Not Zero
DJNZ register, Label
 Register may be any register of the active bank
 R0 to R7
 First it decrements the value of register and then checks if

the value is zero or not
94
DJNZ
 Example
mov r7,#05h
main:
DJNZ r7, main
jmp $

95
JZ
 Jump if accumulator is Zero
 Format
JZ expression
 expression may be
 Label
 8 bit signed offset address
96
JZ
 Example
mov a,#1h
main: DEC a
JZ main
jmp $

97
JNZ
 Jump if accumulator is Not Zero
JNZ expression
 Expression may be
 Label
 8 bit signed offset address
98
JNZ
 Example
mov a,#07h
main: DEC a
JNZ main
jmp $

99
JB
 Jump if Bit is set
JB bit, Label
 Example
Mov a,#0Fh
Label: DEC A
mov p0, a
JB P0^3, Label

100
JNB
 Jump if Bit is NOT set
JNB bit, Label
 Example
Mov a,#01h
Label: INC A
mov P0,a
JNB P0^3, Label

101
JC
 Jump if Carry is set
JC Label
JNC
 Jump if Carry Not set
JNC Label
102

Assembly 2 PDF

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Assembly 2 PDF

Uploaded by

Copyright:

Available Formats

Microprocessor and Microcontroller

 MOV A,#55H ; A will be loaded with 55H

 MOV R2, A ; Load value of A in R2

 Value to be loaded is included in instruction

 The value to be loaded is fixed at compile time – its not

 MOV A, #FH ; gives error

 MOV A, #0FH ; OKAY

 The above instruction will read data from RAM address

 Its quickly accessible since value is stored in 8051’s

 Much more flexible than immediate addressing. Value to

 Entire 128 bytes of RAM (0 to FF) can be accessed

 MOV R0, 40H

 MOV R4, 7FH

 Very powerful and flexible addressing

 This instruction analyzes the value of R0. A will be loaded with

 Note: ‘@’ sign is compulsory in order to use Indirect

 Only R0 and R1 can be used

 Since these registers are 8 bit, use is restricted to internal

 8051 has 8 working registers (of the currently active

 Source and destination registers should match in size

 Move between A and registers is allowed

 Move between registers is not allowed

 8 bit signed offset is used, range for jumping is -128 to

 Used only with ACALL and AJMP instruction

 It allows branching within 2K limit (11 bit)

 Used only with LCALL and LJMP instruction

 Allows branching within 64K limit (16 bit)

 It is used for look up table

 Destination operand is always register A

 High byte and Low Byte are added separately using 2

 If there is a Carry out from addition of low bytes, it has to

Write a program to add two 16 bit numbers 2CE7H and

CLR C ;clear carry flag. CY = 0

 Before the subtraction, Carry flag means Borrow

 Note: There is no subtraction instruction without borrow in

 After the operation

 Negative result is stored in format of 2’s complement

 What will be value of A?

clr C ; set carry flag = 0

 What will be value of A?

 What will be value of A?

setb C ; set carry flag = 1

 What will be value of A?

 What will be value of A?

clr C ; set carry flag = 0

 What will be value of A?

What will be value of A and B?

What will be value of A and B?

What will be value of A and B?

What will be value of A and B?

 Play with arithmetic instructions and see the results

 Good to revise Binary Arithmetic first

 The “destination” is normally Accumulator

What will be value of A?

What will be value of A?

 The “destination” is normally Accumulator

What will be value of A?

What will be value of A?

 The “destination” is normally Accumulator

What will be value of A?

What will be value of A?

 The “operand” may be Accumulator, carry flag (C), any IO
