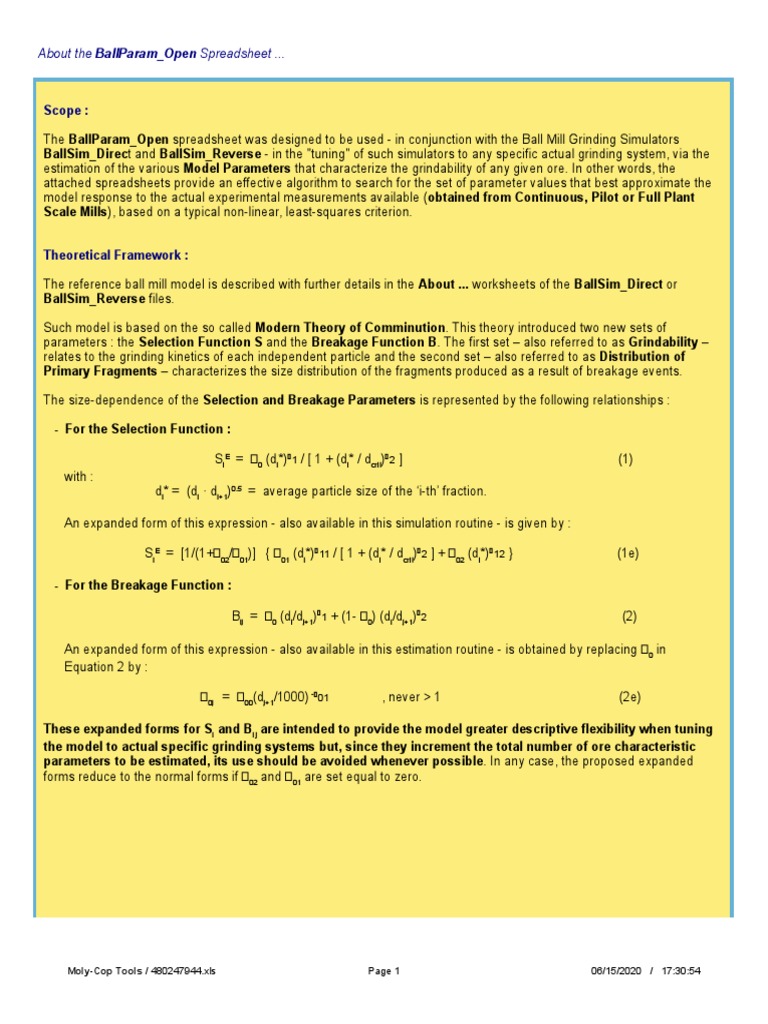

About the BallParam_Open Spreadsheet ...

Scope :

The BallParam_Open spreadsheet was designed to be used - in conjunction with the Ball Mill Grinding Simulators
BallSim_Direct and BallSim_Reverse - in the "tuning" of such simulators to any specific actual grinding system, via the
estimation of the various Model Parameters that characterize the grindability of any given ore. In other words, the
attached spreadsheets provide an effective algorithm to search for the set of parameter values that best approximate the
model response to the actual experimental measurements available (obtained from Continuous, Pilot or Full Plant
Scale Mills), based on a typical non-linear, least-squares criterion.

Theoretical Framework :

The reference ball mill model is described with further details in the About ... worksheets of the BallSim_Direct or
BallSim_Reverse files.

Such model is based on the so called Modern Theory of Comminution. This theory introduced two new sets of
parameters : the Selection Function S and the Breakage Function B. The first set – also referred to as Grindability –
relates to the grinding kinetics of each independent particle and the second set – also referred to as Distribution of
Primary Fragments – characterizes the size distribution of the fragments produced as a result of breakage events.

The size-dependence of the Selection and Breakage Parameters is represented by the following relationships :

- For the Selection Function :

SiE = a0 (di*)a1 / [ 1 + (di* / dcrit)a2 ] (1)

with :
di* = (di · di+1)0.5 = average particle size of the ‘i-th’ fraction.

An expanded form of this expression - also available in this simulation routine - is given by :

SiE = [1/(1+a02/a01)] { a01 (di*)a11 / [ 1 + (di* / dcrit)a2 ] + a02 (di*)a12 } (1e)

- For the Breakage Function :

Bij = b0 (di/dj+1)b1 + (1- b0) (di/dj+1)b2 (2)

An expanded form of this expression - also available in this estimation routine - is obtained by replacing b0 in
Equation 2 by :

b0j = b00(dj+1/1000) -b01 , never > 1 (2e)

These expanded forms for Si and Bij are intended to provide the model greater descriptive flexibility when tuning
the model to actual specific grinding systems but, since they increment the total number of ore characteristic
parameters to be estimated, its use should be avoided whenever possible. In any case, the proposed expanded
forms reduce to the normal forms if a02 and b01 are set equal to zero.

Moly-Cop Tools / 480247944.xls Page 1 06/15/2020 / 17:30:54

Moly-Cop Tools / 480247944.xls Page 2 06/15/2020 / 17:30:54
On the basis of Pilot or Industrial Scale Data, like those typically obtained from plant sampling or audit campaigns, the
BallParam_Open routine allows for the calculation of all a's and b's (including dcrit) that minimize the least-squares
Objective Function :

f = S wi [(fi - fi)/fi]2 (3)

i=1

where the fi's represent the experimental size distribution of the mill product (as % retained on screen 'i' ) and the fi's
represent the model response for each corresponding fi, for a given set of model parameters. The a's and b's (including
dcrit) that yield the minimum possible value of f are so considered to be representative of the particular ore under analysis.

Also in Equation 3, the wi's represent user defined Weighting Factors that quantify the relative quality and reliability of
each particular mesh value with respect to the other screens data. Relatively high values of such weighting factors
indicate more reliable measurements. At the extreme, a wi factor equal to zero means that this particular measurement is
not being included in the Objective Function.

The minimization problem stated above may be readily solved with the aid of the Excel Subroutine Solver.

Data Input and Program Execution :

Most of the data required by the algorithm must be defined in each corresponding unprotected Turquesa background
cell - inside the red double-lined border - of the here attached Data_File worksheet. blue background cells contain the
results of the corresponding formulas there defined and are protected to avoid any accidental editing.

The remaining information required to run the program is entered in the Control_Panel worksheet, where the user is
requested to provide initial guesses of the grinding parameters listed above.

To run the program, select the objective function Cell E27 in Control_Panel and then, from the Tools Menu, select
Solver ..., then Min and then By Changing any combination of Cells E10:E24 (see Useful Hints below). Clicking on the
Solve button will execute the desired calculations.
Important Notice : Solver ... must be run every time any element of input data gets to be modified. Otherwise, the
current outputs are not valid.

Calculation results are summarized in the Reports worksheet.

An interesting feature of this routine is that the user has the option to save for later reference every analyzed data set by
copying the Data_File worksheet into as many as required Test 1, Test 2, etc. worksheets. For reprocessing these data,
simply copy the information back to the Data_File and re-run the Solver routine.

New Moly-Cop Tools users are invited to explore the brief comments inserted in each relevant cell, rendering the whole
utilization of the worksheets self-explanatory. Eventually, the user may wish to remove the view of the comments by
selecting Tools / Options / View / Comments / None.

Moly-Cop Tools / 480247944.xls Page 3 06/15/2020 / 17:30:54

Useful Hints :

The proper utilization of the parameter estimation spreadsheets - like BallParam_Open - is by far the most complex task
to be undertaken with Moly-Cop Tools. There is no set of firm recommendations to obey, but the following hints may help
guiding the user in the search of the most representative set of grinding parameters :

1. It is not required to run the Solver search for all parameters at the same time. In fact, this is strongly not recommended,
as the search algorithm will most likely fail to find the minimizing optimum when dealing with too many parameters at
once. To exclude any given parameter off the search, remove the corresponding cell reference (in the E10:E24 range in
Control_Panel) off the By Changing list of cells in Solver and that parameter value will then remain constant and equal
to its original guess during the whole search.

2. When multiple experimental data sets are available (the most desirable condition) for various ore types (hard, soft,
etc.) or grinding conditions (mill filling, ball size, % solids, etc.), always attempt to obtain a reasonable model fit of these
data with the same average parameter values for all sets. If that is not acceptable, proceed to allow differences in the
most critical parameters in the following sequence : a0, dcrit, b0, a1and b1. Keep in mind that a larger number of adjustable
parameters in the search (that is, included in the By Changing list) will necessarily yield lower Objective Function (Cell
E27) values, but the values of the parameters that achieve such minimum will be less reliable in statistical terms and
therefore, from one data set to another, these parameters will exhibit significant variability and covariance amongst them,
rendering them meaningless.

3. An advisable starting run of the algorithm for each independent available data set should considered a search for
parameters a0, a1, dcrit and b0; leaving the others fix at nominal values : a2 = 3.0, b1 = 0.5 and b2 = 4.0. Use the
green background table below the Control_Panel area to summarize the results of your search with the various
available data sets. Be careful to follow the instructions provided at the bottom of such table. If the model fits
appear to be reasonable, then you should attempt to reduce the number of adjustable parameters. Look for the one
parameter that exhibit the least Coefficient of Variation (the ratio of its standard deviation to its average value, for all
data sets) and set it fix at its average value and equal for all data sets, for the next runs of the search. Continue removing
the remaining adjustable parameters off the By Changing list, one at a time, until the model fit is no longer judged
acceptable. The concept behind this parameter screening process is to lump the impact of whatever ore properties or
process variable are being investigated into the least possible number of parameters in order to improve the statistical
significance of the estimations and facilitate the derivation of valid conclusions regarding such effects. For instance, it is
believed that the distribution of ball sizes in the mill only affects the parameters a0 and dcrit. Similarly, hardness variations
of the same ore source may be well described by changes in the a0 parameter only. Not all grinding systems require a
finite value of dcrit; whenever the estimated value of this parameter tends to be greater than the top mesh opening, set it
fix at 100,000 and remove it from the By Changing list.

4. If the step above does not provide satisfactory model fits, then you should add b1 to the list of adjustable parameters
and eventually, include b01, a02 and a12 (one at a time, in that order). If the model fits are still not satisfactory, there is a
good chance the data contains significant experimental errors and should be discarded.

5. Never run a search for a2 or b2, as these parameters have little effect on the objective function and may just confuse the
search algorithm. When in doubt, simply try assigning them values between 2 and 4 and observe the response of the
Objective Function (Cell E27). In other words, these two parameters are better optimized by a very basic trial-and-error
procedure, not via the Solver routine.

Moly-Cop Tools / 480247944.xls Page 4 06/15/2020 / 17:30:54

Moly-Cop Tools / 480247944.xls Page 5 06/15/2020 / 17:30:54
Moly-Cop Tools TM

BALLPARAM_OPEN : Estimation of Grinding Parameters from Plant Scale Data

Test N° 1
100

SELECTION FUNCTION :

% Passing
alpha0 0.009180
alpha1 0.650
alpha2 2.5
Dcrit 6532
Expanded Form
alpha02 0.0000000 10
alpha12 1.000

BREAKAGE FUNCTION :
Feed
beta0 0.20000 Discharge (Exp.)
beta1 0.250 Discharge (Adjusted)
SiE * 10
beta2 4.0
Expanded Form
beta01 0.000 1
10 100 1000 microns
Particle Size, 10000 100000

Objective Function 0.00 Note : Current calculations are not valid, if SOLVER has not been run after the last data modification.

(*) Suggested Default Values : alpha02 = 0 and beta01 = 0.

Moly-Cop Tools / 480247944.xls 06/15/2020 / 17:30:54

 Moly-Cop Tools TM

BALLPARAM_OPEN : Estimation of Grinding Parameters from Plant Scale Data

Remarks Base Case Example Test N° 1

Mill Dimensions and Operating Conditions 3348 Balls

Diameter Length Speed Charge Balls Interstitial Lift 0 Overfilling
ft ft % Critical Filling,% Filling,% Slurry Filling,% Angle, (°) 536 Slurry
18.50 22.00 72.0 38.00 38.00 100.00 35.00 3885 Net Power
rpm 12.82 10.0 % Losses
4316 Gross kW

% Solids (by weight) 72.0 Charge Mill Charge Weight, tons Apparent Mill Flowrate, tph (dry) 1622.8
Ore Density, ton/m3 2.80 Volume, Ball Slurry Density
Slurry Density, ton/m3 1.86 m3 Charge Interstitial Excess ton/m3 Total Energy, kWh/ton 2.39
Balls Density, ton/m3 7.75 63.76 296.48 47.48 0.00 5.395 Balls Energy, kWh/ton 2.06

Feed Size Distributions Objective Function

Mill Feed Mill Disch. (exp) Mill Disch. (adj) %Ret. (smoothed) % wi wi ABS(error)
i Mesh Opening Mid-Size % Ret % Pass % Ret % Pass % Ret % Pass Exp Adj. Error

1 1.05 25400 100.00 100.00 100.00

2 0.742 19050 21997 0.00 100.00 0.00 100.00 0.00 100.00 3.68 3.68 (0.00) 3 0.00
3 0.525 12700 15554 2.35 97.65 1.12 98.88 1.12 98.88 6.19 6.19 (0.00) 4 0.00
4 0.371 9500 10984 6.65 91.00 2.56 96.32 2.56 96.32 8.47 8.47 (0.00) 5 0.00
5 3 6700 7978 5.98 85.02 2.51 93.81 2.51 93.81 10.84 10.84 (0.00) 5 0.00
6 4 4750 5641 4.83 80.19 2.28 91.53 2.28 91.53 12.44 12.44 (0.00) 5 0.00
7 6 3350 3989 4.43 75.76 2.37 89.16 2.37 89.16 13.04 13.04 (0.00) 5 0.00
8 8 2360 2812 4.41 71.36 2.72 86.44 2.72 86.44 14.66 14.66 (0.00) 5 0.00
9 10 1700 2003 4.49 66.87 3.16 83.28 3.16 83.28 17.23 17.23 (0.00) 5 0.00
10 14 1180 1416 5.38 61.49 4.13 79.16 4.13 79.16 21.06 21.06 (0.00) 5 0.00
11 20 850 1001 5.82 55.67 4.86 74.30 4.86 74.30 25.91 25.91 (0.00) 5 0.00
12 28 600 714 7.07 48.60 6.20 68.10 6.20 68.10 31.51 31.51 (0.00) 5 0.00
13 35 425 505 8.19 40.41 7.57 60.53 7.57 60.53 36.23 36.23 (0.00) 5 0.00
14 48 300 357 8.72 31.68 8.76 51.77 8.76 51.77 39.12 39.12 (0.00) 5 0.00
15 65 212 252 7.72 23.97 8.85 42.92 8.85 42.92 39.02 39.02 0.00 5 0.00
16 100 150 178 5.75 18.22 7.74 35.18 7.74 35.18 35.96 35.96 0.00 5 0.00
17 150 106 126 3.91 14.31 6.10 29.08 6.10 29.08 30.53 30.53 0.00 5 0.00
18 200 75 89 2.59 11.73 4.51 24.57 4.51 24.57 24.08 24.08 (0.00) 5 0.00
19 270 53 63 1.78 9.95 3.33 21.24 3.33 21.24 35.18 35.18 (0.00) 5 0.00
20 400 38 45 1.21 8.74 2.40 18.84 2.40 18.84 29.08 29.08 (0.00) 4 0.00
21 -400 0 19 8.74 0.00 18.84 0.00 18.84 0.00 24.57 24.57 (0.00) 3 0.00

sum 94.00 0.00

Moly-Cop Tools / 480247944.xls 06/15/2020 / 17:30:54

 Moly-Cop Tools TM
Test N° 1
BALL_PARAM
Conventional Grinding Model Parameter Estimator

Remarks : Base Case Example

DESIGN AND OPERATING CONDITIONS

Configuration : OPEN

Throughput, ton/hr 1622.8 Diameter, ft 18.50

Water, m3/hr 631.1 Length, ft 22.00
Slurry, ton/hr 2254.0 Balls Filling, % 38.0
Slurry, m3/hr 1210.7 Speed, % Critical 72.0
Slurry Dens., ton/m3 1.862 App. Dens., ton/m3 5.395
% Solids (by weight) 72.0 Net Power, kW 3884.53
Energy, kWh/ton 2.39

Particle Size Distributions (Cumm. % Passing)

i Mesh Opening Feed Discharge

Exp. Adj.

1 1.05 25400 100.00 100.00 / 100.00 ###

2 0.742 19050 100.00 100.00 / 100.00 ###
3 0.525 12700 97.65 98.88 / 98.88 ###
4 0.371 9500 91.00 96.32 / 96.32 ###
5 3 6700 85.02 93.81 / 93.81 ###
6 4 4750 80.19 91.53 / 91.53 ###
7 6 3350 75.76 89.16 / 89.16 ###
8 8 2360 71.36 86.44 / 86.44 ###
9 10 1700 66.87 83.28 / 83.28 ###
10 14 1180 61.49 79.16 / 79.16 ###
11 20 850 55.67 74.30 / 74.30 ###
12 28 600 48.60 68.10 / 68.10 ###
13 35 425 40.41 60.53 / 60.53 ###
14 48 300 31.68 51.77 / 51.77 ###
15 65 212 23.97 42.92 / 42.92 ###
16 100 150 18.22 35.18 / 35.18 ###
17 150 106 14.31 29.08 / 29.08 ###
18 200 75 11.73 24.57 / 24.57 ###
19 270 53 9.95 21.24 / 21.24 ###
20 400 38 8.74 18.84 / 18.84 ###

D80, microns 4680 1273 / 1273 ###

MODEL PARAMETERS
Selection Breakage
alpha01 0.009180 beta00 0.20000
alpha02 0.0000000 beta01 0.000
alpha11 0.650 beta1 0.250
alpha12 1.000 beta2 4.000

Moly-Cop Tools / 480247944.xls 06/15/2020 / 17:30:54

 alpha2 2.500
Dcrit 6532 Obj. Function 0.00

Moly-Cop Tools / 480247944.xls 06/15/2020 / 17:30:54

Moly-Cop Tools TM

BALLPARAM_OPEN : Estimation of Grinding Parameters from Plant Scale Data

Remarks Base Case Example Test N° 1

Mill Dimensions and Operating Conditions 3348 Balls

Diameter Length Speed Charge Balls Interstitial Lift 0 Overfilling
ft ft % Critical Filling,% Filling,% Slurry Filling,% Angle, (°) 536 Slurry
18.50 22.00 72.0 38.00 38.00 100.00 35.00 3885 Net Power
rpm 12.82 10.0 % Losses
4316 Gross kW

% Solids (by weight) 72.0 Charge Mill Charge Weight, tons Apparent Mill Flowrate, tph (dry) 1622.8
Ore Density, ton/m3 2.80 Volume, Ball Slurry Density
Slurry Density, ton/m3 1.86 m3 Charge Interstitial Excess ton/m3 Total Energy, kWh/ton 2.39
Balls Density, ton/m3 7.75 63.76 296.48 47.48 0.00 5.395 Balls Energy, kWh/ton 2.06

Feed Size Distributions Objective Function

Mill Feed Mill Disch. (exp) Mill Disch. (adj) %Ret. (smoothed) % wi wi ABS(error)
i Mesh Opening Mid-Size % Ret % Pass % Ret % Pass % Ret % Pass Exp Adj. Error

1 1.05 25400 100.00 100.00 100.00

2 0.742 19050 21997 0.00 100.00 0.00 100.00 0.00 100.00 3.68 3.68 (0.00) 3 0.00
3 0.525 12700 15554 2.35 97.65 1.12 98.88 1.12 98.88 6.19 6.19 (0.00) 4 0.00
4 0.371 9500 10984 6.65 91.00 2.56 96.32 2.56 96.32 8.47 8.47 (0.00) 5 0.00
5 3 6700 7978 5.98 85.02 2.51 93.81 2.51 93.81 10.84 10.84 (0.00) 5 0.00
6 4 4750 5641 4.83 80.19 2.28 91.53 2.28 91.53 12.44 12.44 (0.00) 5 0.00
7 6 3350 3989 4.43 75.76 2.37 89.16 2.37 89.16 13.04 13.04 (0.00) 5 0.00
8 8 2360 2812 4.41 71.36 2.72 86.44 2.72 86.44 14.66 14.66 (0.00) 5 0.00
9 10 1700 2003 4.49 66.87 3.16 83.28 3.16 83.28 17.23 17.23 (0.00) 5 0.00
10 14 1180 1416 5.38 61.49 4.13 79.16 4.13 79.16 21.06 21.06 (0.00) 5 0.00
11 20 850 1001 5.82 55.67 4.86 74.30 4.86 74.30 25.91 25.91 (0.00) 5 0.00
12 28 600 714 7.07 48.60 6.20 68.10 6.20 68.10 31.51 31.51 (0.00) 5 0.00
13 35 425 505 8.19 40.41 7.57 60.53 7.57 60.53 36.23 36.23 (0.00) 5 0.00
14 48 300 357 8.72 31.68 8.76 51.77 8.76 51.77 39.12 39.12 (0.00) 5 0.00
15 65 212 252 7.72 23.97 8.85 42.92 8.85 42.92 39.02 39.02 0.00 5 0.00
16 100 150 178 5.75 18.22 7.74 35.18 7.74 35.18 35.96 35.96 0.00 5 0.00
17 150 106 126 3.91 14.31 6.10 29.08 6.10 29.08 30.53 30.53 0.00 5 0.00
18 200 75 89 2.59 11.73 4.51 24.57 4.51 24.57 24.08 24.08 (0.00) 5 0.00

Moly-Cop Tools / 480247944.xls 06/15/2020 / 17:30:54

 19 270 53 63 1.78 9.95 3.33 21.24 3.33 21.24 35.18 35.18 (0.00) 5 0.00
20 400 38 45 1.21 8.74 2.40 18.84 2.40 18.84 29.08 29.08 (0.00) 4 0.00
21 -400 0 19 8.74 0.00 18.84 0.00 18.84 0.00 24.57 24.57 (0.00) 3 0.00

Moly-Cop Tools / 480247944.xls 06/15/2020 / 17:30:54
