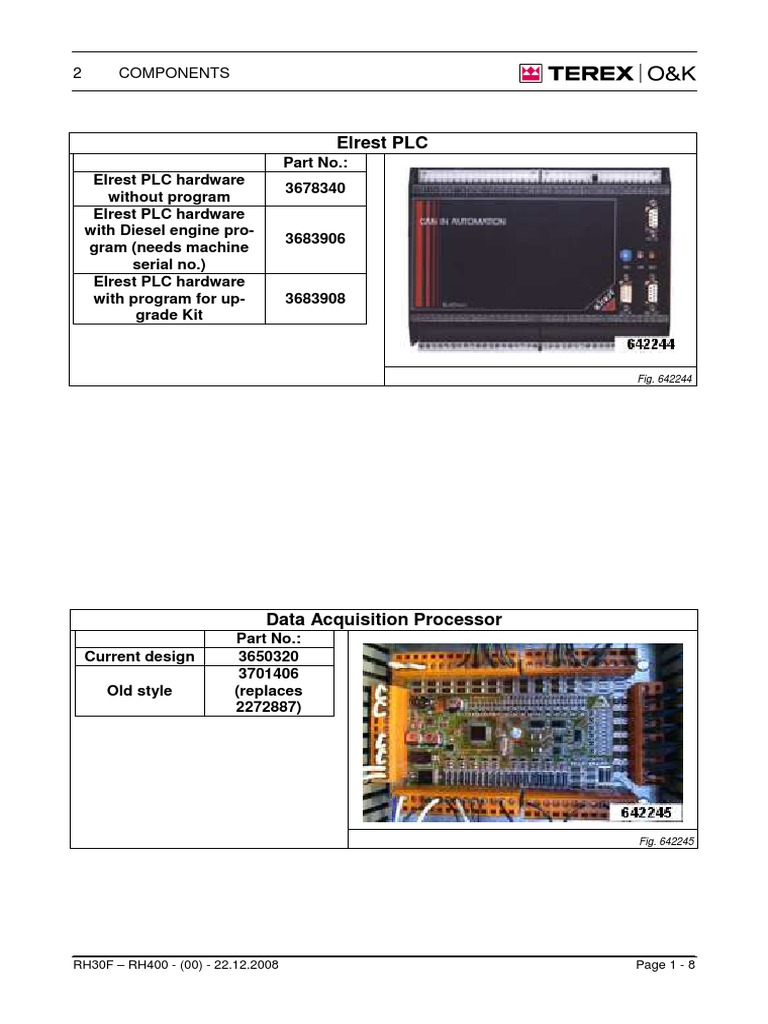

2 COMPONENTS

Elrest PLC
Part No.:
Elrest PLC hardware
3678340
without program
Elrest PLC hardware
with Diesel engine pro-
3683906
gram (needs machine
serial no.)
Elrest PLC hardware
with program for up- 3683908
grade Kit

Fig. 642244

Data Acquisition Processor

Part No.:
Current design 3650320
3701406
Old style (replaces
2272887)

Fig. 642245

RH30F – RH400 - (00) - 22.12.2008 Page 1 - 8

2 COMPONENTS

PMS 4 (factory fitted)

Part No.:
Programmed 3683920
Unprogrammed 3678350

Fig. 642259

BCS Screen
Part No.:
Screen complete
unprogrammed 3673875
Screen complete
3677730
programmed
Screen, front panel
3691147
incl. buttons
Buttons
6002675
Voltage converter
6002764
Flash card pro-
grammed 3705834

Fig. 642247

Page 2 - 8 RH 30F – RH400 - (00) - 22.12.2008

2 COMPONENTS

CMS 2 hand-lever new style handle

Part No.:
Force 14N 3697250
Force 12N 3694055
Force 8N 3694054

Fig. 642248

CMS 2 hand-lever old style handle

Part No.:
Force 14N 3650389

Fig. 642249

CMS 2 main board

Part No.:
Programmed 3677737
Unprogrammed 3650390

Fig. 642250

RH30F – RH400 - (00) - 22.12.2008 Page 3 - 8

2 COMPONENTS

CMS 2 Foot Pedal

Part No.:
Current design 3650397

Fig. 642251

Horn (RH90 – RH400)

Part No.:
Horn 2482894

Fig. 642253

Horn RH 40 (complete kit)

Part No.:
Horn 0524727

Fig. 642254

Page 4 - 8 RH 30F – RH400 - (00) - 22.12.2008

2 COMPONENTS

Handle RH 40 – RH 200 (without CMS)

Part No.:
Handle 1509827
Switches
1537750
(not shown)

Fig. 642255

Cable for joystick switches

Part No.:
Cable 2452779

Fig. 642256

RH30F – RH400 - (00) - 22.12.2008 Page 5 - 8

2 COMPONENTS

Cabinet heater 24V 50W

Part No.:
3701633

Fig. 642257

Thermostat for cabinet heater

Part No.:
3701634

Fig. 642258

Page 6 - 8 RH 30F – RH400 - (00) - 22.12.2008

2 COMPONENTS

Pos. Description Partnumber:

1 handle bar 6000245(CMS1) 6002128 (CMS2)
2 rubber sleeve 6000244
3 button 1476316
4 micro switch 1476317
5 lock washer 1476318
7 socket 6002279
8 nut 6002280
6000377(old handle design)
9 universal joint
6003240 (new handle design)
10 cable tie 0984467
11 rocker switch 6002281
12 handle bar 6003025 (new design)
micro switch
13 6003023 (for new design handle bar)
(double)
14 rocker switch 6003024 (for new design handle bar)

Fig. 642252

RH30F – RH400 - (00) - 22.12.2008 Page 7 - 8

2 COMPONENTS

Preheating element fuel (24V)

Part No.:
2454812

Fig. 642413

Preheating element hydraulic oil (230V)

Part No.:
2454816

Fig. 642414

Auxiliary heating fuel fired

Part No.:
Heater unit 6003791
Installation 6003792
kit (fuel
pump,
hoses etc.)
Glow plug 6003797

Fig. 642422

Page 8 - 8 RH 30F – RH400 - (00) - 22.12.2008

2 COMPONENTS

Cummins PRELUBE timer relay

Part No.:
2479097

Fig. 642417

Cummins PRELUBE cable harness

Part No.:
2479095

Fig. 642415
Cummins PRELUBE oil pressure switch
Part No.:
2479096

Fig. 642416

Cummins PRELUBE starter relay

Part No.:
1439202

Fig. 642419

RH30F – RH400 - (00) - 22.12.2008 Page 9 - 8

2 COMPONENTS

Cummins PRELUBE fuse 300A

Part No.:
6002591

Fig. 642420

Antenna for CD-Radio

Part No.:
2479980

Fig. 642435

Page 10 - 8 RH 30F – RH400 - (00) - 22.12.2008
