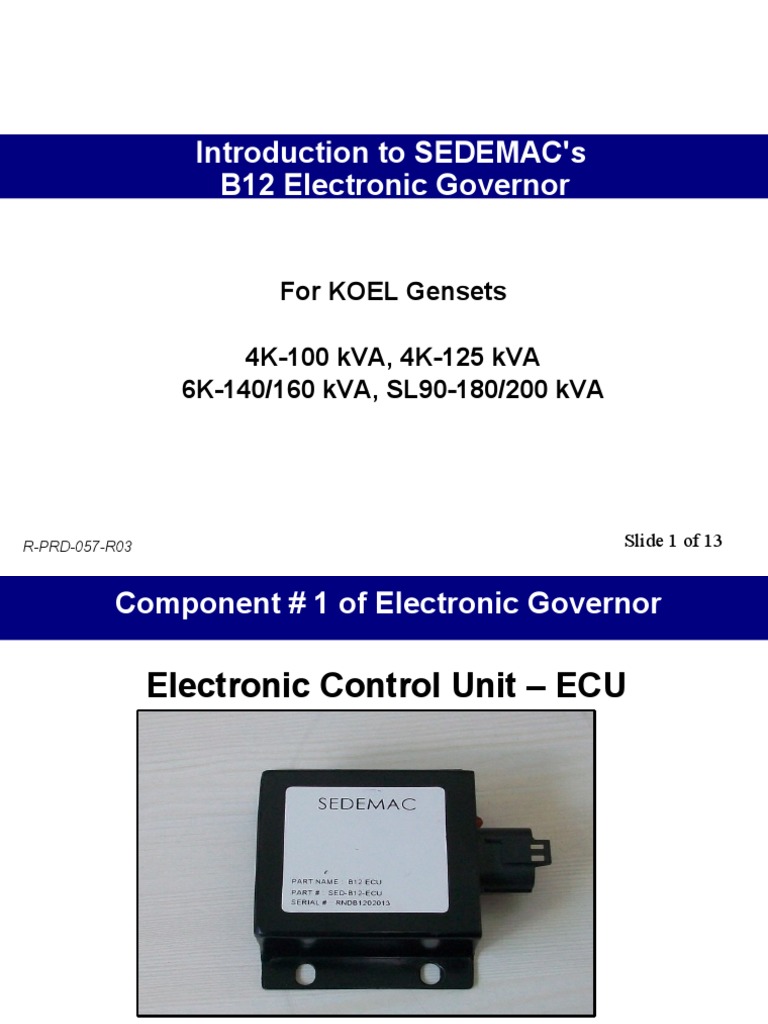

Introduction to SEDEMAC's

B12 Electronic Governor

For KOEL Gensets

4K-100 kVA, 4K-125 kVA


6K-140/160 kVA, SL90-180/200 kVA

R-PRD-057-R03 Slide 1 of 13
Component # 1 of Electronic Governor

Electronic Control Unit – ECU

* Controls the engine speed


* Commands the rotary actuator for FIP
* Receives speed signal from MPU
* Stops engine after receiving STOP signal Slide 2 of 13
Component # 2 of Electronic Governor

Magnetic Speed Pickup Unit (MPU)

* Fitted on engine crank wheel housing


* Send the Engine speed signal to ECU

Slide 3 of 13
Component # 3 of Electronic Governor

Rotary Actuator with Linkage

* Fitted on engine FIP's STOP lever


* Controls the fuel flow from FIP
* Receives command from ECU
Slide 4 of 13
Working of Electronic Governor

ECU

Slide 5 of 13
Working of Electronic Governor

ECU

12V / 24V Power

Battery Slide 6 of 13
Working of Electronic Governor

Engine Speed signal

MPU

ECU

12V / 24V Power

Battery Slide 7 of 13
Working of Electronic Governor

Engine Speed signal

MPU

Engine Stop Signal


ECU

12V / 24V Power


Genset
Control Panel
Battery Slide 8 of 13
Working of Electronic Governor
FIP

Engine Speed signal

MPU

Command
Engine Stop Signal
ECU

Actuator
12V / 24V Power

Genset
Control Panel
Battery Slide 9 of 13
Working of Electronic Governor
FIP

Engine Speed signal

MPU

Command
Engine Stop Signal
ECU

Actuator
12V / 24V Power
Genset
Control Panel
Battery Slide 10 of 13
Connection Block Diagram for Genset Paralleling

12V / 24V Power

Battery
Auto-synchronizer Mode Selection Pin 7
+ Signal Tx
LSM
Make: Woodward / GAC / Speed Bias Pin 9
Deep Sea / DEIF / others Signal SEDEMAC ECU

Mode Selection Signal Speed Bias Signal

(Digital Signal) (Analog Signal: 0.5 to 4.5 V)


0 to 0.8V Solo Mode 0.5V 1450 RPM (target speed)
8 to 28V Paralleling Mode 2.5V 1500 RPM (target speed)
4.5V 1550 RPM (target speed)
Slide 11 of 13
ECU Pin Connections

Connector Function
Pin No.
1, 2 Battery +, GND

3, 4 MPU (speed pickup)

5, 6, 11, 12 4-wire rotary actuator for FIP

10 STOP signal

7 Paralleling mode select, (Tx)

9 Paralleling speed bias

8 Not used

Slide 12 of 13
SEDEMAC's Product Support

Visit www.sedemac.com to know latest details.

Mahesh Kotagi
Ph.No.: 08551039888 / 020 - 30684888
Email: mahesh.kotagi@sedemac.com

Amit Rajawadha
Ph.No.: 08551041888 / 020 - 30684888
Email: amitr@sedemac.com

Anil Ghodekar
Ph.No.: 08551043888 / 020 - 30684888
Email: anil.ghodekar@sedemac.com

Slide 13 of 13
