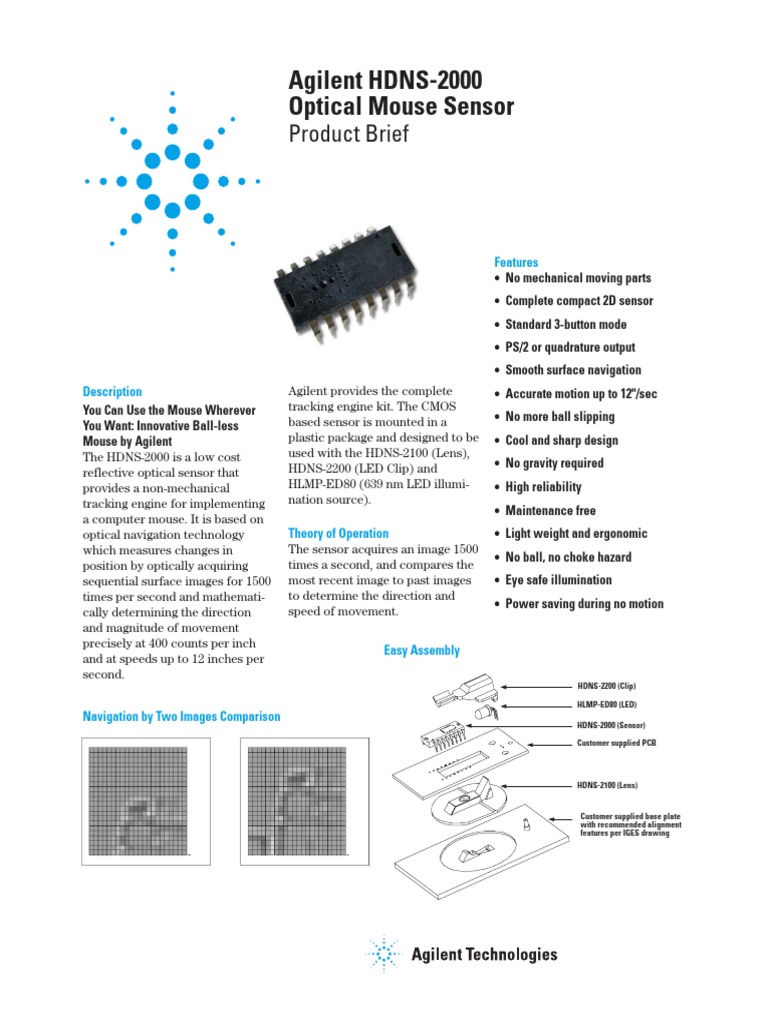

Agilent HDNS-2000
Optical Mouse Sensor
Description
You Can Use the Mouse Wherever
You Want: Innovative Ball-less
Mouse by Agilent
The HDNS-2000 is a low cost
reflective optical sensor that
provides a non-mechanical
tracking engine for implementing
a computer mouse. It is based on
optical navigation technology
which measures changes in
position by optically acquiring
sequential surface images for 1500
times per second and mathemati-
cally determining the direction
and magnitude of movement
precisely at 400 counts per inch
and at speeds up to 12 inches per
second.
Navigation by Two Images Comparison
Product Brief
Agilent provides the complete
tracking engine kit. The CMOS
based sensor is mounted in a
plastic package and designed to be
used with the HDNS-2100 (Lens),
HDNS-2200 (LED Clip) and
HLMP-ED80 (639 nm LED illumi-
nation source).
Theory of Operation
The sensor acquires an image 1500
times a second, and compares the
most recent image to past images
to determine the direction and
speed of movement.
Easy Assembly
Features
• No mechanical moving parts
• Complete compact 2D sensor
• Standard 3-button mode
• PS/2 or quadrature output
• Smooth surface navigation
• Accurate motion up to 12"/sec
• No more ball slipping
• Cool and sharp design
• No gravity required
• High reliability
• Maintenance free
• Light weight and ergonomic
• No ball, no choke hazard
• Eye safe illumination
• Power saving during no motion
HDNS-2200 (Clip)
HLMP-ED80 (LED)
HDNS-2000 (Sensor)
Customer supplied PCB
HDNS-2100 (Lens)
Customer supplied base plate
with recommended alignment
features per IGES drawing
Schematic of USB Mouse

2.7 Ω 2N3906 3.3V

Regulator R1 Value LED
LP2950ACZ-3.3 (Ohms) Bin
0.1 µF 4.7 µF 0.1 µF 69.8 K
1.0 µF 69.8 L
7.5 KΩ 1.5 MΩ R1 69.8 M
69.8 N
0.1 µF 78.7 P
7 93.1 Q
Vdd3 113 R
9 12 5 13 8 137 S
Vdd5 REFB 169 T
0.33 µF CEXT VDD P1.0
14
Vdd5 HLMP-ED80
2 2
P0.1 MODE/XA
SURFACE
VDD P0.0
1 3
XB
HDNS XY_LED
6
2N3904
2000
13 3 4 9
D- D- P0.2 YB OSC1
CYPRESS
D+
14
D+
CY7C63000A-PC P0.3
4 5
YA
10 16 15 11 18.00 MHz Ceramic Resonator such as
GND XTALIN P1.1 NRESET OSC2
15 GND GND PS2_C PS2_D AVX KBR-18.43-MSA or
SHLD 6 MHz P0.2 Murata CSALS18M0X55-B0
10 12 1 16
11
XTALOUT
P0.4 P0.5 P1.2 VSS VPP P0.7 P0.6
20 19 6 7 8 18 17 Internal HDNS
Image 2100
Sensor Lens
Panasonic
Buttons L R M EVQ series encoder

HDNS-2000 Specifications
Parameter Symbol Min. Typ. Max. Units Notes
Operating Temperature TA 0 40 C
Supply Voltage VDD3 3.15 3.3 3.45 V
Supply Voltage VDD5 4.25 5.0 5.5 V
Supply Current IDD3 9.3 15.5 mA
(mouse moving)
Supply Current IDD5 4.7 9.5 mA Pin 6 = 0.6 V
(mouse moving)
Supply Current IDD5 1.9 mA Pin 6 = 0.6 V
(mouse not moving)
Clock Frequency CLK 17.4 18.432 18.7 MHz Set by ceramic resonator
Resonator Impedance XRES 40 Ω
Reset Capacitor CRESET 0.001 0.22 10.0 µF
Depth of Focus 0.5 mm
Speed S 0 12 in/sec
0 30 cm/sec
Acceleration ACC 0 0.15 g
Light level onto IC IRRINC 40 25000 mW/m2 λ = 639 nm
