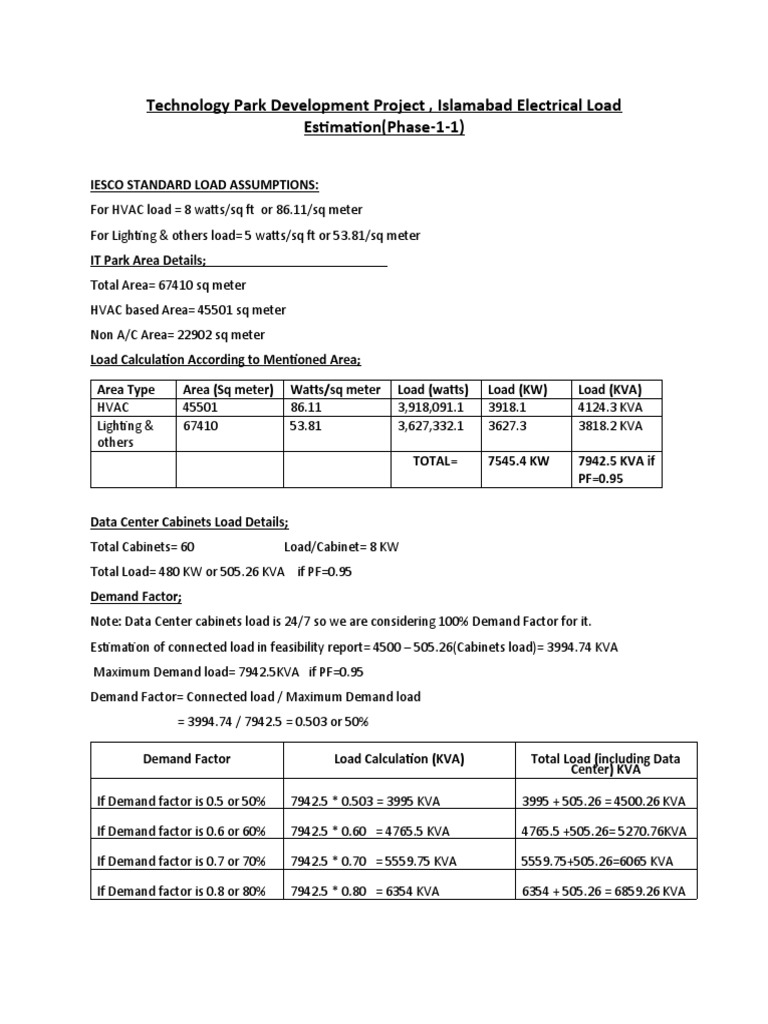

Technology Park Development Project , Islamabad Electrical Load

Estimation(Phase-1-1)

IESCO STANDARD LOAD ASSUMPTIONS:


For HVAC load = 8 watts/sq ft or 86.11/sq meter
For Lighting & others load= 5 watts/sq ft or 53.81/sq meter
IT Park Area Details;
Total Area= 67410 sq meter
HVAC based Area= 45501 sq meter
Non A/C Area= 22902 sq meter
Load Calculation According to Mentioned Area;

Area Type Area (Sq meter) Watts/sq meter Load (watts) Load (KW) Load (KVA)
HVAC 45501 86.11 3,918,091.1 3918.1 4124.3 KVA
Lighting & 67410 53.81 3,627,332.1 3627.3 3818.2 KVA
others
TOTAL= 7545.4 KW 7942.5 KVA if
PF=0.95

Data Center Cabinets Load Details;


Total Cabinets= 60 Load/Cabinet= 8 KW
Total Load= 480 KW or 505.26 KVA if PF=0.95
Demand Factor;
Note: Data Center cabinets load is 24/7 so we are considering 100% Demand Factor for it.
Estimation of connected load in feasibility report= 4500 – 505.26(Cabinets load)= 3994.74 KVA
Maximum Demand load= 7942.5KVA if PF=0.95
Demand Factor= Connected load / Maximum Demand load
= 3994.74 / 7942.5 = 0.503 or 50%

Demand Factor Load Calculation (KVA) Total Load (including Data


Center) KVA

If Demand factor is 0.5 or 50% 7942.5 * 0.503 = 3995 KVA 3995 + 505.26 = 4500.26 KVA

If Demand factor is 0.6 or 60% 7942.5 * 0.60 = 4765.5 KVA 4765.5 +505.26= 5270.76KVA

If Demand factor is 0.7 or 70% 7942.5 * 0.70 = 5559.75 KVA 5559.75+505.26=6065 KVA

If Demand factor is 0.8 or 80% 7942.5 * 0.80 = 6354 KVA 6354 + 505.26 = 6859.26 KVA
NOTE: The Recommended practice of considering Demand Factor in Pakistan is 0.8 or 80%.
