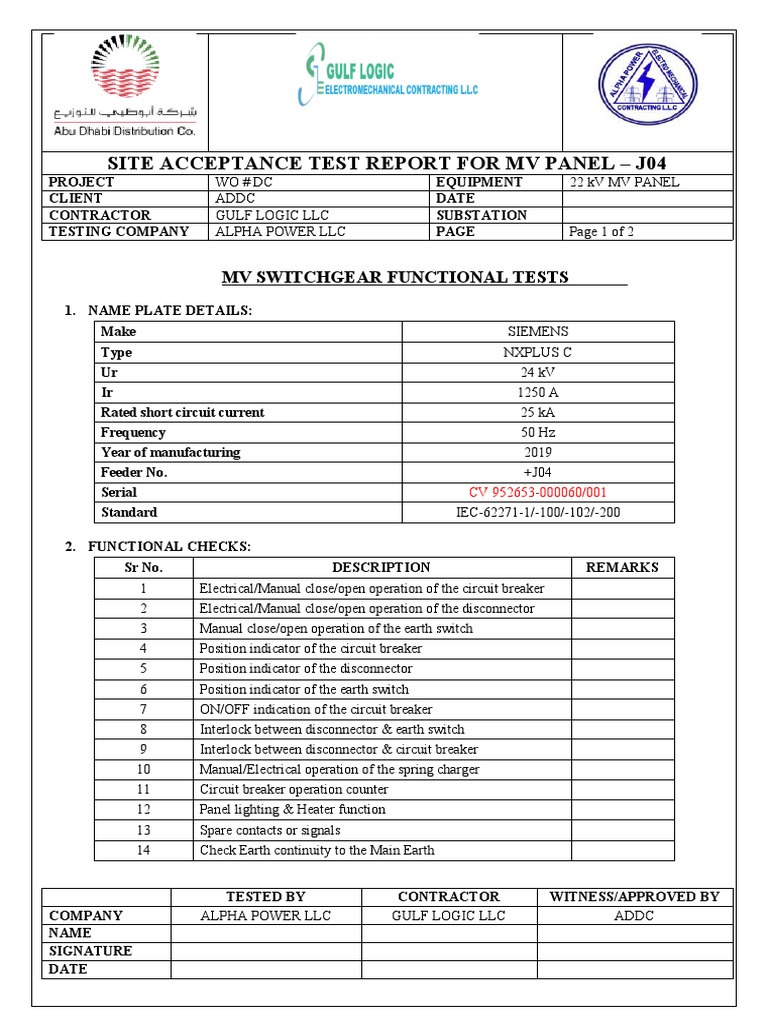

SITE ACCEPTANCE TEST REPORT FOR MV PANEL – J04

PROJECT WO # DC EQUIPMENT 22 kV MV PANEL


CLIENT ADDC DATE
CONTRACTOR GULF LOGIC LLC SUBSTATION
TESTING COMPANY ALPHA POWER LLC PAGE Page 1 of 2

MV SWITCHGEAR FUNCTIONAL TESTS


1. NAME PLATE DETAILS:
Make SIEMENS
Type NXPLUS C
Ur 24 kV
Ir 1250 A
Rated short circuit current 25 kA
Frequency 50 Hz
Year of manufacturing 2019
Feeder No. +J04
Serial CV 952653-000060/001
Standard IEC-62271-1/-100/-102/-200

2. FUNCTIONAL CHECKS:
Sr No. DESCRIPTION REMARKS
1 Electrical/Manual close/open operation of the circuit breaker
2 Electrical/Manual close/open operation of the disconnector
3 Manual close/open operation of the earth switch
4 Position indicator of the circuit breaker
5 Position indicator of the disconnector
6 Position indicator of the earth switch
7 ON/OFF indication of the circuit breaker
8 Interlock between disconnector & earth switch
9 Interlock between disconnector & circuit breaker
10 Manual/Electrical operation of the spring charger
11 Circuit breaker operation counter
12 Panel lighting & Heater function
13 Spare contacts or signals
14 Check Earth continuity to the Main Earth

TESTED BY CONTRACTOR WITNESS/APPROVED BY


COMPANY ALPHA POWER LLC GULF LOGIC LLC ADDC
NAME
SIGNATURE
DATE
SITE ACCEPTANCE TEST REPORT FOR MV PANEL – J04
PROJECT WO # DC EQUIPMENT 22 kV MV PANEL
CLIENT ADDC DATE
CONTRACTOR GULF LOGIC LLC SUBSTATION
TESTING COMPANY ALPHA POWER LLC PAGE Page 2 of 2

MV SWITCHGEAR CB TIMING TEST

1. TIMING TEST:

BREAKAR OPERATING Time Measured(ms)


SI No.
OPERATION CURRENT(A) L1 L2 L3
1 OPEN
2 CLOSE

2. REMARKS:

3. TEST EQUIPMENT DETAILS:

Description of Test Equipment Serial Number Calibration Due Date

Circuit Breaker Analyzer-EGIL


Secondary Injection Kit

TESTED BY CONTRACTOR WITNESS/APPROVED BY


COMPANY ALPHA POWER LLC GULF LOGIC LLC ADDC
NAME
SIGNATURE
DATE
