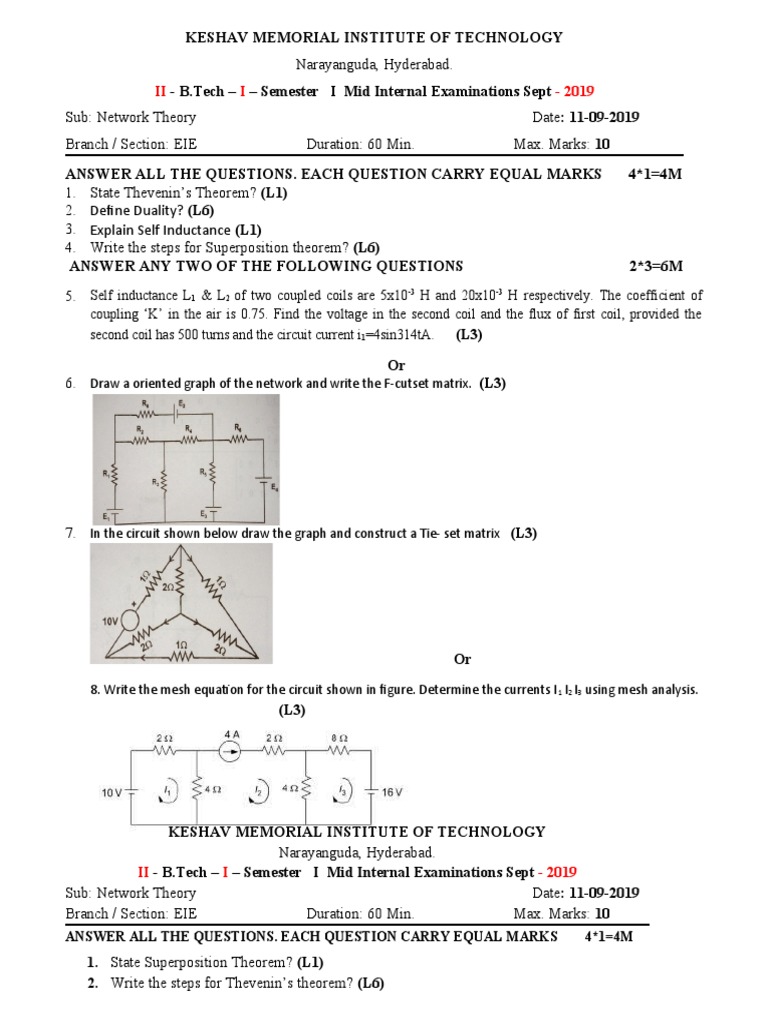

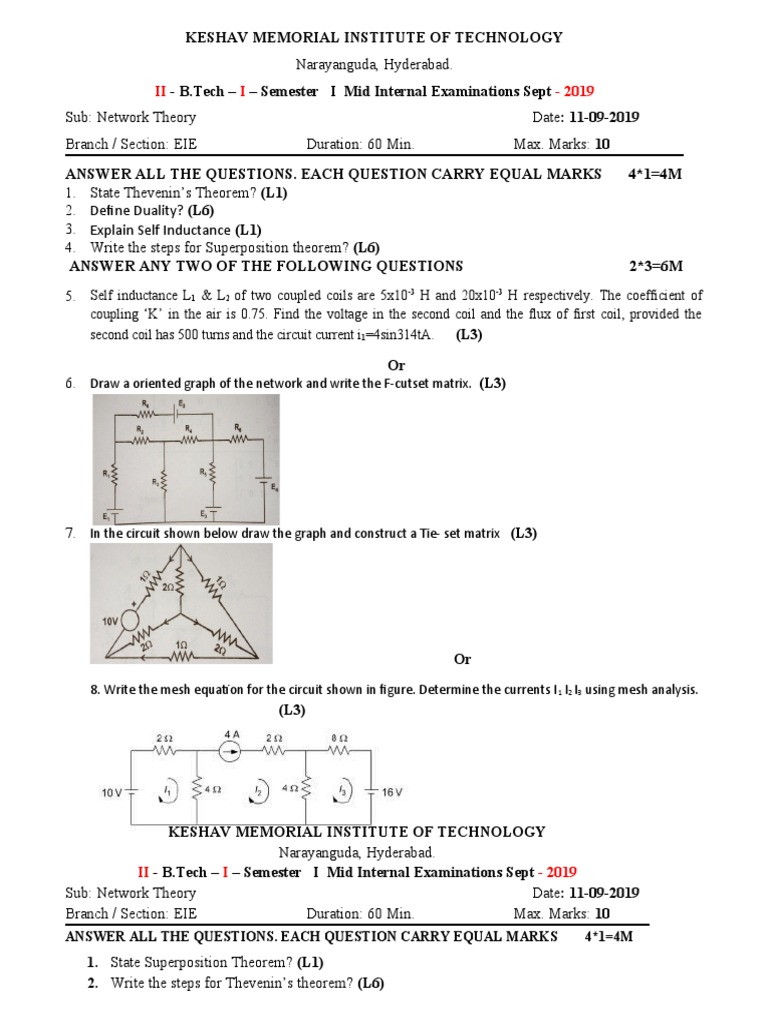

KESHAV MEMORIAL INSTITUTE OF TECHNOLOGY

Narayanguda, Hyderabad.
II - B.Tech – I – Semester I Mid Internal Examinations Sept - 2019
Sub: Network Theory Date: 11-09-2019
Branch / Section: EIE Duration: 60 Min. Max. Marks: 10
ANSWER ALL THE QUESTIONS. EACH QUESTION CARRY EQUAL MARKS 4*1=4M
1. State Thevenin’s Theorem? (L1)
2. Define Duality? (L6)
3. Explain Self Inductance (L1)
4. Write the steps for Superposition theorem? (L6)
ANSWER ANY TWO OF THE FOLLOWING QUESTIONS 2*3=6M
5. Self inductance L1 & L2 of two coupled coils are 5x10 -3 H and 20x10-3 H respectively. The coefficient of
coupling ‘K’ in the air is 0.75. Find the voltage in the second coil and the flux of first coil, provided the
second coil has 500 turns and the circuit current i 1=4sin314tA. (L3)
Or
6. Draw a oriented graph of the network and write the F-cutset matrix. (L3)

7. In the circuit shown below draw the graph and construct a Tie- set matrix (L3)

Or
8. Write the mesh equation for the circuit shown in figure. Determine the currents I 1 I2 I3 using mesh analysis.
(L3)

KESHAV MEMORIAL INSTITUTE OF TECHNOLOGY

Narayanguda, Hyderabad.
II - B.Tech – I – Semester I Mid Internal Examinations Sept - 2019
Sub: Network Theory Date: 11-09-2019
Branch / Section: EIE Duration: 60 Min. Max. Marks: 10
ANSWER ALL THE QUESTIONS. EACH QUESTION CARRY EQUAL MARKS 4*1=4M
1. State Superposition Theorem? (L1)
2. Write the steps for Thevenin’s theorem? (L6)
 3. Explain Mutual Inductance. (L1)
4. Write the different dual Quantities. (L6)
ANSWER ANY TWO OF THE FOLLOWING QUESTIONS 2*3=6M

5. Find the voltage V0 in the circuit diagram

(L3)

or

6. Using mesh analysis, determine what value in VS in figure will cause VX=0
(L3)

7. Find the current I in the circuit shown in figure using Superposition theorem (L3)

Or
With the help of nodal analysis find V1 and I2 in the circuit (L4)
8.

KESHAV MEMORIAL INSTITUTE OF TECHNOLOGY

Narayanguda, Hyderabad.
II - B.Tech – I – Semester I Mid Internal Examinations Sept - 2019
Sub: Network Theory Date: 11-09-2019
Branch / Section: EIE Duration: 60 Min. Max. Marks: 10
ANSWER ALL THE QUESTIONS. EACH QUESTION CARRY EQUAL MARKS 4*1=4M
1. Write the formula to calculate Coefficient of Coupling? (L6)
2. Write the steps for Norton’s theorem? (L6)
 3. Difference between Self Inductance and Mutual Inductance.(L3)
4. Write the steps for Converting into dual network (L6)
ANSWER ANY TWO OF THE FOLLOWING QUESTIONS 2*3=6M
5. Write the mesh equation for the circuit by Inspection
Method (L3)

Or
6. Determine the current supplied by each battery in circuit (L3)

7. Find the Voltage across 5 ohm resistor in the circuit shown using Superposition theorem (L3)

Or
8.Draw the dual of the circuit (L3)
