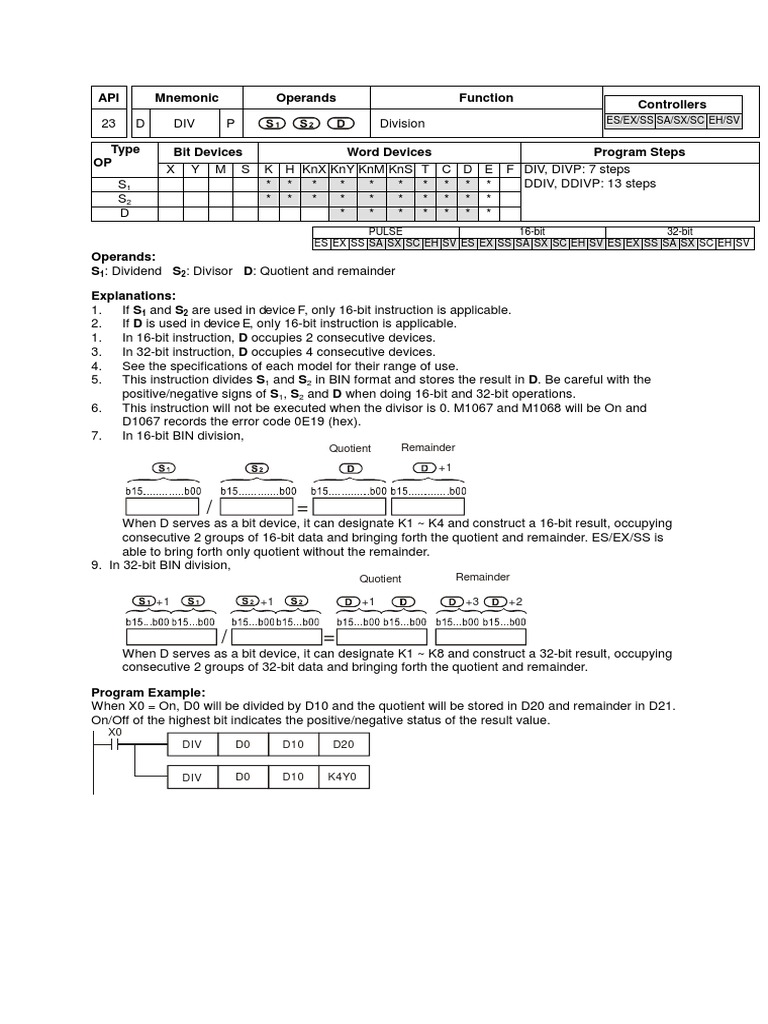

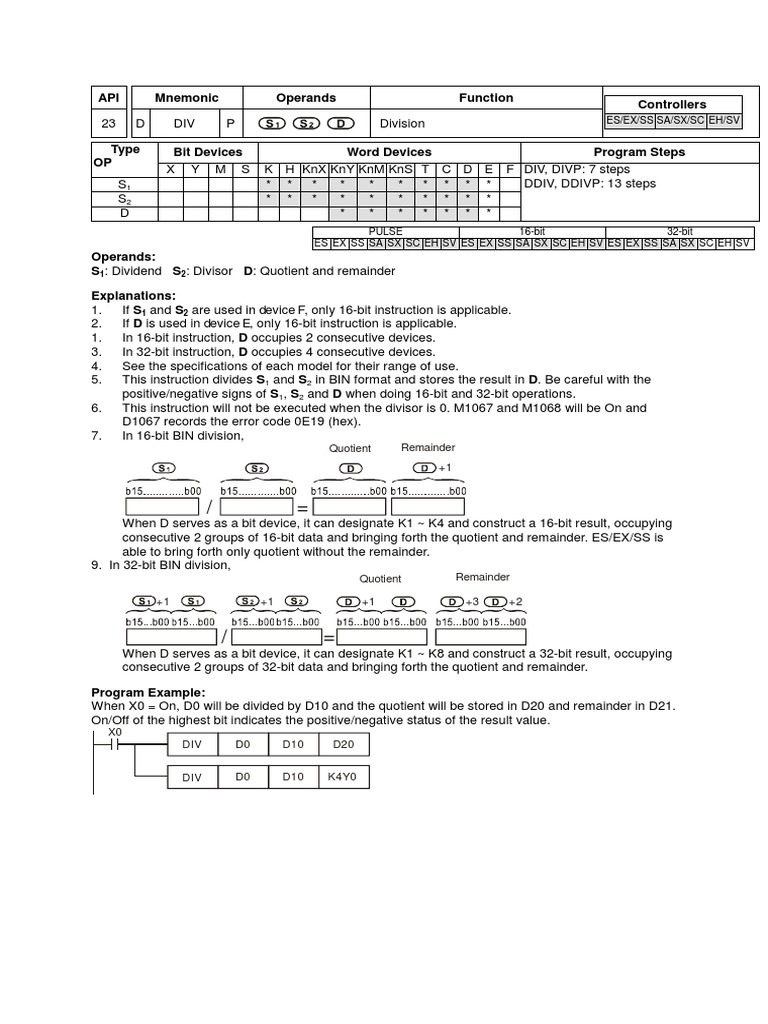

API Mnemonic Operands Function

Controllers
23 D DIV P Division ES/EX/SS SA/SX/SC EH/SV

Type Bit Devices Word Devices Program Steps

OP
X Y M S K H KnX KnY KnM KnS T C D E F DIV, DIVP: 7 steps
S1 * * * * * * * * * * DDIV, DDIVP: 13 steps
S2 * * * * * * * * * *
D * * * * * * *
PULSE 16-bit 32-bit
ES EX SS SA SX SC EH SV ES EX SS SA SX SC EH SV ES EX SS SA SX SC EH SV
Operands:
S1: Dividend S2: Divisor D: Quotient and remainder

Explanations:
1. If S1 and S2 are used in device F, only 16-bit instruction is applicable.
2. If D is used in device E, only 16-bit instruction is applicable.
1. In 16-bit instruction, D occupies 2 consecutive devices.
3. In 32-bit instruction, D occupies 4 consecutive devices.
4. See the specifications of each model for their range of use.
5. This instruction divides S1 and S2 in BIN format and stores the result in D. Be careful with the
positive/negative signs of S1, S2 and D when doing 16-bit and 32-bit operations.
6. This instruction will not be executed when the divisor is 0. M1067 and M1068 will be On and
D1067 records the error code 0E19 (hex).
7. In 16-bit BIN division,
Quotient Remainder
+1

/ =
When D serves as a bit device, it can designate K1 ~ K4 and construct a 16-bit result, occupying
consecutive 2 groups of 16-bit data and bringing forth the quotient and remainder. ES/EX/SS is
able to bring forth only quotient without the remainder.
9. In 32-bit BIN division,
Quotient Remainder

+1 +1 +1 +3 +2

/ =
When D serves as a bit device, it can designate K1 ~ K8 and construct a 32-bit result, occupying
consecutive 2 groups of 32-bit data and bringing forth the quotient and remainder.

Program Example:
When X0 = On, D0 will be divided by D10 and the quotient will be stored in D20 and remainder in D21.
On/Off of the highest bit indicates the positive/negative status of the result value.
X0
DIV D0 D10 D20

DIV D0 D10 K4Y0
