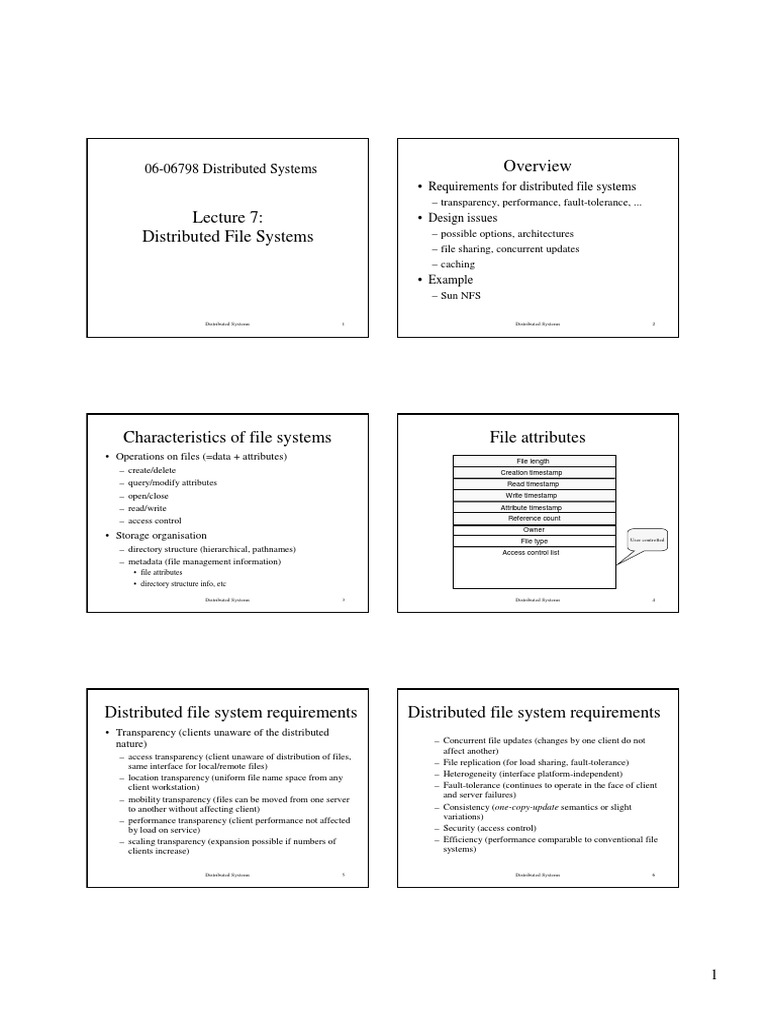

06-06798 Distributed Systems Overview

• Requirements for distributed file systems

– transparency, performance, fault-tolerance, ...
Lecture 7: • Design issues
Distributed File Systems – possible options, architectures
– file sharing, concurrent updates
– caching
• Example
– Sun NFS

Distributed Systems 1 Distributed Systems 2

Characteristics of file systems File attributes

• Operations on files (=data + attributes) File length
– create/delete Creation timestamp
– query/modify attributes Read timestamp
– open/close Write timestamp
– read/write Attribute timestamp

– access control Reference count

Owner
• Storage organisation User controlled
File type
– directory structure (hierarchical, pathnames) Access control list
– metadata (file management information)
• file attributes
• directory structure info, etc

Distributed Systems 3 Distributed Systems 4

Distributed file system requirements Distributed file system requirements

• Transparency (clients unaware of the distributed
nature)
– access transparency (client unaware of distribution of files,
same interface for local/remote files)
– location transparency (uniform file name space from any
client workstation)
– mobility transparency (files can be moved from one server
to another without affecting client)
– performance transparency (client performance not affected
by load on service)
– scaling transparency (expansion possible if numbers of
clients increase)
– Concurrent file updates (changes by one client do not
affect another)
– File replication (for load sharing, fault-tolerance)
– Heterogeneity (interface platform-independent)
– Fault-tolerance (continues to operate in the face of client
and server failures)
– Consistency (one-copy-update semantics or slight
variations)
– Security (access control)
– Efficiency (performance comparable to conventional file
systems)

Distributed Systems 5 Distributed Systems 6

1
 File Service Design Options File Service Design Options
• Stateful • Stateless
– server holds information on open files, current position, file – no state information held by server
locks – file operations idempotent, must contain all information
– open before access, close after needed (longer message)
– better performance - shorter message, read-ahead possible – simpler file server design
– server failure - lose state – can recover easily from client or server crash
– client failure - tables fill up – locking requires extra lock server to hold state
– can provide file locks

Distributed Systems 7 Distributed Systems 8

File server architecture

File Service Architecture Text names
Components (for openness):
to UFIDs
• Flat file service
Client computer Server computer
– operations on file contents
Application Application Directory service – unique file identifiers (UFIDs)
program program – translates UFIDs to file locations
• Directory service
RPC Flat file service – mapping between text names to UFIDs
Client module • Client module
– API for file access, one per client computer
– holds state: open files, positions
– knows network location of flat file & directory server
API: knows open files, positions... UFIDs
opns on contents
Distributed Systems 9 Distributed Systems 10

Flat file service RPC interface Access control

• Used by client modules, not user programs • In UNIX file system
– FileId (UFID) uniquely identifies file – access rights are checked against the access mode (read,
– invalid if file not present or inappropriate access write, execute) in open
– Read/Write; Create/Delete; Get/SetAttributes – user identity checked at login time, cannot be tampered with
• No open/close! (unlike UNIX)
• In distributed systems
– access immediate with FileId
– access rights must be checked at server
– Read/Write identify starting point
• RPC unprotected
• Improved fault-tolerance • forging identity possible, a security risk
– operations idempotent except Create, can be repeated (at- – user id typically passed with every request (e.g. Sun NFS)
least-once RPC semantics)
– stateless
– stateless service

Distributed Systems 11 Distributed Systems 12

2
 File names
Directory structure Text name (=directory pathname+file name)
• Hierarchical • hostname:local name
– tree-like, pathnames from root – not mobility transparent
– (in UNIX) several names per file (link operation) • uniform name structure (same name space for all
• Naming system clients)
– implemented by client module, using directory service • remote mount (e.g. Sun NFS)
– root has well-known UFID – remote directory inserted into local directory
– locate file following path from root – relies on clients maintaining consistent naming
conventions across all clients
• all clients must implement same local tree
• must mount remote directory into the same local directory
Distributed Systems 13 Distributed Systems 14

Remote mount Directory service

Server 1 Client Server 2 • Directory
(root) (root) (root)
– conventional file (client of the flat file service)
– mapping from text names to UFIDs
export ... vmunix usr nfs • Operations
– require FileId, machine readable UFID as parameter
Remote Remote – locate file (LookUp)
people students x staff users
mount mount – add/delete file (AddName/UnName)
big jon bob ... jim ann jane joe – match file names to regular expression (GetNames)

Note: The file system mounted at /usr/students in the client is actually the sub-tree located at /export/people in Server 1;
the file system mounted at /usr/staff in the client is actually the sub-tree located at /nfs/users in Server 2.

Distributed Systems 15 Distributed Systems 16

File sharing Example: Sun NFS (1985)

• Structure of flat file & client & directory service
Multiple clients share the same file for read/write access. • NFS protocol
• One-copy update semantics – RPC based, OS independent (originally UNIX)
– every read sees the effect of all previous writes • NFS server
– a write is immediately visible to clients who have the file – stateless (no open/close)
open for reading – no locks or concurrency control
• Problems! – no replication with updates
– caching: maintaining consistency between several copies • Virtual file system, remote mount
difficult to achieve • Access control (user id with each request)
– serialise access by using file locks (affects performance) – security loophole (modify RPC to impersonate user…)
– trade-off between consistency and performance • Client and server caching

Distributed Systems 17 Distributed Systems 18

3
 NFS architecture File identifier (FileId)
Client computer Server computer
Simple Solution
– i-node (number identifying file Server address Index
Application Application
program program
within file system)
UNIX – file migration requires finding IP address.socket i-node number
system calls
UNIX kernel and changing all FileIds
UNIX kernel Virtual file system Virtual file system – UNIX reuses i-node numbers
Local Remote
after file deleted (i-node gen. no)
file system

UNIX NFS NFS UNIX NFS file handle

file file
Other

client server
system
NFS
system Virtual file system uses i-node if local, file handle if remote.
protocol

File handle
File system identifier i-node no. i-node gener. no.
RPC (UDP or TCP)
Distributed Systems 19 Distributed Systems 20

Caching in NFS Server caching

• Store data in server memory
• Indispensable for performance
• Read-ahead: anticipate which pages to read
• Caching
– retains recently used data (file pages, directories, file
• Delayed write
attributes) in cache – update in cache; write to disk periodically (UNIX sync to
– updates data in cache for speed synchronise cache) or when space needed
– which contents seen by users depends on timing
– block size typically 8kbytes
• Server caching • Write through
– cache and write to disk (reliable, poor performance)
– cache in server memory (UNIX kernel)
• Client caching • Write on close
– cache in client memory, local disk – write to disk only when commit received (fast but
problems with files open for a long time)
Distributed Systems 21 Distributed Systems 22

Client caching
• Potential consistency problems! Summary
– different versions, portions of files, check if copy still valid • File service
• Timestamp method – crucial to the running of a distributed system
– tag with latest time of validity check and modification time – performance, consistency and easy recovery essential
– copy valid if time since last check less than freshness
interval, or modification time on server the same • Design issues
– choose freshness interval adaptively – separate flat file service from directory service and client
module
• Reads
– perform validity check, if not valid, request data from server, – stateless for performance and fault-tolerance
optimisations – caching for performance
• Writes – concurrent updates difficult with caching
– After modification, marked as dirty and flushed – approximation of one-copy update semantics
• Not truly one-copy update semantics...
Distributed Systems 23 Distributed Systems 24
