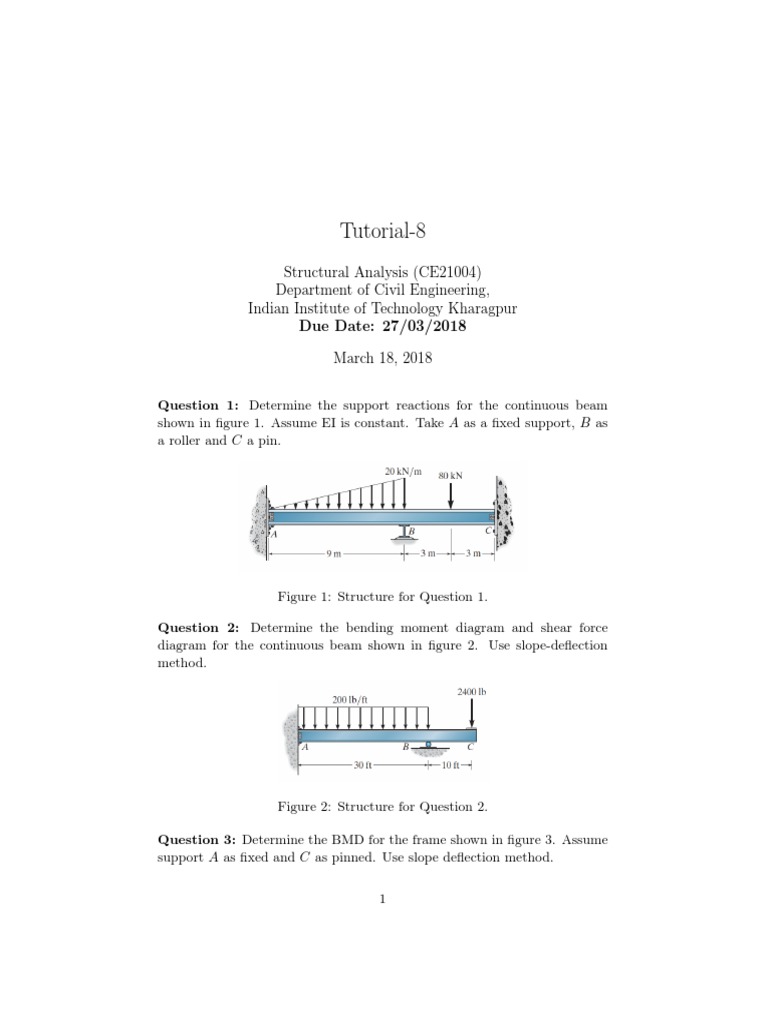

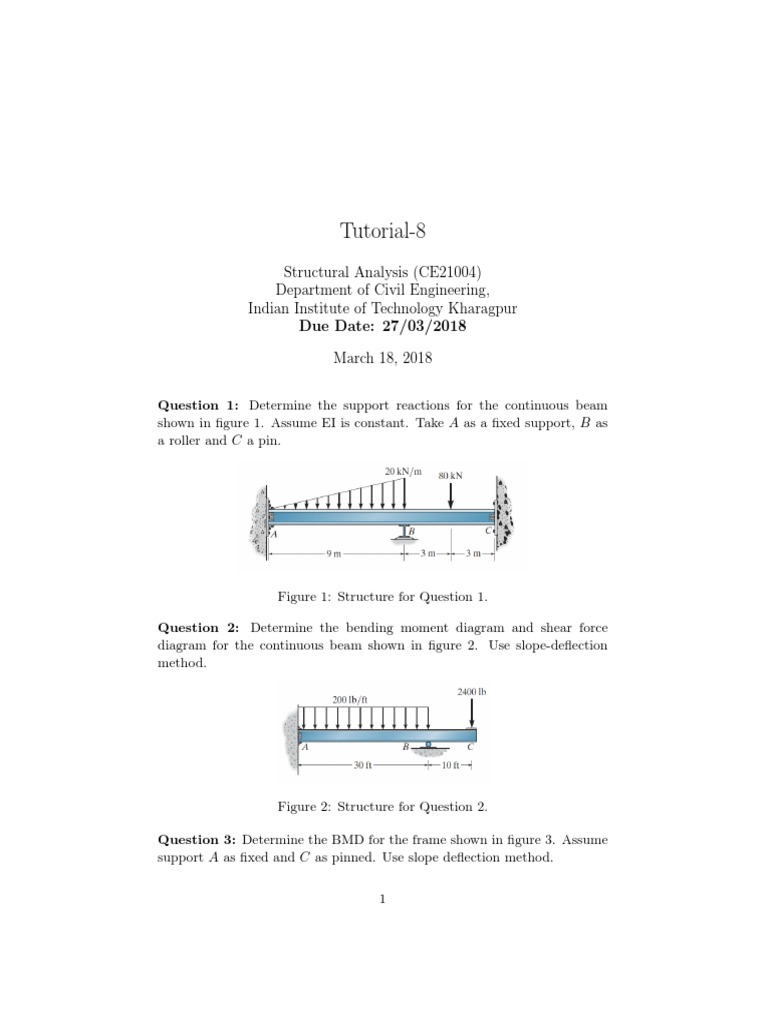

Tutorial-8

Structural Analysis (CE21004)

Department of Civil Engineering,
Indian Institute of Technology Kharagpur
Due Date: 27/03/2018

March 18, 2018

Question 1: Determine the support reactions for the continuous beam

shown in figure 1. Assume EI is constant. Take A as a fixed support, B as
a roller and C a pin.

Figure 1: Structure for Question 1.

Question 2: Determine the bending moment diagram and shear force

diagram for the continuous beam shown in figure 2. Use slope-deflection
method.

Figure 2: Structure for Question 2.

Question 3: Determine the BMD for the frame shown in figure 3. Assume
support A as fixed and C as pinned. Use slope deflection method.

1
 Figure 3: Structure for Question 3.

Question 4: Draw BMD for the girder BCE using slope deflection method
for the structure shown in figure 4. Assume all joints except C are pinned.
Joint C is fixed. Take EI to be constant for all members. Use slope-
deflection.

Figure 4: Structure for Question 4.

Question 5: What are the advantages of slope-deflection method over force

method.
Question 6: Calculate the end moments and joint rotations for the con-
tinuous beam shown bellow. The beam has constant EI for both the span.
Use slope deflection method.

2
 Figure 5: Structure for Question 6.

Question 7: Draw the bending moment and shear force diagram for the
following beam using slope deflection method. E = 200 GP a and I =
200 × 106 mm4 . Support B settles 10 mm.

Figure 6: Structure for Question 7.

Question 8: Draw the bending moment diagram for the following frame
using slope deflection method. EI is constant for all members.

Figure 7: Structure for Question 8.

Question 9: Draw the bending moment and shear force diagram for the
following frame using slope deflection method. E = 200 GP a and I =
800 × 106 mm4 . Assume members are prismatic and inextensible. A and D

3
are fixed support. B is rigid joint and C is pinned joint.

Figure 8: Structure for Question 9.

Question 10: Calculate the end moments of the frame shown bellow. Take
constant EI. Use slope deflection method.

Figure 9: Structure for Question 10.
