O/o CGMT UP (East), Telecom Circle

2nd Floor, Mahanagar Telephone Exchange

Mahanagar, Lucknow-226006
Ph: 0522-2327960 Fax: 0522-2327970

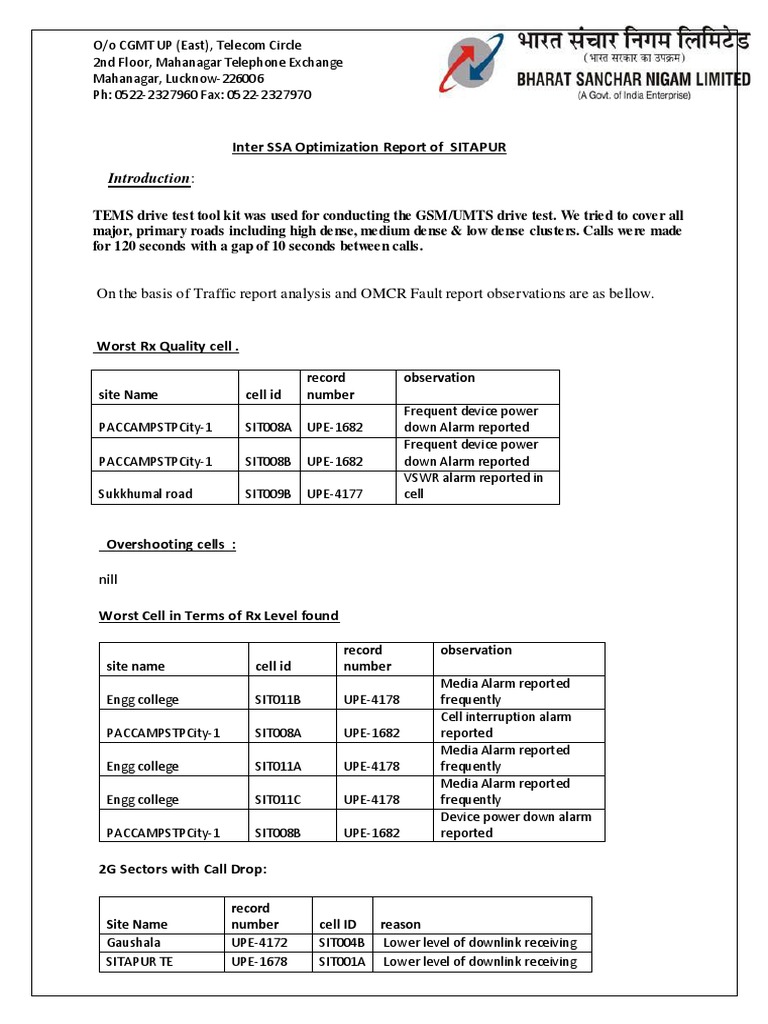

Inter SSA Optimization Report of SITAPUR

Introduction:

TEMS drive test tool kit was used for conducting the GSM/UMTS drive test. We tried to cover all
major, primary roads including high dense, medium dense & low dense clusters. Calls were made
for 120 seconds with a gap of 10 seconds between calls.

On the basis of Traffic report analysis and OMCR Fault report observations are as bellow.

Worst Rx Quality cell .

record observation
site Name cell id number
Frequent device power
PACCAMPSTPCity-1 SIT008A UPE-1682 down Alarm reported
Frequent device power
PACCAMPSTPCity-1 SIT008B UPE-1682 down Alarm reported
VSWR alarm reported in
Sukkhumal road SIT009B UPE-4177 cell

Overshooting cells :

nill

Worst Cell in Terms of Rx Level found

record observation
site name cell id number
Media Alarm reported
Engg college SIT011B UPE-4178 frequently
Cell interruption alarm
PACCAMPSTPCity-1 SIT008A UPE-1682 reported
Media Alarm reported
Engg college SIT011A UPE-4178 frequently
Media Alarm reported
Engg college SIT011C UPE-4178 frequently
Device power down alarm
PACCAMPSTPCity-1 SIT008B UPE-1682 reported

2G Sectors with Call Drop:

record
Site Name number cell ID reason
Gaushala UPE-4172 SIT004B Lower level of downlink receiving
SITAPUR TE UPE-1678 SIT001A Lower level of downlink receiving
 Greekganj UPE-7201 SIT019C Lower level of downlink receiving
CIVIL LINES UPE-6970 SIT014A Lower level of downlink receiving
PACCAMPSTPCity UPE-1682 SIT008A Lower level of downlink receiving
Munshiganj TE UPE-1679 SIT002C Lower level of downlink receiving
Sectors with TCH Blocking cell :

record observations
site name cell id number
Greekganj SIT019B UPE-7201 TCH blocking due to high Traffic.
Cell interruption and Abis link broken
CIVIL LINES SIT014B UPE-6970 alarm reported in BTS.
Cell interruption and Abis link broken
CIVIL LINES SIT014A UPE-6970 alarm reported in BTS.

Sectors Poor handover performance.

record site observation

site name number name
Shekh sarai UPE-4175 SIT010A Cell interruption alarm
Engg college UPE-4178 SIT011A The RRU link is broken
Engg college UPE-4178 SIT011C The RRU link is broken

Sectors of high cell utilization

Record observation
Site name Cell id number
TCH blocking due to high
Greekganj SIT019C UPE-7201 Traffic.
TCH blocking due to high
Greekganj SIT019A UPE-7201 Traffic.
TCH availability is low .need to
Gaushala SIT004A UPE-4172 rectify hardware issue

Sectors in high interference band

nill

HSPA code adjustment

Number of HS-PDSCH, Minimum Number of HS-PDSCH, Maximum Number of HS-PDSCH may be
adjusted to 5/10/15 in following bellow cell.

Z3SISIDP8BKH001
Z3SISIDP8RSI001
Z3SISIDP8DBD001
Z3SISIDP8SWA001
ALARM LIST

SITE NAME
Z2SISITP7SIT001.SITAPUR TE_UPE-1678(57)
Baseband unit is being initialized(198097050)
Cell interruption alarm(198087342)
Link between OMM and NE broken(198099803)
Site Abis control link broken(198087337)
The SCTP association is broken(198092230)
Z2SISITP7SIT002.Munshiganj TE_UPE-1679(58)
1588 clock source fault(198096831)
Baseband unit is being initialized(198097050)
Cell interruption alarm(198087342)
Link between OMM and NE broken(198099803)
Site Abis control link broken(198087337)
SNTP time adjustment failure(198092014)
The input voltage is abnormal(198092053)
The SCTP association is broken(198092230)
Z2SISITP7SIT003.Thomsonganj_UPE-1680(59)
Baseband unit is being initialized(198097050)
Cell interruption alarm(198087342)
Link between OMM and NE broken(198099803)
Site Abis control link broken(198087337)
The SCTP association is broken(198092230)
Z2SISITP7SIT004.Gaushala_UPE-4172(60)
The SCTP association is broken(198092230)
Z2SISITP7SIT005.Anandnagar TE_UPE-1681(61)
1588 clock source fault(198096831)
Baseband unit is being initialized(198097050)
Cell interruption alarm(198087342)
Link between OMM and NE broken(198099803)
MAINS_FAIL(198092552)
Performance data delayed(15010001)
Site Abis control link broken(198087337)
SNTP time adjustment failure(198092014)
The input voltage is abnormal(198092053)
The RRU link is broken(198097605)
The SCTP association is broken(198092230)
Z2SISITP7SIT007.Bijwar_UPE-4174(63)
Baseband unit is being initialized(198097050)
Cell interruption alarm(198087342)
Internal fault(198098467)
 Link between OMM and NE broken(198099803)
Optical port receiving link failure(198098319)
Site Abis control link broken(198087337)
The board is being initialized(198092348)
The SCTP association is broken(198092230)
Z2SISITP7SIT008.PACCAMPSTPCity-1_UPE-1682(64)
Baseband unit is being initialized(198097050)
Cell interruption alarm(198087342)
Device power down(198092295)
Link between OMM and NE broken(198099803)
Performance data delayed(15010001)
Site Abis control link broken(198087337)
The board is not in position(198092072)
The SCTP association is broken(198092230)
Z2SISITP7SIT009.Sukkhumal road_UPE-4177(65)
Baseband unit is being initialized(198097050)
Cell interruption alarm(198087342)
Link between OMM and NE broken(198099803)
Site Abis control link broken(198087337)
The SCTP association is broken(198092230)
VSWR of the antenna feeder abnormal(198098465)
Z2SISITP7SIT010.Shekh sarai_UPE-4175(66)
1588 clock source fault(198096831)
Baseband unit is being initialized(198097050)
Cell interruption alarm(198087342)
FCE fan failure(198092069)
Link between OMM and NE broken(198099803)
Site Abis control link broken(198087337)
SNTP time adjustment failure(198092014)
The NE does not support the configured parameters(198097510)
The physical Ethernet link is broken(198098252)
The SCTP association is broken(198092230)
Z2SISITP7SIT011.Engg college_UPE-4178 (67)
Baseband unit is being initialized(198097050)
External extended device fault(198098468)
Link between OMM and NE broken(198099803)
The RRU link is broken(198097605)
The SCTP association is broken(198092230)
Z2SISITP7SIT011.Engg college_UPE-4178(67)
Baseband unit is being initialized(198097050)
Cell interruption alarm(198087342)
Link between OMM and NE broken(198099803)
Site Abis control link broken(198087337)
Z2SISITP7SIT012.Roti Godam _UPE-4176(68)
Baseband unit is being initialized(198097050)
Cell interruption alarm(198087342)
Link between OMM and NE broken(198099803)
 Site Abis control link broken(198087337)
Temperature abnormal(198098466)
The SCTP association is broken(198092230)
Z2SISITP7SIT013.Sadar Bazar_UPE-7199(170)
Cell interruption alarm(198087342)
Link between OMM and NE broken(198099803)
Site Abis control link broken(198087337)
The input voltage is abnormal(198092053)
The SCTP association is broken(198092230)
Z2SISITP7SIT014.CIVIL LINES_UPE-6970(181)
Cell interruption alarm(198087342)
Link between OMM and NE broken(198099803)
Site Abis control link broken(198087337)
The SCTP association is broken(198092230)
Z2SISITP7SIT019.Greekganj_UPE-7201(176)
Cell interruption alarm(198087342)
The SCTP association is broken(198092230)

Actions to be taken on the basis of Drive Test:

For cells with worst RX Quality and RX Signal Cells following measures to be taken:
(1) Media to be checked
(2) TRX health to be checked
(3) Feeder, Jumper and Connectors to be checked and tightened.
(4) Temperature should be maintained.
(5) Input Voltage to the BTS should be checked at regular interval.
RxLevel 2G

Rxual 2G

Plot based on TRAI DRIVE TEST

Pre and Post KPI
TCH Block Avg 3G
Period Call Drop Rate CSSR HOSR Rx Quality
Rate Speed
Pre 2.5 93.20 92.14 1.88 90 2.5 Mbps
Post 1.85 95.80 96.56 1.70 92 2.8 Mbps

Summary

Over all RF outdoor coverage, quality and 3G data speed is found good in the city and KPIs are within
limit. On the basis of RF drive test of GSM/UMTS network and Traffic report analysis the findings and
actions taken and all rectifications done
