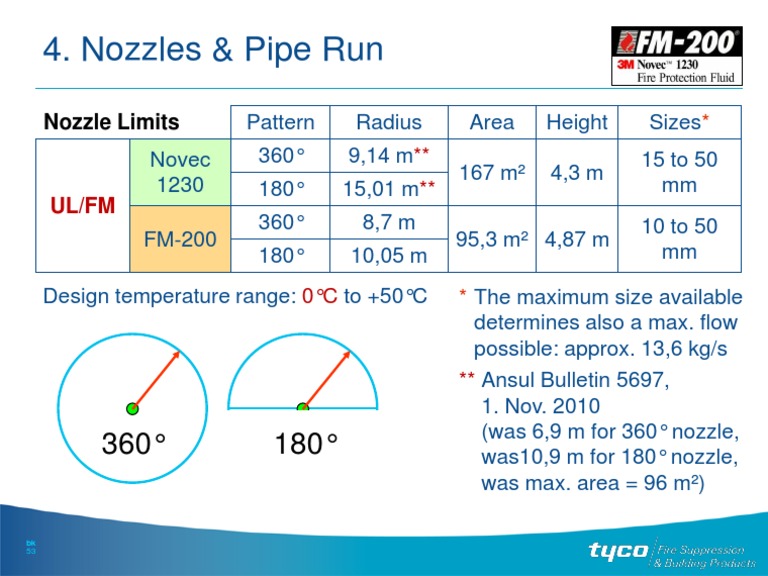

    4.

    Nozzles & Pipe Run

    Nozzle Limits Pattern Radius Area Height Sizes*


    Novec 360° 9,14 m** 15 to 50
    167 m² 4,3 m
    1230 180° 15,01 m** mm
    UL/FM
    360° 8,7 m 10 to 50
    FM-200 95,3 m² 4,87 m
    180° 10,05 m mm

    Design temperature range: 0°C to +50°C * The maximum size available


    determines also a max. flow
    possible: approx. 13,6 kg/s
    ** Ansul Bulletin 5697,
    1. Nov. 2010
    (was 6,9 m for 360° nozzle,
    360° 180° was10,9 m for 180° nozzle,
    was max. area = 96 m²)

    bk
    53
