PRODUCT LIST (56XX ATMs)

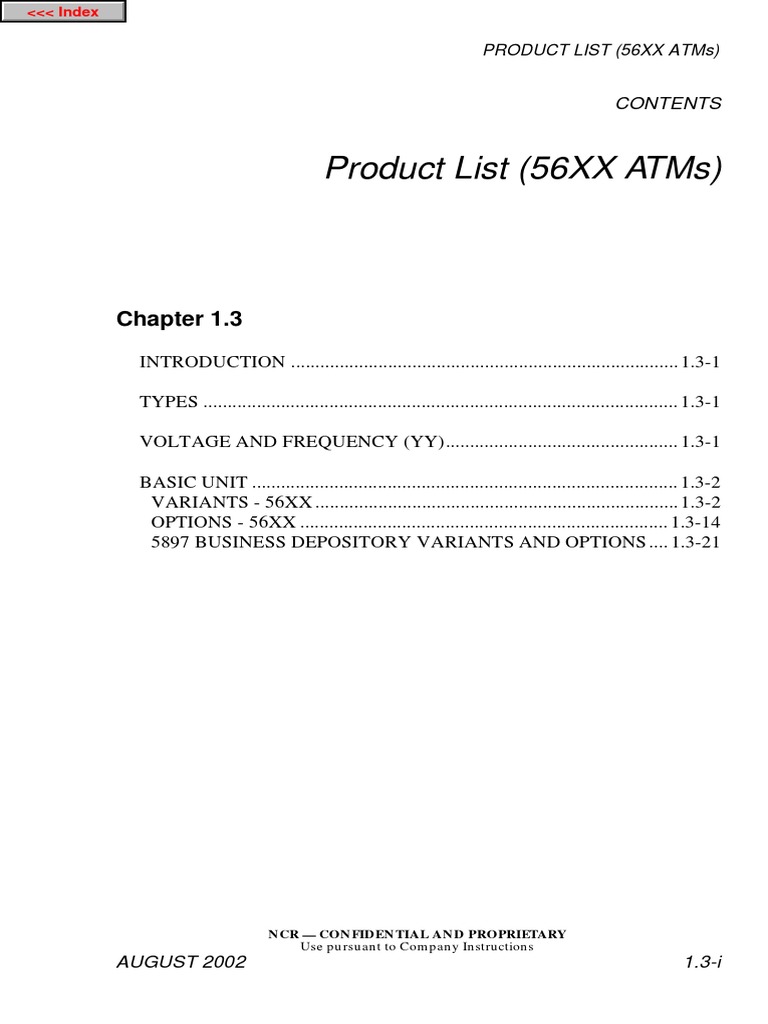

CONTENTS

Product List (56XX ATMs)

Chapter 1.3

INTRODUCTION ................................................................................ 1.3-1

TYPES .................................................................................................. 1.3-1

VOLTAGE AND FREQUENCY (YY)................................................ 1.3-1

BASIC UNIT ........................................................................................ 1.3-2

VARIANTS - 56XX ........................................................................... 1.3-2
OPTIONS - 56XX ............................................................................ 1.3-14
5897 BUSINESS DEPOSITORY VARIANTS AND OPTIONS .... 1.3-21

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
AUGUST 2002 1.3-i
<<< Index

PRODUCT LIST (56XX ATMs)

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
1.3-ii AUGUST 2002
<<< Index

PRODUCT LIST (56XX ATMs)

CONTENTS

Chapter 1.3

Product List (56XX ATMs)

INTRODUCTION
This chapter gives the Product List for the 56XX Automated Teller
Machines (ATMs)

TYPES
The types of terminals available are:

Class Description
56XX-0101-YY90 56XX ATM
56XX-01ZZ-YY90 56XX ATM Special Customer Engineering Request
(SCER)
5897 Part of the Personas 58XX Range. Also available to
match the 4th Generation 56XX as a Sidecar or a
Standalone Business Depository (Front Access Lobby
ATMs Only).

NOTE: XX = 70, 74, 75, 84, 85 or 88. YY = Voltage and

frequency. ZZ = Customized model number

VOLTAGE AND FREQUENCY (YY)

YY Description
60 50/60 Hz 120 V Single Voltage Construction
73 50/60 Hz 220 V Multivoltage Construction
74 50/60 Hz 230 V Multivoltage Construction
75 50/60 Hz 240 V Multivoltage Construction

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
AUGUST 2002 1.3-1
<<< Index

PRODUCT LIST (56XX ATMs)

BASIC UNIT

Class Description
56XX-F000 Every Unit Items
5897-F000 Every Unit Items

VARIANTS - 56XX
5670
5674
5675
5684
5685
5688

Description

SECURITY ENCLOSURE
F001 X X X X X X Standard Security
F002 X X Keylock Security
F003 X X High Level Security
F378 X X X Canadian Standard Security
F389 X US Special Security
F432 X Spanish Special Security
F440 X X X X X UK Special Security
F445 X UK special Security Compact
F446 X Standard Security Compact
F447 X X X French CS Security
F448 X French CI Security
F482 X CEN A3 Security
F500 X X X X X CEN A3 Security for Kiosk (SCER)
F592 X German VdS Security
F662 X CEN A5 Security
F663 X INSTA Security
F665 X X X X X X German Standard Security
F667 X Brazilian Security (Model Only)
F676 X INSTA Security (Enhanced Features)

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
1.3-2 AUGUST 2002
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

CABINET
F005 X X X Lobby - Rear Access
F006 X X X Lobby - Front Access
F009 X X X Vestibule - TTW
DISPLAY
F010 X X 12 in Colour with Touchscreen
F011 X X X X X X 10 in Sunlight Viewable Mono with FDKs
F012 X X X X X X 10 in Colour with FDKs
F013 X X 12 in Colour with FDKs (New Zealand)
F014 X X 10 in Sunlight Viewable with FDKs
F015 X X 10 in Flat Mono with Privacy Filter & FDKs
F016 X X 12 in Greyscale with FDKs (New Zealand)
F017 X 10 in Colour with FDKs (SCER)
F019 X X X Sunlight Readable Colour with FDKs
F790 X BBV Display (SCER)

DISPENSER AND CASSETTES

F522 X X X X X X Dispenser, 1C Std
F523 X X X X X X Dispenser, 2C Std
F524 X X X X X X Dispenser, 3C Std
F525 X X X X X X Dispenser, 4C Std
F530 X X X X X X Dispenser, 1C Std TI
F531 X X X X X X Dispenser, 2C Std TI
F532 X X X X X X Dispenser, 3C Std TI
F533 X X X X X X Dispenser, 4C Std TI
F684 X X X X X X Dispenser, 1C Wide
F685 X X X X X X Dispenser, 2C Wide
F686 X X X X X X Dispenser, 3C Wide
F687 X X X X X X Dispenser, 4C Wide
F692 X X X X X X Dispenser, 1C Wide TI
F693 X X X X X X Dispenser, 2C Wide TI
F694 X X X X X X Dispenser, 3C Wide TI
Continued...

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
AUGUST 2002 1.3-3
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

DISPENSER AND CASSETTES (Continued)

F695 X X X X X X Dispenser, 4C Wide TI
F696 X X X X X X Dispenser, 1C No Cassette
F697 X X X X X X Dispenser, 2C No Cassette
F698 X X X X X X Dispenser, 3C No Cassette
F699 X X X X X X Dispenser 4C No Cassette

CURRENCY PURGE CONTAINERS

F415 X X X X X X Open Purge Bin
F416 X X X X X X Latchfast Purge Bin

DISPLAY ADAPTOR
F036 X X X X X X VGA (512 KB) (486 Processor Only)
F038 X X X X X X VGA (1 MB)
F039 X X X X X X VGA (2 MB) (Pentium Processor Only)

SYSTEM PROCESSOR
F049 X X X X X X PC Core - 486
F021 X X X X X X PC Core - Pentium 133
F022 X X X X X X PC Core - Pentium 200
F221 X Brazil Processor
.
SYSTEM MEMORY
F072 X X X X X X 4 MByte DRAM
F073 X X X X X X 8 MByte DRAM
F074 X X X X X X 16 MByte DRAM
F075 X X X X X X 32 MByte DRAM (Pentium)
F076 X X X X X X 64 MByte DRAM (Pentium)
F077 X X X X X X 128 MByte DRAM (Pentium)

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
1.3-4 AUGUST 2002
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

CARD READER
F040 X MCR Tk 2
F041 X MCR Tk 2 with CROPF/SE
F042 X MCR Tk 1/2/3
F043 X MCR Tk 1/2/3 with CROPF/SE
F044 X MCR Tk 1/2 Swipe
F045 X MCR Tk 1/2 Dip
F040 X X X X X MCR Tk 2
F041 X X X X X MCR 2 Tk with CROPF/SE
F042 X X X X X MCRW Tk 1/2/3
F043 X X X X X MCRW Tk 1/2/3 with CROPF/SE
F045 X X X MCRTk 1/2 Dip
F046 X X X MCR Tk 2/3 Dip
F280 X X X X X X MCRW 3 Tk R/W
F281 X X X X X X MCRW 3 Tk R/W with CROPF/SE
F282 X X X X X X MCRW Tk 1/2/3 CIM
F283 X X X X X X MCRW Tk 1/2/3 CIM with CROPF/SE
F286 X X X X X X MCRW Tk 2 Smart
F287 X X X X X X MCRW Tk 2 Smart with CROPF/SE
F288 X X X X X X MCRW Tk 1/2/3 Smart
F289 X X X X X X MCRW Tk 1/2/3 Smart with CROPF/SE
F290 X X X X X X MCRW 3 Tk R/W Smart
F291 X X X X X X MCRW 3 Tk R/w Smart with CROPF/SE
F292 X MCRW Tk 1/2/3 Watermark with CROPF (Inverted)
F293 X No MCRW (SCER)
F293 X Banksys Card Reader (SCER)
F296 X X X X X X MCRW Tk 1/2/3 Smart/CIM with CROPF/SE

CARD CAPTURE
F080 X X X X X X Card Capture - Open Tray
F082 X X X Without Card Capture
F083 X X X X X X Card Capture - Latchfast Bin

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
AUGUST 2002 1.3-5
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

FACIA KEYBOARD (Plastic Background)

F110 X X X X X X 14 Key Numeric IBM Compatible
F111 X X X X X X 15 Key Numeric IBM Compatible
F112 X X X X X X 14 Key A/N (QZ on 0 Key) IBM Compatible
F113 X X X X X X 15 Key A/N (QZ on 0 Key) IBM Compatible)
F114 X X X X X X 14 Key A/N (Qz on 1 Key) IBM Compatible
F115 X X X X X X 15 Key A/N Qz on 1 Key) IBM Compatible
F116 X X X X X X NCR Direct Connect U.S. A/N Grey (QZ on 1 Key) NDC
Compatible
F117 X X X X X X Braille Version of F115
F118 X X X X X X Braille Version of F120
F119 X X X X X X Barclays Enhanced NDC Compatible
F120 X X X X X X U.S A/N T/T (QZ on 1 Key) NDC Compatible
F121 X X X X X X U.S A/N T/T (QZ on 0 Key) NDC Compatible
F122 X X X X X X French Numeric T/T NDC Compatible
F123 X X X X X X Spanish Numeric Add M/C
F124 X X X X X X Spanish A/N T/T NDC Compatible
F125 X X X X X X Hong Kong Numeric Add M/C
F126 X X X X X X Hong Kong & Shanghai Numeric Add M/C
F127 X X X X X X Yorkshire VISA A?N T/T NDC Compatible
F128 X X X X X X Nat. West Numeric T/T
F129 X X X X X X Midlands Numeric T/T
F130 X X X X X X Barclays VISA A/N T/T NDC Compatible
F131 X X X X X X Norwegian Docutel Emulation
F132 X X X X X X Spanish Numeric T/T NDC Compatible
F133 X X X X X X Greek (Citibank) A/N T/T NDC Compatible
F134 X X X X X X Canadian A/N NDC Compatible
F135 X X X X X X Arabic Add M/C
F136 X X X X X X Swiss Numeric Add M/C
F137 X X X X X X Dutch Numeric T/T
F138 X X X X X X German Numeric T/T NDC Compatible
Continued...

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
1.3-6 AUGUST 2002
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

FACIA KEYBOARD (Plastic Background) (Continued)

F139 X X X X X X Italian A/N T/T NDC Compatible
F140 X X X X X X Portuguese Numeric Add M/C
F141 X X X X X X Canadian A/N IBM Compatible
F142 X X X X X X Danish Add M/C
F143 X X X X X X Swiss Bancomat T/T
F144 X X X X X X Finish Numeric IBM Compatible
F145 X X X X X X South African A/N IBM Compatible
F146 X X X X X X German Numeric IBM Compatible
F147 X X X X X X Arabic Numeric T/T NDC Compatible
F148 X X X X X X French Numeric IBM Compatible
F149 X X X X X X A/N VISA T/T NDC Compatible
F150 X X X X X X Saswitch A/N T/T NDC Compatible
F151 X X X X X X Midlands A/N IBM Compatible
F152 X X X X X X Royal Bank of Scotland T/T IBM Compatible
F153 X X X X X X Kredietbank Numeric T/T NDC Compatible
F154 X X X X X X Taiwan Numeric T/T NDC Compatible
F155 X X X X X X Toronto Dominion
F156 X X X X X X Skop Bank Finland IBM Compatible
F157 X X X X X X Italian Numeric IBM Compatible
F158 X X X X X X Turkey Numeric
F159 X X X X X X Fellesdata T/T
F160 X X X X X X Belgian Euro
F161 X X X X X X Malaysia A
F162 X X X X X X Malaysia B
F163 X X X X X X Malaysia C
F164 X X X X X X French Numeric IBM Compatible with “OK”
F165 X X X X X X French Numeric T/T CFONB 86
Continued...

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
AUGUST 2002 1.3-7
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

FACIA KEYBOARD (Plastic Background) (Continued)

F166 X X X X X X French NUmeric IBM Compatible CFONB 86
F167 X X X X X X First Savings Bank Sweden
F168 X X X X X X Midlands Bank NDC
F169 X X X X X X Moroccan NUM
F170 X X X X X X Brazil Enhanced NDC Compatible
F171 X X X X X X Polish Enhanced IBM Compatible
F172 X X X X X X Croatian Enhanced IBM Compatible
F173 X X X X X X Cyrillic Enhanced IBM Compatible
F174 X X X X X X Czech/Slovac Enhanced IBM Compatible
F175 X X X X X X Co-op Bank T/T
F176 X X X X X X UOB Singapore
F177 X X X X X X Hungary Enhanced
F178 X X X X X X Dutch Enhanced
F179 X X X X X X U.S.A. Enhanced IBM Compatible
F180 X X X X X X U.S.A. Enhanced NDC Compatible
F181 X X X X X X Czech/Slovac (2)
F182 X X X X X X Bulgarian Cyrillic (Banksys)
F183 X X X X X X Iranian Farsi/English T/T NDC
F184 X X X X X X Bank of Montreal Enhanced A/N T/T NDC Compatible
F185 X X X X X X Royal Bank of Canada Enhanced A/N T/T IBM Compatible
F186 X X X X X X CIBC Enhanced A/N T/T IBM Compatible
F187 X X X X X X Iceland Enhanced
F188 X X X X X X Halifax Enhanced
F192 X X X X X X Slovania IBM
F193 X X X X X X Nordbanken Enhanced T/T Scandinavian Compatible
F194 X X X X X X Bank Central Asia Enhanced T/T Compatible
F195 X X X X X X Deutsche Bank T/T NDC Compatible
F196 X X X X X X Korea Type A A/N Korea A Compatible
Continued...

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
1.3-8 AUGUST 2002
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

FACIA KEYBOARD (Plastic Background) (Continued)

F197 X X X X X X Korea Type B T/T Korea B Compatible
F198 X X X X X X Malaysia D A/N Malaysia D Compatible
F199 X X X X X X C A Madrid (Visually Impaired) Madrid Compatible
F476 X Wells Fargo (Hot Keyip)
F807 X X X X X X PKO Poland
F840 X X 54 Key A/N Austria (3-BEG)
F841 X X X X X X Romania IBM Compatible
F843 X X X X X X Austria 3-BEG
F845 X X 54 Key A/N Deutschebank
F870 X X X X X Colour Customised Keyboard (Not Orderable)
F987 X X X X X X Westpac NDC
F989 X X X X X X Wells Fargo
F991 X X X X X X Thailand NDC
F993 X X 54 Key A/N Germany
F994 X X 54 Key A/N Austria
F995 X X X X X X Austria IBM Compatible
F997 X X X X X X German IZB

FACIA KEYBOARD (Steel Background)

F710 X X 14 Key Numeric IBM Compatible
F711 X X 15 Key Numeric IBM Compatible
F712 X X 14 Key A/N (QZ on 0 Key) IBM Compatible
F713 X X 15 Key A/N (QZ on 0 Key) IBM Compatible
F714 X X 14 Key A/N (Qz on 1 Key) IBM Compatible
F715 X X 15 Key A/N Qz on 1 Key) IBM Compatible
F716 X X NCR Direct Connect U.S. A/N Grey (QZ on 1 Key) NDC
Compatible
F717 X X Braille Version of F115
F718 X X Braille Version of F120
F719 X X Barclays Enhanced NDC Compatible
F720 X X U.S A/N T/T (QZ on 1 Key) NDC Compatible
Continued...

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
AUGUST 2002 1.3-9
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

FACIA KEYBOARD (Steel Background) (Continued)

F721 X X U.S A/N T/T (QZ on 0 Key) NDC Compatible -
F722 X X French Numeric T/T NDC Compatible
F723 X X Spanish Numeric Add M/C
F724 X X Spanish A/N T/T NDC Compatible
F725 X X Hong Kong Numeric Add M/C -
F726 X X Hong Kong & Shanghai Numeric Add M/C
F727 X X Yorkshire VISA A/N T/T NDC Compatible
F728 X X Nat. West Numeric T/T
F729 X X Midlands Numeric T/T
F730 X X Barclays VISA A/N T/T NDC Compatible
F731 X X Norwegian Docutel Emulation
F732 X X Spanish Numeric T/T NDC Compatible
F733 X X Greek (Citibank) A/N T/T NDC Compatible
F734 X X Canadian A/N NDC Compatible
F735 X X Arabic Add M/C
F736 X X Swiss Numeric Add M/C
F737 X X Dutch Numeric T/T
F738 X X German Numeric T/T NDC Compatible
F739 X X Italian A/N T/T NDC Compatible
F740 X X Portuguese Numeric Add M/C
F741 X X Canadian A/N IBM Compatible
F742 X X Danish Add M/C
F743 X X Swiss Bancomat T/T
F744 X X Finish Numeric IBM Compatible
F745 X X South African A/N IBM Compatible
F746 X X German Numeric IBM Compatible
F747 X X Arabic Numeric T/T NDC Compatible
F748 X X French Numeric IBM Compatible
F749 X X A/N VISA T/T NDC Compatible
F750 X X Saswitch A/N T/T NDC Compatible
F751 X X Midlands A/N IBM Compatible
Continued...

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
1.3-10 AUGUST 2002
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

FACIA KEYBOARD (Steel Background) (Continued)

F752 X X Royal Bank of Scotland T/T IBM Compatible
F753 X X Kredietbank Numeric T/T NDC Compatible
F754 X X Taiwan Numeric T/T NDC Compatible
F755 X X Toronto Dominion - Steel Background
F756 X X Skop Bank Finland IBM Compatible
F757 X X Italian Numeric IBM Compatible
F758 X Turkey Numeric
F759 X X Fellesdata T/T
F760 X X Belgian Euro
F761 X X Malaysia A
F762 X X Malaysia B
F763 X X Malaysia C
F764 X X French Numeric IBM Compatible with “OK”
F765 X X French Numeric T/T CFONB 86
F766 X X French NUmeric IBM Compatible CFONB 86
F767 X X First Savings Bank Sweden
F768 X X Midlands Bank NDC
F769 X X Moroccan NUM
F770 X X Brazil Enhanced NDC Compatible
F771 X X Polish Enhanced IBM Compatible
F772 X X Croatian Enhanced IBM Compatible
F773 X X Cyrillic Enhanced IBM Compatible
F774 X X Czech/Slovac Enhanced IBM Compatible
F775 X X Co-op Bank T/T
F776 X X UOB Singapore
F777 X X Hungary Enhanced
F778 X X Dutch Enhanced
F779 X X U.S.A. Enhanced IBM Compatible
F780 X X U.S.A. Enhanced NDC Compatible
F781 X X Czech/Slovac (2)
F782 X X Bulgarian Cyrillic (Banksys) -
Continued

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
AUGUST 2002 1.3-11
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

FACIA KEYBOARD (Steel Background) (Continued)

F783 X X Iranian Farsi/English T/T NDC -
F784 X X Bank of Montreal Enhanced A/N T/T NDC Compatible -
F785 X X Royal Bank of Canada Enhanced A/N T/T IBM Compatible
F786 X X CIBC Enhanced A/N T/T IBM Compatible
F787 X X Iceland Enhanced
F788 X X Halifax Enhanced
F792 X X Slovania IBM
F793 X X Nordbanken Enhanced T/T Scandinavian Compatible
F794 X X Bank Central Asia Enhanced T/T Compatible
F795 X X Deutsche Bank T/T IBM Compatible
F796 X X Korea Type A A/N Korea A Compatible
F797 X X Korea Type B T/T Korea B Compatible
F798 X X Malaysia D A/N Malaysia D Compatible
F799 X X C A Madrid (Visually Impaired) Madrid Compatible
F842 X X Romania IBM Compatible
F844 X X Austria 3-BEG
F988 X X Westpac NDC (S/S)
F990 X X Wells Fargo
F992 X X Thailand NDC
F996 X X Austria
F998 X X German IZB

NOTE: 1: NDC Systems must use NDC Compatible Keyboard

NOTE 2: IBM Systems must use IBM Compatible Keyboard
NOTE 3: Programmable (PAS) Systems may use any Keyboard.
Continued...

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
1.3-12 AUGUST 2002
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

ADVERT LIGHT
F240 X X X Collar without Advert Light
F241 X X X Collar Advert Light
F242 X X Facia Light - Non Advert
F243 X Facia Light - Non Advert without Collar
f838 x Collar Light - Nordbanken
F839 X Advert Light - Enhanced (SCER)

AC DISTRIBUTION (Not Orderable)

F601 X X X X X X 120V 50/60Hz
F602 X X X X X X 220V 50/60Hz
F603 X X X X X X 230V 50/60Hz
F604 X X X X X X 240V 50/60Hz

HARD DISK
F308 X X X X X X Hard Disk Storage
F306 X Brazil Hard Disk

FLEX DISK
F300 X X X X X X 1.44 MByte Diskette (In Cabinet)
F304 X 1.44 MByte Diskette (In Safe)

SYSTEM SOFTWARE
F245 X X X X X X Microsoft OS/2 (1.3) Licence
F246 X X X X X X IBM OS/2 WARP (3.0) Licence
F247 X X X X X X IBM OS/2 2.11 Licence
F248 X X X X X X Non OS/2 Operating Software
F258 X X X X X X NT Factory Load

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
AUGUST 2002 1.3-13
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

SAFE DOOR COVER

F610 X W/O Safe Door Cover
F619 X Safe Door Cover R/A
F632 X Safe Door Cover F/A

OPTIONS - 56XX
5670
5674
5675
5684
5685
5688

Description

COMMUNICATIONS INTERFACE
F050 X X X X X X Token Ring
F051 X X X X X X PCIFL (IBM Loop)
F055 X X X X X X PCCM Band 1
F056 X X X X X X PCCM Band 2
F057 X X X X X X PCCM Band 3
F062 X X X X X X PCIFL (4700)
F064 X X X X X X Ethernet

2ND COMMUNICATIONS INTERFACE

F255 X X X X X X 2nd PCCM Band 1
Continued...
2ND COMMUNICATION INTERFACE (Continued)
F256 X X X X X X 2nd PCCM Band 2
F257 X X X X X X 2nd PCCM Band 3

PRINTERS
F200 X X X X X X Dot Matrix Receipt Printer
F205 X X X X X X Dot Matrix Dual Mode Receipt Printer
F207 X Receipt Printer - Hangul
F203 X X X X X Graphics Thermal Receipt Printer
F204 X X X X X Graphics Thermal Dual Mode Receipt Printer
F210 X X X X X X Dot Matrix Journal Printer
F213 X X X X X Graphics Thermal Journal Printer
Continued...

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
1.3-14 AUGUST 2002
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

PRINTERS (Continued)
F214 X Journal Printer - Hangul
F562 X X Statement Printer
F595 X X LQ Printer w. Graphics (SDC +)
F596 X X LQ Printer w. Graphics (Ulysses)
F470 X Passbook/Statement Printer with Horizontal MSRW
F471 X X Passbook/Statement Printer (SCER)
F472 X Page Turning Passbook Printer (SCER)
F473 X Statement Printer with Buncher
F569 X X Printer Buncher
F597 X X Printer Roll Media Feed

ENCRYPTION
F260 X X X X X X Encryptor - BAPE
F261 X X X X X Encryptor - BAPE GBP
F266 X X X X X X Encryptor EKC Swiss - Std
F267 X X X X X X Encryptor EKC - Dutch
F268 X X X X X X Encryptor EKC - Swedish
F269 X X X X X X Encryptor EKC - Standard
F276 X X X X X X Encryptor EKC - Bancomat 90
F277 X X X X X X Encryptor EKC - German
F278 X X X X X X Encryptor EKC - Austrian
F096 X X X X X X Encryptor EKCSM BBData
F097 X X X X X X Encryptor EKCSM Swiss
F098 X X X X X X Encryptor EKCSM Austrian
F099 X X X X X X Encryptor EKCSM Standard

ALARMS
F360 X X X X X X Enhanced Alarm System with Status
F361 X X X X X X Standard Alarm System with Status
F362 X X X X X X Enhanced Alarm System without Status
Continued...

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
AUGUST 2002 1.3-15
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

ALARMS (Continued)
F363 X X X X X X Standard Alarm System without Status
F366 X X X X X X High Security Alarm System (for F500)
F367 X INSTA/A3 Security (F663/F662/F676)

LOCKS
Primary Locks for Standard Security
F400 X X X X X X Combination Lock Standard
F401 X X X X X X Key Lock Standard
F402 X X X X X X Combination/Key Lock Standard
F403 X X X X X X Combination Lock with Silent Alarm Standard
F409 X X X X X X Combination Lock S&G
F410 X X X X X X Key Lock S&G
F411 X X X X X X Combination/Key Lock S&G
F412 X X X X X X Combination Lock with Silent Alarm S&G
F436 X X X X X X Mas-Hamilton Lock w/Shunt buy Lock no FLM
F437 X X X X X X No Locks Fitted
F455 X Mas-Hamilton Lock w/Shunt buy Lock has FLM
F456 X Mas-Hamilton Lock w/Shunt buy Lock in FLM Price
Locks for High Level Security
F422 X X Combination + Key (RAL 626/3 GE2)
Locks for CEN A3 Security
F427 X X X X X Combination + Key (CEN A3)
Locks for CEN A5 Security
F430 X Combination + Key (CEN A5)
Locks for UK Special Security
F441 X X X X X Combination + Combination
F442 X X X X X Key + Key
F443 X X X Time + Keylock
Locks for French C1 Security
F405 X Key + Combination Lock (French C1)
Continued...

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
1.3-16 AUGUST 2002
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

LOCKS (Continued)
Locks for Spanish Security
F431 X Locks for Spanish Security
Locks for INSTA Security
F444 X Key + Key
Secondary Locks
F406 X X X X X X Combination Lock Standard with Electronic Override
F407 X X X X X X Combination Lock Standard
F088 X X X X X X Key Lock Standard
F408 X X X X X X Combination Lock with Silent Alarm Standard
F413 X X X X X X Combination Lock S&G
F089 X X X X X X Key Lock S&G
F414 X X X X X X Combination Lock with Silent Alarm Standard
F404 X Electronic Override Enable

DEPOSITORY
F090 X X X Depository with Standard Bin
F091 X X X Depository with Latchfast Bin
F092 X X X Depository with Standard Bin - Access Door
F093 X X X Document & Envelope Processor

OTHER OPTIONS
F029 X X X X X PC Secure System
F250 X X X X X X First RS232 Interface
F251 X X X X X Second RS232 Interface
F265 X X X X X X Banksys Encryption
F302 X X X X Second Diskette - 1.44MB
F310 X X X X X X Remote Relay/Night Deposit Interface
NOTE: The ATM must be configured or upgraded with F310/K310 before a 5897
Business Depository Sidecar can be used.
Continued...

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
AUGUST 2002 1.3-17
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

OTHER OPTIONS (Continued)

F311 X Remote Relay
F312 X X X X X Bus Slot Expansion
F315 X X Severe Environment Control
F318 X X Safe Heater
F320 X X X X X X Remote Status Monitor
F322 X X X X X X Remote Status Monitor Enable
F328 X X X X X X NT Ready Hardware
F330 X X X Integrated Film Camera Enable (F250/F251 also required)
F331 X X X Integrated Video Camera Enable (F250/251 also required)
F332 X X X Digital Camera System (PAL)
F333 X X X Digital Camera System (NTSC)
F334 X X Camera Window (DCS) - UK only
F336 X X X X X X CD ROM
F370 X X X X X X Disk Security Cover
F373 X X CRT Security
F380 X X X X X X Media Entry Indicator
F390 X X X X X X Digitised Audio
F395 X X X X X X Soundblaster Audio
F451 X X X X X In Service Replenishment
F450 X X X X X X Auto Supervisor Entry
F475 X X X X X X ATM Tutor
F490 X X X Envelope Dispenser - Standard Capacity
F491 X X Envelope Dispenser - High Capacity
F499 X X X X X X Digital Video
F520 X Basic Operator Panel - Front Access
F572 X MCRW Facia Shutter
F630 X X X X X X Enhanced Rear Operator Panel
F640 X X X X X X Colour Display Privacy Filter
F648 X X X Circular Polarising Filter
F649 X X X Circular Polarising Filter (Enhanced)
F789 X X X X X Prestage Kit Fitted

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
1.3-18 AUGUST 2002
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

COLOUR CUSTOMISATION
F830 X X X X X Colour Customised
F831 X Colour Customised Bank of America (Swipe)
F832 X Colour Customised Bank of America (Dip)
F832 X X X Colour Customised Bradesco
F833 X Colour Customised Midland F/A
F834 X Colour Customised Nationwide (US)
F835 X Colour Customised Deutsche RAL
F836 X X Colour Customised Deutsche VdS
F837 X Colour Customised Midland/Tesco F/A
F838 X Colour Customised Barclays/Tesco F/A

DPM OPTIONS
F461 X X X Envelope/Document Bin - Open
F462 X X X Envelope/Document - Bin Latchfast
F465 X X X Document Bin - Open
F466 X X X Document Power Pockets
F467 X Red Light Camera
F513 X X X DPM Rear Printer
F514 X X X DPM Encoder Printer
F515 X X X DPM Rear Camera
F516 X X X DPM Magnetic Ink Detection

PRINTER ALPHABET OPTIONS

F215 X Kanji Capability Journal Printer
F216 X Kanji Capability Printer
F217 X X X X X Brazil Printer Capability
F218 X X X X X Cyrillic Printer Capability
F219 X X X X X Latin II Printer Capability

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
AUGUST 2002 1.3-19
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

COIN DISPENSER
F350 X X Coin Dispenser External
F351 X Coin Dispenser Internal
F230 X X CDM US Currency Capability
F231 X X CDM UK Currency Capability
F232 X X CDM German Currency Capability
F233 X X CDM Dutch Currency Capability

CUSTOMER SPECIFICATION
F902 X X X Bank of Montreal Specification
F903 X X Banque Nationale Specification
F905 X X X X X Canada Trust Specification
F906 X X X CIBC Specification
F908 X CUCA Specification
F909 X CUCS Specification
F910 X X Cue Data West Specification
F911 X Hongkong Bank Specification
F913 X League Data Specification
F914 X X X X Royal Bank of Canada Specification
F916 X X X Toronto Dominion Specification
F920 X X X X X Spanish Specification
F921 X BBV Specification

ACCESS FOR ALL

F392 X X X X X X Private Audio Enable

ADDITIONAL CARD ADVERTPANEL

P244 X Additional Card Advert Panel

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
1.3-20 AUGUST 2002
<<< Index

PRODUCT LIST (56XX ATMs)

5670
5674
5675
5684
5685
5688
Description

SPARE CASSETTES
F271 X X X X One Spare Standard Cassette
F272 X X X X Two Spare Standard Cassettes
F273 X X X X Three Spare Standard Cassettes
F274 X X X X Four Spare Standard Cassettes
F374 X X X X One Spare TI Cassette
F375 X X X X Two Spare TI Cassettes
F376 X X X X Three Spare TI Cassettes
F377 X X X X Four Spare TI Cassettes

5897 BUSINESS DEPOSITORY VARIANTS AND OPTIONS

VARIANTS - 5897
F082 56XX, Right Hand Location (5670, 5674, 5675)
F083 56XX, Standalone
NOTE: The ATM must be configured or upgraded with F310/K310 before a 5897
Business Depository Sidecar can be used.

OPTIONS - 5897
F001 Secondary Key/Combination Lock
F004 Seismic Detector
F005 Silent Alarm
F007 Vibration Sensor
F009 Envelope Slot
F042 Additional 20 Customer Keys
F830 Colour Customisation Level 1A
F831 Colour Cusomisation Level 1B
F832 Colour Customisation Level 1C
F835 Colour Customisation Level 2C

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
AUGUST 2002 1.3-21
<<< Index

PRODUCT LIST (56XX ATMs)

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
1.3-22 AUGUST 2002
