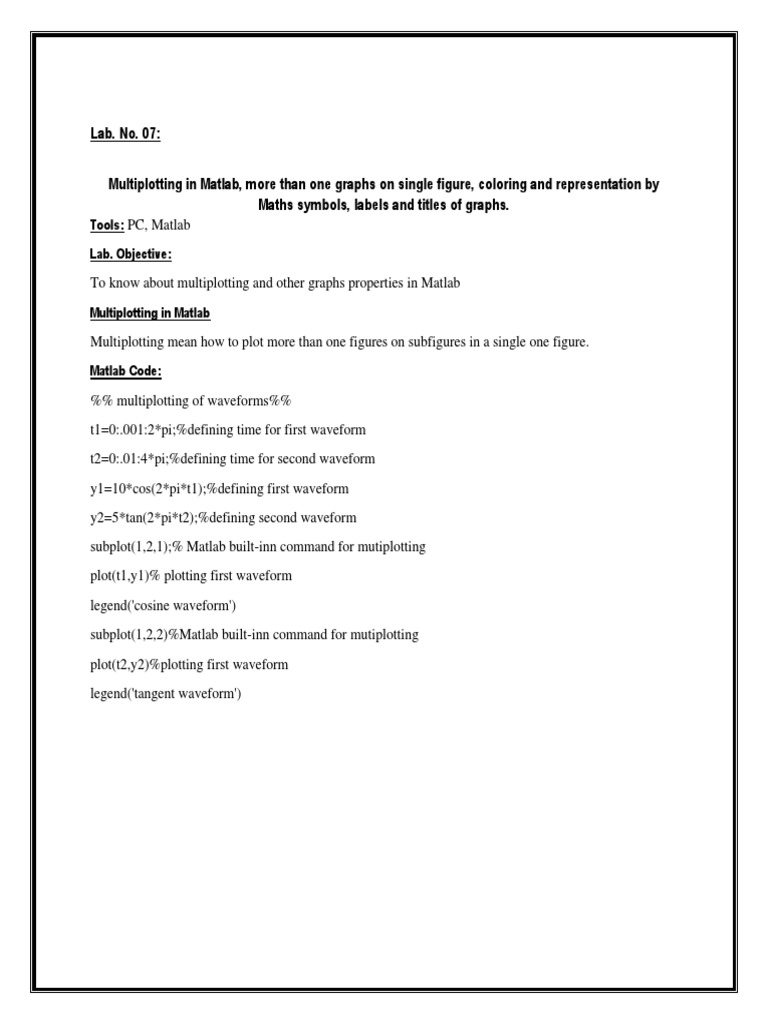

Lab. No.

07:

Multiplotting in Matlab, more than one graphs on single figure, coloring and representation by
Maths symbols, labels and titles of graphs.
Tools: PC, Matlab

Lab. Objective:

To know about multiplotting and other graphs properties in Matlab

Multiplotting in Matlab

Multiplotting mean how to plot more than one figures on subfigures in a single one figure.

Matlab Code:

%% multiplotting of waveforms%%

t1=0:.001:2*pi;%defining time for first waveform

t2=0:.01:4*pi;%defining time for second waveform

y1=10*cos(2*pi*t1);%defining first waveform

y2=5*tan(2*pi*t2);%defining second waveform

subplot(1,2,1);% Matlab built-inn command for mutiplotting

plot(t1,y1)% plotting first waveform

legend('cosine waveform')

subplot(1,2,2)%Matlab built-inn command for mutiplotting

plot(t2,y2)%plotting first waveform

legend('tangent waveform')
 18
x 10
10 1
cosine waveform tangent waveform
8 0

6 -1

4 -2

2 -3

0 -4

-2 -5

-4 -6

-6 -7

-8 -8

-10 -9
0 2 4 6 8 0 5 10 15

Figure 1: Multiplotts on one figire

Multigraphs on one figure

Multigraphs on one figure mean to plot more than one graphs on a single one main figure.

Matlab code:

%% more than one graphs on single figure%%

t=0:.01:2*pi;%defining time for waveform

y1=10*cos(2*pi*t);%defining first waveform

y2=8*asin(4*pi*t);%defining second waveform

plot(t,y1,t,y2)% plotting both of waveforms

legend('cosine waveform','cosecant waveform')

grid on % Built-inn command for lines on graph

15
cosine waveform
cosecant waveform

10

-5

-10
0 1 2 3 4 5 6 7

Figure 2: Many graphs on one figure

Giving color and plotting by mathematical sign

Matlab Code:

%% multiplotting of waveforms%%

t=0:.01:2*pi;%defining time for waveform

y=10*cos(2*pi*t);%defining the waveform

plot(t,y,'k*-')% plotting first waveform with color k and maths symbol *.

legend('cosine waveform')

10
cosine waveform
8

-2

-4

-6

-8

-10
0 1 2 3 4 5 6 7

Figure 3: Coloring of graph

Labels and titles to a graph:

%% more than one graphs on single figure%%

t=-10:.01:10;%defining time for waveform

y1=10*t.^8;%defining the waveform

plot(t,y1)% plotting both of waveform

legend('even waveform')

grid on % Built-inn command for lines on graph

xlabel('time')%labelling x-axis

ylabel('amplitude')%labelling y-axis

title('even waveform')%labelling title

 8
x 10 even waveform
10
even waveform
9

amplitude
5

0
-10 -8 -6 -4 -2 0 2 4 6 8 10
time

Figure 4: Labels and titles to a graph

Lab. Assignment:

Plot discrete time unit step function, continuous time decaying exponential and odd waveform on single
figure by sub plotting, add labels, titles, legends and grid on with graphs.
