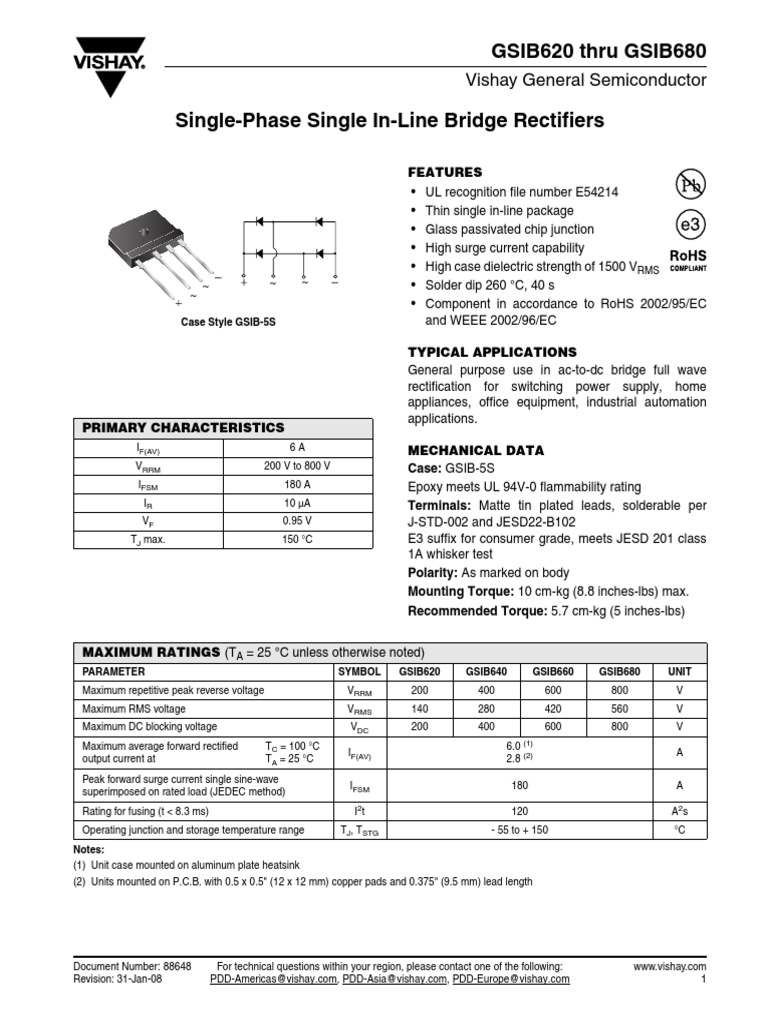

GSIB620 thru GSIB680

Vishay General Semiconductor

Single-Phase Single In-Line Bridge Rectifiers

FEATURES
• UL recognition file number E54214
• Thin single in-line package
• Glass passivated chip junction
• High surge current capability
• High case dielectric strength of 1500 VRMS
~ ~ ~ • Solder dip 260 °C, 40 s
~
• Component in accordance to RoHS 2002/95/EC
Case Style GSIB-5S and WEEE 2002/96/EC

TYPICAL APPLICATIONS
General purpose use in ac-to-dc bridge full wave
rectification for switching power supply, home
appliances, office equipment, industrial automation
applications.
PRIMARY CHARACTERISTICS
IF(AV) 6A MECHANICAL DATA
VRRM 200 V to 800 V Case: GSIB-5S
IFSM 180 A Epoxy meets UL 94V-0 flammability rating
IR 10 µA Terminals: Matte tin plated leads, solderable per
VF 0.95 V J-STD-002 and JESD22-B102
TJ max. 150 °C E3 suffix for consumer grade, meets JESD 201 class
1A whisker test
Polarity: As marked on body
Mounting Torque: 10 cm-kg (8.8 inches-lbs) max.
Recommended Torque: 5.7 cm-kg (5 inches-lbs)

MAXIMUM RATINGS (TA = 25 °C unless otherwise noted)

PARAMETER SYMBOL GSIB620 GSIB640 GSIB660 GSIB680 UNIT
Maximum repetitive peak reverse voltage VRRM 200 400 600 800 V
Maximum RMS voltage VRMS 140 280 420 560 V
Maximum DC blocking voltage VDC 200 400 600 800 V
(1)
Maximum average forward rectified TC = 100 °C 6.0
IF(AV) A
output current at TA = 25 °C 2.8 (2)
Peak forward surge current single sine-wave
IFSM 180 A
superimposed on rated load (JEDEC method)
Rating for fusing (t < 8.3 ms) I 2t 120 A2 s
Operating junction and storage temperature range TJ, TSTG - 55 to + 150 °C
Notes:
(1) Unit case mounted on aluminum plate heatsink
(2) Units mounted on P.C.B. with 0.5 x 0.5" (12 x 12 mm) copper pads and 0.375" (9.5 mm) lead length

Document Number: 88648 For technical questions within your region, please contact one of the following: www.vishay.com
Revision: 31-Jan-08 PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com 1
GSIB620 thru GSIB680
Vishay General Semiconductor

ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)

PARAMETER TEST CONDITIONS SYMBOL GSIB620 GSIB640 GSIB660 GSIB680 UNIT
Maximum instantaneous forward
3.0 A VF 0.95 V
voltage drop per diode
Maximum DC reverse current at TA = 25 °C 10
IR µA
rated DC blocking voltage per diode TA = 125 °C 250

THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)

PARAMETER SYMBOL GSIB620 GSIB640 GSIB660 GSIB680 UNIT
RθJA 22 (2)
Typical thermal resistance °C/W
RθJC 3.4 (1)

Notes:
(1) Unit case mounted on aluminum plate heatsink
(2) Units mounted on P.C.B. with 0.5 x 0.5" (12 x 12 mm) copper pads and 0.375" (9.5 mm) lead length
(3) Recommended mounting position is to bolt down on heatsink with silicone thermal compound for maximum heat transfer with #6 screw

ORDERING INFORMATION (Example)

PREFERRED P/N UNIT WEIGHT (g) PREFERRED PACKAGE CODE BASE QUANTITY DELIVERY MODE
GSIB660-E3/45 7.0 45 20 Tube

RATINGS AND CHARACTERISTICS CURVES

(TA = 25 °C unless otherwise noted)

10 210
Heatsink Mounting, TC
Average Forward Output Current (A)

TJ = TJ Max.
Peak Forward Surge Current (A)

180 Single Sine-Wave

8
150

6
120

4 90
P.C.B. Mounting, TA
60
2
30
1.0 Cycle

0 0
0 50 100 150 1 10 100
Temperature (°C) Number of Cycles at 60 Hz

Figure 1. Derating Curve Output Rectified Current Figure 2. Maximum Non-Repetitive Peak Forward Surge
Current Per Diode

www.vishay.com For technical questions within your region, please contact one of the following: Document Number: 88648
2 PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com Revision: 31-Jan-08
 GSIB620 thru GSIB680
Vishay General Semiconductor

100 1000
Instantaneous Forward Current (A)

TJ = 150 °C

Junction Capacitance (pF)

10
100

TJ = 25 °C
1

TJ = 125 °C 10
0.1

0.01 1
0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 0.1 1 10 100
Instantaneous Forward Voltage (V) Reverse Voltage (V)

Figure 3. Typical Forward Characteristics Per Diode Figure 5. Typical Junction Capacitance Per Diode

1000 100

Transient Thermal Impedance (°C/W)

Instantaneous Reverse Current (µA)

TJ = 150 °C

100

TJ = 125 °C
10
10

1
1

0.1 TJ = 25 °C

0.01 0.1
20 40 60 80 100 0.01 0.1 1 10 100
Percent of Rated Peak Reverse Voltage (%) t - Heating Time (s)

Figure 4. Typical Reverse Characteristics Per Diode Figure 6. Typical Transient Thermal Impedance

PACKAGE OUTLINE DIMENSIONS in millimeters

Case Style GSIB-5S
4.6 ± 0.2

3.6 ± 0.2
30 ± 0.3
3.5 ± 0.2

3.2 ± 0.2
20 ± 0.3

11 ± 0.2

+
5

2.5 ± 0.2
17.5 ± 0.5
4 ± 0.2

2.2 ± 0.2

1 ± 0.1 0.7 ± 0.1

7.5 7.5
10 ± 0.2 ± 0.2 ± 0.2 2.7 ± 0.2
