REQUEST FOR QUOTATION

RFQ Title: NE090320-C

RFQ Number: 6000291142

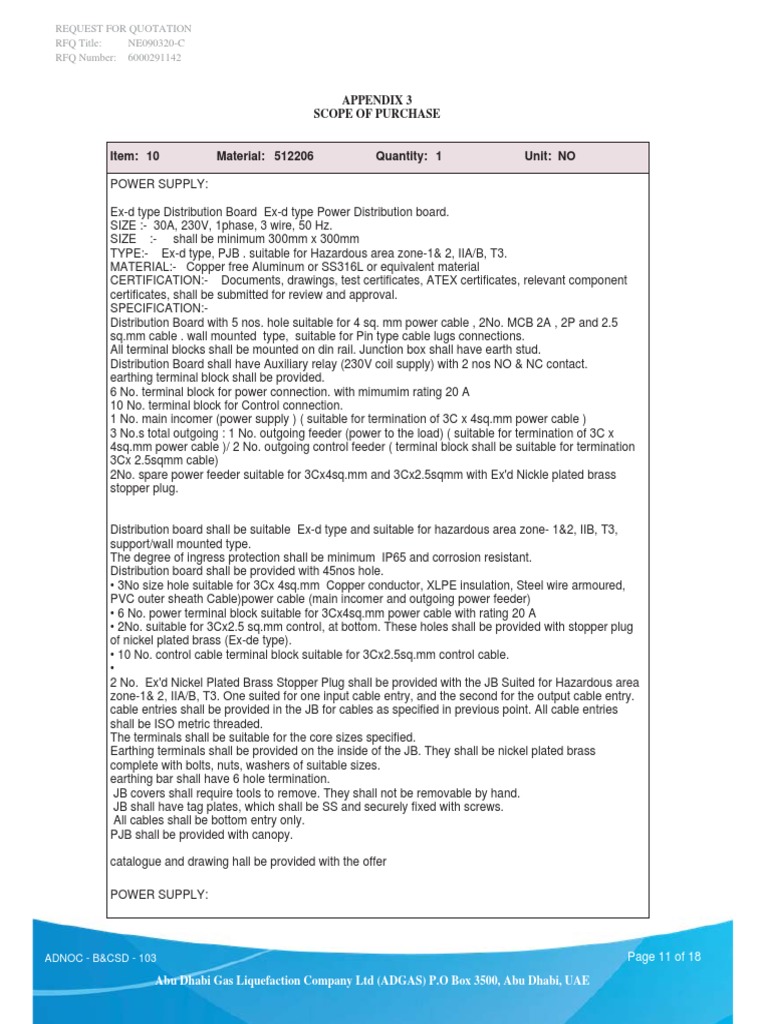

APPENDIX 3
SCOPE OF PURCHASE

Item: 10 Material: 512206 Quantity: 1 Unit: NO

POWER SUPPLY:

Ex-d type Distribution Board Ex-d type Power Distribution board.

SIZE :- 30A, 230V, 1phase, 3 wire, 50 Hz.
SIZE :- shall be minimum 300mm x 300mm
TYPE:- Ex-d type, PJB . suitable for Hazardous area zone-1& 2, IIA/B, T3.
MATERIAL:- Copper free Aluminum or SS316L or equivalent material
CERTIFICATION:- Documents, drawings, test certificates, ATEX certificates, relevant component
certificates, shall be submitted for review and approval.
SPECIFICATION:-
Distribution Board with 5 nos. hole suitable for 4 sq. mm power cable , 2No. MCB 2A , 2P and 2.5
sq.mm cable . wall mounted type, suitable for Pin type cable lugs connections.
All terminal blocks shall be mounted on din rail. Junction box shall have earth stud.
Distribution Board shall have Auxiliary relay (230V coil supply) with 2 nos NO & NC contact.
earthing terminal block shall be provided.
6 No. terminal block for power connection. with mimumim rating 20 A
10 No. terminal block for Control connection.
1 No. main incomer (power supply ) ( suitable for termination of 3C x 4sq.mm power cable )
3 No.s total outgoing : 1 No. outgoing feeder (power to the load) ( suitable for termination of 3C x
4sq.mm power cable )/ 2 No. outgoing control feeder ( terminal block shall be suitable for termination
3Cx 2.5sqmm cable)
2No. spare power feeder suitable for 3Cx4sq.mm and 3Cx2.5sqmm with Ex'd Nickle plated brass
stopper plug.

Distribution board shall be suitable Ex-d type and suitable for hazardous area zone- 1&2, IIB, T3,
support/wall mounted type.
The degree of ingress protection shall be minimum IP65 and corrosion resistant.
Distribution board shall be provided with 45nos hole.
• 3No size hole suitable for 3Cx 4sq.mm Copper conductor, XLPE insulation, Steel wire armoured,
PVC outer sheath Cable)power cable (main incomer and outgoing power feeder)
• 6 No. power terminal block suitable for 3Cx4sq.mm power cable with rating 20 A
• 2No. suitable for 3Cx2.5 sq.mm control, at bottom. These holes shall be provided with stopper plug
of nickel plated brass (Ex-de type).
• 10 No. control cable terminal block suitable for 3Cx2.5sq.mm control cable.
•
2 No. Ex'd Nickel Plated Brass Stopper Plug shall be provided with the JB Suited for Hazardous area
zone-1& 2, IIA/B, T3. One suited for one input cable entry, and the second for the output cable entry.
cable entries shall be provided in the JB for cables as specified in previous point. All cable entries
shall be ISO metric threaded.
The terminals shall be suitable for the core sizes specified.
Earthing terminals shall be provided on the inside of the JB. They shall be nickel plated brass
complete with bolts, nuts, washers of suitable sizes.
earthing bar shall have 6 hole termination.
JB covers shall require tools to remove. They shall not be removable by hand.
JB shall have tag plates, which shall be SS and securely fixed with screws.
All cables shall be bottom entry only.
PJB shall be provided with canopy.

catalogue and drawing hall be provided with the offer

POWER SUPPLY:

ADNOC - B&CSD - 103 Page 11 of 18

Abu Dhabi Gas Liquefaction Company Ltd (ADGAS) P.O Box 3500, Abu Dhabi, UAE
 REQUEST FOR QUOTATION
RFQ Title: NE090320-C
RFQ Number: 6000291142

SIZE :- LV Power DB-3, 220V, 1Phase, 2 wire + earth, 32A, 50Hz, 10kA for 1 second.
TYPE:- Ex-de type, Hazardous area zone-1& 2, IIA/B, T3.
MATERIAL:- Copper free aluminum or SS316L or GRP/FRP.
CERTIFICATION:- Suitable for hazardous area zone-1& 2, IIA/B, T3.
SPECIFICATION:-
Power distribution board with busbar & following accesories:
a) Indication lamp for incomer power supply & common trip indication lamp.
b) DB shall be provided with Ex-e junction box (minimum size 300x300mm)
for cable termination. DB & junction box shall be mounted on free standing
metallic structural support along with sunshed canopy. Metallic structure support
shall be compact in size and shall be provided as part of DB.
c) Cable entry at bottom side. Ex-e junction box shall have 1 no. of M32 hole, 3 nos.
of M20 holes & 3 nos. of M25 holes in junction box for cable entry.
All these holes shall be closed with Ex-de type nickel plated brass stopper plug.
e) Main incomer 32A RCBO, 100mA, 2P = 1 No. (suitable for termination of 3Cx25sq. mm power
cable).
f) Outgoing feeder 10A MCB, 2P = 6 Nos. (terminal block shall be suitable for termination of
3Cx10sq.mm power cable).

Item: 20 Material: 512209 Quantity: 10 Unit: NO

GLAND:Cable,double compression type,M20

GLAND:Cable power,3Cx2.5 & 4 SQMM

GLAND:
TYPE: Cable power
SIZE: 3Cx 2.5 & 4 SQ MM
TYPE: Cable,double compression type
Cable gland w. accessories suitable for 3Cx2.5 & 4 sq.mm cable
SIZE: - Gland suited for LV 3Cx2.5 & 4 sq mm.
Cu/XLPE/LS/SWA/PVC
CERTIFICATION:- Ex-de type, Hazardous area zone-1& 2, IIA/B, T3.
SPECIFICATION :- double compression type, nickel plated brass cable gland,
EQPT MAKE: Hawke (UK), Bicon BICC (UK), or equivalent
MATERIAL:- Nickel plated Brass with all accessories &
PVC shroud.accesories like washer, locknut, earth tag etc., suitable for Ex-de type,
CERTIFICATION:-
Relevant Certification and Data Sheet highlighting
Suitability of offered gland to cable specified
SPECIFICATION:-
1) The cable glands and all related accessories shall
be suited for both LV 3Cx4 mm2 Cu/XLPE/PVC/
SWA/PVC Cable
2) The cable glands supply shall also include
Accessories like double inner and outer seals,
armour clamps, sealing washers, locknuts, earth tags,
and shrouds.
3) The Glands shall be in accordance with BS 6121
4) The degree of ingress protection shall be IP65 minimum
5) The cable gland shall be Nickel plated brass
6) The cable gland shall have ISO metric threads
7) The shroud shall be black in color

Hazardous area zone-1& 2, IIA/B, T3.

Vendor shall note that cable gland shall be suitable for 3Cx2.5 & 4 sq.mm Cu/XLPE/SWA/PVC power
cable.
GLAND:
TYPE: Cable,double compression type
SIZE: M20

ADNOC - B&CSD - 103 Page 12 of 18

Abu Dhabi Gas Liquefaction Company Ltd (ADGAS) P.O Box 3500, Abu Dhabi, UAE
 REQUEST FOR QUOTATION
RFQ Title: NE090320-C
RFQ Number: 6000291142

MATERIAL: Nickel plated brass

SIZE :- M20
TYPE:- Cable gland, double compression type
MATERIAL:- Nickel plated brass
CERTIFICATION:- Ex-de type, Hazardous area zone-1& 2, IIA/B, T3.
SPECIFICATION :- double compression type, nickel plated brass cable gland,
M20 size, with PVC shroud. Cable gland shall be with complete
accesories like washer, locknut, earth tag etc., suitable for Ex-de type,
Hazardous area zone-1& 2, IIA/B, T3.
Vendor shall note that cable gland shall be suitable for 3Cx4 sq.mm Cu/XLPE/SWA/PVC power cable.
