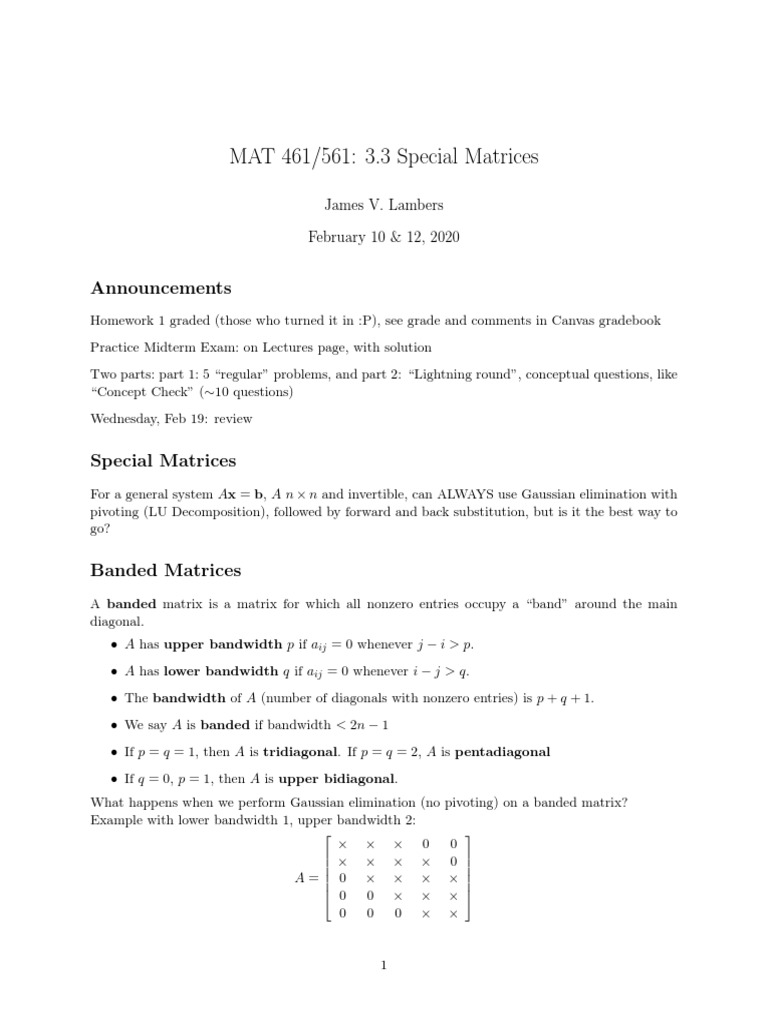

MAT 461/561: 3.

3 Special Matrices

James V. Lambers

February 10 & 12, 2020

Announcements
Homework 1 graded (those who turned it in :P), see grade and comments in Canvas gradebook
Practice Midterm Exam: on Lectures page, with solution
Two parts: part 1: 5 “regular” problems, and part 2: “Lightning round”, conceptual questions, like
“Concept Check” (∼10 questions)
Wednesday, Feb 19: review

Special Matrices
For a general system Ax = b, A n × n and invertible, can ALWAYS use Gaussian elimination with
pivoting (LU Decomposition), followed by forward and back substitution, but is it the best way to
go?

Banded Matrices
A banded matrix is a matrix for which all nonzero entries occupy a “band” around the main
diagonal.
• A has upper bandwidth p if aij = 0 whenever j − i > p.
• A has lower bandwidth q if aij = 0 whenever i − j > q.
• The bandwidth of A (number of diagonals with nonzero entries) is p + q + 1.
• We say A is banded if bandwidth < 2n − 1
• If p = q = 1, then A is tridiagonal. If p = q = 2, A is pentadiagonal
• If q = 0, p = 1, then A is upper bidiagonal.
What happens when we perform Gaussian elimination (no pivoting) on a banded matrix?
Example with lower bandwidth 1, upper bandwidth 2:
 
× × × 0 0

 × × × × 0 

A= 0 × × × ×
 

× × ×
 
 0 0 
0 0 0 × ×

1
Eliminate a21 :  
× × × 0 0

 0 × × × 0 

A= 0 × × × ×
 

× × ×
 
 0 0 
0 0 0 × ×
Eliminate a32 :  
× × × 0 0

 0 × × × 0 

A= 0 0 × × ×
 

× × ×
 
 0 0 
0 0 0 × ×
Eliminate a43 and a54 :  
× × × 0 0

 0 × × × 0 

A= 0 0 × × ×
 

× ×
 
 0 0 0 
0 0 0 0 ×

• In each column, only need to eliminate q entries (lower bandwidth), so in the LU Decompo-
sition, L has lower bandwidth q

• Each row operation only affects p entries (upper bandwidth), so U has upper bandwidth p

• Total amount of flops: n − 1 columns, at most q entries to eliminate per column, so O(nq)
row operations, each costing p flops, so total work is O(npq).

So how much does Gaussian elimination simplify for a tridiagonal matrix (p = q = 1)

Gaussian Elimination:

for j = 1, 2, . . . , n − 1 do
mj+1,j = aj+1,j /ajj
aj+1,j+1 = aj+1,j+1 − mj+1,j aj,j+1
end for

Forward Substitution:

for i = 1, 2, . . . , n do
yi = bi − `i,i−1 yi−1
end for

Back Substitution:

for i = n, n − 1, . . . , 1 do
xi = yi − ui,i+1 xi+1
xi = xi /uii
end for

2
Banded matrices should NOT be stored as 2-D arrays (because of storage of zero entries). Instead,
we can store them as vectors, one per diagonal. Tridiagonal case: use `i for subdiagonal, ui for
superdiagonal, di for main diagonal
Vector storage:
Gaussian Elimination:

for j = 1, 2, . . . , n − 1 do
`j = `j /dj
dj+1 = dj+1 − `j uj
end for

Forward Substitution:

y1 = b1
for i = 2, . . . , n do
yi = bi − `i−1 yi−1
end for

Back Substitution:

xn = yn /dn
for i = n − 1, . . . , 1 do
xi = yi − ui xi+1
xi = xi /di
end for

Problem: Pivoting! Because it can destroy the banded structure, leading to what is called “fill-
in” (introduction of nonzero entries outside the band). Can try other pivoting strategies, such as
requiring |mij | ≤ L instead of 1

Symmetric Matrices
A real matrix n × n A is symmetric if A = AT . Example:
 
1 2 3
A= 2 4 5 
 
3 5 6

In A = LU , L is unit lower triangular, U is upper triangular. Let U = DM T where D is diagonal,

with dii = uii and M is unit lower triangular. Specifically, M T = D−1 U . Therefore we have

A = LDM T ,

where both L and M are unit lower triangular. Now let A be symmetric. Then

AT = M DLT = LDM T = A.

Therefore
DLT M −T = M −1 LD

3
Because (AB)T = B T AT , this becomes
D(M −1 L)T = M −1 LD
The left side is upper triangular, the right side lower. Therefore M −1 L is diagonal, because D is.
Therefore M −1 L = I and M = L, so A = LDLT .
To solve Ax = b with A symmetric, can compute A = LDLT , and then solve:
1. Ly = b (forward substitution)
2. Dz = y (divisions)
3. LT x = z (back substitution)
It’s better to use A = LDLT than A = LU when A is symmetric because the symmetry leads to
the algorithm taking 13 n3 flops!
What about pivoting? If A is symmetric, P A is not! However, P AP T is symmetric and we have
P AP T = LDLT .

Symmetric Positive Definite Matrices

A symmetric matrix A is positive definite (or we say A is “SPD”) if
xT Ax > 0
for all x 6= 0. Equivalently, all eigenvalues of A are strictly positive (note: eigenvalues of any
symmetric matrix are real). Note: if Ax = λx where x 6= 0 and λ is a scalar, then x is an
eigenvector of A, and λ is an eigenvalue. det(A) is the product of all eigenvalues, and
n
X
tr(A) = aii
i=1
is the sum of all eigenvalues.
Properties of SPD matrices:
• det(A) > 0
• aii > 0
• The largest entry of A must lie on the diagonal.
• A−1 is also SPD
How can we check if A is SPD? Can check the principal minors of A, which are the determinants
of the leading principal submatrices of A. Recall
 
a11 a12 ··· a1k

 a21 a22 ··· a2k 

Ak =  .. .. .. .. 

 . . . .


ak1 ··· ··· akk
are the leading principal submatrices of A. The principal minors of A are Mk = det(Ak ). Then A
is SPD if and only if Mk > 0, k = 1, 2, . . . , n. Recall, Mk 6= 0, the LU Decomposition exists (no
pivoting needed).

4
If A is SPD, can compute A = LDLT and not need to pivot, but we can also compute the Cholesky
Factorization
A = GGT
where G is lower triangular and has positive diagonal entries. It exists if and only if A is SPD. To
solve Ax = b, perform: A = GGT , Gy = b (forw sub), GT x = y (back sub). Cost: 13 n3 flops.
Note that if A is SPD,
A = GGT = LDLT
and therefore G = LD1/2 . For this reason, LDLT is called “square-root-free Cholesky”. Note that
in some texts, A = RT R where R = GT is upper triangular. Matlab: use chol function.
Example:
    
9 −3 3 9 g11 0 0 0 g11 g21 g31 g41
 −3 17 −1 −7   g21 g22 0 0  0 g22 g32 g42 
A= =  = GGT
    
3 −1 17 15 g31 g32 g33 0 0 0 g33 g43

    
9 −7 15 44 g41 g42 g43 g44 0 0 0 g44
Filled in:
    
9 −3 3 9 3 0 0 0 3 −1 1 3
 −3 17 −1 −7   −1 4 0 0  0 4 0 −1 
A= =  = GGT
    
3 −1 17 15 1 0 4 0 0 0 4 3 

   
9 −7 15 44 3 −1 3 5 0 0 0 5
Then we have
2
a11 = 9 = g11
√
g11 = a11 = 3
a21 = −3 = g11 g21
g21 = a21 /g11 = −1
a31 = 3 = g11 g31
g31 = a31 /g11 = 1
a41 = 9 = g11 g41
g41 = a41 /g11 = 3
2 2
a22 = 17 = g21 + g22
q q
g22 = 2 =
a22 − g21 17 − (−1)2 = 4
a32 = −1 = g31 g21 + g32 g22
g32 = (a32 − g31 g21 )/g22 = (−1 − (1)(−1))/4 = 0
a42 = −7 = g41 g21 + g42 g22
g42 = (a42 − g41 g21 )/g22 = (−7 − 3(−1))/4 = −1
2 2 2
a33 = 17 = g31 + g32 + g33
q p
g33 = 2 − g2 =
a33 − g31 17 − 12 − 02 = 4
32
a43 = 15 = g41 g31 + g42 g32 + g43 g33
g43 = (a43 − g41 g31 − g42 g32 )/g33 = (15 − 3(1) − 0)/4 = 3
2 2 2 2
a44 = 44 = g41 + g42 + g43 + g44
q q
g44 = a44 − 2
g41 − 2
g42 − 2
g43 = 44 − 32 − (−1)2 − 32 = 5

5
These formulas can also be obtained from the matrix product formula:

n min(i,j)
X X
aij = (gik )(GT )kj = gik gjk
k=1 k=1

Homework Questions
3.2.11 and 3.2.20: When returning L and U stored in A, to check:

>> U=triu(A)
>> L=eye(size(A))+tril(A,-1)
>> L*U-A

Instead of storing a permutation matrix P , create a vector p=1:n and then swap elements of p
whenever swapping rows of A. Then, to solve Ly = P b, use b(p) for P b.
