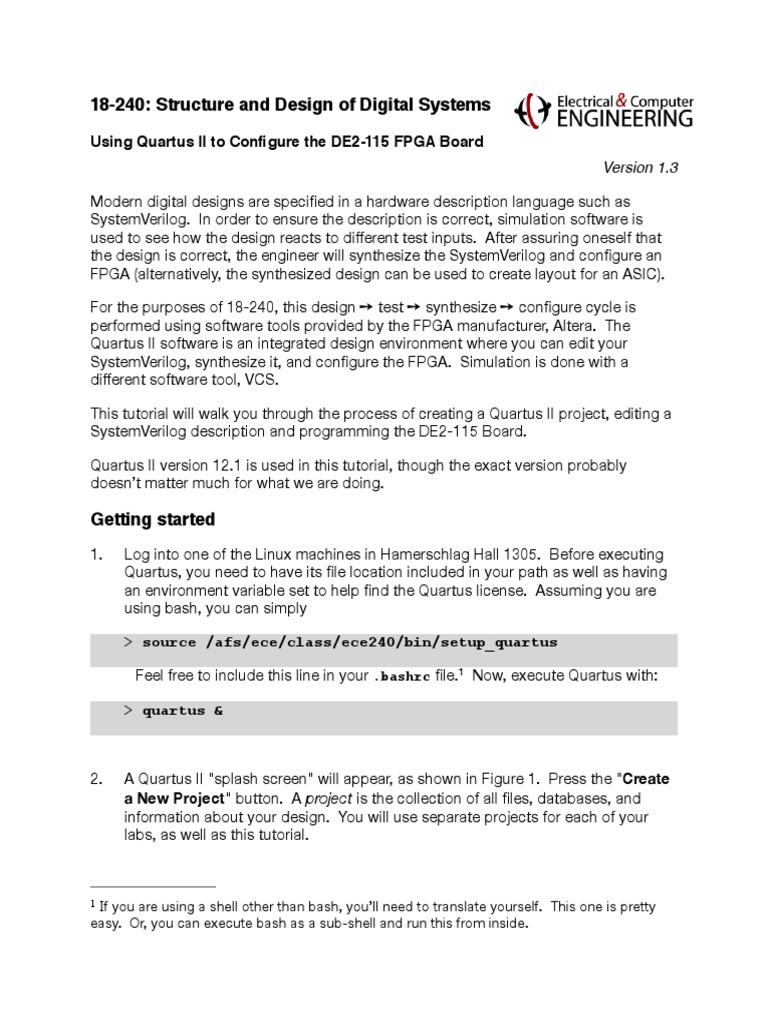

18-240: Structure and Design of Digital Systems

Using Quartus II to Configure the DE2-115 FPGA Board

Version 1.3

Modern digital designs are specified in a hardware description language such as

SystemVerilog. In order to ensure the description is correct, simulation software is
used to see how the design reacts to different test inputs. After assuring oneself that
the design is correct, the engineer will synthesize the SystemVerilog and configure an
FPGA (alternatively, the synthesized design can be used to create layout for an ASIC).

For the purposes of 18-240, this design ➙ test ➙ synthesize ➙ configure cycle is
performed using software tools provided by the FPGA manufacturer, Altera. The
Quartus II software is an integrated design environment where you can edit your
SystemVerilog, synthesize it, and configure the FPGA. Simulation is done with a
different software tool, VCS.

This tutorial will walk you through the process of creating a Quartus II project, editing a
SystemVerilog description and programming the DE2-115 Board.

Quartus II version 12.1 is used in this tutorial, though the exact version probably
doesn’t matter much for what we are doing.

Getting started
1. Log into one of the Linux machines in Hamerschlag Hall 1305. Before executing
Quartus, you need to have its file location included in your path as well as having
an environment variable set to help find the Quartus license. Assuming you are
using bash, you can simply

> source /afs/ece/class/ece240/bin/setup_quartus

Feel free to include this line in your .bashrc file.1 Now, execute Quartus with:

> quartus &

2. A Quartus II "splash screen" will appear, as shown in Figure 1. Press the "Create
a New Project" button. A project is the collection of all files, databases, and
information about your design. You will use separate projects for each of your
labs, as well as this tutorial.

1If you are using a shell other than bash, you’ll need to translate yourself. This one is pretty
easy. Or, you can execute bash as a sub-shell and run this from inside.
3. A "New Project
Wizard" window will
appear. You will go
through 5 steps in order
to define your new
project.

4. New Project Wizard,

Step 1: Directory,
Name, Top-Level
Entity. This window
lets you choose a
directory for your
project. The default is
your home directory,
which is not a very
good place to put class
work. Instead, navigate to a work directory that is specific for this lab or tutorial.

You can actually have several projects in a directory. The name you specify on
the second line is the project name. Name your project "Tutorial."

The Top-Level Entity is the name of the module that is the top-level of your
design. It is your "top" module. Name the top-level design entity "top" for this
project. Beware that this name must match the name of your SystemVerilog
module exactly -- case matters.

Press the "Next" button.

5. New Project Wizard, Step 2: Add Files. In case you happened to have some
SystemVerilog file (or other design file) that you wanted to include in this project,
you could add it here. Later in the semester, you will be developing a "library" of
SystemVerilog components. This is the step where you can add that library file to
the project. For now, just press the "Next" button.

6. New Project Wizard, Step 3: Family and Device Settings. In this step, we need
to tell the tool which particular FPGA we are working with. In our case, this is a
pretty easy decision, as the FPGA has been chosen by the fact that we are using
the DE2-115 boards. We just need to choose the exact FPGA that exists on the
board. Ours is the "EP4CE115F29C7." Yeah, I'm sure that was the one you were
going to guess. Choose the Family (Cyclone IV E, not GX) and Available devices
to match Figure 2, then press the "Next" button. Alternatively, you can (after
selecting Cyclone IV E Family) type the device name into the "Name Filter" field.

7. New Project Wizard, Step 4: EDA Tool Settings. Please, please, don't touch
anything on this window except for the "Next" button.

8. New Project Wizard, Step 5: Summary. Is it really a step if you can't do

anything? Just press the "Finish" button.

9. Congratulations, you now have a project. It is a pretty lame project, as there isn't
much in it at the moment. Let's fix that by creating a SystemVerilog file. Quartus
II has an editor that you can use to create your files. It isn't a particularly good
editor, though it does do some SystemVerilog syntax highlighting. Feel free to use
another editor if you wish.

10. To create a file using the built in editor: File ➙ New ➙ SystemVerilog HDL File ➙
OK. An editing pane will open in the middle-right section of the Quartus II
window. This is a tabbed editing area, where various files and reports will be
displayed. For now, your new (empty) file is called "SystemVerilog1.sv."

11. An empty file isn't very interesting. Let's put

some major, awesome functionality in our
circuit -- something like the circuit shown
below? Type the following (or cut-n-paste)
into the editor window. Note that the module
name ("top") must match the "Top-level
Entity Name" that we supplied when we
created the project (in step 4.2).

a
b
f
c
d

module top
(output logic f,
input logic a, b, c, d);

nand g1(f, f1, f2)

g2(f1, a, b)
g3(f2, c, d)

endmodule : top

12. You will notice that the editor colors keywords with blue text and numbers each
line. Depending on the preferences set at the moment, you also will probably get
dots in each space character (i.e visible whitespace) and dotted vertical lines
every two characters (i.e. indentation guide). You can change these preferences
by pressing the buttons in the editor window toolbar. Now that you have
something to lose, you'd better save it. Press <ctrl> S to save your
SystemVerilog code. Save it with a filename of top.sv (as the Save dialog will
suggest) and ensure that the "Add file to current project" checkmark is selected.

Change editor preferences here

13. At any time that you'd like to see what

files there are in your project, you can
get a list in the "Project Navigator"
pane. The "Project Navigator" is on
the left column of the Quartus II
application. It will show the
components of your project, either by
design hierarchy, files or design units.
Click the "Files" tab at the bottom of
the Project Navigator and make sure
that top.sv is listed as being part of
your project (at this point, it should be
the only such file). I’m showing here the
screenshot from the windows version of
Quartus, as it nicely displays just the
filename portion of the files. Under
Linux, you’ll get the entire path, starting
with a bunch of ../../../ junk that makes
this almost unusable. If anyone can
figure out how to get Quartus to just
display filenames and not complete paths, you’ll make me very happy!

14. Now it is time to compile the design. Quartus II takes care of a great deal of
individual analysis tasks, much like how a makefile can guide the build process for
a complicated piece of software. Start the compilation with the aptly named
Processing ➙ Start compilation (see what I did there?). You can also use <ctrl>
L or push the purple triangle button in the toolbar.

15. You should discover, thanks to an error dialog, that "Full Compilation was NOT
successful" with 3 errors. Looks like I gave you faulty SystemVerilog code. Can
you find the errors? If not, here is a hint: ,,;

16. By the way, you will notice that your source code window has been covered up
with a "Compilation Report" window. Right now, there isn't much useful
information in the report (since the compilation process failed pretty early on).
Simply close the Compilation Report by clicking the small "X" box on the
window's tab.

17. Did you fix the source code? In all three places? Good. Start the compilation
again. You will be prompted to save your code before the process starts. That
seems like a good idea, so press the "Yes" button.

18. Compilation should take a bit longer this time around. Even though it seems we
have a pretty small design (which is true), Quartus II is running a full suite of
industrial strength analysis tools on it. You can track the progress in the "Tasks"
pane on the left side, below the Project Navigator.

19. You should get a dialog box

announcing that "Full
Compilation was successful."
You probably also had a
bunch of warnings (10?).
Celebrate a moment, then
press the "OK" button to
make the dialog box go away.
If you didn't get successful
compilation, go find more
errors to fix and try again.

20. Another compilation report window has popped up to obscure your source code.
This one is a bit more interesting. It reports the number of logic elements used
(should be 1), number of logic registers (should be 0 until Lab 2b), total pins used
(should be 5, one each for f, a, b, c, and d), etc.

21. You can look at the Messages pane at the bottom of the window to discover what
the details of the 10 warnings were. The buttons with red circle, purple triangle
and yellow triangle let you choose to display Error messages, Critical Warnings or
Warnings. Most are ignorable ("No clocks defined in design" which is completely
true for this circuit) or of moderate interest ("created implicit net for f1"). This later
warning is given because we never defined logic signals for f1 and f2. We just
used them to connect our nand gates. Perhaps it would be better style to have
defined them (and thus have a known type for them).

22. There is one warning that, with a little thought, should bother you. That warning is
in the Critical Warning list: "No exact pin location assignment(s) for 5 pins of 5
total pins." Quartus II doesn't know we are using the DE2-115 board. All it knows
is that we are using a particular FPGA. Thus, it doesn't know what pins should be
connected to the input and output signals (f, a, b, c, and d). We should probably
specify that the inputs are connected to some switches and the outputs to an
LED. Right now, as the project stands, the input and output signals were decided
upon by Quartus II without knowing where the switches and LEDs are. You can
check Quartus II's choices in the Compilation Report (did you already get rid of it?
Bring it back with Processing ➙ Compilation Report or <ctrl> R). You'll have to
dig into the Compilation Report by selecting sections from the Table of Contents
on the left side of the window. Check out Fitter ➙ Resource Section ➙ Input
Pins (and Output Pins). When I ran this tutorial, the input pin selected for b was
Pin #D4, which is actually connected to "ISP1362 DMA Acknowledge 1" a signal
to the USB controller. That'll be hard to get to in order to change the input value.

23. Let's assign some pins to the input and output signals then. We will connect the
signals according to the following table (note that you have to type in PIN_XXX):

 Signal I/O Device Abbreviation Pin #

f output Green LED #0 LEDG0 PIN_E21

a input Switch #0 SW0 PIN_AB28

b input Switch #1 SW1 PIN_AC28

c input Switch #2 SW2 PIN_AC27

d input Switch #3 SW3 PIN_AD27

24. Open the "Pin Planner" tool with either Assignments ➙ Pin Planner or the
keyboard shortcut <Ctrl+Shift> N. This tool looks a lot messier than you need to
worry about. You only need worry about the table at the bottom. You will see that
the input and output signal names are already filled in for you, one per row.
Unfortunately, the Pin Planner only knows the signal names after a successful
compilation, which is why we allowed Quartus II to pick poor pins for us in the first
place. Go ahead and fill in the "Location" column of the table with the values from
the table above. Your table should look like this when you are done:

Close the Pin Planner with File ➙ Close or the "X" in the upper right of the
window.

25. Let's take a slight detour to ensure the pins we didn't assign aren't lit up. Go to
Assignments ➙ Device... and select the "Device and Pin Options..." button on
the middle right side. Yet another window will open, named "Device and Pin
Options." Select the "Unused Pins" Category on the left. In the pane on the
right, choose "As input tri-stated". Press OK. Press OK again.

26. Now, re-run the compilation. You should get a successful compilation dialog box
with fewer warnings (9 warnings?). Not to worry!

27. Now it is time to send the synthesized design to the DE2-115 board (finally!). This
process is called "Configuring" the FPGA, though Quartus II sometimes calls it
"Programming." Take a quick look at the DE2-115 board. You should have a USB
cable connected to the top of the board on the left side. Be careful, there are two
places to plug in the USB cable. It should be in the far left socket (which is
labeled with "Blaster" in small type on the board. A power cable should be
connected in the upper end of the left side, near a big red button. That big, red
button controls power to the board. Press it to turn the board on. You should see
lots of blinking lights, counting numbers and the message "Welcome to the Altera
DE2-115" on the LCD display. If you don't see all this electronic wonderfulness,
you should check the Run/Prog slide switch in the lower-left corner. It should be
set to "Run."

28. Open the FPGA Programmer with Tools ➙ Programmer or click this icon
in the toolbar. Or, you can double-click on "Program Device (Open
Programmer)" in the Tasks pane. This last is probably easiest, as you will
have just been paying attention to the compilation success in the same window.

29. The Programmer window will open. You need to check that the "Hardware
Setup..." field near the top says "USB-Blaster [2-1.5.1.3]" next to it. If the
numbers are slightly different, that’s okay. If it doesn't at least say “USB-Blaster”,
then click on "Hardware Setup...". In the "Currently selected hardware:"
selection field, choose "USB-Blaster" and close the window.

30. If the hardware is appropriately selected in the Programmer, you simply need to
press the "Start" button on the left side. A green progress bar in the upper-right
corner should slowly fill up to "100% (Successful)." I love how they must think we
wouldn't know that 100% is good and have to tell us we are successful. You may
now close the Programmer window.

31. You may now test the circuit on the DE2-115 board. Recall that SW0-3 are the
inputs and that LEDG0 (on the far right) is the output. The LED is active high.
That is, it will light up whenever it receives a logic 1. The switches provide a logic
zero whenever the slider is closest to the bottom edge of the board, pretty much
as you would expect. Try all 16 input combinations. The LED should light up for
seven of them.

32. Turn the power off and back on again (big red button). What happens to your
circuit? When you program the FPGA in the way we just did, your design is
volatile. That is, it only stays in the FPGA while power is available.

33. You have now completed the Quartus II Tutorial. Hope you enjoyed it! Before you
go, however, I want to tell you a secret. There is a much easier way to do the Pin
Planning work, though it will make more sense after you have learned how to do
vectors in SystemVerilog. I'm including it in this tutorial, however, because I'll
probably forget to tell you about it later.

I have provided a spreadsheet file (CSV)2 on Blackboard (in the Lab0 Stuff folder)
that includes all pins on the entire FPGA. As long as your top-level module uses
the exact names printed on the DE2-115 board (or listed in the DE2-115 User
Manual), this file will save you from ever having to look up pin assignments.
Merely import it into your design with Assignments ➙ Import Assignments...
The switches and LEDs are defined in this file as vectors, so it'll take jumping
through a few hoops to define our signals in ways that map directly to the names
in the file. This works:

module top
(output logic [7:0] LEDG,
input logic [3:0] SW);

nand g1(LEDG[0], f1, f2),

g2(f1, SW[0], SW[1]),
g3(f2, SW[2], SW[3]);

endmodule : top

Notice that, even though LEDG[0] is the only green LED we are using, we still
have to connect the top module to LED[7:0]. That is because the pin assignment
file (the CSV file) defines the connection for all 8 LEDs. If you were to change the
port definition to output logic [0] LEDG or something like that, then the
assignment process wouldn't be able to match it to the definition of the pin
assignment in the file. It would then choose a (mostly) random FPGA pin to attach
LEDG0 to, which is a bad thing for this course.

2In some rare occasions, the csv file doesn't seem to load properly. I have also included a
qsf file on Blackboard. It should load with the same Import Assignments process.
