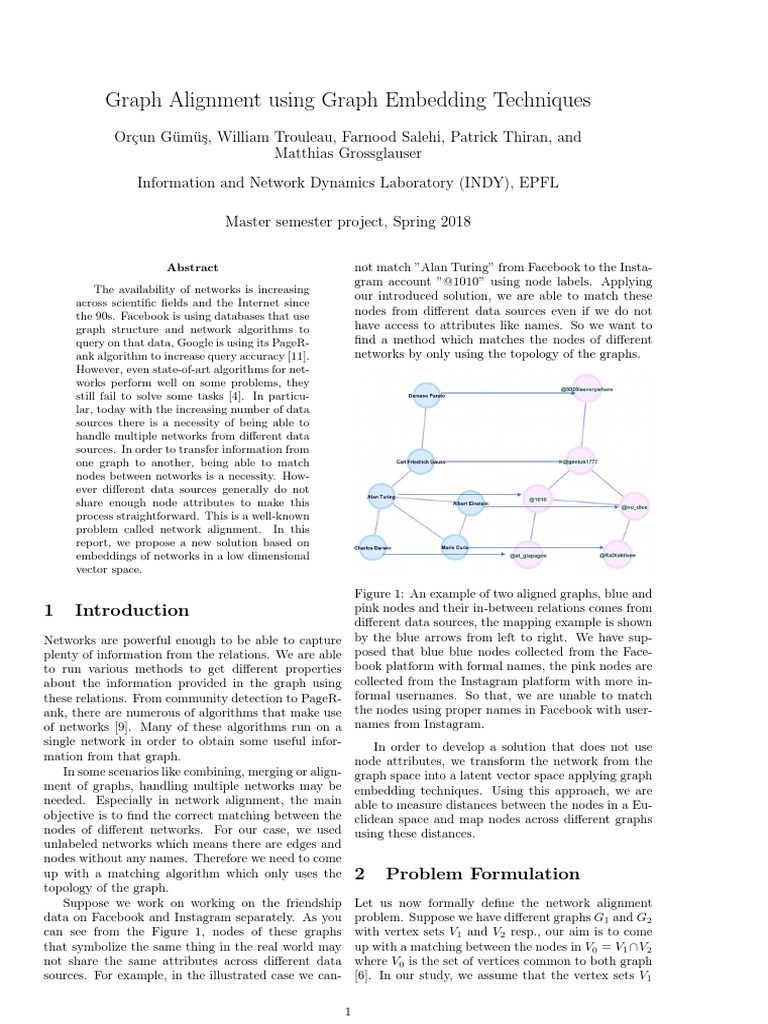

Graph Alignment using Graph Embedding Techniques

Orçun Gümüş, William Trouleau, Farnood Salehi, Patrick Thiran, and

Matthias Grossglauser

Information and Network Dynamics Laboratory (INDY), EPFL

Master semester project, Spring 2018

Abstract not match ”Alan Turing” from Facebook to the Insta-

gram account ”@1010” using node labels. Applying
The availability of networks is increasing
across scientific fields and the Internet since
our introduced solution, we are able to match these
the 90s. Facebook is using databases that use nodes from different data sources even if we do not
graph structure and network algorithms to have access to attributes like names. So we want to
query on that data, Google is using its PageR- find a method which matches the nodes of different
ank algorithm to increase query accuracy [11]. networks by only using the topology of the graphs.
However, even state-of-art algorithms for net-
works perform well on some problems, they
still fail to solve some tasks [4]. In particu-
lar, today with the increasing number of data
sources there is a necessity of being able to
handle multiple networks from different data
sources. In order to transfer information from
one graph to another, being able to match
nodes between networks is a necessity. How-
ever different data sources generally do not
share enough node attributes to make this
process straightforward. This is a well-known
problem called network alignment. In this
report, we propose a new solution based on
embeddings of networks in a low dimensional
vector space.

Figure 1: An example of two aligned graphs, blue and

1 Introduction
Networks are powerful enough to be able to capture
plenty of information from the relations. We are able
to run various methods to get different properties
about the information provided in the graph using
these relations. From community detection to PageR-
ank, there are numerous of algorithms that make use
of networks [9]. Many of these algorithms run on a
single network in order to obtain some useful infor-
mation from that graph.
In some scenarios like combining, merging or align-
ment of graphs, handling multiple networks may be
needed. Especially in network alignment, the main
objective is to find the correct matching between the
nodes of different networks. For our case, we used
unlabeled networks which means there are edges and
nodes without any names. Therefore we need to come
up with a matching algorithm which only uses the
topology of the graph.
Suppose we work on working on the friendship
data on Facebook and Instagram separately. As you
can see from the Figure 1, nodes of these graphs
that symbolize the same thing in the real world may
not share the same attributes across different data
sources. For example, in the illustrated case we can-
pink nodes and their in-between relations comes from
different data sources, the mapping example is shown
by the blue arrows from left to right. We have sup-
posed that blue blue nodes collected from the Face-
book platform with formal names, the pink nodes are
collected from the Instagram platform with more in-
formal usernames. So that, we are unable to match
the nodes using proper names in Facebook with user-
names from Instagram.
In order to develop a solution that does not use
node attributes, we transform the network from the
graph space into a latent vector space applying graph
embedding techniques. Using this approach, we are
able to measure distances between the nodes in a Eu-
clidean space and map nodes across different graphs
using these distances.
2 Problem Formulation
Let us now formally define the network alignment
problem. Suppose we have different graphs G1 and G2
with vertex sets V1 and V2 resp., our aim is to come
up with a matching between the nodes in V0 = V1 ∩V2
where V0 is the set of vertices common to both graph
[6]. In our study, we assume that the vertex sets V1

1
and V2 are exactly equivalent V0 = V1 = V2 . Some of the other graph embedding algorithms
preserve the node structure. The idea of node struc-
Definition 2.1. (Network Alignment, π) A subset of ture, first introduced in Leonardo F. R. Ribeiro et
V 1 × V 2 such that any node in V1 = {1, ..., n1 } and al. [2] is to represent symmetry in which network
V2 = {1, ..., n2 } is matched to at most one node in nodes are identified according to their relationship to
the other graph [6]. We define one-to-one matching other nodes. In the embeddings which only preserves
for the subsets where all nodes from V1 is matched node structure rather than proximity, two neighbour
with exactly one node from V2 . node may have very dissimilar features. From Fig-
ure 3 it can be understood that two far away node or
Another notion that we use is graph embedding. It even nodes from different graphs can have the same
is applied for transforming graph data into the latent representation on the embedding space.
vector space.

Definition 2.2. (Graph Embedding, w) Given a 3 Contribution

graph denoted as G = (V, E), network embedding
aims to learn a mapping function f : ni 7→ wi ∈ IRd , Graph alignment becomes a harder problem when the
where d  |V | [12]. topologies of the graphs are different. Some edges
in one graph may not exist in the other. We try to
Through the dimension transformation from the introduce a new alignment method which is able to
graph space to latent vector space, preserved pro- overcome this kind of problems. To do so, we design
prieties of the graph is varying for different embed- an embedding algorithm which is more robust to noise
ding algorithms. To explain the design choices in our when it is compared with other embedding algorithms
embedding algorithm we show some of the preserved like LLE which identify itself as neighbour preserving
graph proprieties in different graph alignment algo- embedding or HOPE which preserve high-order prox-
rithms. imities of large-scale graphs. [5, 8].

Figure 2: On the right graph, there is a Zachary’s

karate club network, on the left, embeddings of the
graph using DeepWalk in 2 latent dimension using
implementation described at [10]

For example, well-known DeepWalk embedding al-

gorithm preserves the relation between the nodes [4,
3]. This means a random node and its neighbours
are more likely to have similar latent vector space
representations. ”Close” nodes inside a graph will
tend to have share similar features in the latent vec-
tor space, and far nodes inside a graph responsively
will be placed also far in the latent vector space as it
can be seen in the Figure 2. Since DeepWalk is de-
signed to preserve these relations between the nodes,
it is a successful tool for the tasks like community
detection.
Figure 4: Effect on the noise of different embedding
methods. The distances calculated in euclidian space
between original embeddings with the embeddings in
the noised version. Y-axis shows 1 minus ratio be-
tween the average distance of the original and the
noisy version embeddings divided by overall average
distances in that space. If this value is one this means
that the distances between original and the noisy ver-
sion are too small relative to the other distances in
that space.

3.1 Network Embedding Algorithm

Figure 3: (Figure 1 of [2]), An example of two struc-
turally similar nodes(µ and ν) inside a single network.
Even the distance between the nodes µ and ν are high,
their neighbours also have similar degree distribution.
Node µ have 5 neighbours that have 4, 3, 3, 2, 2 de-
grees, node ν have 4 neighbours that have 3, 3, 2, 2
degrees.
The main idea to extract the structure of a node
is to look at its neighbours’ degree distribution. So
that the distance in the latent vector space between
these degree distributions should be correlated with
the structural difference.
Definition 3.1. (noise, p) is the probability of re-
moving edge e ∈ E from the graph G(V, E)

2
 We also use the notation of noise to define the dif-
ferences between two graphs topologies. Since we are
using the same node set during our alignment, we re-
move a subset of edges to create noise. As you can see
from the Definition 3.1 noise signifies the edge removal
probability for the graph.
In other words, two different nodes from differ-
ent graphs which have very similar embeddings should
also have the similar structure. Using this informa-
tion, we can obtain structural similarity for nodes in
between different graphs while keeping embeddings
independent from the position of the nodes inside the
graphs.
Given these properties, we come up with the fol-
lowing node embedding algorithm which preserves
node structure properties. Let G = (V, E) and the set
Rik denotes the set of nodes which linked with ni ∈ V
exactly with k length path. To obtain node embed-
ding for ni , we use histograms of degree distributions
of Rik for different i ∈ 1..kmax . We concatenate(_
concatenation of 123 and 456 is 123456) these his-
togram vectors and add d(ni ) as a feature to get em-
beddings of a ni as illustrated in Equation (1).
Xi = Xi1 _ Xi2 _ . . . Xikmax _ d(ni ) (1)
Algorithm 1: Embedding Algorithm
Input: G(V, E), graph to be embedded, B
histogram length, kmax maximum
distance to be taken in the account
Output: X, embedding of the graph G
1 for ni in G do
2 for k < kmax do
3 Xik ←B bins histogram of Rik
Xi ← Xi _ wk × Xik
4 end
5 Xi ← Xi _ d(ni )
6 end
7 return X;
With the Algorithm 1, the embedding space will
have 1 + B × kmax dimension. The 1 in the formula is
node degree of the resp. node. B is the bin count of
the histograms. To increase the importance of more
close neighbours, we introduce a weight hyperparam-
eter which will be used to simply multiply with the
partial embeddings Xik for a distance level k as illus-
trated in Equation (2).
Xi = w1 × Xi1 _ . . . wkmax × Xikmax _ d(ni ) (2)
Since designed embedding algorithm is capable of
capturing the structure of the nodes, it is more ro-
bust to noise than other algorithms which are prox-
imity based. As you can see from the Figure 5, most
of the nodes have exactly the same embedding when
we remove some of the edges. On the other hand, the
embeddings generated from DeepWalk are more vary-
ing with the noise. Nearly all the nodes change their
position in the latent space when we remove only 7
edges from the graph. come up with a straightforward method which maps
Table 1: Used Symbols and definitions
Symbols Definitions
G(V, E) Graph with vertex set V and edge set E
X Embeddings for the graph G
N Number of the nodes
nj Node j.
emj Embeddings for the node nj
wjk Embeddings for the node nj for the hob k
dj Node degree of the nj .
dmax dj for maximum degree node nj
dmin dj for minimum degree node nj
B Number of buckets for one hub distance
Rik set {nj ∈ G|dist(ni , nj ) = k}
kmax Hub distance will be used at most
θ Threshold in alignment method
θ̄ Threshold ratio in alignment method
w Weight to control the importance of closer n
_ Vector concatenation
Figure 5: On the left there is Zachary’s karate club
network, removed edges labelled with red X. On the
top right., embeddings generated by DeepWalk for
2-dimensional latent space is shown [10]. Original
(without edge removal) embeddings are painted in
transparent colours, nodes from the noisy graph (after
edge removal) painted in solid colours. Arrows show
the distance between original and noisy version. The
same process is done for our algorithm and the result
shown in the bottom right where B is 2, kmax is 1 and
w is 1.
3.2 Network Alignment Algorithm
In the previous section, we have introduced a graph
embedding algorithm which preserves node struc-
tures. In this section, we introduce our graph align-
ment method.
Measuring node distances across graphs We
use distances between nodes in the latent vector space
generated by the embedding. Distances are calculated
using L2 distance as follows:
dist(n1 , n2 ) = kem1 − em2 k22 (3)
Using this distance measurement, it is possible to
3
ni with its closest node from the other graphs.
na ∈ G1 , n1 , n2 , n3 · · · ∈ G2
mapping(na ) = arg min dist(ni , na ) (4)
i θ = θ̄ ×
Using Equation (4) every node will be mapped to
the most similar node from the other graph. However,
this mapping equation is not injective which means it
can create some nodes from G2 that do not have any
matched node from G1 or it can create some nodes
form G2 matched more than once with different nodes
from G1 .
To have a mapping function which is one-to-one,
we have implemented a greedy algorithm that iterates
over the pairwise distances. It sorts the distances from
minimum to maximum and it matches nodes greedily
from the G1 to G2 starting from the minimum dis-
tance, Algorithm 3 can be found in appendix.
Algorithm 2: alignment using embeddings
Input: Two graphs to be aligned, G1 , G2 ,
matching algorithm
Output: matching dictionary, one to one, or
one to list dependent on the used
matching algorithm
1 X1 ← embeddings of G1 using Algorithm 1;
2 X2 ← embeddings of G2 using Algorithm 1;
3 X1 , X2 ← normalize column-wise the
embeddings X1 , X2
4 D ← compute distance matrix d(X1 , X2 ) ;
5 matching ← use Algorithm 3 on D;
6 return matching;
Overall alignment Algorithm 2 first compute em-
beddings of the graphs then takes the pairwise node
distances between these two embeddings. Then apply
Algorithm 3 matching function over the embeddings.
Selecting only the most similar node for matching
approach is the most intuitive, straightforward ap-
proach for the graph alignment problem. Since em-
bedding algorithm preserve structure similarity, align-
ment method will map nodes which have most sim-
ilar structure across graphs. However, this may not
match two nodes even they have shared very similar
latent vectors because one to one matching approach
can only match one node to exactly one another and
it loses the information from other matching possibil-
ities. To overcome this problem, we introduce one-
to-many matching function to decrease our miss ratio
during alignment process and not to lose any high
matching possibilities. In this method, rather than
using the matching function as node to node, we de-
fine it as a node to set function.
mapping(na ) = {ni ∈ G2 | dist(ni , na ) < θ} (5)
Using one-to-many method, we are able to match one
node to multiple high possible nodes. However, now
we have to introduce a new threshold hyperparameter.
This parameter is symbolizing the maximum distance
to match the node pair. To set θ to a particular value
is not an easy task. Distance in the latent vector space
is dependent directly on the k level, B bin count in
the histogram, N number of total nodes etc. To set a
constant threshold may not work in different values of
4
k and B etc. To overcome this problem we introduce
a θ̄ concept which is more consistent across different
settings.
max dist(n1 , n2 ) (6)
n1 ∈G1 ,n2 ∈G2
Using θ̄ as hyperparameter, the θ is now not ef-
fected from maximum distance in the latent vector
space. This approach gives us the possibility to con-
trol the θ without taking account the distribution of
distances. θ̄ will be used to assess the performance of
our algorithm in the further steps.
4 Results
4.1 Simulation Setup
In order to test our embedding and alignment algo-
rithms, we have designed a simulation environment.
We formed our simulation in such way that it can im-
itate the real world scenarios. For example, suppose
a hypothetical group of people who uses different so-
cial networks. In different social networks, some of
the relations may not exist although the real friend-
ship relations is the same. So social networks can be
seen as a noisy version of friendship relations. To il-
lustrate this type of scenarios we have conducted our
simulation with these steps:
1. Create a power law graph G with N nodes, with
e edges.
2. Create multiple noisy graphs Gi by removing
some of edges with probability p from the graph
what is generated in the first step.
3. Try to align the noisy graphs using the intro-
duced algorithm.
4. Count the correct and false matchings in be-
tween Gi using the real information extracted
from G.
We evaluate our algorithm using simulation setup
with different (p), with different θ̄ and w. During all
the tests, we use same B = 8 and kmax = 2.
We run multiple simulations with the same set-
tings to decrease the effect of the randomness. Each
simulation contains 5000 different G, and the results
are produced by averaging the outcomes of these runs.
If not specified otherwise, all G have 1000 nodes and
10000 edges. By reviewing results of simulations, we
try to answer questions listed below:
Q1: Are we able to catch all correct mappings, how
many of the node mappings are true?
Q2: How confident are we from the matchings that
we made during the alignment phase for differ-
ent p?
Q3: Can we control the answer of these questions
using the θ̄ and w?
Table 2: Used Definitions during experiment evalua-
tion

True positive: An outcome where the

tp:
model correctly predicts the positive class.
False positive: is an outcome where the
f p:
model incorrectly predicts the negative class.
False negative: is an outcome where the
f n:
model incorrectly predicts the positive class.
P: Precision, tp/(tp + f p)
R: Recall, tp/(tp + f n)

To evaluate the performance of the experiments

we use true positive, false positive, false negative no-
tations defined as follows: Suppose µ and ν are nodes
from different graphs. If µ and ν are matched by our
algorithm and they are the same node in the main
graph we count the pair as a true positive. If µ and
ν are matched by the algorithm and they are not the
same node in the main graph, we count the pair as
false positive. If µ and ν are not matched by the al-
gorithm and they are actually the same node in the
main graph, we count the pair as a false negative.
Figure 7: The average accuracy (all correctly matched
node pairs by algorithm divided by all possible correct
node pairs) using one-to-one matching Algorithm 3 on
varying p. Embedding generated using B = 8, kmax =
2.
4.3 Experiment on varying weight
For embedding creation, we use the histogram of the
neighbour degree distribution as explained in the Sec-
tion 3.1. We associate different weights to different
distances in the graph. The weight concept is initi-
ated in order to control the importance of the node
embeddings of the neighbour closeness.

Figure 6: Shows examples of tp, f p, f n on a latent

embedding space. Blue nodes and pink nodes are from
a different graph and one-to-many algorithm is in use
with a given threshold. Inside the circle means model
predict as positive and the outside of the circles means
that models predict as negative.

4.2 Experiment on varying noise

The one-to-one matching approach forces our align-
ment algorithm to match every single node from G1
to precisely one node from G2 . This means the align-
ment algorithm produces the exact same number of
matching with the number of the nodes.
High noise on networks makes harder to correctly
match the nodes. Because when noise increases, the
total removed edges also increases. Extracted edges
cause changes on the topology of the graph and our
algorithm success is decreasing as expected. We see
this phenomenon on Figure 7, precision is lower in
higher noise values. Over the y-axis, we see a straight
line of decrease over the noise. However, even in the
high noise level like 10%, which means that one of
the ten edges removed in each graph, the algorithm
is capable of correctly matching more than 50% of all
nodes.
Figure 8: The average precision of our graph align-
ment algorithm varying over w on different p visual-
ized with different colors. Lower w decrease the effect
of Rk for bigger k values. Since kmax as 2, we use
only R1 and R2 and if w equals to 1 the effects of R1
and R2 are the same.
Therefore, if we want to increase the importance of
the ”far” neighbours during embedding, we use higher
weights, respectively if we want to increase the effect
of the closest neighbours, we use lower weights. As
shown in Figure 8, the precision of our algorithm have
maximums near 1 and it is decreasing when the w is
lower. Non-usage of the weight parameter is exactly
the same thing as setting the weight to 1 and we see
that we have better precision when we do not use
weights. However, we will keep weight in order to use
it with higher kmax values.

5
4.4 Experiment on varying threshold
As mentioned before, one to set matching tends to
match all high possible pairs of nodes across the
graphs. While this enables us to have higher recall
by catching nearly all possible true positives on high
threshold values, it may decrease the precision of our
algorithm. We use threshold ratio to control these
outcomes. During evaluation of the one to set match-
ing, we use same simulation environment with same
graph creation and embedding settings.
The one-to-many matching algorithm is more de-
scriptive about how our alignment method works un-
der the hood. Since we are able to see all potential
pairs by raising our threshold value, we can also un-
derstand the distribution of the distances in latent
vector space. Therefore, rather than observing only
one information (a node to another), now we can de-
termine how other nodes are also similarly embedded
into vector space.
using the neighbours of the nodes. This means if the
node has much more neighbours, our embedded fea-
tures which lay on latent vector space will be denser
and denser vector may be more accurate about the
structure. In addition to that, in the power law graphs
that we use while generating G, degrees are not uni-
formly distributed. There are much more low degree
nodes then the high degree nodes. If we assume that
embeddings of high degree nodes will be more simi-
lar to other embeddings which have also high degrees
then high degree nodes will have less possible nodes
to be matched.

Figure 10: The cumulative tp/(tp + f p) of one-to-

many matching on varying degree of nodes. Cumula-
tion starts from highest degree to lowest degree. The
total number of nodes inside the networks is 1000 and
B = 8, kmax = 2, w = 1 and p = 0.3. Different θ̄ visu-
alized with different colors. Results are averaged 100
simulations which run on the same settings.
Figure 9: The precision and recall of one-to-many So as you can see from the Figure 10, the preci-
matching on varying on θ̄. The total number of sion of our algorithm on high degrees is greater if we
nodes inside the networks is 1000, p = 0.03, B = 8, compare them with nodes which have moderate de-
kmax = 2 and w = 1. Precision is tp/(tp + f p), Recall gree rank. However, the precision of our algorithm is
is tp/tp + f n. Results are averaged 100 simulations also increasing in very low degree nodes since the em-
which run on the same settings. bedding of these nodes is becoming very sparse and
We can expect that when θ̄ increase, since algo- having the same feature is becoming very informative
rithm starts to capture more correct pairs, the re- in that case.
call also increases. In other words, we start to find
the pairs that we cannot find previously. However 5 Conclusion
there is no progress without any sacrifice, when we
increase our threshold ratio, our alignment method We introduce a graph embedding algorithm which
claims more false-positives, that are matched pairs by
preserves several node proprieties which are useful
our alignment method, but in fact, they are not the while identifying possibly same nodes across different
same node in the G. graphs. While designing our embedding algorithm, we
As can be seen in the Figure 9, when the θ̄ in- focus on transporting node structures from the graph
creases, the recall also increases and the precision de-
space to the embedding space. To do so, we extract
creases. This means that we can use θ̄ to change ourthe histogram of the degree distribution of various dis-
algorithm behaviour for different needs. If we need to
tance neighbours for each node. Using this approach,
find a few correct matchings with the low error rate,
we preserve the structural information of the nodes
we can use low θ̄, this may be in the case when you inside the latent space.
want to be sure about what is claimed as matched After determining our embedding method, we for-
(low type I error). If we need to find all possible cor-
mulate our alignment algorithm based on this embed-
rect matchings, we can use high θ̄ (low type II error).
ding. We calculate L2 distances of the cross-network
latent vectors and match the nodes based on the simi-
4.5 Experiment on different degrees larities on the embedding space. We introduce one-to-
one and one-to-many matching ideas and compare our
We also investigate the success of our algorithm on embedding method in these different alignment meth-
different node degrees. We construct our embeddings ods. We test the success of the introduced alignment

6
algorithm by generating synthetic data in a simula- [7] Ehsan Kazemi, S. Hamed Hassani, and
tion environment. Matthias Grossglauser. “Growing a Graph
We report the accuracy of our algorithm higher Matching from a Handful of Seeds”. In: Proc.
than 92% with the one-to-one alignment for 3% noise VLDB Endow. 8.10 (June 2015), pp. 1010–1021.
level, and we see that even in high noise like 7%, our issn: 2150-8097. doi: 10 . 14778 / 2794367 .
algorithm is capable of finding more than 70% of all 2794371. url: http://dx.doi.org/10.14778/
node pairs correctly. 2794367.2794371.
We test our embedding method with one-to-many [8] Mingdong Ou et al. “Asymmetric Transitivity
alignment to understand how our algorithm works un- Preserving Graph Embedding”. In: Proceedings
der the hood. We see that using low θ̄ our algorithm of the 22Nd ACM SIGKDD International Con-
may preserve its high precision even in very high noise ference on Knowledge Discovery and Data Min-
conditions as can be seen from the Figure 9. We also ing. KDD ’16. San Francisco, California, USA:
see that we can get high precision with low recall or ACM, 2016, pp. 1105–1114. isbn: 978-1-4503-
high recall with low precision. Therefore we can con- 4232-2. doi: 10.1145/2939672.2939751. url:
trol type I errors and type II errors in our alignment http : / / doi . acm . org / 10 . 1145 / 2939672 .
process using different θ̄. As future works, we will 2939751.
try to increase our overall matching accuracy using
matched pairs in high precision settings (in low θ̄) . [9] Lawrence Page et al. The PageRank Citation
If we find some of the correct matched pairs with low Ranking: Bringing Order to the Web. Technical
θ̄, we may use this knowledge in the alignment pro- Report 1999-66. Previous number = SIDL-WP-
cess for the other pairs. We may also provide some 1999-0120. Stanford InfoLab, 1999. url: http:
”seed”s (starting points), which can then be used as //ilpubs.stanford.edu:8090/422/.
input to state-of-the art algorithms like [7]. [10] Bryan Perozzi, Rami Al-Rfou, and Steven
Skiena. “DeepWalk: Online Learning of Social
Representations”. In: Proceedings of the 20th
References ACM SIGKDD International Conference on
Knowledge Discovery and Data Mining. KDD
[1] Francesco Corman, Rob M. P. Goverde, and ’14. New York, New York, USA: ACM, 2014,
Andrea D’Ariano. “Rescheduling Dense Train pp. 701–710. isbn: 978-1-4503-2956-9. doi: 10.
Traffic over Complex Station Interlocking Ar- 1145 / 2623330 . 2623732. url: http : / / doi .
eas”. In: Robust and Online Large-Scale Op- acm.org/10.1145/2623330.2623732.
timization: Models and Techniques for Trans-
portation Systems. Ed. by Ravindra K. Ahuja, [11] Johan Ugander et al. “The Anatomy of the
Rolf H. Möhring, and Christos D. Zaroliagis. Facebook Social Graph”. In: 1111.4503 (Nov.
Berlin, Heidelberg: Springer Berlin Heidelberg, 2011).
2009, pp. 369–386. isbn: 978-3-642-05465-5. [12] Daixin Wang, Peng Cui, and Wenwu Zhu.
doi: 10.1007/978- 3- 642- 05465- 5_16. url: “Structural Deep Network Embedding”. In:
https : / / doi . org / 10 . 1007 / 978 - 3 - 642 - Proceedings of the 22Nd ACM SIGKDD Inter-
05465-5_16. national Conference on Knowledge Discovery
and Data Mining. KDD ’16. San Francisco, Cal-
[2] Daniel R. Figueiredo, Leonardo Filipe Ro-
ifornia, USA: ACM, 2016, pp. 1225–1234. isbn:
drigues Ribeiro, and Pedro H. P. Saverese.
978-1-4503-4232-2. doi: 10 . 1145 / 2939672 .
“struc2vec: Learning Node Representa-
2939753. url: http://doi.acm.org/10.1145/
tions from Structural Identity”. In: CoRR
2939672.2939753.
abs/1704.03165 (2017). arXiv: 1704 . 03165.
url: http://arxiv.org/abs/1704.03165.
[3] Aditya Grover and Jure Leskovec. “node2vec:
Scalable Feature Learning for Networks”. In:
Proceedings of the 22nd ACM SIGKDD Inter-
national Conference on Knowledge Discovery
and Data Mining. 2016.
[4] Mark Heimann, Haoming Shen, and Danai
Koutra. “Node Representation Learning for
Multiple Networks: The Case of Graph Align-
ment”. In: CoRR abs/1802.06257 (2018). arXiv:
1802 . 06257. url: http : / / arxiv . org / abs /
1802.06257.
[5] Lawrence K Saul and Sam T Roweis. “An in-
troduction to locally linear embedding”. In: 7
(Jan. 2001).
[6] E. Kazemi. Network Alignment: Theory, Algo-
rithms, and Applications. Ecole Polytechnique
Fédérale de Lausanne, 2016. url: https : / /
books.google.ch/books?id=HkETnQAACAAJ.

7
 2

A One-to-one Matching Algorithm

Algorithm 3: Bijection Matching An algorithm that matches every nodes to exactly one node
according to in between distances
Input: A set of distances with node indexes D = {(d1 , ν1 , µ1 ), (d2 , ν1 , µ2 ), . . . , (dn2 , νn , µn )}
1:1
Output: A bijection dictionary that maps every node inside one graph to another f : {µ −−→ ν }
1 mapping ← ∅ ;
2 for d, all couples µ ∈ G1 , ν ∈ G2 from the lowest distance to the highest do
3 if µ not matched before and ν not matched before then
4 mapping ← mapping ∪ (µ, ν)
5 end

B One-to-Many Matching Algorithm

Algorithm 4: An[1] algorithm that matches every nodes to a set of nodes that have distance smaller
then threshold
Input: Threshold ratio, A set of distances with node indexes
D = {(d1 , ν1 , µ1 ), (d2 , ν1 , µ2 ), . . . , (dn2 , νn , µn )}
1:n
Output: A dictionary that maps every node inside one graph to another f : {µ −−→ {ν1 , ν2 . . . νi } }
1 threshold ← threshold ratio × maximum distance
2 for d, all couples µ ∈ G1 , ν ∈ G2 for all d lower then threshold do
3 mapping ← mapping ∪ (µ, ν)
4 end
