Monday, Feb 02, 2009

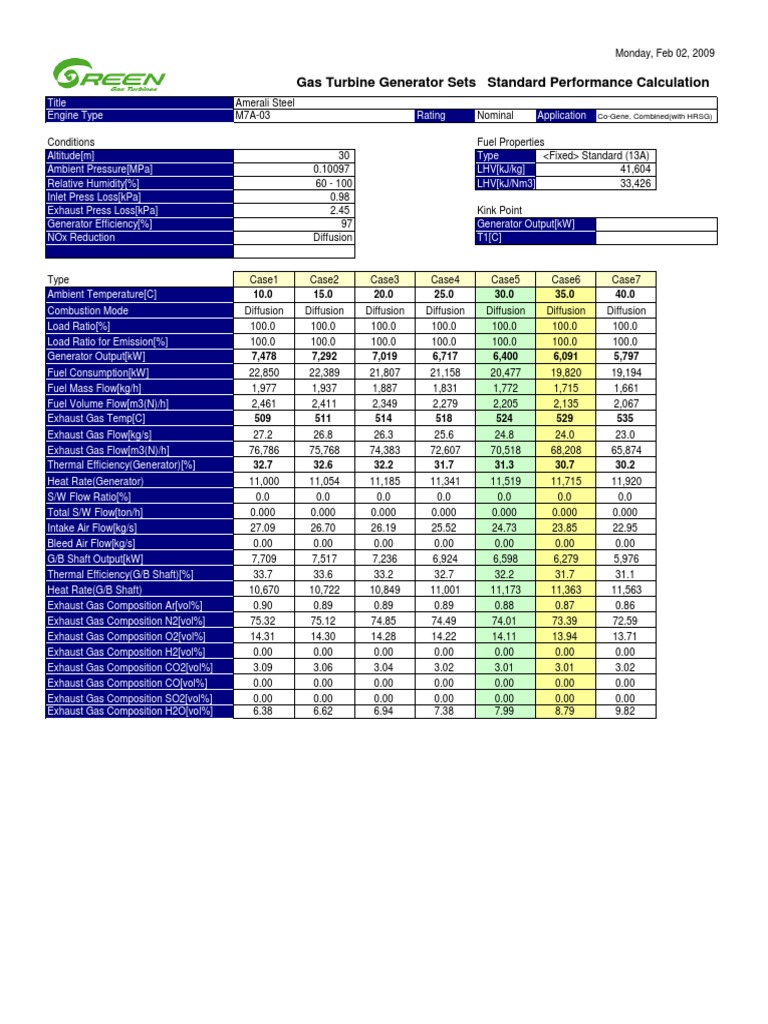

Gas Turbine Generator Sets Standard Performance Calculation

Title Amerali Steel
Engine Type M7A-03 Rating Nominal Application Co-Gene, Combined(with HRSG)

Conditions Fuel Properties

Altitude[m] 30 Type <Fixed> Standard (13A)
Ambient Pressure[MPa] 0.10097 LHV[kJ/kg] 41,604
Relative Humidity[%] 60 - 100 LHV[kJ/Nm3] 33,426
Inlet Press Loss[kPa] 0.98
Exhaust Press Loss[kPa] 2.45 Kink Point
Generator Efficiency[%] 97 Generator Output[kW]
NOx Reduction Diffusion T1[C]

Type Case1 Case2 Case3 Case4 Case5 Case6 Case7

Ambient Temperature[C] 10.0 15.0 20.0 25.0 30.0 35.0 40.0
Combustion Mode Diffusion Diffusion Diffusion Diffusion Diffusion Diffusion Diffusion
Load Ratio[%] 100.0 100.0 100.0 100.0 100.0 100.0 100.0
Load Ratio for Emission[%] 100.0 100.0 100.0 100.0 100.0 100.0 100.0
Generator Output[kW] 7,478 7,292 7,019 6,717 6,400 6,091 5,797
Fuel Consumption[kW] 22,850 22,389 21,807 21,158 20,477 19,820 19,194
Fuel Mass Flow[kg/h] 1,977 1,937 1,887 1,831 1,772 1,715 1,661
Fuel Volume Flow[m3(N)/h] 2,461 2,411 2,349 2,279 2,205 2,135 2,067
Exhaust Gas Temp[C] 509 511 514 518 524 529 535
Exhaust Gas Flow[kg/s] 27.2 26.8 26.3 25.6 24.8 24.0 23.0
Exhaust Gas Flow[m3(N)/h] 76,786 75,768 74,383 72,607 70,518 68,208 65,874
Thermal Efficiency(Generator)[%] 32.7 32.6 32.2 31.7 31.3 30.7 30.2
Heat Rate(Generator) 11,000 11,054 11,185 11,341 11,519 11,715 11,920
S/W Flow Ratio[%] 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Total S/W Flow[ton/h] 0.000 0.000 0.000 0.000 0.000 0.000 0.000
Intake Air Flow[kg/s] 27.09 26.70 26.19 25.52 24.73 23.85 22.95
Bleed Air Flow[kg/s] 0.00 0.00 0.00 0.00 0.00 0.00 0.00
G/B Shaft Output[kW] 7,709 7,517 7,236 6,924 6,598 6,279 5,976
Thermal Efficiency(G/B Shaft)[%] 33.7 33.6 33.2 32.7 32.2 31.7 31.1
Heat Rate(G/B Shaft) 10,670 10,722 10,849 11,001 11,173 11,363 11,563
Exhaust Gas Composition Ar[vol%] 0.90 0.89 0.89 0.89 0.88 0.87 0.86
Exhaust Gas Composition N2[vol%] 75.32 75.12 74.85 74.49 74.01 73.39 72.59
Exhaust Gas Composition O2[vol%] 14.31 14.30 14.28 14.22 14.11 13.94 13.71
Exhaust Gas Composition H2[vol%] 0.00 0.00 0.00 0.00 0.00 0.00 0.00
Exhaust Gas Composition CO2[vol%] 3.09 3.06 3.04 3.02 3.01 3.01 3.02
Exhaust Gas Composition CO[vol%] 0.00 0.00 0.00 0.00 0.00 0.00 0.00
Exhaust Gas Composition SO2[vol%] 0.00 0.00 0.00 0.00 0.00 0.00 0.00
Exhaust Gas Composition H2O[vol%] 6.38 6.62 6.94 7.38 7.99 8.79 9.82
