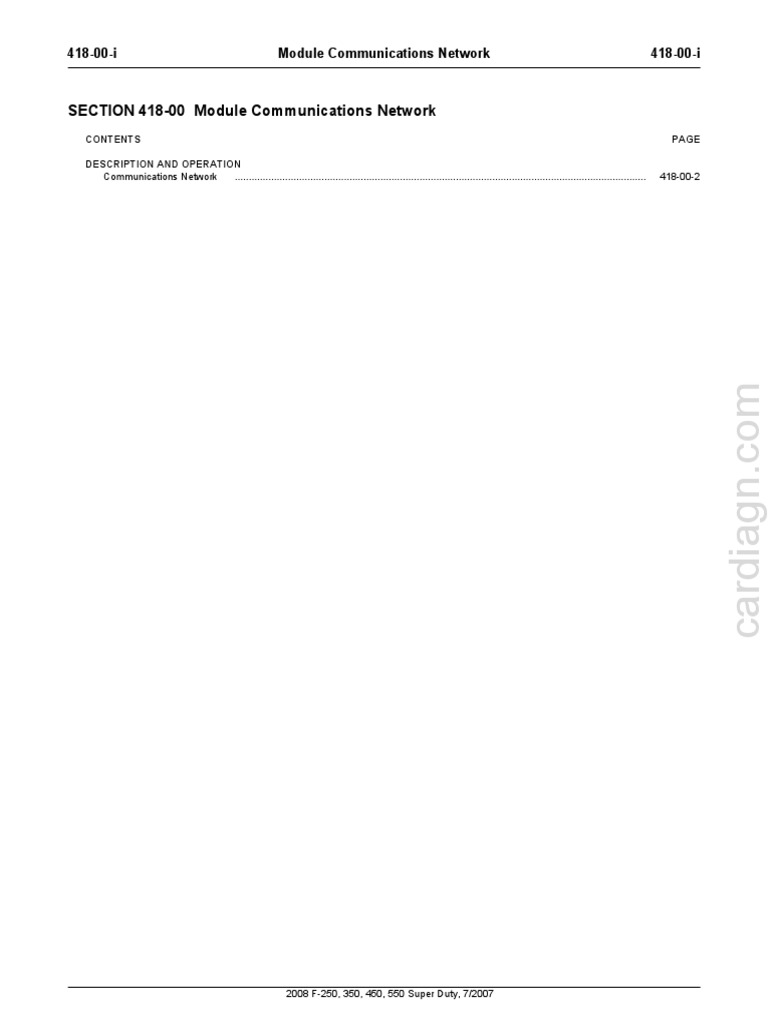

418-00-i Module Communications Network 418-00-i
SECTION 418-00 Module Communications Network

CONTENTS PAGE
DESCRIPTION AND OPERATION

Communications Network ................................................................................................................................................... 418-00-2
cardiagn.com
2008 F-250, 350, 450, 550 Super Duty, 7/2007

418-00-2 Module Communications Network 418-00-2
DESCRIPTION AND OPERATION

Communications Network
NOTE:
The smart junction box (SJB) is also known as the generic electronic module (GEM).
Vehicle communication utilizes both International Standards Organization (ISO) 9141 and controller area network (CAN) communications. ISO 9141 is for
diagnostic use only, and CAN is used for many modules to communicate with each other on a common network. CAN in-vehicle networking, is a method
for transferring data among distributed electronic modules via a serial data bus. Without serial networking, intermodule communication requires dedicated,
point to point wiring resulting in bulky, expensive, complex, and difficult to install wiring harnesses. Applying a serial data network reduces the number of
wires, combining the signals on a single network. Information is sent to the individual control modules that control each function.
The vehicle has 3 module communication networks:
• ISO 9141
• Medium speed (MS) CAN
• High speed (HS) CAN
All 3 networks are connected to the data link connector (DLC). This makes diagnosis and testing of these systems easier by allowing one scan tool to be able
to diagnose and control any module on the 3 networks from one connector. The DLC can be found under the instrument panel between the steering column
and the audio unit.
cardiagn.com
Network Topology
Module Name Network Type Termination Module

4X4 control module (if equipped) ISO 9141 No
ABS module HS-CAN No
Audio control module (ACM) MS-CAN No
Auxiliary heater control module (AHCM) (if equipped) HS-CAN No
Circuit deactivation ignition module (CDIM) (if equipped) MS-CAN No
Driver seat module (DSM) (if equipped) MS-CAN No
2008 F-250, 350, 450, 550 Super Duty, 7/2007

DESCRIPTION AND OPERATION (Continued)
(Continued)
Module Name Network Type Termination Module
Heating ventilation air conditioning (HVAC) module MS-CAN No
Instrument cluster (IC) (gateway module) HS-CAN MS-CAN Yes Yes
Parking aid module (PAM) (if equipped) ISO 9141 N/A
PCM HS-CAN Yes
Rear entertainment module (RETM) (if equipped) MS-CAN No
Restraints control module (RCM) HS-CAN No
Satellite digital audio receiver system (SDARS) module (if equipped) MS-CAN No
Smart junction box (SJB) MS-CAN Yes
Trailer brake control (TBC) module (if equipped) HS-CAN No
Transmission control module (TCM) (if equipped) HS-CAN No
Variable geometry turbocharger (VGT) actuator (if equipped) HS-CAN No
ISO 9141 Network Operation

The ISO 9141 communications network is a single wire network, used for diagnostic purposes only.
cardiagn.com
The ISO 9141 communications network is used for the following modules:
• Parking aid module (PAM)

• 4X4 control module
MS-CAN Operation
The MS-CAN communicates using bussed messages. The MS-CAN has an unshielded twisted pair cable, data bus (+) and data bus (-) circuits. In addition to
scan tool communication, this network allows sharing of information between all modules on the network.
The MS-CAN is a medium speed communication network used for the following modules:
• Audio control module (ACM)

• Circuit deactivation ignition module (CDIM)
• Rear entertainment module (RETM)
• Driver seat module (DSM)
• Heating ventilation air conditioning (HVAC) module
• Instrument cluster (IC)
• Satellite digital audio receiver system (SDARS) module
• Smart junction box (SJB)
HS-CAN Operation
The HS-CAN communicates using bussed messages. The HS-CAN uses an unshielded twisted pair cable, data bus (+) and data bus (-) circuits. In addition to
scan tool communication, this network allows sharing of information between all modules on the network.
The HS-CAN is a high speed communication network used for the following modules:
• ABS module
• Auxiliary heater control module (AHCM)
• IC
• PCM
• Restraints control module (RCM)
• Trailer brake control (TBC) module
• Transmission control module (TCM)
• Variable geometry turbocharger (VGT) actuator
Network Termination
The CAN uses a network termination circuit to improve communication reliability. The network termination of the CAN bus takes place inside the
termination modules by termination resistors. Termination modules are located at either end of the bus network. As network messages are broadcast, in the
form of voltage signals, the network voltage signals are stabilized by the termination resistors. Each termination module has a 120 ohm resistor across the
2008 F-250, 350, 450, 550 Super Duty, 7/2007

DESCRIPTION AND OPERATION (Continued)
positive and negative bus connection in the termination module. With two termination modules on each network, and the 120 ohm resistors located in a
parallel circuit configuration, the total network impedance (total resistance) is 60 ohms.
Network termination improves bus message reliability by:
• Stabilizing bus voltage

• Eliminating electrical interference
Gateway Module
The IC is the gateway module, translating HS-CAN to MS-CAN and vice versa. This information allows a message to be distributed throughout both
networks. The IC is the only module on this vehicle that has this ability.
cardiagn.com
2008 F-250, 350, 450, 550 Super Duty, 7/2007

418-00-i Module Communications Network 418-00-i
SECTION 418-00 Module Communications Network

CONTENTS PAGE
DIAGNOSIS AND TESTING

Communications Network ................................................................................................................................................... 418-00-2
Principles of Operation ................................................................................................................................................. 418-00-2
Inspection and Verification ........................................................................................................................................... 418-00-8
DTC Charts ................................................................................................................................................................... 418-00-9
Symptom Chart ........................................................................................................................................................... 418-00-11
Pinpoint Tests ............................................................................................................................................................. 418-00-13
cardiagn.com
2008 F-250, 350, 450, 550 Super Duty, 7/2007

DIAGNOSIS AND TESTING

Communications Network
Special Tool(s)
73III Automotive Meter

105-R0057 or equivalent
Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software
with appropriate hardware, or equivalent scan tool
cardiagn.com
Flex Probe Kit
105-R025C or equivalent
Principles of Operation
NOTE:
The smart junction box (SJB) is also known as the generic electronic module (GEM).
Vehicle communication utilizes both International Standards Organization (ISO) 9141 and controller area network (CAN) communications. ISO 9141 is for
diagnostic use only, and CAN is a method for transferring data among distributed electronic modules via a serial data bus.
The vehicle is equipped with 3 module communication networks:
• ISO 9141
• Medium speed (MS) CAN
• High speed (HS) CAN
ISO 9141 Communications Network

The ISO 9141 communications network is a single wire network. The ISO communications network does not permit intermodule communication and is used
for the parking aid module (PAM) and 4X4 control module. When the scan tool communicates with the PAM, the scan tool must request all information
since the module cannot initiate communications.
The ISO network operates at a maximum data transfer speed of 10 Kbps for bus messages and is designed for scan tool to module diagnostic use only.
The following fault chart describes the specific ISO 9141 network failures and their resulting symptom:
ISO 9141 Network Communication Fault Chart
Failure Description Symptom

ISO circuit open No communication
ISO circuit short to voltage No communication
ISO circuit short to ground No communication
Module loss of voltage or ground No communication
2008 F-250, 350, 450, 550 Super Duty, 7/2007

DIAGNOSIS AND TESTING (Continued)
ISO 9141 Network Communication Fault Chart (Continued)

Module internal failure No communication
MS-CAN
The MS-CAN uses an unshielded twisted pair cable of data (+) and data (-) circuits. The data (+) and the data (-) circuits are each regulated to approximately
2.5 volts during neutral or rested network traffic. As bus messages are sent on the data (+) circuit, voltage is increased by approximately 1.0 volt. Inversely,
the data (-) circuit is reduced by approximately 1.0 volt when a bus message is sent. Multiple bus messages can be sent over the network CAN circuits
allowing multiple modules to communicate with each other. The MS-CAN is used for the IC and the smart junction box (SJB) communications, and
designed for general information transfer.
The MS-CAN will not communicate while certain faults are present, but will operate with diminished performance with other faults present. The MS-CAN
bus may remain operational when 1 of the 2 termination resistors are not present. The MS-CAN operates at a maximum data transfer speed of 125 Kbps for
bus messages and designed for general information transfer.
In the event that one of the 2 network circuits (MS-CAN + or MS-CAN -) becomes open to a module on the network, unreliable network communication to
all modules on the network may result. The module to which the network circuit is open may repeatedly send network messages indicating there has been
partial data received. This type of message is referred to as a negative-acknowledge (NACK) message. Repeated NACK messages may "load" the network
with too much activity causing intermittent no communication to other network modules and/or the scan tool.
The following fault chart describes the specific MS-CAN failures and their resulting symptom:
cardiagn.com
MS-CAN Communication Fault Chart

MS-CAN (+) shorted to MS-CAN (-) No communication
MS-CAN (+) short to voltage No communication
MS-CAN (-) short to voltage No communication
MS-CAN (+) short to ground No communication
MS-CAN (-) short to ground Unreliable communication possible in all network modules.
MS-CAN (+) open Unreliable communication possible in all network modules.
MS-CAN (-) open Unreliable communication possible in all network modules.
HS-CAN
The HS-CAN uses an unshielded twisted pair cable of data (+) and data (-) circuits. The data (+) and the data (-) circuits are each regulated to approximately
2.5 volts during neutral or rested network traffic. As bus messages are sent on the data (+) circuit, voltage is increased by approximately 1.0 volt. Inversely,
the data (-) circuit is reduced by approximately 1.0 volt when a bus message is sent. Multiple bus messages can be sent over the network CAN circuits
allowing multiple modules to communicate with each other. The HS-CAN is a high speed communication network used for the ABS module, IC, the PCM,
restraints control module (RCM), auxiliary heater control module (AHCM) (diesel engine only, if equipped), trailer brake control (TBC) module (if
equipped), transmission control module (TCM) (diesel engine only, if equipped) and variable geometry turbocharger (VGT) actuator (diesel engine only).
The HS-CAN is designed for real time information transfer and control.
The HS-CAN will not communicate while certain faults are present, but will operate with diminished performance with other faults present. The HS-CAN
bus may remain operational when 1 of the 2 termination resistors are not present. The HS-CAN operates at a maximum data transfer speed of 500 Kbps and
is designed for real time information transfer and control.
In the event that one of the 2 network circuits (HS-CAN + or HS-CAN -) becomes open to a module on the network, unreliable network communication to
all modules on the network may result. The module to which the network circuit is open may repeatedly send network messages indicating there has been
partial data received. This type of message is referred to as a negative-acknowledge (NACK) message. Repeated NACK messages may "load" the network
with too much activity causing intermittent no communication to other network modules and/or the scan tool.
The following fault chart describes the specific HS-CAN failures and their resulting symptom:
HS-CAN Communication Fault Chart

HS-CAN (+) shorted to HS-CAN (-) No communication
HS-CAN (+) short to voltage No communication
HS-CAN (-) short to voltage No communication
2008 F-250, 350, 450, 550 Super Duty, 7/2007

HS-CAN Communication Fault Chart (Continued)

HS-CAN (+) short to ground No communication
HS-CAN (-) short to ground Unreliable communication possible in all network modules
HS-CAN (+) open Unreliable communication possible in all network modules
HS-CAN (-) open Unreliable communication possible in all network modules
The following chart describes the specific CAN messages broadcast by each module, and the module(s) that receive the message:
CAN Module Communication Message Chart
Broadcast Message Originating Module Network Type Receiving Module(s)

ABS event in progress ABS module HS-CAN • PCM
• RCM
• TBC module
ABS system status ABS module HS-CAN • TBC module
cardiagn.com
A/C clutch inhibit request TCM (diesel engine only, if HS-CAN • PCM
equipped)
A/C clutch request Heating ventilation air conditioning MS-CAN • IC
(HVAC) module
A/C clutch request (gateway) IC HS-CAN • PCM
A/C clutch status PCM HS-CAN • IC
• TCM (diesel engine only)
Accessory delay status SJB MS-CAN • ACM
• Rear entertainment module
(RETM)
• IC
Accelerator pedal position PCM HS-CAN • ABS module
• IC
• RCM
Accelerator pedal position (gateway) IC MS-CAN • HVAC module
Airbag malfunction indicator lamp RCM HS-CAN • IC
status
Airbag malfunction indicator request RCM HS-CAN • IC
Alternator failure status PCM (diesel engine only) HS-CAN • AHCM (diesel engine only, if
equipped)
• IC
Ambient temperature PCM (diesel engine only) HS-CAN • TCM (diesel engine only)
Autolamp delay time IC MS-CAN • SJB
Autolamp delay status SJB MS-CAN • IC
Autolock command IC MS-CAN • SJB
Autolock status SJB MS-CAN • IC
Auto-unlock command IC MS-CAN • SJB
Auto-unlock status SJB MS-CAN • IC
Axle ratio PCM HS-CAN • IC
Axle ratio (gateway) IC MS-CAN • HVAC module
Barometric pressure PCM HS-CAN • ABS module
• IC
Barometric pressure (gateway) IC MS-CAN • HVAC module
• SJB
2008 F-250, 350, 450, 550 Super Duty, 7/2007

CAN Module Communication Message Chart (Continued)

Brake fluid level status IC HS-CAN • ABS module
• PCM
Brake lamp switch status PCM HS-CAN • ABS module
• RCM
• TBC module
Brake lamp switch status SJB MS-CAN • CDIM
Brake (red) warning indicator ABS module HS-CAN • IC
request
Brake (red) warning indicator SJB MS-CAN • IC
request
Charging system warning indicator PCM HS-CAN • IC
request
Daytime running lamps (DRL) SJB MS-CAN • IC
status
Door ajar status SJB MS-CAN • IC
Electronic throttle control (ETC) PCM HS-CAN • TCM (diesel engine only)
cardiagn.com
mode
English /Metric display mode IC MS-CAN • HVAC module
Engine coolant temperature PCM HS-CAN • IC
• AHCM (diesel engine only, if
equipped)
• TCM (diesel engine only, if
equipped)
Engine coolant temperature IC MS-CAN • HVAC module
(gateway)
Engine fuel type PCM HS-CAN • IC
Engine fuel consumption data PCM HS-CAN • IC
Engine load % PCM (diesel engine only) HS-CAN • TCM (diesel engine only)
• VGT actuator (diesel engine
only)
Engine RPM PCM HS-CAN • IC
• AHCM (diesel engine only, if
equipped)
only)
Engine RPM (gateway) IC MS-CAN • CDIM (diesel engine only, if
equipped)
• HVAC module
Engine torque data TCM (diesel engine only) HS-CAN • PCM
Engine torque data PCM HS-CAN • TCM (diesel engine only)
Engine turbo boost PCM (diesel engine only) HS-CAN • IC
Engine turbo vane position PCM (diesel engine only) HS-CAN • VGT actuator (diesel engine
command only)
Engine turbo vane position status VGT actuator (diesel engine only) HS-CAN • PCM (diesel engine only)
Engine malfunction indicator lamp PCM HS-CAN • IC
(MIL) request
Engine off timer PCM HS-CAN • IC
Engine off timer (gateway) IC MS-CAN • HVAC module
Exhaust gas temperature PCM (diesel engine only) HS-CAN • IC
Fail-safe cooling mode status PCM HS-CAN • IC
Four-wheel drive (4X4) mode status IC HS-CAN • ABS module
• PCM
2008 F-250, 350, 450, 550 Super Duty, 7/2007


Fuel cap off indicator request PCM HS-CAN • IC
Fuel level input status (instant) IC MS-CAN • PCM
Gas/diesel engine configuration IC MS-CAN • HVAC module
Headlamp high beam indicator SJB MS-CAN • IC
request
Headlamps on warning chime SJB MS-CAN • IC
request
Idle engine shutdown PCM HS-CAN • IC
Idle engine shutdown (gateway) IC MS-CAN • CDIM (diesel engine only, if
equipped)
Ignition switch position SJB MS-CAN • ACM
• CDIM (diesel engine only)
• DSM
• RETM
Ignition switch position IC HS-CAN • ABS module
• PCM
cardiagn.com
• TBC module
Illumination dimmer level SJB MS-CAN • ACM
• RETM
• HVAC module
Illumination dimmer level IC HS-CAN • TBC module
Key-in-ignition chime request SJB MS-CAN • IC
Key-in-ignition status SJB MS-CAN • ACM
• CDIM (diesel engine only, if
equipped)
• DSM
• IC
Key fob button status SJB MS-CAN • DSM
Keypad button status SJB MS-CAN • DSM
Low brake fluid indicator request SJB MS-CAN • IC
Navigation radio rolling wheel count PCM HS-CAN • IC
Navigation radio rolling wheel count IC MS-CAN • ACM
(gateway)
Odometer count PCM HS-CAN • IC
Parking brake status IC HS-CAN • ABS module
• PCM
Parking brake status/chime request SJB MS-CAN • IC
Passive anti-theft system (PATS) IC HS-CAN • PCM
OK to start
PATS security data PCM HS-CAN • IC
PATS theft condition PCM HS-CAN • IC
Power take-off (PTO) engaged/ PCM (diesel engine only) HS-CAN • TCM (diesel engine only)
disengaged status
Safety belt indicator request RCM HS-CAN • IC
Safety belt indicator status IC HS-CAN • RCM
Belt-Minder® chime request RCM HS-CAN • IC
Speed control status PCM (diesel engine only) HS-CAN • RCM
Speed control deactivate switch PCM HS-CAN • ABS module
status • TCM (diesel engine only)
• TBC module
Supplemental heater request HVAC module MS-CAN • IC
2008 F-250, 350, 450, 550 Super Duty, 7/2007


Supplemental heater status AHCM (diesel engine only, if HS-CAN • IC
equipped)
Supplemental heater status IC MS-CAN • HVAC module
(gateway)
Supplemental heater current draw AHCM (diesel engine only, if HS-CAN • HVAC module
equipped)
Supplemental heater current draw IC MS-CAN • HVAC module
(gateway)
Tire revolutions per mile PCM HS-CAN • IC
Tire revolutions per mile (gateway) IC MS-CAN • HVAC module
Tow/haul mode status PCM (gasoline engine only) HS-CAN • IC
Tow/haul mode status TCM (diesel engine only) HS-CAN • IC
Tire pressure monitoring system SJB (late build vehicles) MS-CAN • IC
(TPMS) status
TPMS sensor status (LF, RF, LR, SJB (late build vehicles) MS-CAN • IC
cardiagn.com
RR, spare)
Trailer brake lamp request IC MS-CAN • SJB
Trailer brake malfunction indicator TBC module HS-CAN • IC
lamp request
Trailer brake status lamp request TBC module HS-CAN • IC
Trailer brake active TBC module HS-CAN • IC
Transmission fluid temperature PCM (gasoline engine only) HS-CAN • IC
Transmission fluid temperature TCM (diesel engine only) HS-CAN • IC
Transmission malfunction indicator PCM (gasoline engine only) HS-CAN • IC
lamp request
Transmission malfunction indicator TCM (diesel engine only) HS-CAN • IC
lamp request
Transmission shift in progress PCM (gasoline engine only) HS-CAN • ABS module
Transmission shift in progress TCM (diesel engine only) HS-CAN • ABS module
Transmission type PCM HS-CAN • IC
Transmission output shaft speed TCM (diesel engine only) HS-CAN • PCM
Transmission turbine shaft speed TCM (diesel engine only) HS-CAN • PCM
Trailer brake status IC HS-CAN • TBC module
Transmission selector (PRNDL) PCM (gasoline engine only) HS-CAN • IC
range
Transmission selector (PRNDL) TCM (diesel engine only) HS-CAN • IC
range
Transmission selector (PRNDL) IC MS-CAN • ACM
range (gateway) • CDIM (diesel engine only, if
equipped)
• DSM
• SJB
Turn signal indicator request SJB MS-CAN • IC
Vehicle speed PCM HS-CAN • IC
• RCM
• TBC module
Vehicle speed (gateway) IC MS-CAN • ACM
• CDIM (diesel engine only, if
equipped)
• HVAC module
• SJB
only)
2008 F-250, 350, 450, 550 Super Duty, 7/2007


Vehicle identification number (VIN) PCM HS-CAN • ABS module
information • IC
• RCM
• TBC module
VIN information (gateway) IC MS-CAN • ACM
• HVAC module
• SDARS module
• SJB
Wait to start indicator command PCM (diesel engine only) HS-CAN • IC
Water in fuel indicator request PCM (diesel engine only) HS-CAN • IC
Wheel speed sensor input (LF, RF, ABS module HS-CAN • PCM
LR, RR) • TCM (diesel engine only)
• TBC module
Inspection and Verification

1. Verify the customer concern.
2. Visually inspect for obvious signs of electrical damage.
cardiagn.com
Visual Inspection Chart
Electrical
• Battery junction box (BJB) fuse(s)
— 5 (30A) (trailer brake control [TBC] module)
— 37 (10A) (transmission control module [TCM])
— 72 (15A) (TCM) (diesel engine only)
— 71 (5A) (PCM)
— 76 (20A) (PCM)
— 77 (10A) (ABS module)
• SJB fuse(s)
— 3 (15A) (rear entertainment module [RETM])
— 5 (10A) (SJB)
— 12 (7.5A) (driver seat module [DSM])
— 15 (10A) (heating ventilation air conditioning [HVAC] module)
— 20 (15A) (data link connector [DLC])
— 26 (10A) (instrument cluster [IC])
— 27 (20A) (circuit deactivation ignition module [CDIM])
— 32 (10A) (restraints control module [RCM])
— 33 (10A) (TBC module)
— 35 (10A) (parking aid module [PAM])
— 36 (5A) (IC)
— 37 (10A) (HVAC module, auxiliary heater control module [AHCM])
— 39 (20A) (audio control module [ACM])
— 40 (20A) (RETM, satellite digital audio receiver system [SDARS] module, 4X4 control module)
— 43 (10A) (4X4 control module)
• DLC
• Wiring, terminals or connectors
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. NOTE:
Make sure to use the latest scan tool software release.
If the cause is not visually evident, connect the scan tool to the DLC.
NOTE:
The vehicle communication module (VCM) LED prove-out confirms power and ground from the DLC are provided to the VCM.
If the scan tool does not communicate with the VCM:
• Check the VCM connection to the vehicle.

• Check the scan tool connection to the VCM.
• GO to Pinpoint Test V, to diagnose no power to the scan tool.
5. NOTE:
During the network test, the scan tool will first attempt to communicate with the PCM, after establishing communication with the PCM, the scan tool
will then attempt to communicate with all other modules on the vehicle.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

Carry out the network test.

• If the network test passes, retrieve and record the continuous memory DTCs and proceed to Step 6.
• If the network test fails, GO to to identify the module not communicating.
6. If the DTCs retrieved are related to the concern, go to DTC Charts. Follow the non-network DTC diagnostics (B-codes, C-codes, P-codes) prior to the
network DTC diagnostics (U-codes). For all other DTCs, refer to Section 419-10.
7. If no DTCs related to the concern are retrieved, verify the symptom. GO to .
DTC Charts
NOTE:
Network DTCs (U-codes) are often a result of intermittent concerns such as faulty wiring or low battery voltage occurrences. Additionally, vehicle service
procedures such as module reprogramming will often set network DTCs. Replacing a module to resolve a network DTC is unlikely to resolve the concern.
To prevent repeat network DTC concerns, inspect all network wiring, especially connectors. Check for added vehicle accessories connected to the controller
area network (CAN) bus, such as aftermarket throttle or trailer brake controllers, or other modifications that may be causing the U-code DTC. Test the
vehicle battery, refer to Section 414-01.
Communication Network DTC Chart
DTC Description Source Action

U0073Refer to Control Module Communication Bus A Off ABS module DTC U0073 indicates the module could not
cardiagn.com
the Note at the communicate on the network at a point in time. The
beginning of the fault is currently not present. CLEAR the DTCs.
DTC Chart. REPEAT the network test with the scan tool. REPAIR
all other DTCs first.
U0073
1 Control Module Communication Bus A Off HVAC module DTC U0073 indicates the module could not
communicate on the network at a point in time. The
fault is currently not present. CLEAR the DTCs.
REPEAT the network test with the scan tool. REPAIR
U0073
1 Control Module Communication Bus A Off Instrument DTC U0073 indicates the module could not
cluster (IC) communicate on the network at a point in time. The
U0073
1 Control Module Communication Bus A Off PCM (diesel DTC U0073 indicates the module could not
engine only) communicate on the network at a point in time. The
vehicle will not start until DTC U0073 has been
cleared. VERIFY fault is not caused by aftermarket
equipment connected to the high speed controller area
network (HS-CAN) circuits.
U0074
1 Control Module Communication Bus B Off IC DTC U0074 indicates the module could not
communicate on the network at a point in time. The
U0100
1 Lost Communication with ECM/PCM IC CLEAR the DTCs. REPEAT the network test with the
scan tool. If the DTC returns, GO to Pinpoint Test A.
U0100
1 Lost Communication with ECM/PCM Restraints CLEAR the DTCs. REPEAT the network test with the
control module scan tool. If the DTC returns, GO to Pinpoint Test A.
(RCM)
U0100
1 Lost Communication with ECM/PCM Auxiliary heater CLEAR the DTCs. REPEAT the network test with the
(AHCM)
U0100
1 Lost Communication with ECM/PCM Transmission CLEAR the DTCs. REPEAT the network test with the
(TCM)
U0101
1 Lost Communication with TCM IC CLEAR the DTCs. REPEAT the network test with the
scan tool. If the DTC returns, GO to Pinpoint Test G.
U0115
1 Lost Communication With ECM/PCM ABS module Run a network test and if no symptoms are present,
DISREGARD this DTC.
U0115
1 Lost Communication With ECM/PCM Trailer brake Run a network test and if no symptoms are present,
control (TBC) DISREGARD this DTC.
module
2008 F-250, 350, 450, 550 Super Duty, 7/2007

Communication Network DTC Chart (Continued)

U0121
1 Lost Communication With Anti-Lock Brake System IC GO to Pinpoint Test B.
(ABS) Control Module
U0121
1 Lost Communication With Anti-Lock Brake System TBC module GO to Pinpoint Test B.
(ABS) Control Module
U0137
1 Lost Communication With Trailer Brake Control IC GO to Pinpoint Test D.
Module
U0140
1 Lost Communication with Body Control Module (GEM) Audio control GO to Pinpoint Test H.
module (ACM)
U0140
1 Lost Communication with Body Control Module (GEM) Driver seat GO to Pinpoint Test H.
module (DSM)
U0140
1 Lost Communication with Body Control Module (GEM) IC GO to Pinpoint Test H.
U0140
1 Lost Communication with Body Control Module (GEM) Rear GO to Pinpoint Test H.
entertainment
module (RETM)
U0154
1 Lost Communication with Occupant Classification ACM DISREGARD this DTC.
System Module
U0155
1 Lost Communication with Instrument Panel Cluster (IC) ABS module GO to Pinpoint Test C.
cardiagn.com
Control Module
U0155
1 Lost Communication with Instrument Panel Cluster (IC) ACM GO to Pinpoint Test C.
Control Module
U0155
1 Lost Communication with Instrument Panel Cluster (IC) Driver seat GO to Pinpoint Test C.
Control Module module
U0155
1 Lost Communication with Instrument Panel Cluster (IC) Smart junction GO to Pinpoint Test C.
Control Module box (SJB)
U0155
1 Lost Communication with Instrument Panel Cluster (IC) AHCM GO to Pinpoint Test C.
Control Module
U0155
1 Lost Communication with Instrument Panel Cluster (IC) TBC module GO to Pinpoint Test C.
Control Module
U0155
1 Lost Communication with Instrument Panel Cluster (IC) Transmission GO to Pinpoint Test C.
Control Module control module
(TCM)
U0159
1 Lost Communication with Parking Assist Control ACM DISREGARD this DTC.
Module (PAM)
U0164
1 Lost Communication with Electronic Automatic IC GO to Pinpoint Test J.
Temperature Control Module
U0166
1 Lost Communication with Auxiliary Heater Control IC GO to Pinpoint Test F.
Module
U0184
1 Lost Communication with Radio (ACM) RETM REFER to Section 415-00.
U0184
1 Lost Communication with Radio (ACM) Satellite digital REFER to Section 415-00.
audio receiver
system (SDARS)
module
U0193
1 Lost Communication with Digital Audio Control ACM REFER to Section 415-00.
Module (SDARS)
U0193
1 Lost Communication with Digital Audio Control RETM REFER to Section 415-00.
Module (SDARS)
U0196
1 Lost Communication with Entertainment Control ACM REFER to Section 415-00.
Module - Rear (Aux)
U0196
1 Lost Communication with Entertainment Control SDARS module REFER to Section 415-00.
Module - Rear (Aux)
U0197
1 Lost Communication with Telephone Control Module ACM REFER to Section 415-00.
U0197
1 Lost Communication with Telephone Control Module SDARS module REFER to Section 415-00.
U0238
1 Lost Communication with Audio Digital Control ACM REFER to Section 415-00.
Module "D" (DSP)
2008 F-250, 350, 450, 550 Super Duty, 7/2007

Communication Network DTC Chart (Continued)

U0249
1 Lost Communication With Entertainment Control ACM REFER to Section 415-00.
Module - Rear "B" (RCU)
U0249
1 Lost Communication With Entertainment Control SDARS module REFER to Section 415-00.
Module - Rear "B" (RCU)
U0255
1 Lost Communication with Front Controls Interface SDARS module REFER to Section 415-00.
Module
U0256
1 Lost Communication with Front Display Interface SDARS module REFER to Section 415-00.
Module
U2013
1 Compass Module Is Not Responding IC RETRIEVE and FOLLOW non-network DTCs from the
source module. REFER to Section 413-01.
U2023
1 Fault Received from External Node IC RETRIEVE and FOLLOW non-network DTCs from the
U2023
1 Fault Received from External Node RCM RETRIEVE and FOLLOW non-network DTCs from the
U2472
1 Unexpected Ignition State IC REFER to Section 413-01.
U2472
1 Unexpected Ignition State SJB REFER to Section 419-10.
cardiagn.com
U2473
1 Unexpected Vehicle Speed (VSS) IC REFER to Section 419-10.
U2473
1 Unexpected Vehicle Speed (VSS) SJB REFER to Section 419-10.
U2510
1 CAN - Invalid Data for Vehicle Security IC REFER to Section 419-01.
U2511
1 CAN - Data Mis-Match (Receive Data Does Not Match IC REFER to Section 419-01.
Expected)
Symptom Chart
Symptom Chart
Condition Possible Sources Action
• The PCM does not respond to the scan tool • Fuse • GO to Pinpoint Test A.
• ABS module
• PCM
• Auxiliary heater control module (AHCM)
(diesel engine only, if equipped)
• Trailer brake control (TBC) module (if
equipped)
• Transmission control module (TCM) (diesel
engine only, if equipped)
• Variable geometry turbine (VGT) actuator
(diesel engine only)
• The ABS module does not respond to the • Fuse • GO to Pinpoint Test B.
scan tool • Wiring, terminals or connectors
• ABS module
• The instrument cluster (IC) does not • Fuse • GO to Pinpoint Test C.
respond to the scan tool • Wiring, terminals or connectors
• IC
• The trailer brake control (TBC) module • Fuse • GO to Pinpoint Test D.
does not respond to the scan tool • Wiring, terminals or connectors
• TBC module
• The restraints control module (RCM) does • Fuse • GO to Pinpoint Test E.
not respond to the scan tool • Wiring, terminals or connectors
• RCM
2008 F-250, 350, 450, 550 Super Duty, 7/2007

Symptom Chart (Continued)

• The auxiliary heater control module • Fuse • GO to Pinpoint Test F.
(AHCM) does not respond to the scan tool • Wiring, terminals or connectors
• AHCM
• The transmission control module (TCM) • Fuse • GO to Pinpoint Test G.
• TCM
• The smart junction box (SJB) does not • Fuse • GO to Pinpoint Test H.
• SJB
• The driver seat module (DSM) does not • Fuse • GO to Pinpoint Test I.
• DSM
• The heating ventilation air conditioning • Fuse • GO to Pinpoint Test J.
(HVAC) module does not respond to the • Wiring, terminals or connectors
scan tool • HVAC module
• The audio control module (ACM) does not • Fuse • GO to Pinpoint Test K.
cardiagn.com
• ACM
• The rear entertainment module (RETM) • Fuse • GO to Pinpoint Test L.
• RETM
• The satellite digital audio receiver system • Fuse • GO to Pinpoint Test M.
(SDARS) module does not respond to the • Wiring, terminals or connectors
scan tool • SDARS module
• The 4X4 control module does not respond to • Fuse • GO to Pinpoint Test N.
the scan tool • Wiring, terminals or connectors
• The parking aid module (PAM) does not • Fuse • GO to Pinpoint Test O.
• PAM
• The circuit deactivation ignition module • Fuse • GO to Pinpoint Test U.
(CDIM) does not respond to the scan tool • Wiring, terminals or connectors
• CDIM
• No high speed controller area network (HS- • Wiring, terminals or connectors • GO to Pinpoint Test R.
CAN) communication, all modules are not • ABS module
responding • IC
• PCM
• RCM
• AHCM (diesel engine only, if equipped)
• TBC module (if equipped)
• TCM (diesel engine only, if equipped)
• VGT actuator (diesel engine only)
• No medium speed controller area network • Wiring, terminals or connectors • GO to Pinpoint Test P.
(MS-CAN) communication, all modules are • ACM
not responding • CDIM
• RETM
• DSM
• HVAC module
• IC
• SDARS module
• SJB
• No International Standards Organization • Fuse • GO to Pinpoint Test Q.
(ISO) 9141 network communication • Wiring, terminals or connectors
• PAM
• 4X4 control module (if equipped)
• No power to the scan tool • Fuse • GO to Pinpoint Test V.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

Symptom Chart (Continued)

• Scan tool
• Intermittent no high speed controller area • Wiring, terminals or connectors • GO to Pinpoint Test S.
network (HS-CAN) communication, one or
more modules are not responding during
network test.
• Intermittent no medium speed controller • Wiring, terminals or connectors • GO to Pinpoint Test T.
area network (MS-CAN) communication,
one or more modules are not responding
during network test.
Pinpoint Tests
Pinpoint Test A: The PCM Does Not Respond To The Scan Tool
Refer to Wiring Diagrams Cell 14, Module Communications Network for schematic and connector information.
Refer to Wiring Diagrams Cell 24, Electronic Engine Controls — 5.4L for schematic and connector information.
cardiagn.com
Refer to Wiring Diagrams Cell 26, Electronic Engine Controls — 6.4L Diesel for schematic and connector information.
Normal Operation
The PCM communicates with the scan tool through the high speed controller area network (HS-CAN). Circuits VDB04 (WH/BU) (HS-CAN +) and VDB05
(WH) (HS-CAN -) provide the network connection to the PCM. The PCM shares the HS-CAN with the ABS module, trailer brake control (TBC) module (if
equipped), restraints control module (RCM), auxiliary heater control module (AHCM) (diesel engine only, if equipped), transmission control module (TCM)
(diesel engine only, if equipped), variable geometry turbocharger (VGT) actuator (diesel engine only) and the instrument cluster (IC). Voltage for the PCM
is provided by circuits CBB76 (BU/BN) and SBB36 (GN/RD). Circuit GD113 (BK/YE) provides ground.
This pinpoint test is intended to diagnose the following:

• PCM
PINPOINT TEST A: THE PCM DOES NOT RESPOND TO THE SCAN TOOL
NOTICE:
Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
Test Step Result / Action to Take
A1 POWERTRAIN CONTROL/EMISSIONS DIAGNOSIS (PC/ED) MANUAL PINPOINT TEST VERIFICATION
• Verify that pinpoint test QA (gasoline engine) or AE (diesel engine) Yes
has been carried out. GO to A2.
• Has the PC/ED pinpoint test been carried out?
No
REFER to the Powertrain Control/Emissions Diagnosis
(PC/ED) manual, Section 5, pinpoint test QA (gasoline
engine) or AE (diesel engine) to diagnose no
communication with the PCM.
A2 CHECK THE HS-CAN TERMINATION RESISTANCE
• Ignition OFF.
• NOTE:
Failure to disconnect the battery will result in false resistance
readings.
Yes
Disconnect the battery ground cable.
GO to A4.
• Measure the resistance between the data link connector (DLC)
C251-6, circuit VDB04 (WH/BU), harness side and the DLC C251-14, No
circuit VDB05 (WH), harness side. GO to A3.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

PINPOINT TEST A: THE PCM DOES NOT RESPOND TO THE SCAN TOOL (Continued)
A2 CHECK THE HS-CAN TERMINATION RESISTANCE (Continued)
• Is the resistance between 54 and 66 ohms?

A3 CHECK THE CAN CIRCUITS BETWEEN THE PCM AND THE DLC FOR AN OPEN
• Ignition OFF.
• Disconnect: PCM C175b (Gasoline Engine) or C1232b (Diesel
cardiagn.com
Engine) .
• For gasoline engines, measure the resistance between the PCM
C175b-11, circuit VDB04 (WH/BU), harness side and the DLC
C251-6, circuit VDB04 (WH/BU), harness side.

C175b-23, circuit VDB05 (WH), harness side and the DLC C251-14,
circuit VDB05 (WH), harness side.
Yes
CONNECT the battery ground cable. GO to A4.
• For diesel engines, measure the resistance between the PCM No
C1232b-34, circuit VDB04 (WH/BU), harness side and the DLC REPAIR the circuit in question. CLEAR the DTCs.
C251-6, circuit VDB04 (WH/BU), harness side. REPEAT the network test with the scan tool.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

PINPOINT TEST A: THE PCM DOES NOT RESPOND TO THE SCAN TOOL (Continued)
A3 CHECK THE CAN CIRCUITS BETWEEN THE PCM AND THE DLC FOR AN OPEN (Continued)
• For diesel engines, measure the resistance between the PCM

cardiagn.com
• Are the resistances less than 5 ohms?
A4 CHECK FOR CORRECT PCM OPERATION
• Disconnect all the PCM connectors. Yes
• Check for: INSTALL a new PCM. REFER to Section 303-14A or
— corrosion Section 303-14B. CONNECT the battery ground cable.
— damaged pins CLEAR the DTCs. REPEAT the network test with the
— pushed-out pins scan tool.
• Connect all the PCM connectors and make sure they seat correctly.
No
• Operate the system and verify the concern is still present.
The system is operating correctly at this time. The
• Is the concern still present?
concern may have been caused by a loose or corroded
connector. CONNECT the battery ground cable.
CLEAR the DTCs. REPEAT the network test with the
scan tool.
Pinpoint Test B: The ABS Module Does Not Respond To The Scan Tool
Refer to Wiring Diagrams Cell 42, Vehicle Dynamic Systems for schematic and connector information.
Normal Operation
The ABS module communicates with the scan tool through the high speed controller area network (HS-CAN). Circuits VDB04 (WH/BU) (HS-CAN +) and
VDB05 (WH) (HS-CAN -) provide the network connection to the ABS module. The ABS module shares the HS-CAN with the PCM, trailer brake control
(TBC) module (if equipped), instrument cluster (IC), restraints control module (RCM), transmission control module (TCM) (diesel engine only, if equipped),
variable geometry turbocharger (VGT) actuator (diesel engine only) and the auxiliary heater control module (AHCM) (diesel engine only, if equipped).
Voltage for the ABS module is provided by circuits CBP34 (VT/BN), SBB09 (RD) and SBB18 (YE/RD). Ground is provided by circuit GD163 (BK/GY).
• Fuse
• ABS module
2008 F-250, 350, 450, 550 Super Duty, 7/2007

PINPOINT TEST B: THE ABS MODULE DOES NOT RESPOND TO THE SCAN TOOL
NOTICE:
B1 CHECK THE ABS MODULE VOLTAGE SUPPLY CIRCUITS FOR AN OPEN
• Ignition OFF.
• Disconnect: ABS Module C135 .
• Ignition ON.
• Measure the voltage between the ABS module C135-32, circuit
CBB77 (WH), and C135-2, circuit SBB09 (RD), harness side and
ground.
Yes
cardiagn.com
GO to B2.
No
VERIFY the battery junction box (BJB) fuses 9 (40A)
and 77 (10A) are OK. If OK, REPAIR the circuit in
question. CLEAR the DTCs. REPEAT the network test
• Are the voltages greater than 10 volts? with the scan tool.
B2 CHECK THE ABS MODULE GROUND CIRCUIT FOR AN OPEN
• Ignition OFF.
• Measure the resistance between the ABS module C135-16, circuit
GD163 (BK/GY) and C135-45, circuit GD163 (BK/GY), harness side
and ground.
Yes
GO to B3.
No
REPAIR the circuit in question. CLEAR the DTCs.
• Are the resistances less than 5 ohms? REPEAT the network test with the scan tool.
B3 CHECK THE HS-CAN CIRCUITS BETWEEN THE ABS MODULE AND THE DATA LINK CONNECTOR (DLC) FOR AN OPEN
• Measure the resistance between the ABS module C135-3, circuit Yes
VDB04 (WH/BU), harness side and the DLC C251-6, circuit VDB04 GO to B4.
(WH/BU), harness side.
No
REPEAT the network test with the scan tool.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

PINPOINT TEST B: THE ABS MODULE DOES NOT RESPOND TO THE SCAN TOOL (Continued)
B3 CHECK THE HS-CAN CIRCUITS BETWEEN THE ABS MODULE AND THE DATA LINK CONNECTOR (DLC) FOR AN OPEN
(Continued)
• Measure the resistance between the ABS module C135-18, circuit

VDB05 (WH), harness side and the DLC C251-14, circuit VDB05
(WH), harness side.
cardiagn.com
B4 CHECK FOR CORRECT ABS MODULE OPERATION
• Disconnect the ABS module connector. Yes
• Check for: INSTALL a new ABS module. REFER to Section
— corrosion 206-09. CLEAR the DTCs. REPEAT the network test
— damaged pins with the scan tool.
— pushed-out pins
No
• Connect the ABS module connector and make sure it seats correctly.
connector. CLEAR the DTCs. REPEAT the network
test with the scan tool.
Pinpoint Test C: The Instrument Cluster (IC) Does Not Respond To The Scan Tool
Refer to Wiring Diagrams Cell 60, Instrument Cluster for schematic and connector information.
Normal Operation
The instrument cluster (IC) communicates with the scan tool through the high speed controller area network (HS-CAN) and medium speed controller area
network (MS-CAN). Circuits VDB04 (WH/BU) (HS-CAN +) and VDB05 (WH) (HS-CAN -) provide the HS-CAN connection to the IC and circuits
VDB06 (GY/OG) (MS-CAN +) and VDB07 (VT/OG) (MS-CAN -) provide the MS-CAN connection to the IC.
The IC shares the HS-CAN with the PCM, ABS module, restraints control module (RCM), transmission control module (TCM) (diesel engine only, if
equipped), auxiliary heater control module (AHCM) (diesel engine only, if equipped), variable geometry turbocharger (VGT) actuator (diesel engine only)
and the trailer brake control (TBC) module (if equipped). In addition, the IC shares the MS-CAN with the smart junction box (SJB), driver seat module
(DSM) (if equipped), heating ventilation air conditioning (HVAC) module, audio control module (ACM), rear entertainment module (RETM) (if equipped),
circuit deactivation ignition module (CDIM) (if equipped) and satellite digital audio receiver system (SDARS) module (if equipped). Voltage for the IC is
provided by circuits CBP36 (BU/BN) and SBP26 (YE/RD). Circuit GD133 (BK) provides ground.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

• Fuse
• IC
PINPOINT TEST C: THE INSTRUMENT CLUSTER (IC) DOES NOT RESPOND TO THE SCAN
TOOL
NOTICE:
C1 CHECK THE HS-CAN TERMINATION RESISTANCE
• Ignition OFF.
• NOTE:
readings.

• Disconnect the scan tool cable from the data link connector (DLC).
• Measure the resistance between the DLC C251-6, circuit VDB04
(WH/BU), harness side and the DLC C251-14, circuit VDB05 (WH),
harness side.
cardiagn.com
Yes
GO to C4.
No
• Is the resistance between 54 and 66 ohms? GO to C2.
C2 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TO GROUND
(WH/BU), harness side and ground; and between the DLC C251-14,
circuit VDB05 (WH), harness side and ground.
Yes
GO to C3.
No
REPAIR the circuit(s). CLEAR the DTCs. REPEAT the
• Are the resistances greater than 5,000 ohms? network test with the scan tool.
C3 CHECK THE HS-CAN CIRCUITS FOR AN OPEN BETWEEN THE IC AND THE DLC
• Disconnect: IC C220 . Yes
• Measure the resistance between the IC C220-7, circuit VDB04 (WH/ CONNECT the battery ground cable. GO to C6.
BU), harness side and the DLC C251-6, circuit VDB04 (WH/BU),
No
harness side.
REPAIR the circuit(s). CLEAR the DTCs. REPEAT the
network test with the scan tool.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

TOOL (Continued)
C3 CHECK THE HS-CAN CIRCUITS FOR AN OPEN BETWEEN THE IC AND THE DLC (Continued)
• Measure the resistance between the IC C220-8, circuit VDB05 (WH),

harness side and the DLC C251-14, circuit VDB05 (WH), harness
side.
cardiagn.com
C4 CHECK THE IC VOLTAGE SUPPLY CIRCUITS FOR AN OPEN
• Disconnect: IC C220 .
• Connect the battery.
• Measure the voltage between the IC, harness side and ground as
follows:
Yes
IC Connector-Pin Circuit GO to C5.
C220-1 SBP26 (YE/RD) No

VERIFY the smart junction box (SJB) fuses 26 (10A)
C220-14 CBP36 (BU/BN) and 36 (5A) are OK. If OK, REPAIR the circuit in
• Are the voltages greater than 10 volts? question. TEST the system for normal operation.
C5 CHECK THE IC GROUND CIRCUIT FOR AN OPEN
• Ignition OFF. Yes
• Measure the resistance between the IC C220-6, circuit GD133 (BK), GO to C6.
harness side and ground.
No
2008 F-250, 350, 450, 550 Super Duty, 7/2007

TOOL (Continued)
C5 CHECK THE IC GROUND CIRCUIT FOR AN OPEN (Continued)

C6 CHECK FOR CORRECT IC OPERATION
cardiagn.com
• Disconnect all the IC connectors. Yes
• Check for: INSTALL a new IC. REFER to Section 413-01. CLEAR
— corrosion the DTCs. REPEAT the network test with the scan tool.
— damaged pins
No
— pushed-out pins
• Connect all the IC connectors and make sure they seat correctly.
Pinpoint Test D: The Trailer Brake Control Module (TBC) Module Does Not Respond To The Scan Tool
Normal Operation
The trailer brake control (TBC) module is optional equipment. The TBC module communicates with the scan tool through the high speed controller area
network (HS-CAN). Circuits VDB04 (WH/BU) (HS-CAN +) and VDB05 (WH) (HS-CAN -) provide the network connection to the TBC module. The TBC
module shares the HS-CAN with the PCM, the ABS module, restraints control module (RCM), auxiliary heater control module (AHCM) (diesel engine only,
if equipped), variable geometry turbocharger (VGT) actuator (diesel engine only), transmission control module (TCM) (diesel engine only, if equipped) and
the instrument cluster (IC). Voltage for the TBC module is provided by circuits CBP33A (WH/BN) and SBB05 (GY/RD). Ground is provided by circuit
GD115 (BK/GY).
• Fuse
• Trailer brake control (TBC) module
PINPOINT TEST D: THE TRAILER BRAKE CONTROL (TBC) MODULE DOES NOT RESPOND TO
THE SCAN TOOL
NOTICE:
D1 CHECK THE TBC MODULE POWER SUPPLY CIRCUITS FOR AN OPEN
• Ignition OFF.
• Disconnect: TBC Module C2142 .
• Ignition ON.
• Measure the voltage between the TBC module, harness side and Yes
ground as follows: GO to D2.
No
VERIFY the smart junction box (SJB) fuse 33 (10A)
TBC Module Connector-Pin Circuit and battery junction box (BJB) fuse 5 (30A) are OK. If
OK, REPAIR the circuit in question. CLEAR the DTCs.
C2142-8 SBB05 (GY/RD) REPEAT the network test with the scan tool.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

THE SCAN TOOL (Continued)
D1 CHECK THE TBC MODULE POWER SUPPLY CIRCUITS FOR AN OPEN (Continued)
(Continued)
TBC Module Connector-Pin Circuit
C2142-12 CBP33 (WH/BN)
cardiagn.com
• Are the voltages greater than 10 volts?
D2 CHECK THE TBC MODULE GROUND CIRCUIT FOR AN OPEN
• Ignition OFF.
• Measure the resistance between the TBC module C2124-11, circuit
GD115 (BK/GY), harness side and ground.
Yes
GO to D3.
No
REPAIR the circuit. CLEAR the DTCs. REPEAT the
• Is the resistance less than 5 ohms? network test with the scan tool.
D4 CHECK THE HS-CAN CIRCUITS BETWEEN THE TBC MODULE AND THE DATA LINK CONNECTOR (DLC) FOR AN OPEN
• Measure the resistance between the TBC module C2142-2, circuit
VDB04 (WH/BU), harness side and the DLC C251-6, circuit VDB04
(WH/BU), harness side; and between the TBC module C2142-3,
circuit VDB05 (WH), harness side and the DLC C251-14, circuit
VDB05 (WH), harness side.
Yes
GO to D4.
No
REPAIR the circuit in question. REPEAT the network
2008 F-250, 350, 450, 550 Super Duty, 7/2007

D4 CHECK THE HS-CAN CIRCUITS BETWEEN THE TBC MODULE AND THE DATA LINK CONNECTOR (DLC) FOR AN OPEN
(Continued)
D3 CHECK FOR CORRECT TBC MODULE OPERATION
• Disconnect all the TBC module connectors. Yes
• Check for: INSTALL a new TBC module. REFER to Section
— pushed-out pins
No
• Connect all the TBC module connectors and make sure they seat
correctly.
connector. CLEAR the diagnostic trouble codes
(DTCs). REPEAT the network test with the scan tool.
Pinpoint Test E: The Restraints Control Module (RCM) Does Not Respond To The Scan Tool
cardiagn.com
Refer to Wiring Diagrams Cell 46, Supplemental Restraint Systems for schematic and connector information.
Normal Operation
The restraints control module (RCM) communicates with the scan tool through the high speed controller area network (HS-CAN). Circuits VDB04 (WH/
BU) (HS-CAN +) and VDB05 (WH) (HS-CAN -) provide the HS-CAN connection to the RCM. The RCM shares the HS-CAN with the PCM, ABS module,
instrument cluster (IC), transmission control module (TCM) (diesel engine only, if equipped), the variable geometry turbocharger (VGT) actuator (diesel
engine only), trailer brake control (TBC) module (if equipped) and the auxiliary heater control module (AHCM) (diesel engine only, if equipped). Voltage
for the RCM is provided by circuit CBP32 (GN/VT) and the RCM is case grounded.
• Fuse
• RCM
PINPOINT TEST E: THE RESTRAINTS CONTROL MODULE (RCM) DOES NOT RESPOND TO
THE SCAN TOOL
WARNING:
Never disassemble or tamper with seat belt deployable components, including pretensioners, load limiters and inflators. Never back probe
deployable device electrical connectors. Tampering or back probing may cause an accidental deployment and result in personal injury or death.
WARNING:
Never probe the electrical connectors on air bag, Safety Canopy® or side air curtain modules. Failure to follow this instruction may result in the
accidental deployment of these modules, which increases the risk of serious personal injury or death.
NOTE:
The supplemental restraint system (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE:
Most faults are due to connector and/or wiring concerns. Carry out a thorough inspection and verification before proceeding with the Pinpoint Test.
E1 CHECK THE RCM CONNECTION
• Depower the SRS. Refer to Section 501-20B. GO to E2.
• Disconnect: RCM C310A and C310B .
No
• Are RCM C310A, pin 24 and C310B, pins 17 and 18 OK?
REPAIR the RCM connector pins as necessary.
REPOWER the SRS. REFER to Section 501-20B.
CLEAR the DTCs. REPEAT the network test with the
scan tool.
E2 CHECK THE RCM VOLTAGE SUPPLY CIRCUIT FOR AN OPEN
2008 F-250, 350, 450, 550 Super Duty, 7/2007

E2 CHECK THE RCM VOLTAGE SUPPLY CIRCUIT FOR AN OPEN (Continued)
• Repower the SRS.
• Ignition ON.
• Measure the voltage between the RCM C310A-24, circuit CBP32
(GN/VT) harness side and ground.
Yes
GO to E3.
No
VERIFY the smart junction box (SJB) fuse 32 (10A) is
OK. If OK, REPAIR the circuit in question. REFER to
cardiagn.com
Section 501-20B. CLEAR the DTCs. REPEAT the
• Is the voltage greater than 10 volts? network test with the scan tool.
E3 CHECK THE RCM CASE GROUND FOR AN OPEN
• Measure the resistance between the metal RCM case and a good GO to E4.
chassis ground.
No
• Is the resistance less than 5 ohms?
REPAIR the case ground connection. REFER to
Section 501-20B. CLEAR the DTCs. REPEAT the
E4 CHECK THE HS-CAN CIRCUITS BETWEEN THE RCM AND THE DATA LINK CONNECTOR (DLC) FOR AN OPEN
• Disconnect: RCM C310B .
• Measure the resistance between the RCM C310B-18, circuit VDB04
(WH/BU), harness side and the DLC C251-6, circuit VDB04 (WH/BU),
harness side
Yes
GO to E5.
• Measure the resistance between the RCM C310B-17, circuit VDB05 No
(WH), harness side and the DLC C251-14, circuit VDB05 (WH), REPAIR the circuit in question. CLEAR the DTCs.
harness side. REPEAT the network test with the scan tool.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

E4 CHECK THE HS-CAN CIRCUITS BETWEEN THE RCM AND THE DATA LINK CONNECTOR (DLC) FOR AN OPEN
(Continued)

E5 CHECK FOR CORRECT RCM OPERATION
cardiagn.com
• Disconnect all the RCM connectors. Yes
• Check for: INSTALL a new RCM. CLEAR the DTCs. REPEAT the
— corrosion network test with the scan tool.
— damaged pins
No
— pushed-out pins
• Connect all the RCM connectors and make sure they seat correctly.
Pinpoint Test F: The Auxiliary Heater Control Module (AHCM) Does Not Respond To The Scan Tool
Refer to Wiring Diagrams Cell 54, Manual Climate Control System for schematic and connector information.
Normal Operation
The auxiliary heater control module (AHCM) is optional equipment on diesel engine vehicles only. The AHCM communicates with the scan tool through
the high speed controller area network (HS-CAN). Circuits VDB04 (WH/BU) (HS-CAN +) and VDB05 (WH) (HS-CAN -) provide the HS-CAN connection
to the AHCM. The AHCM shares the HS-CAN with the PCM, ABS module, instrument cluster (IC), trailer brake control (TBC) module (if equipped),
restraints control module (RCM), variable geometry turbocharger (VGT) actuator (diesel engine only) and the transmission control module (TCM) (diesel
engine only, if equipped). Voltage for the AHCM is provided by circuit CVP37 (WH) and circuit GD108 (BK/VT) provides ground.
• Fuse
• AHCM
PINPOINT TEST F: THE AUXILIARY HEATER CONTROL MODULE (AHCM) DOES NOT
RESPOND TO THE SCAN TOOL
NOTICE:
F1 CHECK THE AHCM VOLTAGE SUPPLY CIRCUIT FOR AN OPEN
• Disconnect: AHCM C2463c . Yes
• Ignition ON. GO to F2.
• Measure the voltage between the AHCM C2463c-1, circuit CBP37
No
(WH), harness side and ground.
OK. If OK, REPAIR the circuit in question. CLEAR the
DTCs. REPEAT the network test with the scan tool.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

RESPOND TO THE SCAN TOOL (Continued)
F1 CHECK THE AHCM VOLTAGE SUPPLY CIRCUIT FOR AN OPEN (Continued)
• Is the voltage greater than 10 volts?
cardiagn.com
F2 CHECK THE AHCM GROUND CIRCUIT FOR AN OPEN
• Ignition OFF.
• Disconnect: AHCM C2463b .
• Measure the resistance between the AHCM C2463b-1, circuit GD108
(BK/VT), harness side and ground.
Yes
GO to F3.
No
F3 CHECK THE HS-CAN CIRCUITS BETWEEN THE AHCM AND THE DATA LINK CONNECTOR (DLC) FOR AN OPEN
• Measure the resistance between the AHCM C2463c-3, circuit VDB04
harness side; and between the AHCM C2463c-4, circuit VDB05 (WH),
side.
Yes
GO to F4.
No
F4 CHECK FOR CORRECT AHCM OPERATION
2008 F-250, 350, 450, 550 Super Duty, 7/2007

RESPOND TO THE SCAN TOOL (Continued)
F4 CHECK FOR CORRECT AHCM OPERATION (Continued)
• Disconnect all the AHCM connectors. Yes
• Check for: INSTALL a new AHCM. REFER to Section 412-00.
— corrosion CLEAR the DTCs. REPEAT the network test with the
— damaged pins scan tool.
— pushed-out pins
No
• Connect all the AHCM connectors and make sure they seat correctly.
Pinpoint Test G: The Transmission Control Module (TCM) Does Not Respond To The Scan Tool
Normal Operation
The transmission control module (TCM) is used on automatic transmission equipped diesel engine vehicles only. The TCM communicates with the scan tool
through the high speed controller area network (HS-CAN), circuits VDB04 (WH/BU) (HS-CAN +) and VDB05 (WH) (HS-CAN -) provide the HS-CAN
connection to the TCM. The TCM shares the HS-CAN with the PCM, the ABS module, the trailer brake control (TBC) module (if equipped), the variable
cardiagn.com
geometry turbocharger (VGT) actuator, the instrument cluster (IC), the auxiliary heater control module (AHCM) (if equipped) and the restraints control
module (RCM). Voltage for the TCM is provided by circuits CBB72 (GN/VT) and SBB37 (GY/RD). Circuit GD120 (BK/GN) provides ground.
• Fuse
• TCM
PINPOINT TEST G: THE TRANSMISSION CONTROL MODULE (TCM) DOES NOT RESPOND TO
THE SCAN TOOL
NOTICE:
G1 CHECK THE TRANSMISSION CONTROL MODULE (TCM) VOLTAGE SUPPLY CIRCUIT FOR AN OPEN
• Disconnect: TCM C1750 .
• Ignition ON.
• Measure the voltage between the TCM harness side and ground as
follows:
TCM Connector-Pin Circuit

C1750-1 CBB72 (GN/VT)
C1750-31 CBB72 (GN/VT)
C1750-60 SBB37 (GY/RD)
Yes
GO to G2.
No
VERIFY the smart junction box (SJB) fuse 37 (10A)
and battery junction box (BJB) fuse 72 (15A) is OK. If
OK, REPAIR the circuit in question. CLEAR the DTCs.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

G1 CHECK THE TRANSMISSION CONTROL MODULE (TCM) VOLTAGE SUPPLY CIRCUIT FOR AN OPEN (Continued)
G2 CHECK THE TCM GROUND CIRCUIT FOR AN OPEN
• Ignition OFF.
• Measure the resistance between the TCM harness side and ground
as follows:
TCM Connector-Pin Circuit

C1750-9 GD120 (BK/GN)
C1750-33 GD120 (BK/GN)
C1750-41 GD120 (BK/GN)
cardiagn.com
Yes
GO to G3.
No
• Are the resistances less than 5 ohms? network test with the scan tool.
G3 CHECK THE HS-CAN CIRCUITS BETWEEN THE TCM AND THE DATA LINK CONNECTOR (DLC) FOR AN OPEN
• Measure the resistance between the TCM C1750-47, circuit VDB04
harness side; and between the TCM C1750-48, circuit VDB05 (WH),
side.
Yes
GO to G4.
No
G4 CHECK FOR CORRECT TCM OPERATION
• Disconnect the TCM connector. Yes
• Check for: INSTALL a new TCM. REFER to Section 307-01.
— pushed-out pins
No
• Connect the TCM connector and make sure it seats correctly.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

G4 CHECK FOR CORRECT TCM OPERATION (Continued)
• Is the concern still present? connector. CLEAR the DTCs. REPEAT the network
Pinpoint Test H: The Smart Junction Box (SJB) Does Not Respond To The Scan Tool
Refer to Wiring Diagrams Cell 10, Grounds for schematic and connector information.
Refer to Wiring Diagrams Cell 13, Power Distribution/SJB for schematic and connector information.
Normal Operation
The smart junction box (SJB) communicates with the scan tool through the medium speed controller area network (MS-CAN). Circuits VDB06 (GY/OG)
(MS-CAN +) and VDB07 (VT/OG) (MS-CAN -) provide the network connection to the SJB. The SJB shares the MS-CAN with the instrument cluster (IC),
audio control module (ACM), heating ventilation air conditioning (HVAC) module, satellite digital audio receiver system (SDARS) module (if equipped),
driver seat module (DSM) (if equipped), circuit deactivation ignition module (CDIM) (if equipped) and rear entertainment module (RETM) (if equipped).
Voltage for the SJB is provided directly from the internal SJB busbar through SJB fuse 5 (10A). Ground is provided by circuit GD179 (BK).
cardiagn.com
• Fuse
• SJB
PINPOINT TEST H: THE SMART JUNCTION BOX (SJB) DOES NOT RESPOND TO THE SCAN
TOOL
NOTICE:
H1 CHECK THE SJB FUSE FOR VOLTAGE
• Measure the voltage between the back of the SJB fuse 5 (10A) GO to H2.
terminals (both sides) and ground:
No
OK. If OK, REPAIR the circuit. CLEAR the DTCs.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

TOOL (Continued)
H1 CHECK THE SJB FUSE FOR VOLTAGE (Continued)
cardiagn.com
H2 CHECK THE SJB GROUND CIRCUIT FOR AN OPEN
• Disconnect: SJB C2280d .
• Measure the resistance between the smart junction box (SJB),
harness side and ground as follows:
SJB Connector-Pin Circuit

C2280d-7 GD179 (BK)
C2280d-8 GD179 (BK) Yes
GO to H3.
C2280d-12 GD179 (BK)
No
C2280d-24 GD179 (BK) REPAIR the circuit. CLEAR the DTCs. REPEAT the
H3 CHECK THE MS-CAN CIRCUITS BETWEEN THE SJB AND THE DATA LINK CONNECTOR (DLC) FOR AN OPEN
• Disconnect: SJB C2280b . Yes
• Measure the resistance between the SJB C2280b-37, circuit VDB06 GO to H4.
(GY/OG), harness side and the DLC C251-3, circuit VDB06 (GY/OG),
No
harness side.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

TOOL (Continued)
H3 CHECK THE MS-CAN CIRCUITS BETWEEN THE SJB AND THE DATA LINK CONNECTOR (DLC) FOR AN OPEN
(Continued)
• Measure the resistance between the SJB C2280b-38, circuit VDB07

(VT/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG),
cardiagn.com
harness side.

H4 CHECK FOR CORRECT SJB OPERATION
• Disconnect all the SJB connectors. Yes
• Check for: INSTALL a new SJB. REFER to Section 419-10.
— pushed-out pins
No
• Connect all the SJB connectors and make sure they seat correctly.
Pinpoint Test I: The Driver Seat Module (DSM) Does Not Communicate With the Scan Tool
Normal Operation
The driver seat module (DSM) is optional equipment. The DSM communicates with the scan tool through the medium speed controller area network (MS-
CAN). Circuits VDB06 (GY/OG) (MS-CAN +) and VDB07 (VT/OG) (MS-CAN -) provide the network connection to the DSM. The DSM shares the MS-
CAN with the smart junction box (SJB), heating ventilation air conditioning (HVAC) module, audio control module (ACM), rear entertainment module
(RETM) (if equipped), satellite digital audio receiver system (SDARS) module (if equipped), circuit deactivation ignition module (CDIM) (if equipped) and
instrument cluster (IC). Voltage for the DSM is provided by circuits SBP12 (GN/RD) and SBB45 (GY/RD). Circuits GD133 (BK) and GD179 (BK/VT)
provide ground.
• Fuse
• DSM
2008 F-250, 350, 450, 550 Super Duty, 7/2007

PINPOINT TEST I: THE DRIVER SEAT MODULE (DSM) DOES NOT RESPOND TO THE SCAN
TOOL
NOTICE:
I1 CHECK THE DSM VOLTAGE SUPPLY CIRCUITS FOR AN OPEN
• Disconnect: DSM C341a .
• Disconnect: DSM C341b (Late Build Vehicles) .
• Disconnect: DSM C341c (Early Build Vehicles) .
• Ignition ON.
• For early build vehicles, measure the voltage between the DSM
C341a-2, circuit SBB45 (GY/RD), harness side and ground; and
between the DSM C341c-1, circuit SBB45 (GY/RD), harness side and
ground.
cardiagn.com
• For late build vehicles, measure the voltage between the DSM
C341a-1, circuit SBB45 (GY/RD), harness side and ground.
• For late build vehicles, measure the voltage between the DSM
C341b-1, circuit SBP12 (GN/RD), harness side and ground.
Yes
GO to I2.
No
VERIFY the battery junction box (BJB) fuse 45 (30A) or
the SJB fuse 12 (7.5A) is OK. If OK, REPAIR the circuit
in question. If not OK, REFER to the Wiring Diagrams
Manual to identify the possible causes of the circuit
short. CLEAR the DTCs. REPEAT the network test with
• Are the voltages greater than 10 volts? the scan tool.
I2 CHECK THE DSM GROUND CIRCUITS FOR AN OPEN
2008 F-250, 350, 450, 550 Super Duty, 7/2007

TOOL (Continued)
I2 CHECK THE DSM GROUND CIRCUITS FOR AN OPEN (Continued)
• Ignition OFF.
• For early build vehicles, measure the resistance between the DSM
C341a-1, circuit GD179 (BK/VT), harness side and ground; and
between the DSM C341c-13, circuit GD179 (BK/VT), harness side
and ground.
cardiagn.com
• For late build vehicles, measure the resistance between the DSM
C341a-2, circuit GD179 (BK/VT), harness side and ground.
• Measure the resistance between the DSM C341b-24, circuit GD133

(BK), harness side and ground.
Yes
For early build, GO to I3.
For late build, GO to I4.
No
I3 CHECK THE MS-CAN CIRCUITS BETWEEN THE DATA LINK CONNECTOR (DLC) AND THE DSM FOR AN OPEN (EARLY
BUILD)
• Measure the resistance between the DSM C341c-11, circuit VDB06 GO to I5.
No
harness side.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

TOOL (Continued)
I3 CHECK THE MS-CAN CIRCUITS BETWEEN THE DATA LINK CONNECTOR (DLC) AND THE DSM FOR AN OPEN (EARLY
BUILD) (Continued)
• Measure the resistance between the DSM C341c-12, circuit VDB07

cardiagn.com
harness side.

I4 CHECK THE MS-CAN CIRCUITS BETWEEN THE DATA LINK CONNECTOR (DLC) AND THE DSM FOR AN OPEN (LATE
BUILD)
• Ignition OFF.
• Measure the resistance between the DSM C341b-10, circuit VDB06
harness side.
Yes
GO to I5.
• Measure the resistance between the DSM C341b-9, circuit VDB07 No
(VT/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), REPAIR the circuit in question. CLEAR the DTCs.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

TOOL (Continued)
I4 CHECK THE MS-CAN CIRCUITS BETWEEN THE DATA LINK CONNECTOR (DLC) AND THE DSM FOR AN OPEN (LATE
BUILD) (Continued)

I5 CHECK FOR CORRECT DSM OPERATION
cardiagn.com
• Disconnect all the DSM connectors. Yes
• Check for: INSTALL a new DSM. REFER to Section 419-10.
— damaged pins scan tool. TEST the system for normal operation.
— pushed-out pins
No
• Connect all the DSM connectors and make sure they seat correctly.
Pinpoint Test J: The Heating Ventilation Air Conditioning (HVAC) Module Does Not Respond To The Scan Tool
Normal Operation
The heating ventilation air conditioning (HVAC) module communicates with the scan tool through the medium speed controller area network (MS-CAN).
Circuits VDB06 (GY/OG) (MS-CAN +) and VDB07 (VT/OG) (MS-CAN -) provide the network connection to the HVAC module. The HVAC module
shares the MS-CAN with the smart junction box (SJB), driver seat module (DSM) (if equipped), audio control module (ACM), rear entertainment module
(RETM) (if equipped), satellite digital audio receiver system (SDARS) module (if equipped), circuit deactivation ignition module (CDIM) (if equipped) and
instrument cluster (IC). Voltage to the HVAC module is provided by circuits SBP15 (WH/RD) and CBP37 (WH). Ground is provided by circuit GD133
(BK).
The HVAC module communicates with the scan tool on the MS-CAN.
• Fuse
• HVAC module
PINPOINT TEST J: THE HEATING VENTILATION AIR CONDITIONING (HVAC) MODULE DOES
NOT RESPOND TO THE SCAN TOOL
NOTICE:
J1 CHECK THE HVAC MODULE VOLTAGE SUPPLY CIRCUIT FOR AN OPEN
• Disconnect: HVAC module C228a . GO to J2.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

NOT RESPOND TO THE SCAN TOOL (Continued)
J1 CHECK THE HVAC MODULE VOLTAGE SUPPLY CIRCUIT FOR AN OPEN (Continued)
• Ignition ON.
• Measure the voltage between the HVAC module C228a-12, circuit
CBP37 (WH), harness side and ground; and between the HVAC
module C228a-13, circuit SPB15 (WH/RD), harness side and ground.
No
cardiagn.com
VERIFY the smart junction box (SJB) fuse 15 (10A) or
fuse 37 (10A) is OK. If OK, REPAIR the circuit in
question. CLEAR the DTCs. REPEAT the network test
• Are the voltages greater than 10 volts? with the scan tool.
J2 CHECK THE HVAC MODULE GROUND CIRCUIT FOR AN OPEN
• Ignition OFF.
• Measure the resistance between the HVAC module C228a-23, circuit
GD133 (BK), harness side and ground.
Yes
GO to J3.
No
J3 CHECK THE MS-CAN CIRCUITS BETWEEN THE HVAC MODULE AND THE DATA LINK CONNECTOR (DLC) FOR AN OPEN
VDB06 (GY/OG) harness side and the DLC C251-3, circuit VDB06
(GY/OG), harness side.
Yes
GO to J4.
No
2008 F-250, 350, 450, 550 Super Duty, 7/2007

NOT RESPOND TO THE SCAN TOOL (Continued)
J3 CHECK THE MS-CAN CIRCUITS BETWEEN THE HVAC MODULE AND THE DATA LINK CONNECTOR (DLC) FOR AN OPEN
(Continued)
VDB07 (VT/OG) , and the DLC C251-11, circuit VDB07 (VT/OG),
harness side.
cardiagn.com
J4 CHECK FOR CORRECT HVAC MODULE OPERATION
• Disconnect all the HVAC module connectors. Yes
• Check for: INSTALL a new HVAC module. REFER to Section
— pushed-out pins
No
• Connect all the HVAC module connectors and make sure they seat
correctly.
Pinpoint Test K: The Audio Control Module (ACM) Does Not Respond To The Scan Tool
Normal Operation
The audio control module (ACM) communicates with the scan tool through the medium speed controller area network (MS-CAN). Circuits VDB06 (GY/
OG) (MS-CAN +) and VDB07 (VT/OG) (MS-CAN -) provide the network connection to the ACM. The ACM shares the MS-CAN with the smart junction
box (SJB), driver seat module (DSM) (if equipped), heating ventilation air conditioning (HVAC) module, rear entertainment module (RETM) (if equipped),
satellite digital audio receiver system (SDARS) module (if equipped), circuit deactivation ignition module (CDIM) (if equipped) and instrument cluster (IC).
Voltage for the ACM is provided by circuit SBP39 (WH/RD). Ground is provided by circuit GD114 (BK/BU).
• Fuse
• ACM
PINPOINT TEST K: THE AUDIO CONTROL MODULE (ACM) DOES NOT RESPOND TO THE
SCAN TOOL
NOTICE:
K1 CHECK THE ACM VOLTAGE SUPPLY CIRCUIT FOR AN OPEN
• Disconnect: ACM C240a . GO to K2.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

SCAN TOOL (Continued)
K1 CHECK THE ACM VOLTAGE SUPPLY CIRCUIT FOR AN OPEN (Continued)
• Ignition ON.
• Measure the voltage between the ACM C240a-1, circuit SPB39 (WH/
RD), harness side and ground.
No
cardiagn.com
• Is the voltage greater than 10 volts? DTCs. REPEAT the network test with the scan tool.
K2 CHECK THE ACM GROUND CIRCUIT FOR AN OPEN
• Ignition OFF.
• Measure the resistance between the ACM C240a-13, circuit GD114
(BK/BU), harness side and ground.
Yes
GO to K3.
No
K3 CHECK THE MS-CAN CIRCUITS BETWEEN THE ACM AND THE DATA LINK CONNECTOR (DLC) FOR AN OPEN
• Disconnect: ACM C240c .
• Measure the resistance between the ACM C240c-15, circuit VDB06
harness side; and between the ACM C240c-16, circuit VDB07 (VT/
OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG),
harness side.
Yes
GO to K4.
No
2008 F-250, 350, 450, 550 Super Duty, 7/2007

SCAN TOOL (Continued)
K3 CHECK THE MS-CAN CIRCUITS BETWEEN THE ACM AND THE DATA LINK CONNECTOR (DLC) FOR AN OPEN
(Continued)
K4 CHECK FOR CORRECT ACM OPERATION
• Disconnect all the ACM connectors. Yes
• Check for: INSTALL a new ACM. REFER to Section 415-00.
— pushed-out pins
No
• Connect all the ACM connectors and make sure they seat correctly.
Pinpoint Test L: The Rear Entertainment Module (RETM) Does Not Respond To The Scan Tool
cardiagn.com
Normal Operation
The rear entertainment module (RETM) is optional equipment. The RETM communicates with the scan tool through the medium speed controller area
network (MS-CAN). Circuits VDB06 (GY/OG) (MS-CAN +) and VDB07 (VT/OG) (MS-CAN -) provide the network connection to the RETM. The RETM
shares the MS-CAN with the instrument cluster (IC), smart junction box (SJB), heating ventilation air conditioning (HVAC) module, audio control module
(ACM), driver seat module (DSM) (if equipped), circuit deactivation ignition module (CDIM) (if equipped) and satellite digital audio receiver system
(SDARS) module (if equipped). Voltage to the RETM is provided by circuit SBP03 (BU/RD). Ground is provided by circuit GD143 (BK/VT).
• Fuse
• Front display module
PINPOINT TEST L: THE REAR ENTERTAINMENT MODULE (RETM) DOES NOT RESPOND TO
THE SCAN TOOL
NOTICE:
L1 CHECK THE RETM VOLTAGE SUPPLY CIRCUIT FOR AN OPEN
• Ignition OFF.
• Disconnect: RETM C949 .
• Ignition ON.
• Measure the voltage between the RETM C949-16, circuit SBP03 (BU/
Yes
GO to L2.
No
2008 F-250, 350, 450, 550 Super Duty, 7/2007

L1 CHECK THE RETM VOLTAGE SUPPLY CIRCUIT FOR AN OPEN (Continued)
L2 CHECK THE RETM GROUND CIRCUIT FOR AN OPEN
• Ignition OFF.
• Measure the resistance between the RETM C949-1, circuit GD143
(BK/VT), harness side and ground.
cardiagn.com
Yes
GO to L3.
No
L3 CHECK THE MS-CAN CIRCUITS BETWEEN THE RETM AND THE DATA LINK CONNECTOR (DLC) FOR AN OPEN
• Measure the resistance between the RETM C949-8, circuit VDB06
harness side.
• Measure the resistance between the RETM C949-7, circuit VDB07

harness side.
Yes
GO to L4.
No
L4 CHECK FOR CORRECT RETM OPERATION
2008 F-250, 350, 450, 550 Super Duty, 7/2007

L4 CHECK FOR CORRECT RETM OPERATION (Continued)
• Disconnect the RETM connector. Yes
• Check for: INSTALL a new RETM. REFER to Section 415-00.
— pushed-out pins
No
• Connect the RETM connector and make sure it seats correctly.
Pinpoint Test M: The Satellite Digital Audio Receiver System (SDARS) Module Does Not Respond To The Scan Tool
cardiagn.com
Normal Operation
The satellite digital audio receiver system (SDARS) module is optional equipment. The SDARS module communicates with the scan tool through the
medium speed controller area network (MS-CAN). Circuits VDB06 (GY/OG) (MS-CAN +) and VDB07 (VT/OG) (MS-CAN -) provide the network
connection to the SDARS module. The SDARS module shares the MS-CAN with the instrument cluster (IC), smart junction box (SJB), heating ventilation
air conditioning (HVAC) module, audio control module (ACM), circuit deactivation ignition module (CDIM) (if equipped) and rear entertainment module
(RETM) (if equipped). Voltage to the SDARS module is provided by circuit SBP40 (VT/RD). Ground is provided by circuit GD114 (BK/BU).
• Fuse
• SDARS module
PINPOINT TEST M: THE SATELLITE DIGITAL AUDIO RECEIVER SYSTEM (SDARS) MODULE
DOES NOT RESPOND TO THE SCAN TOOL
NOTICE:
M1 CHECK THE SDARS MODULE VOLTAGE SUPPLY CIRCUIT FOR AN OPEN
• Ignition OFF.
• Disconnect: SDARS Module C2400 .
• Ignition ON.
• Measure the voltage between the SDARS module C2400-9, circuit
SBP40 (VT/RD), harness side and ground.
Yes
GO to M2.
No
• Is the voltage greater than 10 volts? DTCs. REPEAT the network test with the scan tool.
M2 CHECK THE SDARS MODULE GROUND CIRCUIT FOR AN OPEN
2008 F-250, 350, 450, 550 Super Duty, 7/2007

DOES NOT RESPOND TO THE SCAN TOOL (Continued)
M2 CHECK THE SDARS MODULE GROUND CIRCUIT FOR AN OPEN (Continued)
• Ignition OFF.
• Measure the resistance between the SDARS module C2400-3, circuit
GD114 (BK/BU), harness side and ground.
Yes
GO to M3.
No
cardiagn.com
M3 CHECK THE MS-CAN CIRCUITS BETWEEN THE SDARS MODULE AND THE DATA LINK CONNECTOR (DLC) FOR AN
OPEN
VDB06 (GY/OG), harness side and the DLC C251-3, circuit VDB06
(GY/OG), harness side.

VDB07 (VT/OG), harness side and the DLC C251-11, circuit VDB07
(VT/OG), harness side.
Yes
GO to M4.
No
M4 CHECK FOR CORRECT SDARS MODULE OPERATION
• Disconnect all the SDARS module connectors. Yes
• Check for: INSTALL a new SDARS module. REFER to Section
2008 F-250, 350, 450, 550 Super Duty, 7/2007

DOES NOT RESPOND TO THE SCAN TOOL (Continued)
M4 CHECK FOR CORRECT SDARS MODULE OPERATION (Continued)
— pushed-out pins No
• Connect all the SDARS module connectors and make sure they seat The system is operating correctly at this time. The
correctly. concern may have been caused by a loose or corroded
• Operate the system and verify the concern is still present. connector. CLEAR the DTCs. REPEAT the network
• Is the concern still present? test with the scan tool.
Pinpoint Test N: The 4X4 Control Module Does Not Respond To The Scan Tool
Refer to Wiring Diagrams Cell 55, Automatic Climate Control System for schematic and connector information.
Normal Operation
The 4X4 control module communicates with the scan tool through the International Standards Organization (ISO) 9141 communications network. Circuit
VDB10 (GY) provides the diagnostic connection to the data link connector (DLC). The 4X4 control module shares the ISO network with the parking aid
module (PAM). Voltage for the 4X4 module is provided by circuits CBP35 (YE/GY), CBP43 (GY) and SBP40 (VT/RD). Circuit GD115 (BK/GY) provides
ground.
cardiagn.com
• Fuse
PINPOINT TEST N: THE 4X4 CONTROL MODULE DOES NOT RESPOND TO THE SCAN TOOL
NOTICE:
N1 CHECK THE 4X4 CONTROL MODULE VOLTAGE SUPPLY CIRCUITS FOR AN OPEN
• Ignition OFF.
• Disconnect: 4X4 Control Module C281b .
• Ignition ON.
• Measure the voltage between the 4X4 control module, harness side
and ground as follows:
Connector-Pin Circuit
C281b-1 SBP40 (VT/RD)
C281b-2 SBP40 (VT/RD)
C281b-5 CBP35 (YE/GY)
C281b-6 CBP43 (GY)
Yes
GO to N2.
No
VERIFY the smart junction box (SJB) fuses 35 (10A),
40 (20A) and 43 (10A) are OK. If OK, REPAIR the
circuit in question. CLEAR the DTCs. REPEAT the
• Are the voltages at each pin greater than 9 volts? network test with the scan tool.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

PINPOINT TEST N: THE 4X4 CONTROL MODULE DOES NOT RESPOND TO THE SCAN TOOL
(Continued)
N2 CHECK THE 4X4 CONTROL MODULE GROUND CIRCUIT FOR AN OPEN
• Ignition OFF.
• Measure the resistance between the 4X4 control module C281b-3,
GD115 (BK/GY) and ground.
Yes
GO to N3.
No
cardiagn.com
N3 CHECK THE ISO 9141 CIRCUIT FOR AN OPEN BETWEEN THE 4X4 CONTROL MODULE AND THE DATA LINK
CONNECTOR (DLC)
• Disconnect: 4X4 Control Module C281a .
• Measure the resistance between the 4X4 control module C281a-10,
circuit VDB10 (GY), harness side and the DLC C251-7, circuit VDB10
(GY), harness side.
Yes
GO to N4.
No
REPAIR the circuit. REPEAT the network test with the
• Is the resistance less than 5 ohms? scan tool.
N4 CHECK FOR CORRECT 4X4 CONTROL MODULE OPERATION
• Disconnect all the 4X4 control module connectors. Yes
• Check for: INSTALL a new 4X4 control module. REFER to Section
— corrosion 308-07A. CLEAR the DTCs. REPEAT the network test
— pushed-out pins
No
• Connect all the 4X4 control module connectors and make sure they
seat correctly.
Pinpoint Test O: The Parking Aid Module (PAM) Does Not Respond To The Scan Tool
Refer to Wiring Diagrams Cell 131, Parking Aid for schematic and connector information.
Normal Operation
The parking aid module (PAM) is optional equipment. The PAM communicates with the scan tool through the ISO 9141 communications network, circuit
VDB10 (GY). The PAM shares the ISO network with the 4X4 control module. Voltage for the PAM is provided by circuit CBP35 (YE/GY). Ground is
provided by circuit GD133 (BK).
2008 F-250, 350, 450, 550 Super Duty, 7/2007

• Fuse
• PAM
PINPOINT TEST O: THE PARKING AID MODULE (PAM) DOES NOT RESPOND TO THE SCAN
TOOL
NOTICE:
O1 CHECK THE PAM VOLTAGE SUPPLY CIRCUIT FOR AN OPEN
• Ignition OFF.
• Disconnect: PAM C2023 .
• Ignition ON.
• Measure the voltage between the PAM C2023-1, circuit CBP35 (YE/
GY), harness side and ground.
cardiagn.com
Yes
GO to O2.
No
OK. If OK, REPAIR the circuit. CLEAR the DTCs.
• Is the voltage greater than 10 volts? REPEAT the network test with the scan tool.
O2 CHECK THE PAM GROUND CIRCUIT FOR AN OPEN
• Ignition OFF.
• Measure the resistance between the PAM C2023-4, circuit GD133
Yes
GO to O3.
No
O3 CHECK THE ISO 9141 COMMUNICATION NETWORK CIRCUIT BETWEEN THE PAM AND THE DATA LINK CONNECTOR
(DLC) FOR AN OPEN
• Measure the resistance between the PAM C2023-8, circuit VDB10 Yes
(GY), harness side and the DLC C251-7, circuit VDB10 (GY), harness GO to O4.
side.
No
2008 F-250, 350, 450, 550 Super Duty, 7/2007

PINPOINT TEST O: THE PARKING AID MODULE (PAM) DOES NOT RESPOND TO THE SCAN
TOOL (Continued)
O3 CHECK THE ISO 9141 COMMUNICATION NETWORK CIRCUIT BETWEEN THE PAM AND THE DATA LINK CONNECTOR
(DLC) FOR AN OPEN (Continued)

O4 CHECK FOR CORRECT PAM OPERATION
cardiagn.com
• Disconnect the PAM connector. Yes
• Check for: INSTALL a new PAM. REFER to Section 413-13.
— pushed-out pins
No
• Connect the PAM connector and make sure it seats correctly.
Pinpoint Test P: No Medium Speed Controller Area Network (MS-CAN) Communication, All Modules Are Not Responding
Normal Operation
The MS-CAN uses an unshielded twisted pair of cables, circuits VDB06 (GY/OG) and VDB07 (VT/OG). The audio control module (ACM), rear
entertainment module (RETM), driver seat module (DSM) (if equipped), heating ventilation air conditioning (HVAC) module, satellite digital audio receiver
system (SDARS) module (if equipped), circuit deactivation ignition module (CDIM) (if equipped) and smart junction box (SJB) communicate with the scan
tool using the MS-CAN. The instrument cluster (IC), while on the MS-CAN, communicates with the scan tool only on the HS-CAN.

• ACM
• CDIM (diesel engine only, if equipped)
• RETM
• DSM
• HVAC module (if equipped)
• IC
• SDARS module (if equipped)
• SJB
PINPOINT TEST P: NO MEDIUM SPEED CONTROLLER AREA NETWORK (MS-CAN)

COMMUNICATION, ALL MODULES ARE NOT RESPONDING
NOTICE:
P1 CHECK DATA LINK CONNECTOR (DLC) PINS FOR DAMAGE
NOTE:
Most faults are due to connector and/or wiring concerns. Carry out a thorough Yes
inspection and verification before proceeding with the Pinpoint Test. GO to P2.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


COMMUNICATION, ALL MODULES ARE NOT RESPONDING (Continued)
P1 CHECK DATA LINK CONNECTOR (DLC) PINS FOR DAMAGE (Continued)
• Ignition OFF.
• Disconnect the scan tool cable from the DLC.
• Inspect the DLC pins 3 and 11 for damage.
cardiagn.com
No
REPAIR the DLC as necessary. CLEAR the DTCs.
• Are the DLC pins 3 and 11 OK? REPEAT the network test with the scan tool.
P2 CHECK THE MS-CAN TERMINATION RESISTANCE
• NOTE:
readings.

• Measure the resistance between the DLC C251-3, circuit VDB06 (GY/
harness side.
Yes
GO to P5.
No
• Is the resistance between 54 and 66 ohms? GO to P3.
P3 CHECK THE MS-CAN TERMINATION RESISTOR
• Measure the resistance between the DLC C251-3, circuit VDB06 (GY/ Yes
OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), GO to P7.
harness side.
No
GO to P4.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


P3 CHECK THE MS-CAN TERMINATION RESISTOR (Continued)

P4 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER
cardiagn.com
harness side.
Yes
GO to P8.
No
• Is the resistance less than 5 ohms? GO to P7.
P5 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND
OG), harness side and ground; and between the DLC C251-11, circuit
VDB07 (VT/OG), harness side and ground.
Yes
GO to P6.
No
• Are the resistances greater than 5,000 ohms? GO to P20.
P6 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO VOLTAGE
• Connect the battery ground cable.
• Ignition ON.
• Measure the voltage between the DLC C251-3, circuit VDB06 (GY/ Yes
OG), harness side and ground; and between the DLC C251-11, circuit REPAIR the circuit. CLEAR the DTCs. REPEAT the
VDB07 (VT/OG), harness side and ground. network test with the scan tool.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


P6 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO VOLTAGE (Continued)
No
VERIFY all module fuses are OK. If OK, REPEAT the
• Is the voltage greater than 6 volts? network test with the scan tool.
P7 CHECK THE MS-CAN CIRCUITS BETWEEN THE SJB AND THE DATA LINK CONNECTOR (DLC) AND FOR AN OPEN.
cardiagn.com
• Disconnect: SJB C2280b .
harness side.

harness side.
Yes
VERIFY all module fuses are OK. If OK, CONNECT all
modules. CLEAR the DTCs. REPEAT the network test
with the scan tool.
No
P8 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE SJB DISCONNECTED
• Disconnect: SJB C2280b . Yes
• Measure the resistance between the DLC C251-3, circuit VDB06 (GY/ GO to P9.
No
harness side.
CONNECT the battery ground cable. GO to P32.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


P8 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE SJB DISCONNECTED
(Continued)

P9 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE IC DISCONNECTED
cardiagn.com
harness side.
Yes
GO to P10.
No
• Is the resistance less than 5 ohms? CONNECT the battery ground cable. GO to P33.
P10 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE AUDIO CONTROL MODULE
(ACM) DISCONNECTED
harness side.
Yes
GO to P11.
No
P11 VERIFY VEHICLE OPTION CONTENT — DRIVER SEAT MODULE (DSM) CIRCUIT SHORT TOGETHER TEST
2008 F-250, 350, 450, 550 Super Duty, 7/2007


P11 VERIFY VEHICLE OPTION CONTENT — DRIVER SEAT MODULE (DSM) CIRCUIT SHORT TOGETHER TEST (Continued)
• Verify the vehicle option content. Yes
• Is the vehicle equipped with a driver seat module (DSM)? GO to P12.
No
GO to P13.
P12 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE DSM DISCONNECTED
• Disconnect: DSM C341c .
harness side.
cardiagn.com
Yes
GO to P13.
No
P13 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE HVAC MODULE
DISCONNECTED
• Disconnect: HVAC Module C228a (EATC) or C2357a (EMTC) .
harness side.
Yes
GO to P14.
No
P14 VERIFY VEHICLE OPTION CONTENT — SATELLITE DIGITAL AUDIO RECEIVER SYSTEM (SDARS) MODULE CIRCUIT
SHORT TOGETHER TEST
• Verify vehicle option content. Yes
• Is the vehicle equipped with a SDARS module? GO to P15.
No
GO to P16.
P15 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE SDARS MODULE
DISCONNECTED
• Disconnect: SDARS Module C2400 . Yes
• Measure the resistance between the DLC C251-3, circuit VDB06 (GY/ GO to P16.
No
harness side.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


P15 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE SDARS MODULE
DISCONNECTED (Continued)

P16 VERIFY VEHICLE OPTION CONTENT — CIRCUIT DEACTIVATION IGNITION MODULE (CDIM)
cardiagn.com
• Verify the vehicle for a CDIM. This module is present on some diesel Yes
engine vehicles. GO to P17.
• Is the vehicle equipped with a CDIM?
No
GO to P18.
P17 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE CDIM DISCONNECTED
• Disconnect: CDIM C2500 .
harness side.
Yes
REPAIR the circuits. CONNECT all modules. CLEAR
the DTCs. REPEAT the network test with the scan tool.
No
P18 VERIFY VEHICLE OPTION CONTENT — REAR ENTERTAINMENT MODULE (RETM)
• Is the vehicle equipped with a RETM? GO to P19.
No
GO to P20.
P19 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE RETM DISCONNECTED
• Disconnect: RETM C949 . Yes
• Measure the resistance between the DLC C251-3, circuit VDB06 (GY/ REPAIR the circuits. CONNECT all modules. CLEAR
OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), the DTCs. REPEAT the network test with the scan tool.
harness side.
No
2008 F-250, 350, 450, 550 Super Duty, 7/2007


P19 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE RETM DISCONNECTED
(Continued)

P20 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE SJB DISCONNECTED
cardiagn.com
• Disconnect: SJB C2280b .
Yes
No
P21 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE ACM DISCONNECTED
Yes
No
P22 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE IC DISCONNECTED
2008 F-250, 350, 450, 550 Super Duty, 7/2007


P22 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE IC DISCONNECTED
(Continued)
cardiagn.com
No
P23 VERIFY VEHICLE OPTION CONTENT — DSM CIRCUIT SHORT TO GROUND TEST
• Is the vehicle equipped with a DSM? GO to P24.
No
GO to P25.
P24 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE DSM DISCONNECTED
• Disconnect: DSM C341c .
Yes
No
P25 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE HEATING VENTILATION AIR
CONDITIONING (HVAC) MODULE DISCONNECTED
• Disconnect: HVAC Module C228a (EATC) or C2357a (EMTC) . Yes
• Measure the resistance between the DLC C251-3, circuit VDB06 (GY/ CONNECT the battery ground cable. GO to P35.
No
GO to P26.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


P25 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE HEATING VENTILATION AIR
CONDITIONING (HVAC) MODULE DISCONNECTED (Continued)
• Are the resistances greater than 5,000 ohms?

P26 VERIFY VEHICLE OPTION CONTENT — SDARS MODULE
cardiagn.com
• Is the vehicle equipped with a SDARS module? GO to P27.
No
GO to P28.
P27 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE SDARS MODULE
DISCONNECTED
• Disconnect: SDARS Module C2400 .
Yes
No
P28 VERIFY VEHICLE OPTION CONTENT — CDIM
• Is the vehicle equipped with a CDIM? GO to P29.
No
GO to P30.
P29 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE CDIM DISCONNECTED
• Disconnect: CDIM C2500 . Yes
• Measure the resistance between the DLC C251-3, circuit VDB06 (GY/ CONNECT the battery ground cable. GO to P39.
No
GO to P30.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


P29 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE CDIM DISCONNECTED
(Continued)

P30 VERIFY VEHICLE OPTION CONTENT — RETM
cardiagn.com
• Is the vehicle equipped with a RETM? GO to P31.
No
REPAIR the circuits. CONNECT all modules.
CONNECT the battery ground cable. CLEAR the
P31 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE RETM DISCONNECTED
• Disconnect: RETM C949 .
Yes
No
• Are the resistances greater than 5,000 ohms? DTCs. REPEAT the network test with the scan tool.
P32 CHECK FOR CORRECT SJB OPERATION
• Disconnect all the SJB connectors. Yes
• Check for: INSTALL a new SJB. REFER to Section 419-10.
— pushed-out pins
No
• Connect all the SJB connectors and make sure they seat correctly.
P33 CHECK FOR CORRECT IC OPERATION
• Disconnect the IC connector.
• Check for: Yes
— corrosion INSTALL a new IC. REFER to Section 413-01. CLEAR
— damaged pins the DTCs. REPEAT the network test with the scan tool.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


P33 CHECK FOR CORRECT IC OPERATION (Continued)
— pushed-out pins No
• Connect the IC connector and make sure it seats correctly. The system is operating correctly at this time. The
• Operate the system and verify the concern is still present. concern may have been caused by a loose or corroded
• Is the concern still present? connector. CLEAR the DTCs. REPEAT the network
P34 CHECK FOR CORRECT ACM OPERATION
• Disconnect all the ACM connectors. Yes
• Check for: INSTALL a new ACM. REFER to Section 415-00.
— pushed-out pins
No
• Connect all the ACM connectors and make sure they seat correctly.
cardiagn.com
P35 CHECK FOR CORRECT HVAC MODULE OPERATION
• Disconnect the HVAC module connector. Yes
• Check for: INSTALL a new HVAC module. REFER to Section
— pushed-out pins
No
• Connect the HVAC module connector and make sure it seats
correctly.
P36 CHECK FOR CORRECT SDARS MODULE OPERATION
• Disconnect the SDARS module connector. Yes
• Check for: INSTALL a new SDARS module. REFER to Section
— pushed-out pins
No
• Connect the SDARS module connector and make sure it seats
correctly.
P37 CHECK FOR CORRECT RETM OPERATION
• Disconnect the RETM connector. Yes
• Check for: INSTALL a new RETM. REFER to Section 415-00.
— pushed-out pins
No
• Connect the RETM connector and make sure it seats correctly.
P38 CHECK FOR CORRECT DSM OPERATION
• Disconnect all the DSM connectors. Yes
• Check for: INSTALL a new DSM. REFER to Section 501-10.
— pushed-out pins
No
• Connect all the DSM connectors and make sure they seat correctly.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


P39 CHECK FOR CORRECT CDIM OPERATION
• Disconnect the CDIM connector. Yes
• Check for: INSTALL a new CDIM. REFER to Section 211-05.
— pushed-out pins
No
• Connect the CDIM connector and make sure it seats correctly.
Pinpoint Test Q: No International Standards Organization (ISO) 9141 Network Communication

Normal Operation
The parking aid module (PAM) and the 4X4 control module (if equipped) communicate with the scan tool through the ISO 9141 communications network,
circuit VDB10 (GY).
cardiagn.com
• Fuse
• 4X4 control module (if equipped)
• PAM
PINPOINT TEST Q: NO INTERNATIONAL STANDARDS ORGANIZATION (ISO) 9141 NETWORK

COMMUNICATION
NOTICE:
Q1 CHECK THE DATA LINK CONNECTOR (DLC) PINS FOR DAMAGE
NOTE:
Most faults are due to connector and/or wiring concerns. Carry out a thorough
inspection and verification before proceeding with the Pinpoint Test.
• Ignition OFF.
• Inspect the DLC pin 7 for damage.
Yes
GO to Q2.
No
• Is the DLC pin 7 OK? REPEAT the network test with the scan tool.
Q2 CHECK THE ISO 9141 CIRCUIT FOR A SHORT TO GROUND
• Disconnect: 4X4 Control Module C281a (if equipped) .
• Disconnect: PAM C2023 (if equipped) .
• Measure the resistance between the DLC C251-7, circuit VDB10 Yes
(GY), harness side and ground. GO to Q3.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


COMMUNICATION (Continued)
Q2 CHECK THE ISO 9141 CIRCUIT FOR A SHORT TO GROUND (Continued)
No
• Is the resistance greater than 10,000 ohms? network test with the scan tool.
Q3 CHECK THE ISO 9141 CIRCUIT FOR A SHORT TO VOLTAGE
cardiagn.com
• Ignition ON.
• Measure the voltage between the DLC C251-7, circuit VDB10 (GY),
harness side and ground.
Yes
No
• Is any voltage present? GO to Q4.
Q4 VERIFY VEHICLE OPTION CONTENT — 4X4 CONTROL MODULE
• Is the vehicle equipped with a 4X4 control module? GO to Q5.
No
GO to Q7.
Q5 CHECK VDB10 (GY) FOR AN OPEN BETWEEN THE 4X4 CONTROL MODULE AND THE DATA LINK CONNECTOR (DLC)
• Ignition OFF.
• Disconnect: 4X4 Control Module C281b .
• Measure the resistance between the 4X4 control module C281b -10,
circuit VDB10 (GY), harness side and the DLC C251-7, circuit VDB10
(GY), harness side.
Yes
GO to Q6.
No
2008 F-250, 350, 450, 550 Super Duty, 7/2007


COMMUNICATION (Continued)
Q5 CHECK VDB10 (GY) FOR AN OPEN BETWEEN THE 4X4 CONTROL MODULE AND THE DATA LINK CONNECTOR (DLC)
(Continued)
Q6 VERIFY VEHICLE OPTION CONTENT — PAM
• Is the vehicle equipped with a PAM? GO to Q7.
No
GO to Q9.
Q7 CHECK THE ISO 9141 COMMUNICATIONS NETWORK CIRCUIT BETWEEN THE PAM AND THE DATA LINK CONNECTOR
(DLC) FOR AN OPEN
• Measure the resistance between the PAM C4014-8, circuit VDB10
(GY), harness side and the DLC C251-7, circuit VDB10 (GY), harness
side.
cardiagn.com
Yes
GO to Q8.
No
Q8 CHECK FOR CORRECT PAM OPERATION
• Disconnect the PAM connector. Yes
• Check for: INSTALL a new PAM. REFER to Section 413-13.
— pushed-out pins
No
• Connect the PAM connector and make sure it seats correctly.
Q9 CHECK FOR CORRECT 4X4 CONTROL MODULE OPERATION
• Disconnect all the 4X4 control module connectors. Yes
• Check for: INSTALL a new 4X4 control module. REFER to Section
— corrosion 308-07A. CLEAR the DTCs. REPEAT the network test
— pushed-out pins
No
• Connect all the 4X4 control module connectors and make sure they
seat correctly.
Pinpoint Test R: No High Speed Controller Area Network (HS-CAN) Communication, All Modules Are Not Responding
Refer to Wiring Diagrams Cell 26, Electronic Engine Controls — 6.4L Diesel for schematic and connector information.
Normal Operation
2008 F-250, 350, 450, 550 Super Duty, 7/2007

The PCM communicates with the scan tool through the high speed controller area network (HS-CAN). Circuits VDB04 (WH/BU) (HS-CAN +) and VDB05
(WH) (HS-CAN -) provide the network connection to the PCM. The PCM shares the HS-CAN with the ABS module, trailer brake control (TBC) module (if
equipped), restraints control module (RCM), auxiliary heater control module (AHCM) (diesel engine only, if equipped), transmission control module (TCM)
(diesel engine only, if equipped), variable geometry turbocharger (VGT) actuator (diesel engine only) and the instrument cluster (IC). Voltage for the PCM
is provided by circuits CBB76 (BU/BN) and SBB36 (GN/RD). Circuit GD113 (BK/YE) provides ground.
• Fuse
• ABS module
• IC
• PCM
• RCM
• AHCM (diesel engine only, if equipped)
• TBC module (if equipped)
• TCM (diesel engine only, if equipped)
• VGT actuator (diesel engine only)
PINPOINT TEST R: NO HIGH SPEED CONTROLLER AREA NETWORK (HS-CAN)
cardiagn.com
NOTICE:
R1 CHECK THE DATA LINK CONNECTOR (DLC) PINS FOR DAMAGE
NOTE:
• Ignition OFF.
• Inspect DLC pins 6 and 14 for damage.
Yes
GO to R2.
No
• Are DLC pins 6 and 14 OK? REPEAT the network test with the scan tool.
R2 CHECK THE HS-CAN TERMINATION RESISTANCE
• Ignition OFF.
• NOTE:
readings.

Yes
GO to R5.
(WH/BU), harness side and the DLC C251-14, circuit VDB05 (WH), No
harness side. GO to R3.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


R2 CHECK THE HS-CAN TERMINATION RESISTANCE (Continued)

R3 CHECK THE HS-CAN TERMINATION RESISTOR
cardiagn.com
harness side.
Yes
GO to R7.
No
• Is the resistance between 108 and 132 ohms? GO to R4.
R4 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TOGETHER
harness side.
Yes
GO to R8.
No
• Is the resistance less than 5 ohms? GO to R7.
R5 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TO GROUND
(WH/BU), harness side and ground; and between the DLC C251-14, GO to R6.
No
GO to R20.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


R5 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TO GROUND (Continued)

R6 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TO VOLTAGE
cardiagn.com
• Ignition ON.
• Measure the voltage between the DLC C251-6, circuit VDB04 (WH/
BU), harness side and ground; and between the DLC C251-14, circuit
VDB05 (WH), harness side and ground.
Yes
No
• Are the voltages greater than 6 volts? GO to R7.
R7 CHECK THE CAN CIRCUITS BETWEEN THE PCM AND THE DLC FOR AN OPEN
• Ignition OFF.
Engine) .
Yes
CONNECT the battery ground cable. GO to R32.
No
• For gasoline engines, measure the resistance between the PCM REPAIR the circuit in question. CONNECT the battery
C175b-23, circuit VDB05 (WH), harness side and the DLC C251-14, ground cable. CLEAR the DTCs. REPEAT the network
circuit VDB05 (WH), harness side. test with the scan tool.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


R7 CHECK THE CAN CIRCUITS BETWEEN THE PCM AND THE DLC FOR AN OPEN (Continued)

cardiagn.com

R8 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE PCM DISCONNECTED
Yes
Engine) .
GO to R9.
(WH/BU), harness side and the DLC C251-14, circuit VDB05 (WH), No
harness side. CONNECT the battery ground cable. GO to R32.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


R8 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE PCM DISCONNECTED
(Continued)

R9 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE ABS MODULE DISCONNECTED
cardiagn.com
• Disconnect: ABS Module C135 .
harness side.
Yes
GO to R10.
No
• Is the resistance less than 5 ohms? CONNECT the battery ground cable. GO to R33.
R10 VERIFY VEHICLE OPTION CONTENT — TRAILER BRAKE CONTROL (TBC) MODULE
• Is the vehicle equipped with a TBC module? GO to R11.
No
GO to R12.
R11 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE TBC MODULE DISCONNECTED
• Disconnect: TBC Module C2142 . Yes
• Measure the resistance between the DLC C251-6, circuit VDB04 GO to R12.
No
harness side.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


R11 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE TBC MODULE DISCONNECTED
(Continued)

R12 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE IC DISCONNECTED
cardiagn.com
harness side.
Yes
GO to R13.
No
R13 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE RESTRAINTS CONTROL
MODULE (RCM) DISCONNECTED
• Disconnect: RCM C310b .
harness side.
Yes
GO to R14.
No
R14 VERIFY VEHICLE OPTION CONTENT — DIESEL ENGINE
2008 F-250, 350, 450, 550 Super Duty, 7/2007


R14 VERIFY VEHICLE OPTION CONTENT — DIESEL ENGINE (Continued)
• Verify vehicle engine type. Yes
• Is the vehicle equipped with a diesel engine? GO to R15.
No
REPAIR the circuits. CONNECT all modules. CLEAR
the DTCs. REPEAT the network test with the scan tool.
R15 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE VARIABLE GEOMETRY
TURBOCHARGER (VGT) ACTUATOR DISCONNECTED
• Disconnect: VGT Actuator C1390 .
harness side.
cardiagn.com
Yes
GO to R16.
No
R16 VERIFY VEHICLE OPTION CONTENT — TRANSMISSION CONTROL MODULE (TCM)
• Inspect the vehicle for a TCM. This module is present on diesel Yes
engine equipped vehicles with an automatic transmission. GO to R17.
• Is the vehicle equipped with a TCM?
No
GO to R18.
R17 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE TCM DISCONNECTED
harness side.
Yes
GO to R18.
No
R18 VERIFY VEHICLE OPTION CONTENT — AUXILIARY HEATER CONTROL MODULE (AHCM)
• Is the vehicle equipped with an AHCM? GO to R19.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


R18 VERIFY VEHICLE OPTION CONTENT — AUXILIARY HEATER CONTROL MODULE (AHCM) (Continued)
No
R19 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE AHCM DISCONNECTED
• Disconnect: AHCM C2463c .
harness side.
cardiagn.com
Yes
No
R20 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE PCM DISCONNECTED
Engine) .
Yes
No
• Are the resistances greater than 5,000 ohms? GO to R21.
R21 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE ABS MODULE
DISCONNECTED
• Disconnect: ABS Module C135 . Yes
• Measure the resistance between the DLC C251-6, circuit VDB04 CONNECT the battery ground cable. GO to R33.
No
GO to R22.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


R21 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE ABS MODULE

R22 VERIFY VEHICLE OPTION CONTENT — TBC MODULE
cardiagn.com
• Is the vehicle equipped with a TBC module? GO to R23.
No
GO to R24.
R23 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE TBC MODULE
DISCONNECTED
• Disconnect: TBC Module C2142 .
harness side.
Yes
No
• Are the resistances greater than 5,000 ohms? CONNECT the battery ground cable. GO to R24.
R24 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE IC DISCONNECTED
• Measure the resistance between the DLC C251-6, circuit VDB04 GO to R35.
No
GO to R25.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


R24 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE IC DISCONNECTED
(Continued)

R25 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH RCM DISCONNECTED
cardiagn.com
• Disconnect: RCM C310b .
Yes
No
R26 VERIFY VEHICLE OPTION CONTENT — DIESEL ENGINE
• Verify the vehicle engine type. Yes
• Is the vehicle equipped with a diesel engine? GO to R27.
No
R27 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE VGT ACTUATOR
DISCONNECTED
• Disconnect: VGT Actuator C1390 . Yes
No
GO to R28.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


R27 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE VGT ACTUATOR

R28 VERIFY VEHICLE OPTION CONTENT — TCM
cardiagn.com
engine equipped vehicles with an automatic transmission. GO to R29.
No
GO to R30.
R29 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE TCM DISCONNECTED
harness side.
Yes
No
R30 VERIFY VEHICLE OPTION CONTENT — AHCM
• Is the vehicle equipped with an AHCM? GO to R31.
No
R31 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE AUXILIARY HEATER
CONTROL MODULE (AHCM) DISCONNECTED
• Disconnect: AHCM C2463c . Yes
No
2008 F-250, 350, 450, 550 Super Duty, 7/2007


R31 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE AUXILIARY HEATER
CONTROL MODULE (AHCM) DISCONNECTED (Continued)

R32 CHECK FOR CORRECT PCM OPERATION
cardiagn.com
• Disconnect all the PCM connectors. Yes
• Check for: INSTALL a new PCM. REFER to Section 303-14A or
— corrosion Section 303-14B. CONNECT all modules. CLEAR the
— damaged pins DTCs. REPEAT the network test with the scan tool.
— pushed-out pins
No
• Connect all the PCM connectors and make sure they seat correctly.
connector. CONNECT all modules. CLEAR the DTCs.
R33 CHECK FOR CORRECT ABS MODULE OPERATION
• Disconnect the ABS module connector. Yes
• Check for: INSTALL a new ABS module. REFER to Section
— corrosion 206-09. CONNECT all modules. CLEAR the DTCs.
— damaged pins REPEAT the network test with the scan tool.
— pushed-out pins
No
• Connect the ABS module connector and make sure it seats correctly.
R34 CHECK FOR CORRECT TBC MODULE OPERATION
• Disconnect the TBC module connector. Yes
• Check for: INSTALL a new TBC module. REFER to Section
— corrosion 206-10. CONNECT all modules. CLEAR the DTCs.
— pushed-out pins
No
• Connect the TBC module connector and make sure it seats correctly.
R35 CHECK FOR CORRECT IC OPERATION
• Disconnect the IC connector. Yes
• Check for: INSTALL a new IC. REFER to Section 413-01.
— corrosion CONNECT all modules. CLEAR the DTCs. REPEAT
— damaged pins the network test with the scan tool.
— pushed-out pins
No
• Connect the IC connector and make sure it seats correctly.
R36 CHECK FOR CORRECT RCM OPERATION
2008 F-250, 350, 450, 550 Super Duty, 7/2007


R36 CHECK FOR CORRECT RCM OPERATION (Continued)
• Disconnect all the RCM connectors. Yes
• Check for: INSTALL a new RCM. REFER to Section 501-20B.
— pushed-out pins
No
• Connect the RCM connectors and make sure they seat correctly.
R37 CHECK FOR CORRECT TCM OPERATION
• Disconnect the TCM connector. Yes
• Check for: INSTALL a new TCM. REFER to Section 307-01.
— pushed-out pins
No
• Connect the TCM connector and make sure it seats correctly.
cardiagn.com
R38 CHECK FOR CORRECT AHCM OPERATION
• Disconnect all the AHCM connectors. Yes
• Check for: INSTALL a new AHCM. REFER to Section 412-01.
— pushed-out pins
No
• Connect all the AHCM connectors and make sure they seat correctly.
R39 CHECK FOR CORRECT VGT ACTUATOR OPERATION
• Disconnect the VGT actuator connector. Yes
• Check for: INSTALL a new VGT actuator. REFER to Section
— corrosion 303-04D. CONNECT all modules. CLEAR the DTCs.
— pushed-out pins
No
• Connect the VGT actuator and make sure it seats correctly.
Pinpoint Test S: Intermittent No High Speed Controller Area Network (HS-CAN) Communication, One Or More Modules Are Not
Responding During Network Test
Normal Operation
An open in circuit VDB04 (WH/BU) (HS-CAN +) or VDB05 (WH) (HS-CAN -) may cause intermittent or unreliable communication to all modules on the
HS-CAN. The HS-CAN is used for communication between the following modules:
• ABS module
• Trailer brake control (TBC) module (if equipped)
• PCM
• Auxiliary heater control module (AHCM) (diesel engine only, if equipped)
• Transmission control module (TCM) (diesel engine only, if equipped)
• Variable geometry turbocharger (VGT) actuator (diesel engine only)
2008 F-250, 350, 450, 550 Super Duty, 7/2007

In the event that either circuit VDB04 (WH/BU) or VDB05 (WH) becomes open to any module on the network, unreliable network communication to all
modules on the network may result.
PINPOINT TEST S: INTERMITTENT NO HIGH SPEED CONTROLLER AREA NETWORK (HS-CAN)

COMMUNICATION, ONE OR MORE MODULES ARE NOT RESPONDING DURING NETWORK
TEST
NOTE:
Various modules will set network DTCs during this test procedure. Clear DTCs from all modules after the diagnostic procedure is completed.
S1 CHECK THE DATA LINK CONNECTOR (DLC) PINS FOR DAMAGE
• Ignition OFF.
cardiagn.com
Yes
GO to S2.
No
S2 CHECK THE HS-CAN TERMINATION RESISTANCE
• Ignition OFF.
• NOTE:
readings.

harness side.
Yes
GO to S3.
No
• Is the resistance between 54 and 66 ohms? GO to Pinpoint Test R.
S3 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TO GROUND
(WH/BU), harness side and ground; and between the DLC C251-14, GO to S4.
No
GO to Pinpoint Test R.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


TEST (Continued)
S3 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TO GROUND (Continued)

S4 CHECK THE HS-CAN (+) AND HS-CAN (-) CIRCUITS FOR A SHORT TO VOLTAGE
cardiagn.com
• Ignition ON.
• Measure the voltage between the DLC C251-6, circuit VDB04 (WH/
BU), harness side and ground; and between the DLC C251-14, circuit
VDB05 (WH), harness side and ground.
Yes
REPAIR the short to voltage. CLEAR the DTCs.
No
• Is the voltage greater than 6 volts? GO to S5.
S5 CHECK FOR RESTORED COMMUNICATION WITH THE PCM DISABLED
NOTE:
An IDS session must be established prior to disabling the PCM in this test step. If
the PCM has failed communication during multiple attempts to identify the
vehicle, first identify the vehicle manually by entering a PCM part number,
calibration number or tear tag when prompted by IDS.
NOTE:
When a vehicle is manually identified by a PCM part number, calibration number
or tear tag, the IDS will not automatically run a network test. The network test
must be manually selected and run.
NOTE:
When re-running the network test, the network test application must be first
closed or the screen display will revert back to the prior run network test results.
Yes
• Disconnect: BJB Fuses 71 (5A) and 76 (20A) .
INSTALL the removed fuses. GO to Pinpoint Test A.
• Enter the following diagnostic mode on the scan tool: Network Test .
• Repeat the network test. No
• Do all other modules pass the network test? INSTALL the removed fuses. GO to S6.
S6 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE ABS MODULE DISABLED
NOTE: Yes
INSTALL the removed fuse. GO to Pinpoint Test B.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


TEST (Continued)
S6 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE ABS MODULE DISABLED (Continued)
• Disconnect: BJB Fuse 77 (10A) .

• Do all other modules pass the network test? INSTALL the removed fuse. GO to S7.
S7 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE RESTRAINTS CONTROL MODULE (RCM) DISABLED
NOTE:
Yes
• Disconnect: SJB Fuse 32 (10A) .
INSTALL the removed fuse. GO to Pinpoint Test E.
cardiagn.com
S8 VERIFY VEHICLE EQUIPMENT — TRAILER BRAKE CONTROL (TBC) MODULE
• Inspect the vehicle for a TBC module. Yes
• Is the vehicle equipped with a TBC module? GO to S9.
No
GO to S10.
S9 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE TBC MODULE DISABLED
NOTE:
Yes
• Disconnect: SJB Fuse 33 (10A) and BJB Fuse 5 (30A) .
INSTALL the removed fuses. GO to Pinpoint Test D.
S10 VERIFY VEHICLE EQUIPMENT — TRANSMISSION CONTROL MODULE (TCM)
engine equipped vehicles with an automatic transmission. GO to S11.
No
GO to S13.
S11 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE TCM DISABLED
NOTE: Yes
When re-running the network test, the network test application must be first INSTALL the removed fuses.
closed or the screen display will revert back to the prior run network test results. If equipped with an auxiliary heater control module
(AHCM), GO to S12.
• Disconnect: BJB Fuses 37 (10A) and 72 (15A) . If not equipped with a supplemental heater control
• Enter the following diagnostic mode on the scan tool: Network Test . module, GO to Pinpoint Test G.
• Repeat the network test.
No
• Do all other modules pass the network test?
INSTALL the removed fuses. GO to S13.
S12 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE TCM DISCONNECTED
NOTE:
Yes
CONNECT the TCM. GO to Pinpoint Test G.
• Do all modules pass? CONNECT the TCM. GO to S14.
S13 VERIFY VEHICLE EQUIPMENT — AUXILIARY HEATER CONTROL MODULE (AHCM)
2008 F-250, 350, 450, 550 Super Duty, 7/2007


TEST (Continued)
S13 VERIFY VEHICLE EQUIPMENT — AUXILIARY HEATER CONTROL MODULE (AHCM) (Continued)
• Inspect the vehicle for an AHCM. This module is present on some Yes
diesel engine equipped vehicles. GO to S14.
• Is the vehicle equipped with an AHCM?
No
GO to S15.
S14 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE AHCM DISABLED
NOTE:
Yes
• Disconnect: SJB Fuses 37 (10A) and 15 (10A) .
INSTALL the removed fuses. GO to Pinpoint Test F.
S15 VERIFY VEHICLE EQUIPMENT — VARIABLE GEOMETRY TURBOCHARGER (VGT) ACTUATOR
cardiagn.com
• Inspect the vehicle for a VGT actuator. This actuator is present on all Yes
diesel engine equipped vehicles. GO to S16.
• Is the vehicle equipped with a VGT actuator?
No
GO to S17.
S16 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE VGT ACTUATOR DISABLED
NOTE:
Yes
INSTALL the removed fuse. REFER to the Powertrain
Control/Emissions Diagnosis (PC/ED) manual, Section
5, pinpoint test AK to diagnose no communication with
• Disconnect: BJB Fuse 74 (20A) .
the VGT actuator.
S17 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE IC DISABLED
NOTE:
Yes
INSTALL the removed fuses. GO to Pinpoint Test C.
• Disconnect: SJB Fuse 26 (10A) and 36 (5A) .
• Enter the following diagnostic mode on the scan tool: Network Test . No
• Repeat the network test. INSTALL the removed fuse. An intermittent fault is not
• Do all other modules pass the network test? present. GO to Pinpoint Test R.
Pinpoint Test T: Intermittent No Medium Speed Controller Area Network (MS-CAN) Communication, One Or More Modules Are Not
Responding During Network Test
Normal Operation
An open circuit VDB06 (GY/OG) (MS-CAN +) or VDB07 (VT/OG) (MS-CAN -) may cause intermittent or unreliable communication to all modules on the
MS-CAN. The MS-CAN is used for communication between the following modules:
• Audio control module (ACM)

• Circuit deactivation ignition module (CDIM) (diesel engine only, if equipped)
• Rear entertainment module (RETM)
• Driver seat module (DSM)
• Heating ventilation air conditioning (HVAC) module
• Satellite digital audio receiver system (SDARS) module (if equipped)
• Smart junction box (SJB)
2008 F-250, 350, 450, 550 Super Duty, 7/2007

In the event that either circuit VDB06 (GY/OG) or VDB07 (VT/OG) becomes open to any module on the network, unreliable network communication to all
modules on the network may result.
PINPOINT TEST T: INTERMITTENT NO MEDIUM SPEED CONTROLLER AREA NETWORK (MS-

CAN) COMMUNICATION, ONE OR MORE MODULES ARE NOT RESPONDING DURING
NETWORK TEST
NOTE:
Various modules will set network DTCs during this test procedure. Clear DTCs from all modules after the diagnostic procedure is completed.
T1 CHECK THE DATA LINK CONNECTOR (DLC) PINS FOR DAMAGE
• Ignition OFF.
cardiagn.com
Yes
GO to T2.
No
T2 CHECK THE MS-CAN TERMINATION RESISTANCE
• NOTE:
readings.

harness side.
Yes
GO to T3.
No
• Is the resistance between 54 and 66 ohms? GO to Pinpoint Test P.
T3 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND
• Measure the resistance between the DLC C251-3, circuit VDB06 (GY/ Yes
OG), harness side and ground; and between the DLC C251-11, circuit GO to T4.
No
GO to Pinpoint Test P.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


NETWORK TEST (Continued)
T3 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND (Continued)

T4 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO VOLTAGE
cardiagn.com
• Ignition ON.
• Measure the voltage between the DLC C251-3, circuit VDB06 (GY/
Yes
REPAIR the short to voltage. CLEAR the DTCs.
No
• Is the voltage greater than 6 volts? GO to T5.
T5 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE HVAC MODULE DISABLED
NOTE:
Yes
INSTALL the removed fuses. GO to Pinpoint Test J.
• Do all other modules pass the network test? INSTALL the removed fuses. GO to T6.
T6 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE ACM DISABLED
NOTE:
Yes
INSTALL the removed fuse. GO to Pinpoint Test K.
• Do all other modules pass the network test? INSTALL the removed fuse. GO to T7.
T7 VERIFY VEHICLE EQUIPMENT — DSM
• Inspect the vehicle for a DSM. Yes
• Is the vehicle equipped with a DSM? GO to T8.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


T7 VERIFY VEHICLE EQUIPMENT — DSM (Continued)
No
GO to T9.
T8 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE DSM DISABLED
NOTE:
Yes
• Disconnect: SJB Fuse 12 (7.5A) .
INSTALL the removed fuses. GO to Pinpoint Test I.
T9 VERIFY VEHICLE EQUIPMENT — SATELLITE DIGITAL AUDIO RECEIVER SYSTEM (SDARS) MODULE
• Inspect the vehicle for a SDARS module. Yes
• Is the vehicle equipped with an SDARS module? GO to T10.
cardiagn.com
No
GO to T11.
T10 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE SDARS MODULE DISABLED
NOTE:
Yes
INSTALL the removed fuse. GO to Pinpoint Test M.
T11 VERIFY VEHICLE EQUIPMENT — RETM
• Inspect the vehicle for an RETM. Yes
• Is the vehicle equipped with an RETM? GO to T12.
No
GO to T13.
T12 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE RETM DISABLED
NOTE:
Yes
INSTALL the removed fuse. GO to Pinpoint Test L.
T13 VERIFY VEHICLE EQUIPMENT — CIRCUIT DEACTIVATION IGNITION MODULE (CDIM)
• Inspect the vehicle for a CDIM. This is present on some diesel engine Yes
vehicles. GO to T14.
• Is the vehicle equipped with a CDIM?
No
GO to T15.
T14 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE CDIM DISABLED
NOTE:
Yes
INSTALL the removed fuse. GO to Pinpoint Test U.
2008 F-250, 350, 450, 550 Super Duty, 7/2007


T15 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE SMART JUNCTION BOX (SJB) DISABLED
NOTE:
Yes
INSTALL the removed fuse. GO to Pinpoint Test H.
T16 CHECK FOR RESTORED NETWORK COMMUNICATION WITH THE IC DISABLED
NOTE:
Yes
INSTALL the removed fuses. GO to Pinpoint Test C.
• Enter the following diagnostic mode on the scan tool: Network Test . No
cardiagn.com
• Repeat the network test. INSTALL the removed fuses. An intermittent fault is not
• Do all other modules pass the network test? present. GO to Pinpoint Test P.
Pinpoint Test U: The Circuit Deactivation Ignition Module (CDIM) Does Not Communicate With the Scan Tool
Normal Operation
The circuit deactivation ignition module (CDIM) is present on some diesel engine vehicles. The CDIM communicates with the scan tool through the medium
speed controller area network (MS-CAN). Circuits VDB06 (GY/OG) (MS-CAN +) and VDB07 (VT/OG) (MS-CAN -) provide the network connection to
the CDIM. The CDIM shares the MS-CAN with the smart junction box (SJB), heating ventilation air conditioning (HVAC) module, audio control module
(ACM), rear entertainment module (RETM) (if equipped), driver seat module (DSM) (if equipped), satellite digital audio receiver system (SDARS) module
(if equipped) and the instrument cluster (IC). Voltage for the CDIM is provided by circuit SBP27 (BU/RD). Circuit GD133 (BK) provides ground.
• Fuse
• CDIM
PINPOINT TEST U: THE CIRCUIT DEACTIVATION IGNITION MODULE (CDIM) DOES NOT
COMMUNICATE WITH THE SCAN TOOL
NOTICE:
U1 CHECK THE CDIM VOLTAGE SUPPLY CIRCUITS FOR AN OPEN
• Disconnect: CDIM C2500 . GO to U2.
• Ignition ON.
No
• Measure the voltage between the CDIM C2500-7, circuit SBP27 (BU/
2008 F-250, 350, 450, 550 Super Duty, 7/2007

COMMUNICATE WITH THE SCAN TOOL (Continued)
U1 CHECK THE CDIM VOLTAGE SUPPLY CIRCUITS FOR AN OPEN (Continued)
cardiagn.com
U2 CHECK THE CDIM GROUND CIRCUIT FOR AN OPEN
• Ignition OFF.
• Measure the resistance between the CDIM C2500-11, circuit GD133
Yes
GO to U3.
No
U3 CHECK THE MS-CAN CIRCUITS BETWEEN THE DATA LINK CONNECTOR (DLC) AND THE CDIM FOR AN OPEN
• Ignition OFF.
• Measure the resistance between the CDIM C2500-5, circuit VDB06
harness side.
Yes
GO to U4.
• Measure the resistance between the CDIM C2500-12, circuit VDB07 No
(VT/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), REPAIR the circuit in question. CLEAR the DTCs.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

COMMUNICATE WITH THE SCAN TOOL (Continued)
U3 CHECK THE MS-CAN CIRCUITS BETWEEN THE DATA LINK CONNECTOR (DLC) AND THE CDIM FOR AN OPEN
(Continued)

U4 CHECK FOR CORRECT CDIM OPERATION
cardiagn.com
• Disconnect the CDIM connector. Yes
• Check for: INSTALL a new CDIM. REFER to Section 211-05.
— damaged pins scan tool. TEST the system for normal operation.
— pushed-out pins
No
• Connect the CDIM connector and make sure it seats correctly.
Pinpoint Test V: No Power To The Scan Tool

Normal Operation
The scan tool is connected to the data link connector (DLC) to communicate with the high speed controller area network (HS-CAN), medium speed
controller area network (MS-CAN), and International Standards Organization (ISO) 9141 communications network. Voltage for the scan tool is provided by
circuit SBP20 (GN/RD). Ground is provided by circuits GD115 (BK/GY) and GD113 (BK/YE).
• Fuse
• DLC
PINPOINT TEST V: NO POWER TO THE SCAN TOOL

V1 CHECK DLC PINS FOR DAMAGE
NOTE:
Yes
GO to V2.
No
• Disconnect the scan tool cable from the DLC. REPAIR the DLC as necessary. CLEAR the DTCs.
• Inspect the DLC pins 4, 5 and 16 for damage. REPEAT the network test with the scan tool.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

PINPOINT TEST V: NO POWER TO THE SCAN TOOL (Continued)

V1 CHECK DLC PINS FOR DAMAGE (Continued)
• Are the DLC pins 4, 5 and 16 OK?

V2 CHECK THE VOLTAGE TO THE SCAN TOOL CIRCUIT SBP20 (GN/RD)
cardiagn.com
• Measure the voltage between the DLC C251-16, circuit SBP20 (GN/
Yes
GO to V3.
No
OK. If OK, REPAIR the circuit. REPEAT the network
• Is the voltage greater than 10 volts? test with the scan tool.
V3 CHECK THE DLC GROUND CIRCUITS FOR AN OPEN
• Measure the resistance between the DLC C251-4, circuit GD115 (BK/
GY), harness side and ground; and between the DLC C251-5, circuit
GD113 (BK/YE), harness side and ground.
Yes
REPAIR the scan tool. REPEAT the network test with
the scan tool.
No
REPAIR the circuit in question. REPEAT the network
• Are the resistances less than 5 ohms? test with the scan tool.
2008 F-250, 350, 450, 550 Super Duty, 7/2007

Module Communications Network

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Module Communications Network

Uploaded by

Copyright:

Available Formats

418-00-i Module Communications Network 418-00-i

SECTION 418-00 Module Communications Network

DESCRIPTION AND OPERATION

2008 F-250, 350, 450, 550 Super Duty, 7/2007

DESCRIPTION AND OPERATION

The vehicle has 3 module communication networks:

Module Name Network Type Termination Module

2008 F-250, 350, 450, 550 Super Duty, 7/2007

ISO 9141 Network Operation

• Parking aid module (PAM)

• Audio control module (ACM)

2008 F-250, 350, 450, 550 Super Duty, 7/2007

Network termination improves bus message reliability by:

• Stabilizing bus voltage

2008 F-250, 350, 450, 550 Super Duty, 7/2007

SECTION 418-00 Module Communications Network

DIAGNOSIS AND TESTING

2008 F-250, 350, 450, 550 Super Duty, 7/2007

DIAGNOSIS AND TESTING

73III Automotive Meter

The vehicle is equipped with 3 module communication networks:

ISO 9141 Communications Network

ISO 9141 Network Communication Fault Chart

Failure Description Symptom

2008 F-250, 350, 450, 550 Super Duty, 7/2007

ISO 9141 Network Communication Fault Chart (Continued)

Failure Description Symptom

HS-CAN Communication Fault Chart

Failure Description Symptom

2008 F-250, 350, 450, 550 Super Duty, 7/2007

HS-CAN Communication Fault Chart (Continued)

CAN Module Communication Message Chart

Broadcast Message Originating Module Network Type Receiving Module(s)

2008 F-250, 350, 450, 550 Super Duty, 7/2007

CAN Module Communication Message Chart (Continued)

2008 F-250, 350, 450, 550 Super Duty, 7/2007

CAN Module Communication Message Chart (Continued)

2008 F-250, 350, 450, 550 Super Duty, 7/2007

CAN Module Communication Message Chart (Continued)

2008 F-250, 350, 450, 550 Super Duty, 7/2007

CAN Module Communication Message Chart (Continued)

Inspection and Verification

If the scan tool does not communicate with the VCM:

• Check the VCM connection to the vehicle.

2008 F-250, 350, 450, 550 Super Duty, 7/2007

Carry out the network test.

Communication Network DTC Chart

DTC Description Source Action

2008 F-250, 350, 450, 550 Super Duty, 7/2007

Communication Network DTC Chart (Continued)

2008 F-250, 350, 450, 550 Super Duty, 7/2007

Communication Network DTC Chart (Continued)

2008 F-250, 350, 450, 550 Super Duty, 7/2007

Symptom Chart (Continued)

2008 F-250, 350, 450, 550 Super Duty, 7/2007

Symptom Chart (Continued)

This pinpoint test is intended to diagnose the following:

• Wiring, terminals or connectors

2008 F-250, 350, 450, 550 Super Duty, 7/2007

• Is the resistance between 54 and 66 ohms?

• For gasoline engines, measure the resistance between the PCM

2008 F-250, 350, 450, 550 Super Duty, 7/2007

• For diesel engines, measure the resistance between the PCM

This pinpoint test is intended to diagnose the following:
