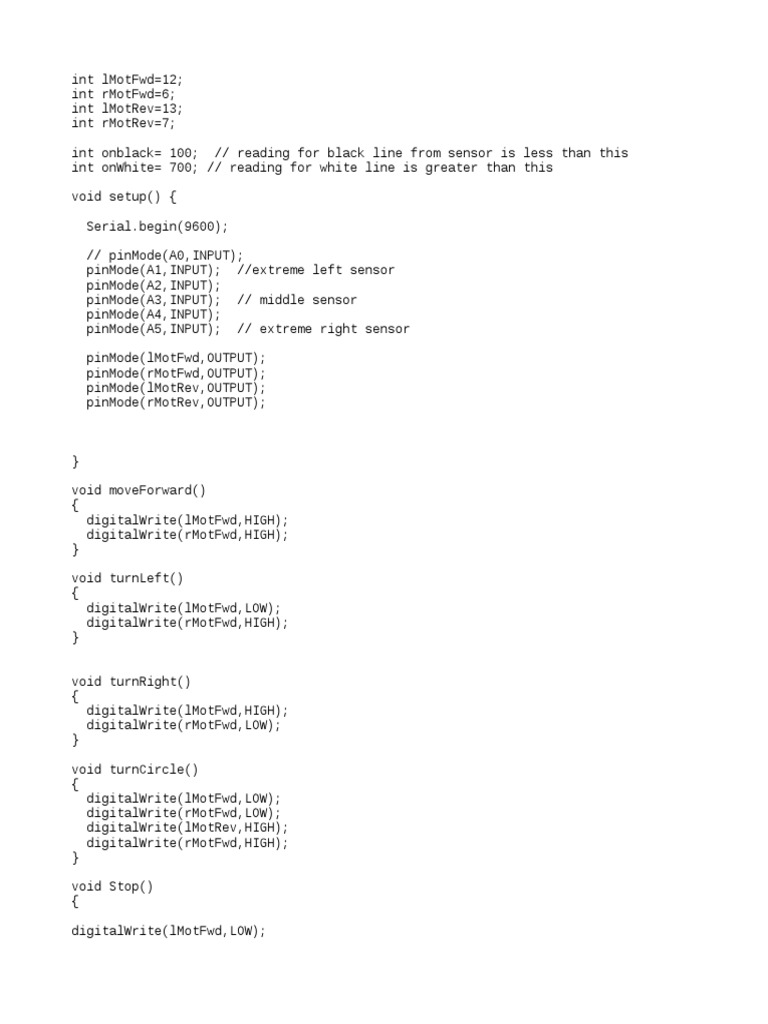

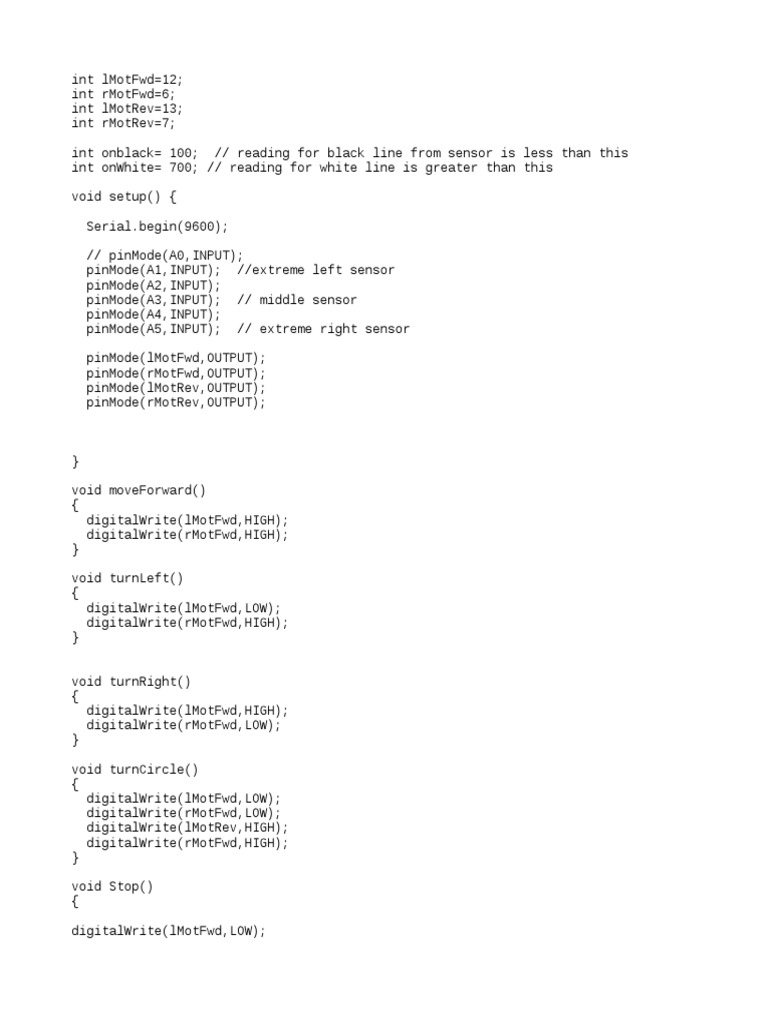

    int lMotFwd=12;

    int rMotFwd=6;
    int lMotRev=13;
    int rMotRev=7;

    int onblack= 100; // reading for black line from sensor is less than this
    int onWhite= 700; // reading for white line is greater than this

    void setup() {

    Serial.begin(9600);

    // pinMode(A0,INPUT);
    pinMode(A1,INPUT); //extreme left sensor
    pinMode(A2,INPUT);
    pinMode(A3,INPUT); // middle sensor
    pinMode(A4,INPUT);
    pinMode(A5,INPUT); // extreme right sensor

    pinMode(lMotFwd,OUTPUT);
    pinMode(rMotFwd,OUTPUT);
    pinMode(lMotRev,OUTPUT);
    pinMode(rMotRev,OUTPUT);

    void moveForward()
    {
    digitalWrite(lMotFwd,HIGH);
    digitalWrite(rMotFwd,HIGH);
    }

    void turnLeft()
    {
    digitalWrite(lMotFwd,LOW);
    digitalWrite(rMotFwd,HIGH);
    }

    void turnRight()
    {
    digitalWrite(lMotFwd,HIGH);
    digitalWrite(rMotFwd,LOW);
    }

    void turnCircle()
    {
    digitalWrite(lMotFwd,LOW);
    digitalWrite(rMotFwd,LOW);
    digitalWrite(lMotRev,HIGH);
    digitalWrite(rMotFwd,HIGH);
    }

    void Stop()
    {

    digitalWrite(lMotFwd,LOW);
    digitalWrite(rMotFwd,LOW);
    digitalWrite(lMotRev,LOW);
    digitalWrite(rMotRev,LOW);

    void loop() {
    // put your main code here, to run repeatedly:

    int sensor1=analogRead(A1);//sensor1
    int sensor2=analogRead(A2);//sensor2
    int sensor3=analogRead(A3);//sensor3
    int sensor4=analogRead(A4);//sensor4
    int sensor5=analogRead(A5);//sensor5

    Serial.println(sensor1);

    if((sensor5<onblack)&&(sensor2<onblack||sensor3<onblack||sensor4<onblack))
    {

    turnLeft();
    }else
    if((sensor1>onWhite && sensor5>onWhite)&&(sensor2<onblack||sensor3<onblack||
    sensor4<onblack))
    {moveForward();
    }else
    if((sensor5<onblack))
    {
    turnLeft();

    }else
    if(sensor1<onblack)
    {
    turnRight();
    }
    else
    if( sensor1>onWhite && sensor5>onWhite && sensor2<onWhite && sensor2<onWhite &&
    sensor4<onWhite)
    {
    moveForward();
    delay(15);

    turnCircle();
    delay(40);
