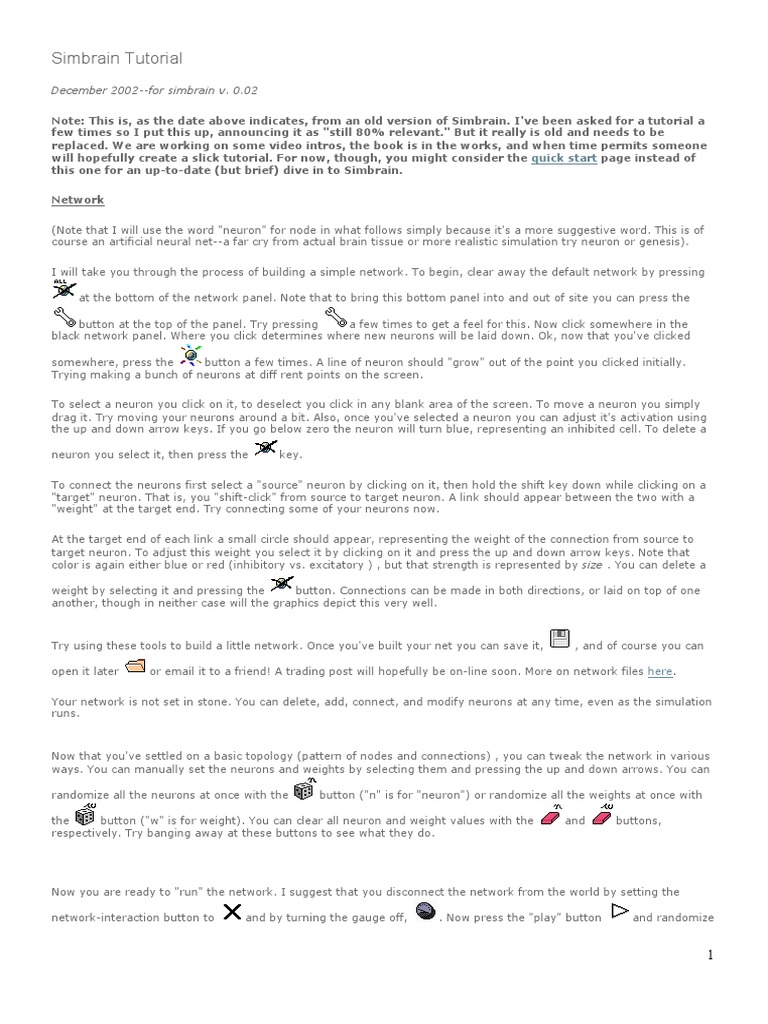

Simbrain Tutorial

December 2002--for simbrain v. 0.02

Note: This is, as the date above indicates, from an old version of Simbrain. I've been asked for a tutorial a
few times so I put this up, announcing it as "still 80% relevant." But it really is old and needs to be
replaced. We are working on some video intros, the book is in the works, and when time permits someone
will hopefully create a slick tutorial. For now, though, you might consider the ​quick start​ page instead of
this one for an up-to-date (but brief) dive in to Simbrain.

Network

(Note that I will use the word "neuron" for node in what follows simply because it's a more suggestive word. This is of
course an artificial neural net--a far cry from actual brain tissue or more realistic simulation try neuron or genesis).

I will take you through the process of building a simple network. To begin, clear away the default network by pressing

at the bottom of the network panel. Note that to bring this bottom panel into and out of site you can press the

button at the top of the panel. Try pressing a few times to get a feel for this. Now click somewhere in the
black network panel. Where you click determines where new neurons will be laid down. Ok, now that you've clicked

somewhere, press the button a few times. A line of neuron should "grow" out of the point you clicked initially.
Trying making a bunch of neurons at diff rent points on the screen.

To select a neuron you click on it, to deselect you click in any blank area of the screen. To move a neuron you simply
drag it. Try moving your neurons around a bit. Also, once you've selected a neuron you can adjust it's activation using
the up and down arrow keys. If you go below zero the neuron will turn blue, representing an inhibited cell. To delete a

neuron you select it, then press the key.

To connect the neurons first select a "source" neuron by clicking on it, then hold the shift key down while clicking on a
"target" neuron. That is, you "shift-click" from source to target neuron. A link should appear between the two with a
"weight" at the target end. Try connecting some of your neurons now.

At the target end of each link a small circle should appear, representing the weight of the connection from source to
target neuron. To adjust this weight you select it by clicking on it and press the up and down arrow keys. Note that
color is again either blue or red (inhibitory vs. excitatory ) , but that strength is represented by ​size ​. You can delete a

weight by selecting it and pressing the button. Connections can be made in both directions, or laid on top of one
another, though in neither case will the graphics depict this very well.

Try using these tools to build a little network. Once you've built your net you can save it, , and of course you can

open it later or email it to a friend! A trading post will hopefully be on-line soon. More on network files ​here​.

Your network is not set in stone. You can delete, add, connect, and modify neurons at any time, even as the simulation
runs.

Now that you've settled on a basic topology (pattern of nodes and connections) , you can tweak the network in various
ways. You can manually set the neurons and weights by selecting them and pressing the up and down arrows. You can

randomize all the neurons at once with the button ("n" is for "neuron") or randomize all the weights at once with

the button ("w" is for weight). You can clear all neuron and weight values with the and buttons,
respectively. Try banging away at these buttons to see what they do.

Now you are ready to "run" the network. I suggest that you disconnect the network from the world by setting the

network-interaction button to and by turning the gauge off, . Now press the "play" button and randomize

1
the neurons every few seconds with . Note that in each case the network will quickly "settle" into a stable state
and that weights between co-active neurons will strengthen. (This is rather impoverished sense of "learning," resulting
from setting all the neurons to random values. More robust, world-based "learning" discussed next).

Note that this is a threshold based network with Helen weights (co-active neurons strengthen the weight between
them). A more general network should be available soon.

Observe the network learning as you press the button! You can also add or delete connections while the network is
running, to watch how connections channel activation and affect learning. Every once in a while you can reset the

weights with the button and watch learning begin anew. Press to stop the simulation. To proceed more slowly

and carefully, you can hand set neurons and step the simulation one iteration at a time.

If you are feeling fancy, try messing with the network preferences, , and doing the experiments above again. If
you turn off decay, for example, the net will tend to fill with activation and stay activated.

World

So far you have built and run a network. Now to connect it to the world. But first, let's get a feel for the world by itself,

leaving the network interaction button in the off position. Try clicking anywhere in the world component, and

observe that the creature will walk towards your clicks. You can also use the buttons on the numeric keypad to

move the creature. Also note that as the creature moves nearer and further from objects, e.g.the gouda cheese ,
that the "input" at the bottom of the panel changes, intensifying as it moves closer and diminishing as it moves away.
Try cruising around for a bit and getting a feel for how the input changes. These are the mock-"sensations" that will
later be sent to your network.

The way these mock sensations are calculated is as follows. Each object has a vector of values, a "signature,"

associated with it. To see or modify this signature, shift-click on an object, say . This vector is diminished in
proportion to the creature's distance from the object. The sum of distance-diminished signatures is the "input" to the
network at any moment.

The preferences dialogue can be used to used to tweak the world algorithms. "Movement increment" determines

how quickly the moves around. "Near" and "Far" distance are limits within which the diminishment of signatures

is computed. If "far" is 100 and is 100 units away from the closest object, then all 0's will show up in the input

line. If "near" is 50 and is less then 50 units from the closest object, that that object's full, undiminished
signature will appear in the input line.

Although you can modify the "smell signature" of objects by shift-clicking them and then saving the world , you
can't currently directly alter the world. To do that, you can however open a .wld file in /simulations/worlds and add or
delete lines of text. These lines are fairly straightforward, containing the name of an object, its location on screen, and

its smell signature with delimiters. Try hand-tweaking a world if you like! Then save it and open it with . Again,
feel free to email worlds! They're just text files.

OK, now we're ready to interact network and world. First, however, we have to tell the network which neurons receive

inputs and which express output, by revisiting the build toolbar at the bottom of the screen. To designate a neuron

2
as an input neuron, which receives input from the external world, select it and press the button. You will see an
input arrow pop up under the neuron you selected. Click again and the input symbol disappear. (NOTE that you can
designate as many neurons as you like "input," but that only eight of them will currently receive any input from the
world.)

Let's stick with input for now, saving output until later. Now that you have a few input neurons, turn on those inputs by

allowing the world to talk to the network. Click the network-interaction button a few times until the button
appears. This arrow "points" from world to network, indicating that information will flow in that direction. Now "push"
the creature around by clicking in the world component and observe how the input neurons are "set" to the same levels
as you see at the bottom of the world. These input "sensations" are then propagated through the network (each time

you push the creature the network button is pressed for you ).

Now let's get the network to talk to the world. First we need output neurons so that the network can manifest
"behavior" in the world. The process of creating output neurons is similar to that for input neurons. First, select a

neuron, then press the button. Click a few times to observe the output arrow appearing and disappearing on the
neuron. Note that the same neuron can both take and give off output.

Create a few output neurons at a place in your network where you know there will be activity. If necessary, add extra
links to your output neuron and manually strengthen them by selecting and pressing the up arrow. As with inputs, any
number of outputs can be added but only eight will actually do anything.

First set the network interaction button to . Now add some activation to the network (e.g. by pressing ) then

press the button a few times, iterating the network by hand. The most active output neuron (1-8) then sends a
signal to the network. Currently this "signal" is simply an index 1-8, which will move the creature in one of 8 directions

(north, northwest, etc.). You can see this output signal at the top left of the world component. Try hitting to set it

all in motion, and again feel free to randomize and tweak things, to see what impact this has on our friend 's
behavior.

Now try setting network-world interaction to so that it goes in both directions. Press play and in effect you
have a full network-world simulation running. Of course your poor little creature probably has little to do at this point,

except perhaps running off of the screen or banging repeatedly into . As of yet I've just been building this tool.
Soon, I hope, YOU will create a simulation that does interesting stuff. When you do email it my way or post on
whatever trading post will be created. You can save your simulation with SAVE in the FILE menu. Then you can send
the .wld and .net files to me or your friends.

Gauge

Now you know the basics of the simulation, and already you should have been able to see a lot--in particular, patterns
of activity coursing through the network's nodes and the way those patterns of activity strengthen the weights that
connect them. But there is more to see than just that, much more! To explain what I mean a short theoretical
digression is called for.

One philosophical goal of neural network theory is to explain how brains represent the world. The "connectionist"
answer to this question is that brains represent the world by ​patterns of activity​ across their neurons--what in Simbrain
are patterns of color distributed across a bunch of nodes in the network component. One advantage of this story is that
the representations can be pictured. After all, patterns of activity are vectors--ordered lists of numbers--which can be
thought of as points in high-dimensional spaces. So the states the network goes through can be thought of as
sequences of points in a high-dimensional space.

The value of this is that we will be able to ​see​ how the network represents the world by tracking these points in its high
dimensional "activation space" (the set of all possible patterns of activity that could occur in the network). The plan is
to be able to associate each activation pattern with a point in a high dimensional space,and to ​see​ the entire history of
a network as a sequence of points in that space.

3
But there is a problem: these points are in ​a high-​ dimensional space, beyond 3 dimensions, which we can't see. This is
where the gauge comes in. It is a "Sammon-Mapper", which projects from the many dimensions of the network into the
2 dimensions of the gauge panel.

Before explaining how this works, let's see it in action.

So you've got the network and world that you built above. Now let's gauge the network as it walks around in the world.

First, stop the network by pressing and clear all the neurons with . Also, I recommend that you set the

network interaction button to so that you can push around and thereby activate the network, but not

vice-versa. Clear any existing gauge data with . Finally, turn the gauge on by setting the on/off button to .

Now you're ready. Think of the creature as having just been born. It's never been in any brain (or mental) state. Now
take a step, click somewhere in the world panel. You should see one green dot show up in the upper left corner of the
gauge panel (unfortunately) hidden behind some text. That green dot represents the one single state the network has
thus far been in, the one "thought" it has had.

OK, what about all the text? (I know you're dying to run around like crazy--go ahead if you want, you'll see "dancing
dots" in no time!--but I'll assume you restrained yourself...). "Dimensions" tells you the dimensionality of the high-d
space, which is given by the number of neurons in your net. If you built a network with 10 neurons, dimension should
say "10". This is a projection of 10-dimensional activation space. "Datapoints" tells you how many unique states the

network has been in thus far. In the case of your new-born it should say "1". I'll explain "error" and "iteration" in
a moment.

Now start walking the creature around. The "Datapoint" number should be steadily increasing as it goes through more
states, and soon you should see the odd and fascinating "dance of the green dots" going full blast. More on that soon.
Note that it is not with ​every s
​ tep that you get a new state. Sometimes the creature moves around but the network
doesn't change. In those cases no new datapoint is added.

The dots are indices for brain-states /thoughts. That's the big payoff for me, the philosopher. So the number of green
dots on screen--the "datapoint" number--tells you how many states that brain has been in, and also how many
"thoughts" or "conscious states" the creature has had. (Of course the computer program isn't having thoughts--at least
not according to me--but brains do give rise to thoughts, and that's what we're simulating).

Note that the graphics algorithm isn't currently perfected, so that dots can "hide" behind one another. I.e. "datapoint"
may be greater than the number of dots you actually see.

Now that there are a few dots on screen, you can think of them this way: each green dot is a thought the creature has
had some time in the past. The red dot is the thought /brain-state it is having/in right now. Eventually, the dancing
should stop, and you should have a set "horizon" of past thoughts the creature has had--a pattern of green
dots--where the currently active thought is shown in red.

Now, what does the "shape" of this pattern of dots mean? What are really important are the inter-point distances.
Points in any (metrical) space of any dimensionality maintain distances to one another (you can calculate the distance
between any two such points). This counts for brain-states as understood by connectionists, and the exciting
philosophical idea is that it holds for thoughts as well. So, if the brain is in two similar states, say as it smells two
similar pieces of cheese, it occupies two points in brain-space that are close to one another, and also has two thoughts
that are "similar" to one another.

So dots that are close to each other represent brain-states (and conscious states) that are similar to one another.

It would be nice if, as the creature walked around different objects, the gauge showed dots being "redded" in different

regions of the space. The idea would be that as it was around it would linger in one region of state space and

then as it went over to it would be in a completely different region of the space. But, again, I've just finished the
tool. Real results are yet to be obtained!

Here is something to play with. If while the gauge is running, you reset the network's weights with , the network
will suddenly be in ​radically​ different states, and the dots will really start bouncing!

4
How does the gauge figure out how to project the high dimensional data to 2 dimensions? Well, here is where I must
explain the dancing dots, and where the theory gets thick. The basic idea is that it starts with a random guess,
computes an error, and then iterates a gradient descent algorithm to minimize that error. It's kind of like fitting a line
to a scatter-plot of data in 2 dimensions. You modify the slope and offset of the line until it does the best job it can of
fitting the scatter plot. In this case, however, there are not two parameters (slope and offset) to modify, but 2 times #
of datapoint parameters (​x​ and ​y​ dimensions for each point on screen) to modify. For example, if there are 10 dots on
the screen (10 datapoints), then 20 parameters--the ​x​ and ​y​ coordinates of each of these 10 dots--must be updated in
an effort to minimize error. Hence the dancing dots.

When the dots are dancing, the Sammon mapper is trying to minimize error between the pattern in the high
dimensional space, and the pattern in the low-dimensional space. The error is right there on the screen for you to see,
as it gets lower, and so is a representation of the number of iterations the algorithm has gone through in its effort to

minimize error. You can set the minimum error and maximum iterations of the algorithm in the menu. You can

manually step the algorithm with the button. and have the obvious meanings.

You can also save and open your patterns, and it largely works, but there are some bugs right now.

If you want to start over, and clear out all the datapoints, press the button.

Note that whenever the network is in a new state, a new dot appears and the dance begins anew. This is another of
way of saying that the Sammon algorithm is non-scalable or non-projective--it does not accommodate brand new data.
To make up for this, a triangulation algorithm can be used to figure out what the nearest neighbors of a new state are

and then to put the new state (dot) between those nearest neighbors. To turn on triangulation press . To turn it

off press it again, . Note that, after turning on triangulation, that as you move the creature around it interposes
red dots between existing points, building on the template you've already built up.
