a. 4
b. 2.14
c. 1.07
d. 0.53

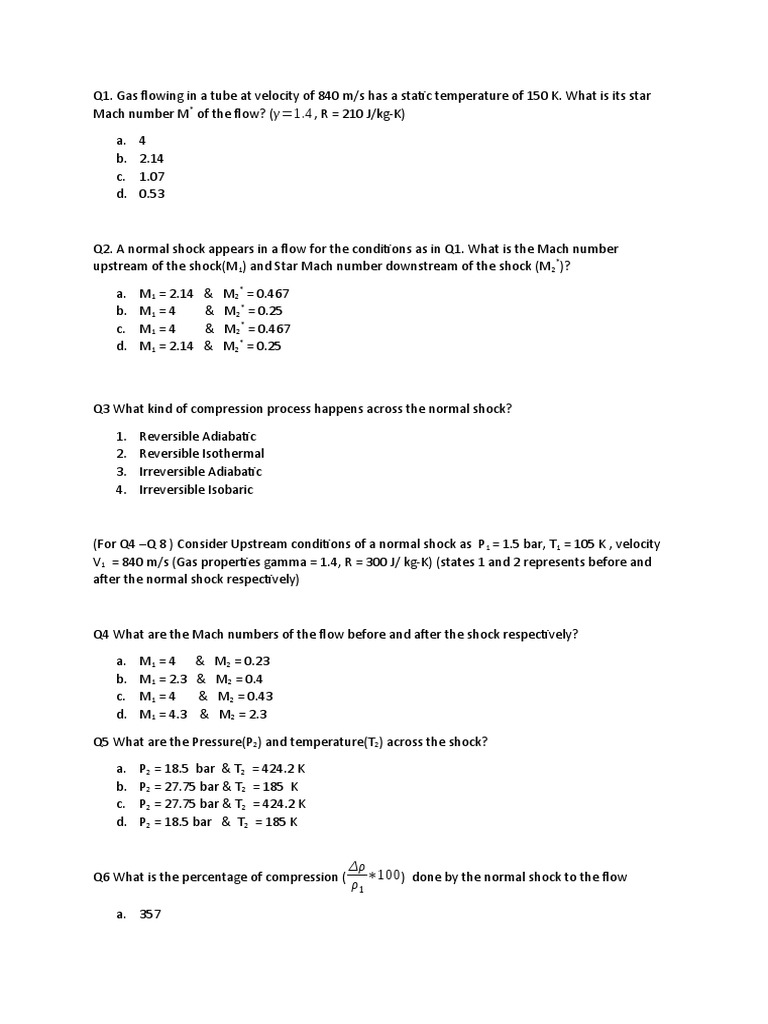

Q2. A normal shock appears in a flow for the conditions as in Q1. What is the Mach number
upstream of the shock(M1) and Star Mach number downstream of the shock (M 2*)?
1. Reversible Adiabatic
2. Reversible Isothermal
3. Irreversible Adiabatic
4. Irreversible Isobaric
(For Q4 –Q 8 ) Consider Upstream conditions of a normal shock as P 1 = 1.5 bar, T1 = 105 K , velocity
V1 = 840 m/s (Gas properties gamma = 1.4, R = 300 J/ kg-K) (states 1 and 2 represents before and
after the normal shock respectively)
Q4 What are the Mach numbers of the flow before and after the shock respectively?
a. M1 = 4 & M2 = 0.23
b. M1 = 2.3 & M2 = 0.4
c. M1 = 4 & M2 = 0.43
d. M1 = 4.3 & M2 = 2.3
Δρ
Q6 What is the percentage of compression ( ∗100 ) done by the normal shock to the flow
ρ1
a. 357
b. 157
c. 457
d. 57
Δ P0
Q7 what is the Percentage loss of total pressure ( P01 )
∗100 across the shock?
a. 86.13
b. 13.87
c. 27.74
d. 43.07
Q9 Consider the following conditions (states 1 and 2 represents before and after the normal shock
respectively
1. M2 = 0.45
ρ2
2. →6
ρ1
P2
3. →0
P1
4. M2 = 0.377
Po2
5. →0
Po1
6. Δ s → ∞
T2
7. →∞
T1
Which of the above conditions belong to strong shock limit
a. 1,2,3,7
b. 2,4,5,6,7
c. 1,2,3,6,7
d. 3,4,5,6,7
Q10 Which of the options are true for the weak shock limit
a. Δs → ∞; M 2 → 1
b. Δs →1 ; M 2 → 0
c. Δs → 0; M 2 →1
d. Δs → 0; M 2 →0
