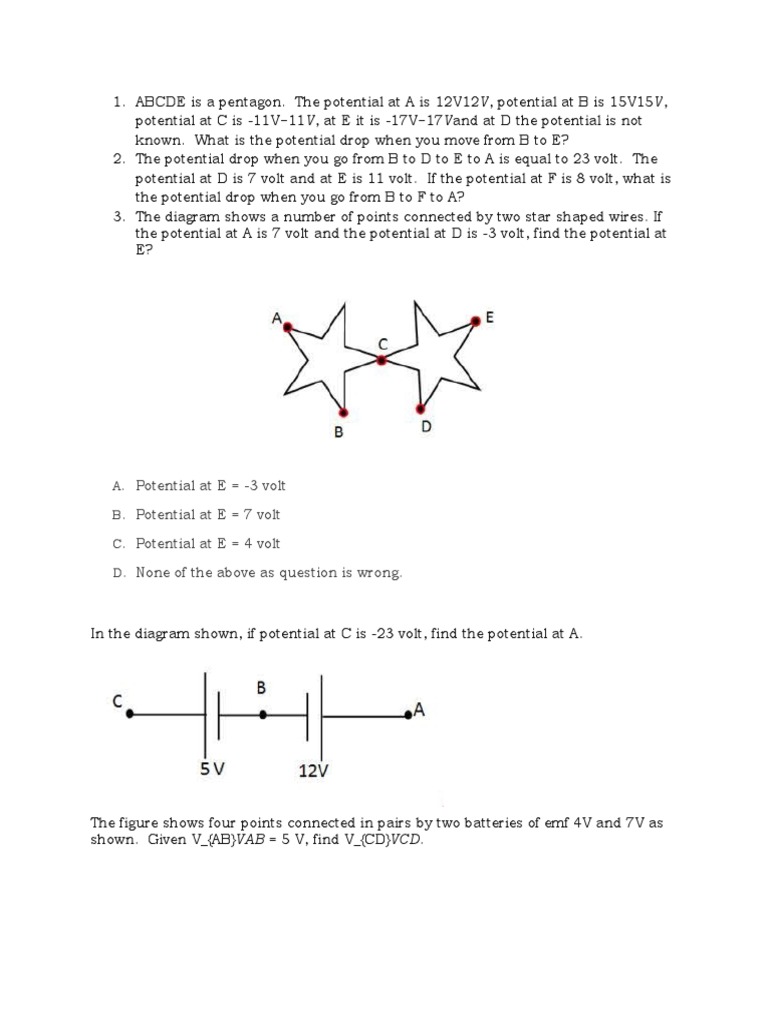

1. ABCDE is a pentagon.

  The potential at A is 12V12V, potential at B is 15V15V,

potential at C is -11V−11V, at E it is -17V−17Vand at D the potential is not
known.  What is the potential drop when you move from B to E?
2. The potential drop when you go from B to D to E to A is equal to 23 volt.  The
potential at D is 7 volt and at E is 11 volt.  If the potential at F is 8 volt, what is
the potential drop when you go from B to F to A?
3. The diagram shows a number of points connected by two star shaped wires. If
the potential at A is 7 volt and the potential at D is -3 volt, find the potential at
E?


A. Potential at E = -3 volt

B. Potential at E = 7 volt

C. Potential at E = 4 volt

D. None of the above as question is wrong.

In the diagram shown, if potential at C is -23 volt, find the potential at A.

The figure shows four points connected in pairs by two batteries of emf 4V and 7V as
shown.  Given V_{AB}VAB = 5 V, find V_{CD}VCD.
The figure shows three points A, C and D connected by two batteries of emf 5V and
8V.  Three other points B, E and F (not shown in the figure) have potentials 4 V, 11 V
and 17 V respectively.   If the potential at D is 15V, find V_{CE}VCE.

n the circuit given, find the total potential drop along the two resistors: V_{CD} \ + \
V_{DA}VCD + VDA

In this circuit shown, find the potential drop V_{AD}VAD from A to D.

If the potential at A is 12 Volts, find the potential at E.

Given the potential at EE is 19.23\,Volts19.23Volts, find V_{AF}VAF.

The figure shows some points connected by batteries and some points connected by
wires.  If FF and BB are now connected by a wire, what would be the value
of V_{DE}VDE?
The figure shows the two terminals X and Y of a black box connected to wires and
batteries.  Though we know nothing about what is inside the black box, we know that
all the batteries are functioning normally.  Find the potential drop across the black
box from X to Y.

There are two resistors of unknown values connected to batteries and wires as shown.
Find the voltage V_{XY}VXY across the vertical resistor.

ABCDE is a pentagon.  The potential at A is 12V12V, potential at B is 15V15V,

potential at C is -11V−11V, at E it is -17V−17Vand at D the potential is not known.
What is the potential drop when you move from B to E?

Inside a wire, it is observed that 600 trillion electrons cross over from right side to the
left side of a cross-section every two seconds. If the charge on each electron is -1.6
\times 10^{-19} \ C−1.6×10−19 C, find the current through the cross-section.  (Note: 1
Trillion = 10^{12}1012.)

A. Current through the cross-section is 9.6 \times 10^{-5} \ A9.6×10−5 A from

right side to left side.

B. Current through the cross-section is -9.6 \times 10^{-5} \ A−9.6×10−5 A from

right side to left side.

C. Current through the cross-section is -4.8 \times 10^{-5} \ A−4.8×10−5 A from

left side to right side.

D. Current through the cross-section is 4.8 \times 10^{-5} \ A4.8×10−5 A from left

side to right side.

A vacuum tube is a cylindrical glass tube from which all air is removed.  A stream of
positively charged alpha particles moves from the left end to the right end of this
vacuum tube. The charge on each alpha particle is +3.2 \times 10^{-19} \
C+3.2×10−19 C.  If 4 million trillion alpha particles travelling with a speed of 10000
m/s cross the central cross-section the vacuum tube every 5 seconds and the cross-
section area is 0.1 \ cm^20.1 cm2, find the total current passing through the cross-
section from left to right.

All our electronic gadgets are made on silicon wafers.  Silicon is a semiconductor and
inside a semiconductor slab, both negatively charged electrons and positively charged
‘holes’ move. Across a cross-section of area 0.3 \ cm^20.3 cm2, it is found that 45
billion electrons move from left to right every 3 seconds and 24 billion ‘holes’ move
from right to left every second.  The charge on an electron is -1.6 \times 10^{-19} \
C−1.6×10−19 C and a ‘hole’ has a charge of +1.6 \times 10^{-19} \ C+1.6×10−19 C.
Find the current through that cross-section of the semiconductor slab.


A. Current is 11.04 \times 10^{-9} \ A11.04×10−9 A from Right to Left.

B. Current is 6.24 \times 10^{-9} \ A6.24×10−9 A from Right to Left.

C. Current is 3.36 \times 10^{-9} \ A3.36×10−9 A from Left to Right.

D. Current is 1.12 \times 10^{-9} \ A1.12×10−9 A from Left to Right.

A copper wire of radius 2 mm and length 25 cm carries a current of 6.4 mA. Let the
NET number of electrons that move across a cross-section of the wire in one second be
N. (Assume that the wire is uniform and also that all the current flow is only due to
flow of electrons). What is the value of N/10^15.

A current of 3.2 mA enters from the positive terminal into a beaker containing salt
solution (NaCl) and the current flows out of the salt solution into the negative
terminal.  Assume that both the positive Na^+Na+ ions and the negative Cl^-Cl− ions
contribute equally to the current in the solution.  Find the number of sodium (Na)
atoms that are deposited on the negative terminal in one second and express it
as 10^x10x.  Enter the value of xx in the space given

In the partial circuit shown, find the current marked i.

In the circuit shown, two of the currents are given with locations, values and
directions.  Using these find the current marked i.


In the circuit shown, find the current that is marked i.

In the partial circuit shown, find the current marked i.

In the partial circuit shown, find the current marked i.

n the circuit shown, some of the currents are marked in terms of i. The current
through the battery is marked x. Find the value of x/i.
In the partial circuit shown, find the current marked i.

In the circuit shown, find the current that is marked i.

The figure shows a partial circuit (dotted ends represent connection to further circuit
elements). Find the current marked ii.
In the partial circuit shown, some of the currents are marked. Using these find the
current marked i.

The circuit shows a pentagon with several wires connected together.  The currents in
some of the wires are given.  Using this find the current marked i.
In the circuit shown below, find the current marked i.

In the circuit shown, find the current marked ii.

In the circuit shown, some of the currents are marked in terms of i. The current
entering at the bottom is marked xx. Find the value of x/i.
f{{V}_{AB}}=12VVAB=12V, find the value of the current ii in the direction marked on the
diagram.

In the diagram shown, it is known that{{V}_{A}}=4VVA=4V, {{V}_{B}}=16VVB=16V and

the current in the resistor is 3A.  Find R.

Given{{V}_{AB}}=12VVAB=12V, find the current ii.

In the circuit shown, the emf values of the batteries and the resistance values are
marked.  The current going out at D is also marked.  Find the potential
drop{{V}_{AD}}VAD.
In the circuit shown, the current entering point AA is 2A.  Find the potential drop
from AA to BB, {{V}_{AB}}VAB.

In the circuit shown, find the potential drop{{V}_{BC}}VBC.

In the circuit shown, the current entering point AA is 3A.  Find the magnitude of the
current in the 4\Omega4Ω resistor.
In the circuit shown, two of the currents are marked with directions. Find the
potential drop V_{AB}.VAB.

In the given circuit, find the potential drop from A to C, V_{AC}VAC.

In the circuit shown the three currents entering A, E and F are marked.  Find the
potential drop V_{AE}.VAE.

In the circuit shown, given the potential drop V_{BC} \ = \ 6VVBC = 6V.  Find the
potential dropV_{AD}VAD.
In the figure find the current. Given that the potential drop between the points A and
B is 120V.

As the diagram shows, the circuit has a 12\Omega12Ω resistor attached to

a 3\Omega3Ω resistor.  A current of 2A flows through the 3\Omega3Ω resistor.  Find
the total current from point A that enters the dotted box.
Find the current through the resistor in the circuit below.

In the given circuit, find the potential drop from A to C, {{V}_{AC}}VAC.

In the circuit shown, two currents are marked.  It is also known that the potential
drop{{V}_{AD}}=33VVAD=33V. Find the resistance R.

In the part circuit shown, current entering from C and B are marked.  Find the
potential drop from A to B, {{V}_{AB}}VAB.
In the circuit shown, the three currents entering A, C and F are marked.  Given the
potential drop{{V}_{CE}}=57VoltsVCE=57Volts, find R.

In the circuit shown, it is given that {{V}_{BD}}=15VoltsVBD

=15Volts and {{V}_{AD}}=29VoltsVAD=29Volts. Find  R.
In the circuit shown, it is known that {{V}_{BC}}=10VVBC=10V and {{V}_{AC}}=14VVAC
=14V. Find the resistance R.

Find the magnitude of current through the 5\Omega5Ω resistor in the given circuit.

Find the current ii through the 10\OmegaΩ  resistor in the circuit.

Find the magnitude of the current through the 4 \OmegaΩ resistor in the given
circuit.

Find current ii through the wire marked in the given circuit.

What is the current ii through the 3 \OmegaΩ resistance in the direction shown?

What is the magnitude of the current through the 6\Omega6Ω resistance in the circuit

shown?
Find the magnitude of the current through the 6\Omega6Ω resistor in the given
circuit.

What is the value of the current ii through the 2 \OmegaΩ resistance?

Find the current through the4\Omega4Ω resistor in the circuit shown.

Find the magnitude of the current through the 4\Omega4Ω resistor in the given
circuit.
