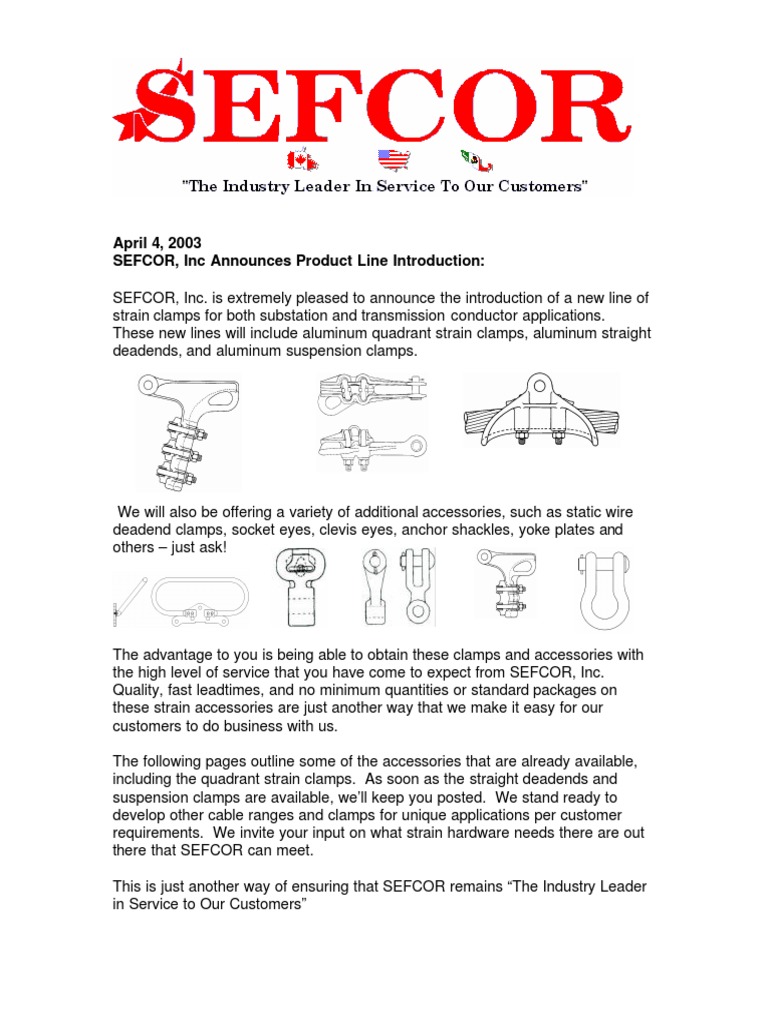

April 4, 2003
SEFCOR, Inc Announces Product Line Introduction:
SEFCOR, Inc. is extremely pleased to announce the introduction of a new line of
strain clamps for both substation and transmission conductor applications.
These new lines will include aluminum quadrant strain clamps, aluminum straight
deadends, and aluminum suspension clamps.
We will also be offering a variety of additional accessories, such as static wire
deadend clamps, socket eyes, clevis eyes, anchor shackles, yoke plates and
others – just ask!
The advantage to you is being able to obtain these clamps and accessories with
the high level of service that you have come to expect from SEFCOR, Inc.
Quality, fast leadtimes, and no minimum quantities or standard packages on
these strain accessories are just another way that we make it easy for our
customers to do business with us.
The following pages outline some of the accessories that are already available,
including the quadrant strain clamps. As soon as the straight deadends and
suspension clamps are available, we’ll keep you posted. We stand ready to
develop other cable ranges and clamps for unique applications per customer
requirements. We invite your input on what strain hardware needs there are out
there that SEFCOR can meet.
This is just another way of ensuring that SEFCOR remains “The Industry Leader
in Service to Our Customers”
CATALOG DIMENSIONS - inches
NUMBER L W H C K PD
AQD-75 8-1/2 7/8 8-7/16 5-7/8 1-1/4 5/8
AQD-120 12-5/8 1-3/8 12-7/8 9-3/8 1-1/2 3/4
AQD-155 14-1/4 1-11/16 16-3/16 12-3/8 1-1/2 3/4
AQDS-155 14-1/4 1-11/16 13-15/16 9 1-1/2 3/4
ULTIMATE
APPROX.
CATALOG FITTING CLAMPING RANGE BODY U-BOLTS
WEIGHT
NUMBER TYPE STRENGTH
LBS.
ACSR AAC INCHES LBS. NO. SIZE (in.)
AQD-75 None #2 (7/1) #1 20,000# 4.7
AQD-75-SF Socket To To .30 - .75 20,000# 4 1/2" 5.9
AQD-75-CF Clevis 397.5 (26/7) 397.5 20,000# 6.3
AQD-120 None #4/0 (6/1) 250 30,000# 13.2
AQD-120-SF Socket To To .56 - 1.20 30,000# 5 5/8" 15.0
AQD-120-CF Clevis 954 (54/7) 1033.5 25,000# 15.0
AQD-155 None 954 (24/7) 1100 35,000# 16.0
AQD-155-SF Socket To To 1.18 - 1.55 30,000# 5 5/8" 17.3
AQD-155-CF Clevis 1590 (54/19) 1750 25,000# 17.9
AQDS-155 None 954 (24/7) 1100 35,000# 13.6
AQDS-155-SF Socket To To 1.18 - 1.55 30,000# 4 5/8" 14.9
AQDS-155-CF Clevis 1590 (54/19) 1750 25,000# 15.5
ULTIMATE APPROX
CATALOG DIMENSIONS - INCHES
STRENGTH WEIGHT
NUMBER
LBS. LBS.
W R L DIA
AH-1213 20,000# 5/8 7/8 2-1/8 11/16 1.22
AH-1209 30,000# 1 7/8 2-3/8 13/16 1.85
AH-1206 30,000# 1-3/8 13/16 2-3/16 13/16 1.28
ULTIMATE APPROX.
CATALOG DIMENSIONS - INCHES
STRENGTH WEIGHT
NUMBER
LBS. LBS.
W R B D L DIA
AH-1212 20,000# 5/8 5/8 1-1/8 13/16 2-1/2 11/16 1.6
AH-1208 25,000# 1-1/8 15/16 1-1/8 7/8 3-1/8 13/16 1.9
AH-1205 25,000# 1-3/8 13/16 1-1/8 13/16 3-1/2 13/16 1.85
ULTIMATE
CATALOG FIGURE DIMENSIONS - INCHES
STRENGTH
NUMBER NUMBER
LBS.
A B C1 C2 Thickness
BP-2402 1 30,000# 8 3-1/2 15/16 15/16 3/4
BP-2374 1 30,000# 8-11/16 3 3/4 3/4 3/4
BP-2280 1 30,000# 9 6 1-1/4 1-1/4 3/4
BP-2352 1 30,000# 10 3 3/4 3/4 3/4
BP-2547 1 30,000# 12 3-5/8 15/16 13/16 3/4
BP-2565 1 30,000# 12 4-1/2 1-1/4 1-1/4 5/8
BP-2257 1 30,000# 13 3-5/8 15/16 11/16 5/8
BP-2250 1 40,000# 13 3-11/16 15/16 11/16 3/4
BP-2349 1 30,000# 13 3-3/4 15/16 11/16 3/4
BP-2260 1 30,000# 16 2-5/8 1-1/4 1-1/4 3/4
BP-2555 1 30,000# 16 4-1/4 11/16 11/16 5/8
BP-2249 1 40,000# 18 3-5/8 1-1/4 1-1/4 3/4
BP-2519 1 30,000# 18 3-5/8 15/16 11/16 3/4
BP-2276 1 50,000# 18 5 1-1/8 1-1/4 3/4
BP-2327 1 30,000# 18 5 1-1/8 1-3/4 3/4
BP-2491 1 30,000# 18 5 1-1/4 1-1/4 3/4
BP-2548 1 30,000# 18 5 1-1/4 1-1/4 3/4
BP-2569 1 30,000# 18 6-1/2 1-1/8 1-1/4 3/4
BP-2356 1 30,000# 18 9 15/16 15/16 5/8
BP-2314 1 30,000# 24 5-7/8 1-1/8 1-1/4 3/4
BP-2492 2 30,000# 13 5-1/2 3/4 3/4 3/4
BP-2553 2 30,000# 18 5-1/4 15/16 13/16 3/4
BP-2520 2 30,000# 18 5-1/2 3/4 3/4 3/4
BP-2531 2 30,000# 18 6 15/16 15/16 3/4
