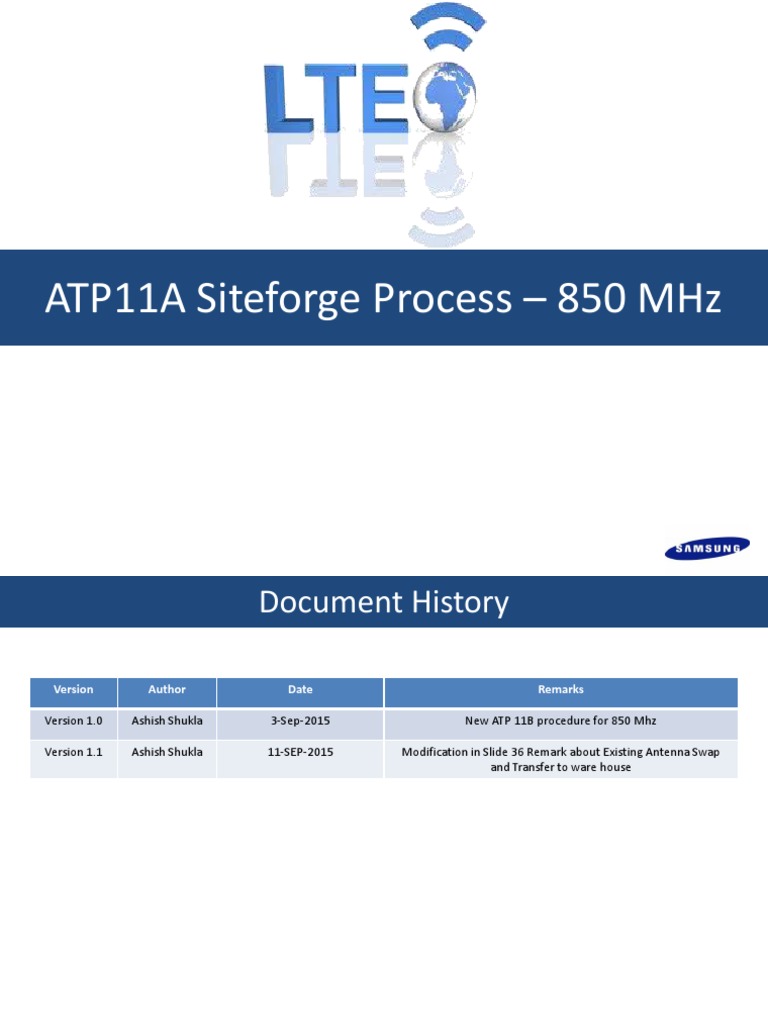

ATP11A Siteforge Process – 850 MHz

Document History

Version Author Date Remarks

Version 1.0 Ashish Shukla 3-Sep-2015 New ATP 11B procedure for 850 Mhz

Version 1.1 Ashish Shukla 11-SEP-2015 Modification in Slide 36 Remark about Existing Antenna Swap
and Transfer to ware house
 Agenda
Work Order Assignment Management Flow chart
Example on WO Assignment Management Flow
Procedure to use SITEFORGE using tab in field
WO Assignment Management Flow(ATP-11A)
Install and usage of various Login
Procedure to use SITEFORGE using tab in field
Introduction to Work Order Assignment Management
Work Order Assignment Management is also known as WAS.
WAS is going to help users in automating the Work Order(WO) flow in a
systematic manner using a portal called SITEFORGE.
Using this portal each level of Management employees will receive and
execute their WO or Task assigned to them.
Helps to trace the network status through online mode.
Provides Visual steps to guide users on progress and upcoming steps.
Improves productivity & complete visibility.
Helps users to monitor Parameter Compliance Index(Planned Vs. Actual).
Helps users to Search/Filter Sites & WO based on various parameters.
Network Lifecycle Management Flow
(Work Allocation System)
 WO assignment management flow
Responsibility: On Hold with
justification Response:Sam
GIS/SIITE sung QE
FORGE; WO is created & issued to respective Notification:
Samsung QE
Notification: SAMSUNG CH by RJIL Samsung-Reg
“Accept” QM,AM,CM;
Samsung CH “On hold” with SOLPAR-PM,FE
issue list to eNB
Eng Responsibility:
Responsibility:Sam CH assigns the WO to
Samsung AM
sung CH; respective Samsung AM Notification:
Notification:Samsun Accept Regional
g AM, RJIL CTO QM,SAMS
1. AM assign Samsung eNB SAMSUNG AM will Accept CM,Circle RJIL
Responsibility: engineer & QE for that Site CTO
Samsung Am 2. Assign various tasks of that WO Responsibility:
Notification: to single or multiple SOLPAR Circle RJIL CTO
Samsung CM Notfication:
RJIL Circle
Reject Samsung
Responsibility: CTO
CH,AM;System(
SOLPAR PM SOLPAR PM assigns task to Accept/ GIS,REIMS)
Notification :Samsung SOLPAR field engineer Reject
AM & Samsung eNB Responsibility:
Accept
er. SAMSUNG AM
Notification:
Task is auto-closed in SITEFORGE SOLPAR PM,
Responsibility: SOLPAR field er. Executes task(Pre SAMSUNG CH
SOLPAR field ATP 11A) & saves it in tab & uploads
engineer to server once in coverage & notify
Notification: Samsung to eNB Eng.
eNB er. & SOLPAR PM End
Pre-ATP11A is acknowledged by eNB Eng
Responsibility:
joint ATP11A is performed (FE + eNB Eng)
SOLPAR FE &
Report is modified on Tab ,if required (FE)
SAMSUNG eNB er.
Joint-ATP11A is completed & report is
Notification: Samsung uploaded on server. Samsung eNB er. to
AM & SOLPAR PM certify
Login Creation & Siteforge Installation
Login creation - introduction
Objective
• Procedure to install and use (Work Allocation System –
WAS [Siteforge]) in Samsung Galaxy Tab 3 8” by Solpar
field engineers

• Steps

User (Solpar field engr.) creation by : Solpar

Project manager

Intimation mail to field engineer : From

Siteforge team (system.siteforge@gmail.com)

Click activation link

Login to Siteforge and change password

(default password is with project manager)

Download and install .apk (installation file).

Start using the siteforge by clicking the icon.
Login creation - Intimation mail

Receive mail from siteforge team

Click on Activation Link

Login creation – accessing the site first time

If the mail is accessible in the TAB

Click on Activation Link

If the mail is not accessible in the TAB (eg. Official

mail not configured in the the TAB)

Open explorer, type below link in the address bar

https://siteforge.ril.com/siteforge/jsp/index.jsp
Login creation – password change

Change the password

Default password would be available with your

project manager
 Login

Login with the new password

Changing security setting

Before downloading the installation file, change

the security setting

•Go to TAB setting

•Turn on Blocking mode

•Tick Unknown sources check box
 Download and install installation file (.apk) file

•Click ‘Download Apk’,

•Once downloaded, go to notifications and click .apk file
•Select install
ATP 11A Procedure
How to Login?-FE

Login with your user name from Samsung TAB

 ATP 11A Process

Click on Task
 ATP 11A Process

Click drop down Menu to Select Specific band

ATP 11A Process

Select 850 Band

 ATP 11A Process

Select the Site and Click on Perform ATP 11A

Site Information

EDIT

Click On Next
 Installation Scenario

Field Engineer need to answer the above question that

they have installed Multiband or Penta Band during 850 Mhz Installation
Antenna Make & Model

EDIT
Enter the Information based on ACE/ROSENBERGER Model Type Used

EDIT

Antenna Height incuding building height and

tower foundation height in Case of RTP/RTT/RTD
Antenna & Cable Information

Tilt Information

Azimuth Information

½ inch RF jumper Information

CPRI Cable & RRH Type

CPRI Length

RRH type V1/V2

Installation Check List

EDIT
CDU Installation Check List

Press yes or no to depict the status

Installation Check List

RRH Installation Check

 Installation Check List

Antenna Installation Check

 Installation Check List

Cabling Check for 850 Mhz

Grounding Check
Site Inventory List

Field Engineer need to capture the Serial number

of all the site inventory for 850 Mhz

Capture the 850 Mhz L9CA serial Number

Capture 850 Mhz RRH Serial Number for all Three sectors

Capture 850 Mhz Antenna Serial Number for all Three sectors
Site Inventory List

Capture 850 Mhz Antenna Serial Number for all Three sectors

Incase of Pentaband / Muntiband Antenna capture the serial number

of all the three RET in all the 3 Sectors
Site Photograph

Collect the mentioned photographs

Site Photograph
Site Photograph
Site Photograph
Site Photograph
 Remarks

Incase of existing antenna are swapped with new antenna then SOLPAR
need to mention the YES/NO , and also confirm that they are sent back to
warehouse . Click Next

Add remarks about the work done if any

Acceptance Sheet
Thank You!!!
