  • General Specifications and Performance Data: Provides the general specifications, model number, and performance data of the Hyundai AC induction motor.

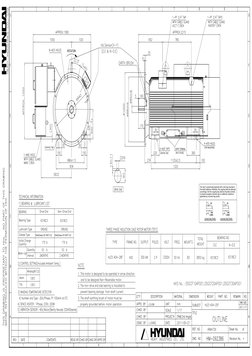

  • Outline Diagram and Technical Information: Displays the outline diagram of the AC motor, including technical information and component layout.

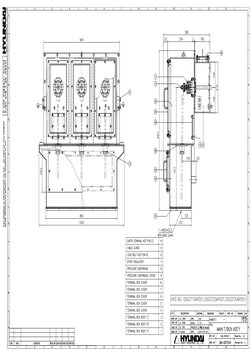

  • Main Box Assembly: Shows the detailed assembly drawing of the main box, illustrating terminal placements and physical dimensions.

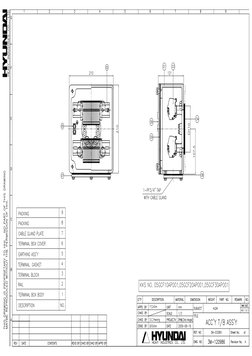

  • Accessory Box Assembly: Provides diagrams and layout for accessory box assembly including parts list and cable entry points.

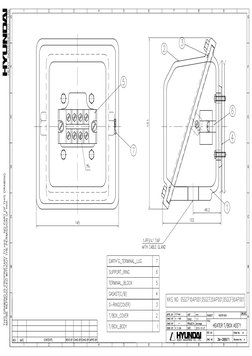

  • Heater Box Assembly: Illustrates the heater box assembly with terminal arrangements and mechanical layout.

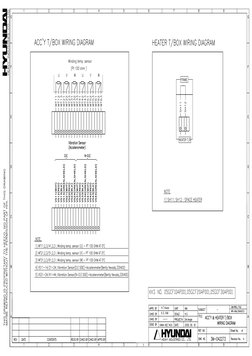

  • Wiring Diagrams: Contains wiring diagrams for accessory and heater boxes showing the electrical connections for sensors and heating elements.

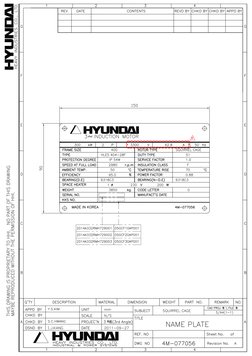

  • Name Plate Details: Displays the name plate details of the AC induction motor including key specifications like serial number, power rating, and manufacturer identity.

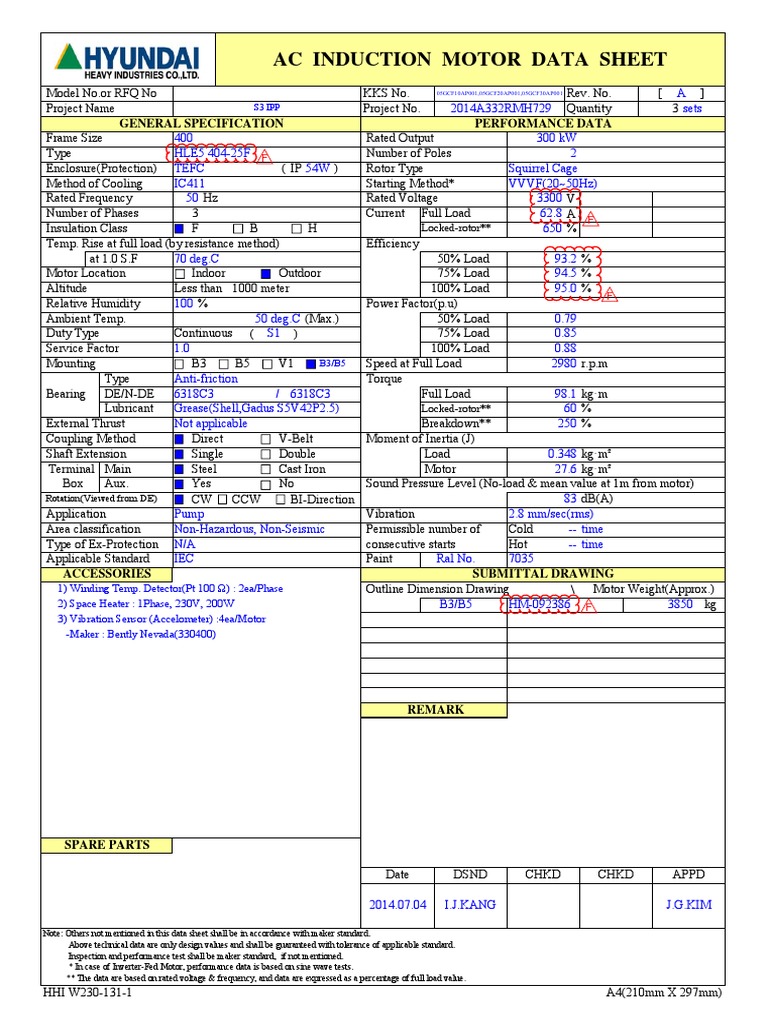

AC INDUCTION MOTOR DATA SHEET

Model No.or RFQ No KKS No. Rev. No. [ A ]


05GCF10AP001,05GCF20AP001,05GCF30AP001

Project Name S3 IPP Project No. 2014A332RMH729 Quantity 3 sets


GENERAL SPECIFICATION PERFORMANCE DATA
Frame Size 400 Rated Output 300 kW
Type HLE5 404-25F F Number of Poles 2
Enclosure(Protection) TEFC ( IP 54W ) Rotor Type Squirrel Cage
Method of Cooling IC411 Starting Method* VVVF(20~50Hz)
Rated Frequency 50 Hz Rated Voltage 3300 V
Number of Phases 3 Current Full Load 62.8 A
F
Insulation Class F B H Locked-rotor** 650 %
Temp. Rise at full load (by resistance method) Efficiency
at 1.0 S.F 70 deg.C 50% Load 93.2 %
Motor Location Indoor Outdoor 75% Load 94.5 %
Altitude Less than 1000 meter 100% Load 95.0 %
F
Relative Humidity 100 % Power Factor(p.u)
Ambient Temp. 50 deg.C (Max.) 50% Load 0.79
Duty Type Continuous ( S1 ) 75% Load 0.85
Service Factor 1.0 100% Load 0.88
Mounting B3 B5 V1 B3/B5 Speed at Full Load 2980 r.p.m
Type Anti-friction Torque
Bearing DE/N-DE 6318C3 / 6318C3 Full Load 98.1 kg·m
Lubricant Grease(Shell,Gadus S5V42P2.5) Locked-rotor** 60 %
External Thrust Not applicable Breakdown** 250 %
Coupling Method Direct V-Belt Moment of Inertia (J)
Shaft Extension Single Double Load 0.348 kg·m²
Terminal Main Steel Cast Iron Motor 27.6 kg·m²
Box Aux. Yes No Sound Pressure Level (No-load & mean value at 1m from motor)
Rotation(Viewed from DE) CW CCW BI-Direction 83 dB(A)
Application Pump Vibration 2.8 mm/sec(rms)
Area classification Non-Hazardous, Non-Seismic Permissible number of Cold -- time
Type of Ex-Protection N/A consecutive starts Hot -- time
Applicable Standard IEC Paint Ral No. 7035
ACCESSORIES SUBMITTAL DRAWING
1) Winding Temp. Detector(Pt 100 Ω) : 2ea/Phase Outline Dimension Drawing \ Motor Weight(Approx.)
2) Space Heater : 1Phase, 230V, 200W B3/B5 HM-092386 F 3850 kg
3) Vibration Sensor (Accelometer) :4ea/Motor
-Maker : Bently Nevada(330400)

REMARK

SPARE PARTS

Date DSND CHKD CHKD APPD

2014.07.04 I.J.KANG J.G.KIM

Note: Others not mentioned in this data sheet shall be in accordance with maker standard.
Above technical data are only design values and shall be guaranteed with tolerance of applicable standard.
Inspection and performance test shall be maker standard, if not mentioned.
* In case of Inverter-Fed Motor, performance data is based on sine wave tests.
** The data are based on rated voltage & frequency, and data are expressed as a percentage of full load value.
HHI W230-131-1 A4(210mm X 297mm)
F

[ ] ( IP ) V A % ( ) / CW CCW BI-Direction \ HHI W230-131-1 A4(210mm X 297mm) A S3 IPP Project No. 2014A332RMH729 Quantity
