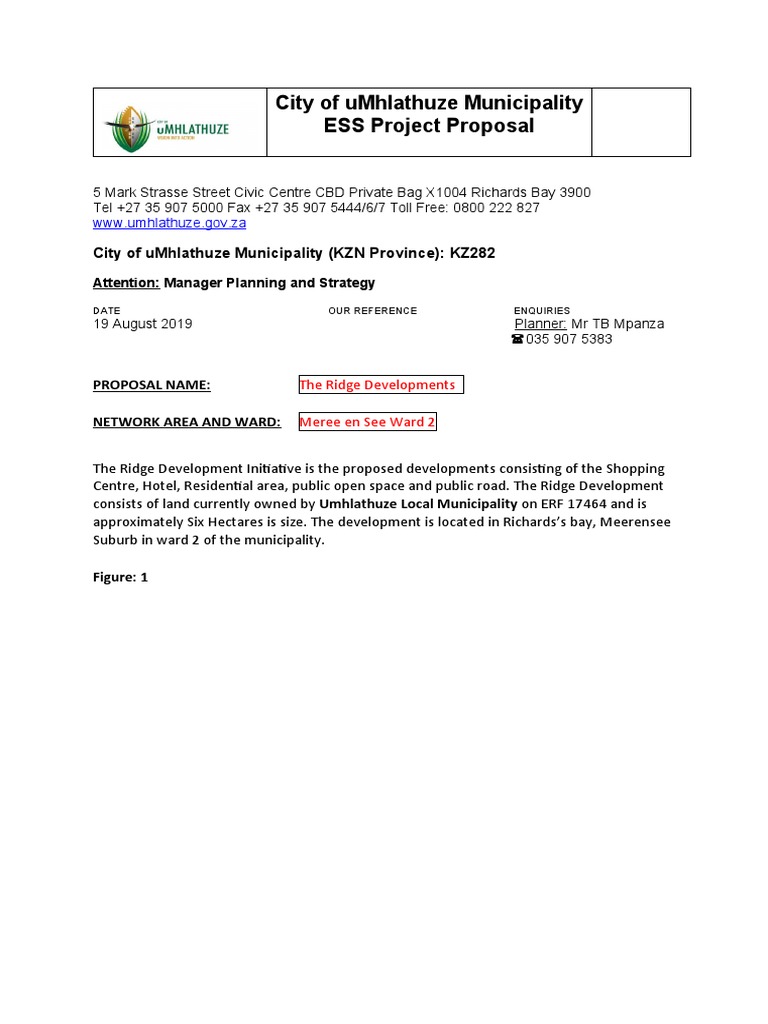

City of uMhlathuze Municipality

ESS Project Proposal

5 Mark Strasse Street Civic Centre CBD Private Bag X1004 Richards Bay 3900
Tel +27 35 907 5000 Fax +27 35 907 5444/6/7 Toll Free: 0800 222 827
www.umhlathuze.gov.za

City of uMhlathuze Municipality (KZN Province): KZ282

Attention: Manager Planning and Strategy

DATE OUR REFERENCE ENQUIRIES
19 August 2019 Planner: Mr TB Mpanza
035 907 5383

PROPOSAL NAME: The Ridge Developments

NETWORK AREA AND WARD: Meree en See Ward 2

The Ridge Development Initiative is the proposed developments consisting of the Shopping
Centre, Hotel, Residential area, public open space and public road. The Ridge Development
consists of land currently owned by Umhlathuze Local Municipality on ERF 17464 and is
approximately Six Hectares is size. The development is located in Richards’s bay, Meerensee
Suburb in ward 2 of the municipality.

Figure: 1
1. ELECTRICITY SUPPLY TO THE DEVELOPMENTS

Electricity supply to the development will be provided by a newly created bulk and
link infrastructure fed from Carina via Sirius Substations with existing electrical
infrastructure within the municipality supply area.

1.1 Source Substation to Proposed Developments

The uMhlathuze Local Municipality is proposing that the developments in the

area be supplied at 11 kV from Carina Substation. The source Substation is
situated approximately 2.1km away from the intended developments. The
capacity at Sirius Substation, which is much closer to the developments will
handle the projected load provided a bulk and link infrastructure is created
at the source. The capacity of Carina Substation 132kV/11/kV is 30X2MVA built
for the purpose of supplying power to the nearby Water Front and surrounding
areas.

The developments will require a total demand of 4MVA and Carina Substation
is currently 61%(18.3MVA) loaded and there is therefore spare capacity for the
developments. The additional load of 4MVA will increase the load by 13.3%
and the new load at Carina Substation will be approximately 74.3%(22.3MVA)
 CARINA SS
Feeder Amps (A) Peak Amps (A) Peak kVA Open Point
IDZ 1A FDR 3 0 0 0 RADIAL FEED
SPARE 10 0 0 0
JOHN ROSS NO.3 3 16 304.832 JOHN ROSS 3 @ SIRIUS SR
GEMINI FEEDER 1 0 0 0 SR SUPPLY
PORTNET LIQUID PITCH C07 65 65 1238.38 RADIAL FEED
PORTNET ADMIN QUARY 0 0 0 RADIAL FEED
JOHN ROSS NO.4 3 3 57.156 JOHN ROSS NO.4 O/G
MZINGAZI 3 5 11 209.572 SMALL CRAFT RMU
SPARE 8 0 0 0
SPARE 7 0 0 0
FORMAL HAUT 2 147 221 4210.492 SR SUPPLY
SPARTA 1 55 113 2152.876 SR SUPPLY
SIRIUS NO.2 44 66 1257.432 SR SUPPLY
B/S 2 N/C
SPARE 5 0 0 0
INCOMER NO.2 678 961 18308.972
B/S 1 N/C
SIRIUS NO.1 49 90 1714.68 SR SUPPLY
SPARTA 2 61 61 1162.172 SR SUPPLY
FORMAL HAUT 1 105 115 2190.98 SR SUPPLY/ ARIES 1 TEMP INC.
SPARE 3 0 0 0
SMALL CRAFT 1 40 59 1124.068 SMALL CRAFT RMU
ARB MACERATOR 4 11 209.572 RADIAL FEED
PORTNET EASTERN INTAKE 8 8 152.416 RADIAL FEED
PORTNET ARRIVAL YARD 25 25 476.3 RADIAL FEED
SPARE 2 0 0 0
YACHT CLUB 9 18 342.936 RADIAL FEED
SPARE 1 0 0 0
INCOMER NO.1 0 0 0
IDZ 1A FDR 2 0 0 0 RADIAL FEED
IDZ 1A FDR 1 55 80 1524.16 RADIAL FEED
2. MV RETICULATION (11KV)

The main 2 x 185mm² 3 core AL PILC MV supply cables will terminate at Carina
Substation parallel to the existing cables at bus-bar 1 and 2 respectively. The 11
kV cables to Sirius switching station are rated at 68.8% of the final estimated
demand and will not be able to cater for a single supply cable contingency. It is
clear that with the N-1 configuration the Carina/Sirius cables will not be able to
handle the load. It is proposed that the cables be upgraded by paralleling the 2 x
185mm² 3 core AL PILC.

Figure: 2.1
The figure above reflects the Carina/Sirius Substation feeder without the Ridge
development load. The load factor is at 58.8% with one cable out of service thus
demonstrating that one cable is sufficient to handle the load.

Figure: 2.2

The above demonstration indicates that with 2 x 185mm² 3 core AL PILC MV supply
cables running in parallel the feeders will be able to handle the projected load of
4MVA with 68.5% load factor

Figure: 2.3
The above demonstration indicates the presence of the projected load but with one
cable out of service (N-1). The Carina/Sirius feeder will be overloaded with the load
factor of 137.2%

Figure: 2.4

The above figure is indicating normal configuration with full load

The application has been lodged with the City of Umhlathuze for the Notified
Maximum Demand (NMD) of 4MVA. In the interim, there is 3MVA available at
Sirius Substation with the current configuration and existing infrastructure from
the City of Umhlathuze. There will be 2 x 630 A, 11 kV SBV-4 Actom C/B
procured and installed at Carina Substation with Vamp relays.
 The MV reticulation to the developments will be done through underground
2x185mm² 3 core 11 kV AL PILC cables for a distance of 2057m from Carina to
Sirius Switching Station. At Sirius Substation there will be 2 x 11kV C/B installed
with continuous rating of 630 A C/B with REF 615 (O/C &EF) feeder protection
panels and Altec A 1700 metering.

The Customer to provide a suitable switchgear with matching relay settings to our
approval at the point of control for the protection of the feeder cables. The
Customer could also construct a 4MVA switching sub-station next to the
developments and register a servitude for it in accordance with municipality
requirements, housing switch gears, control equipment and a bulk-metering unit.

The cost includes the supply, delivery and installation of the 11kV supply cables
between Carina & Sirius switching station

CONCLUSION

It is proposed that the existing 2x185mm² 3 core 11 kV AL PILC MV Carina/Sirius

feeders cables be upgraded with additional 2x185mm² 3 core 11 kV AL PILC in parallel
thus ensuring that Sirius switching station has the capacity to meet the new projected
load.

3. PRELIMENARY COST ESTIMATES

Below is a summary of estimated cost to provide Bulk Electrical Municipal Services

for the proposed development. Apportionment of costs required for the upgrading
of the existing infrastructure so that it is within capacity to meet the demand.
 Area m² FAR kVA/m² TotkVA
27932 1 0.08 2235
Existing Supply 0 kVA
0A 400 V
Supply required 4000 kVA
209.95 A 11000 V
Add. Minisub Pro-rata Cost :
kVA R/kVA Cost
2235 3280 7330800

Add. Eng Cont. Cost :

kVA R/kVA Cost
1765 4258.26 7515828.9

Sub Total 14846628.90

MATERIALS

QUANT. DESCRIPTION UNIT COST SUB TOTAL STORES COST

0 Cable MV PILC 185mm² 3 core AL. 560.00 0.00 0.00

4 Termination MV PILC 95 - 185mm (Out door) 985.00 3 940.00 334.90
2 Metering Online 11 396.87 22793.74 1937.47
0 11 kV Switchgear 265 000.00 0.00 0.00
1 630A Vacuum type 11kV switch panels with protection 550 000.00 550000.00 5000.00
1 Testblock metering 3CT 1 020.00 1020.00 86.70
2 Joint Kit MV 95 - 185mm² PILC H/S. 1 850.00 3700.00 314.50
6 Current Transformer (CT) 600/5A 10VA Cl1. 350.00 2100.00 178.50
22 Pipe uPVC Class 9, 6M x 160mm dia. 460.00 10120.00 860.20

10 Sundries 100.00 1000.00 85.00

Total Material Page 2 594673.74 8797.27
1 Contractor's Labour (Stores Hand. Fee) 97500.00 97500.00 5000.00
Material cost 595673.74
Stores & handling 0.00
Total material cost 595673.74
Total labour cost 105249.33
Total transport cost 247.36
Total material, labour & transport cost 701170.43
20% 140234.09
Add.Cost +20 Quote 0.00
Add. Pro-rata M/S + Eng. Cont. Cost 14846628.90
Sub Total 1 15688033.42
15% VAT 2353205.01
Sub Total 2 18041238.43
Feasibility quote paid 0.00
Total estimated payment 18041238.43

4. AFTER DIVERSITY MAXIMUM DEMAND

The estimated electrical load for the development is based on NRS 034, NRS 069 and
SANS 10142:1. The total ADMD is 2.7MVA with a diversity of 0.8 as per the supply
authority requirements.
The table below shows calculated ADMD load for the development.

The Ridge Development Load Schedule as per NRS-034-2007 and City of Umhlathuze

Gudelines
SITE A( 2 STOREY SHOPPING COMPLEX)
Room Description Area (m2) ADMD (Kva) Total Load
Anchor Store 1400 0.08 112
Shops 2748 0.08 219.84
Restaurants 861 0.08 68.88
Circulation 1578 0.08 126.24
Ablutions 260 0.08 20.8
Parking Bay 5275 0.02 105.5
Human Vehicle 2 12 24
Total Load for Site A 677.26

SITE B ( 7 STOREY HOTEL,

Room Description Area (m2) ADMD (Kva) Total Load
Ground Floor 1916 0.08 153.28
First Floor 1813 0.08 145.04
Hotel total Area 6013 0.08 481.04
Ground Floor( parking
bay) 387.5 0.02 7.75
First Floor to Seventh
Floor 3563 0.08 285.04
Human Vehicle 5 12 60
Total Load for Site B 1 132.15

SITE C (8 STOREY RESIDENTILA AREA)

Room Description Units ADMD (Kva) Total Load

Number of Units 60 4 240
Parking Bays 1125 0.02 22.5
 Total Load for Site C 262.5

SITE D (8 STOREY RESIDENTILA AREA)

Room Description Units ADMD (Kva) Total Load

Number of Units 60 4 240
Parking Bays 1125 0.02 22.5
Total Load for Site D 262.50

SITE E (8 STOREY RESIDENTILA AREA)

Room Description Units ADMD (Kva) Total Load

Number of Units 73 4 292
Parking Bays 1512.5 0.02 30.25
Total Load for Site E 322.25

SITE F (8 STOREY RESIDENTILA AREA)

Room Description Units ADMD (Kva) Total Load

Public open space 2155 0.02 43.1

Total Load for Site F 43.10

Total ADMD for the Ridge Development 2 699.76
