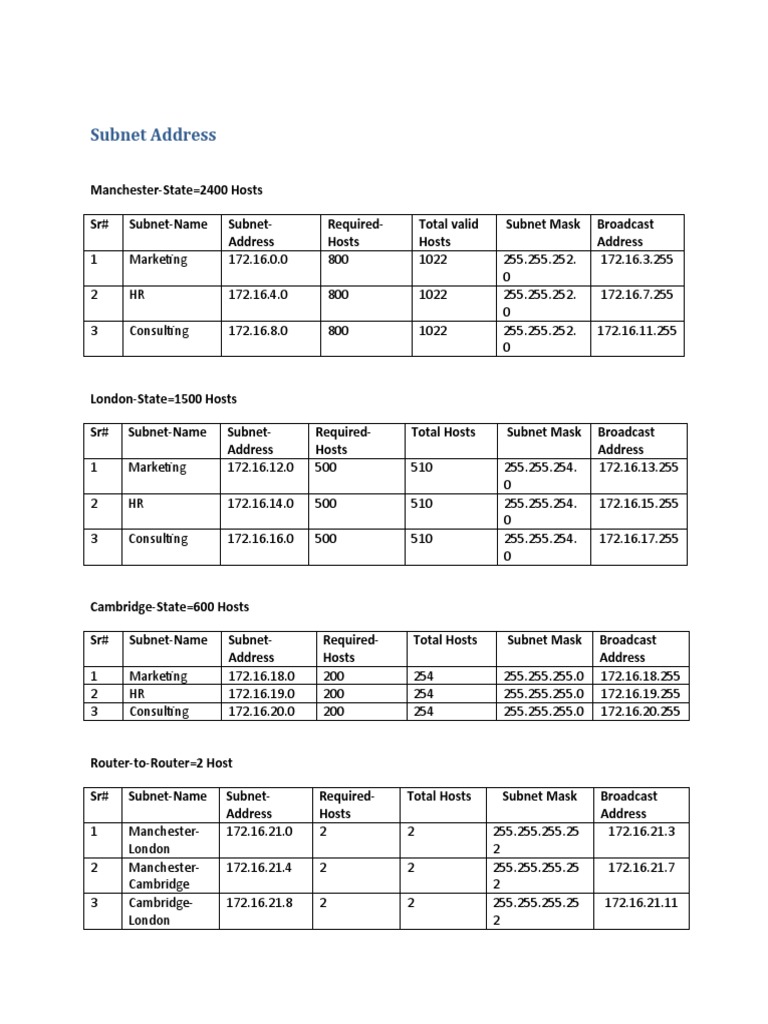

Subnet Address

Manchester-State=2400 Hosts

Sr# Subnet-Name Subnet- Required- Total valid Subnet Mask Broadcast


Address Hosts Hosts Address
1 Marketing 172.16.0.0 800 1022 255.255.252. 172.16.3.255
0
2 HR 172.16.4.0 800 1022 255.255.252. 172.16.7.255
0
3 Consulting 172.16.8.0 800 1022 255.255.252. 172.16.11.255
0

London-State=1500 Hosts

Sr# Subnet-Name Subnet- Required- Total Hosts Subnet Mask Broadcast


Address Hosts Address
1 Marketing 172.16.12.0 500 510 255.255.254. 172.16.13.255
0
2 HR 172.16.14.0 500 510 255.255.254. 172.16.15.255
0
3 Consulting 172.16.16.0 500 510 255.255.254. 172.16.17.255
0

Cambridge-State=600 Hosts

Sr# Subnet-Name Subnet- Required- Total Hosts Subnet Mask Broadcast


Address Hosts Address
1 Marketing 172.16.18.0 200 254 255.255.255.0 172.16.18.255
2 HR 172.16.19.0 200 254 255.255.255.0 172.16.19.255
3 Consulting 172.16.20.0 200 254 255.255.255.0 172.16.20.255

Router-to-Router=2 Host

Sr# Subnet-Name Subnet- Required- Total Hosts Subnet Mask Broadcast


Address Hosts Address
1 Manchester- 172.16.21.0 2 2 255.255.255.25 172.16.21.3
London 2
2 Manchester- 172.16.21.4 2 2 255.255.255.25 172.16.21.7
Cambridge 2
3 Cambridge- 172.16.21.8 2 2 255.255.255.25 172.16.21.11
London 2
(NAT) Cambridge-Router to ISP-Router

Sr# Subnet- Subnet-Address Required- Total Subnet Mask Broadcast


Name Hosts Hosts Address
1 Cambridge 209.165.200.224 2 30 255.255.255.22 209.165.200.255
(NAT)-ISP 4

Network Topology Design


IP Addressing Table

Sr# Device Interface IP SM DG


1 Manchester- Fa0/0.10 172.16.0.1 255.255.252.0 N/A
Router
Fa0/0.20 172.16.4.1 255.255.252.0 N/A
Fa0/0.30 172.16.8.1 255.255.252.0 N/A
Se0/0/0 172.16.21.1 255.255.255.252 N/A
Se0/0/1 172.16.21.5 255.255.255.252 N/A
2 London-Router Fa0/0.10 172.16.12.1 255.255.254.0 N/A
Fa0/0.20 172.16.14.1 255.255.254.0 N/A
Fa0/0.30 172.16.16.1 255.255.254.0 N/A
Se0/0/0 172.16.21.2 255.255.255.252 N/A
Se0/0/1 172.16.21.9 255.255.255.252 N/A
3 Cambridge- Fa0/0.10 172.16.18.1 255.255.255.0 N/A
Router
Fa0/0.20 172.16.19.1 255.255.255.0 N/A
Fa0/0.30 172.16.20.1 255.255.255.0 N/A
Se0/0/0 172.16.21.10 255.255.255.252 N/A
Se0/0/1 172.16.21.6 255.255.255.252 N/A
Se0/1/0 209.165.200.225 255.255.255.224 N/A
4 ISP-Router Se0/0/0 209.165.200.226 255.255.255.224 N/A
5 Man-Server Fa0 172.16.0.5 255.255.252.0 172.16.0.1
7 Man-1-VLAN10 Fa0 DHCP
8 Man-2-VLAN20 Fa0 DHCP
9 Man-3-VLAN30 Fa0 DHCP
10 Lon-Server Fa0 172.16.12.5 255.255.254.0 172.16.12.1
11 Lon -1-VLAN10 Fa0 DHCP
12 Lon -2-VLAN20 Fa0 DHCP
13 Lon -3-VLAN30 Fa0 DHCP
14 Cam-Server Fa0 172.16.18.5 255.255.255.0 172.16.18.1
15 Cam -1-VLAN10 Fa0 DHCP
16 Cam -2-VLAN20 Fa0 DHCP
17 Cam -3-VLAN30 Fa0 DHCP

Configuration of IP Address on Devices


Manchester-Router
London-Router

Cambridge-Router
ISP-Router

Man-Server-Syslog/NTP
Lon-Server-Syslog/NTP

Cam-Server-Syslog/NTP
Configured Dynamic Routing Protocol RIPv2

Manchester-Router

London-Router
Cambridge-Router

Show Route
Manchester-Router
London-Router

Cambridge-Router
Testing
Manchester-Router is successfully ping London-Router and Cambridge Router
Static-Route
Manchester-Router

London-Router

Cambridge-Router
Testing
Configured-VLANs

Manchester-Switch
London-Switch

Cambridge-Switch
Show VLANs

Manchester-Switch

London-Switch
Cambridge-Switch

Assigned VLANs to Hosts


Manchester-Switch
London-Switch

Cambridge-Switch
Configured Inter-VLAN Routing
Manchester-Router

London-Router
Cambridge-Router
Testing
Configured DHCP Services
Manchester-Router
Testing
Man-1-VLAN10

Man-2-VLAN20
Man-3-VLAN30

London-Router
Testing
Lon-1-VLAN10

Lon-2-VLAN20
Lon-3-VLAN30

Cambridge-Router
Cam-1-VLAN10

Cam-2-VLAN20
Cam-3-VLAN30

ACL Implementation
Cambridge-Router
ACL Testing
London-LAN PCs are allowed to access the Internet.

Cambridge-LAN PCs are allowed to access the Internet.


Manchester-LAN PCs are not allowed to access the Internet.
NAT/PAT Configuration

Cambridge-Router
Testing
Configuration of Securities
Manchester-Router
London-Router

Cambridge-Router
Testing
Configured Floating Static route
Manchester-Router

London-Router
Cambridge-Router
