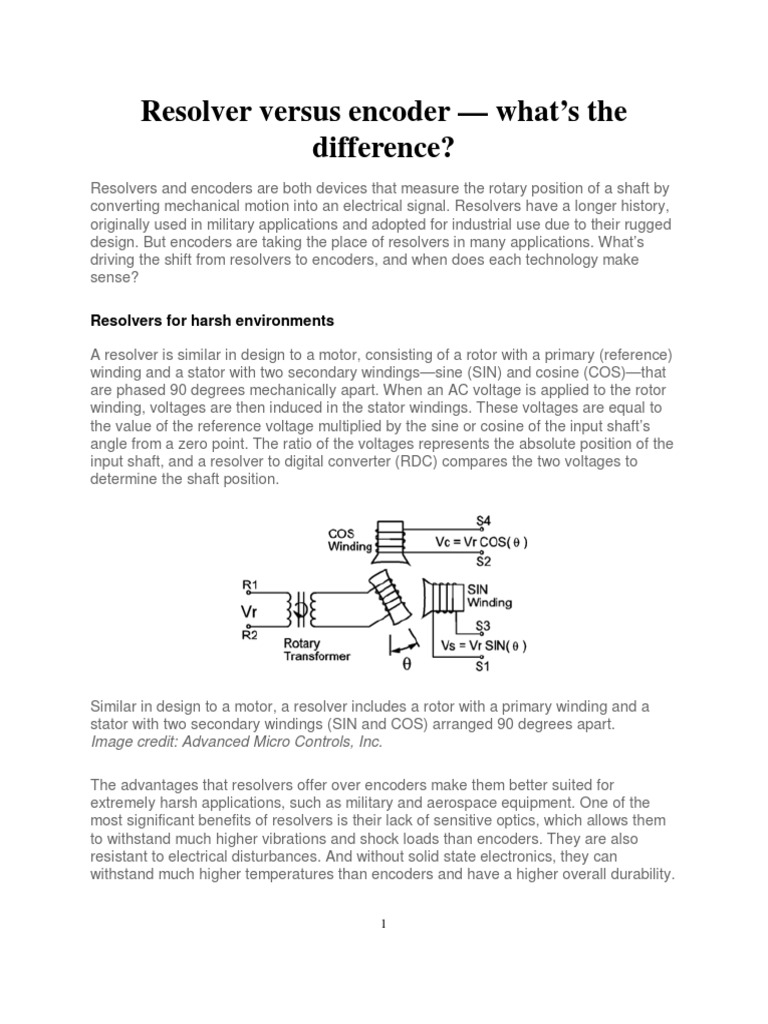

Resolver versus encoder — what’s the

difference?
Resolvers and encoders are both devices that measure the rotary position of a shaft by
converting mechanical motion into an electrical signal. Resolvers have a longer history,
originally used in military applications and adopted for industrial use due to their rugged
design. But encoders are taking the place of resolvers in many applications. What’s
driving the shift from resolvers to encoders, and when does each technology make
sense?

Resolvers for harsh environments

A resolver is similar in design to a motor, consisting of a rotor with a primary (reference)

winding and a stator with two secondary windings—sine (SIN) and cosine (COS)—that
are phased 90 degrees mechanically apart. When an AC voltage is applied to the rotor
winding, voltages are then induced in the stator windings. These voltages are equal to
the value of the reference voltage multiplied by the sine or cosine of the input shaft’s
angle from a zero point. The ratio of the voltages represents the absolute position of the
input shaft, and a resolver to digital converter (RDC) compares the two voltages to
determine the shaft position.

Similar in design to a motor, a resolver includes a rotor with a primary winding and a
stator with two secondary windings (SIN and COS) arranged 90 degrees apart.
Image credit: Advanced Micro Controls, Inc.

The advantages that resolvers offer over encoders make them better suited for
extremely harsh applications, such as military and aerospace equipment. One of the
most significant benefits of resolvers is their lack of sensitive optics, which allows them
to withstand much higher vibrations and shock loads than encoders. They are also
resistant to electrical disturbances. And without solid state electronics, they can
withstand much higher temperatures than encoders and have a higher overall durability.

1
Encoders for accuracy and simplicity

Despite these advantages, encoders are winning out as the technology of choice in
many applications. One reason for this is the relative complexity of integrating a resolver
into a system. The converter and filtering circuitry required to convert a resolver’s
analog signal must be carefully integrated and “tuned” to the drive system. These
electronics can cost multiple times (3-5x) the resolver itself, making a resolver system
very expensive. Encoders, on the other hand, are digital devices, so their integration
into control systems is relatively simple and doesn’t require complex electronics or
circuitry.

An encoder’s output is inherently digital, making its integration much simpler than that of
a resolver.

From a performance standpoint, encoders have a lower weight and rotational inertia
than resolvers, making them more suitable for applications with high acceleration and
deceleration rates. In addition, the conversion rate of the RDC limits a resolver’s
maximum speed, and resolvers lose some accuracy when the application encounters
rapid speed changes, as is often the case with servo motors. Encoder accuracy is
typically in the range of 20 arcseconds, which is much better than the 3 arcminute range
of resolver accuracy. Another advantage that makes encoders a more attractive option
is that they can be upgraded by replacing the feedback element and changing software,
whereas changing a resolver would potentially require a change in the converter, filter,
supply voltage and frequency.

Weighing the benefits and drawbacks of both resolvers and encoders, the deciding
factor on which is the best alternative will often be environment. For applications that
involve shock loads, vibrations, or high temperatures, resolvers are a more robust
solution. But encoder designs are becoming more rugged and reliable, and they can
now withstand conditions that would previously require a resolver. This improved
durability, in conjunction with their ease of use, explains why encoders are becoming
the preferred choice over resolvers.

DANIELLE COLLINS
