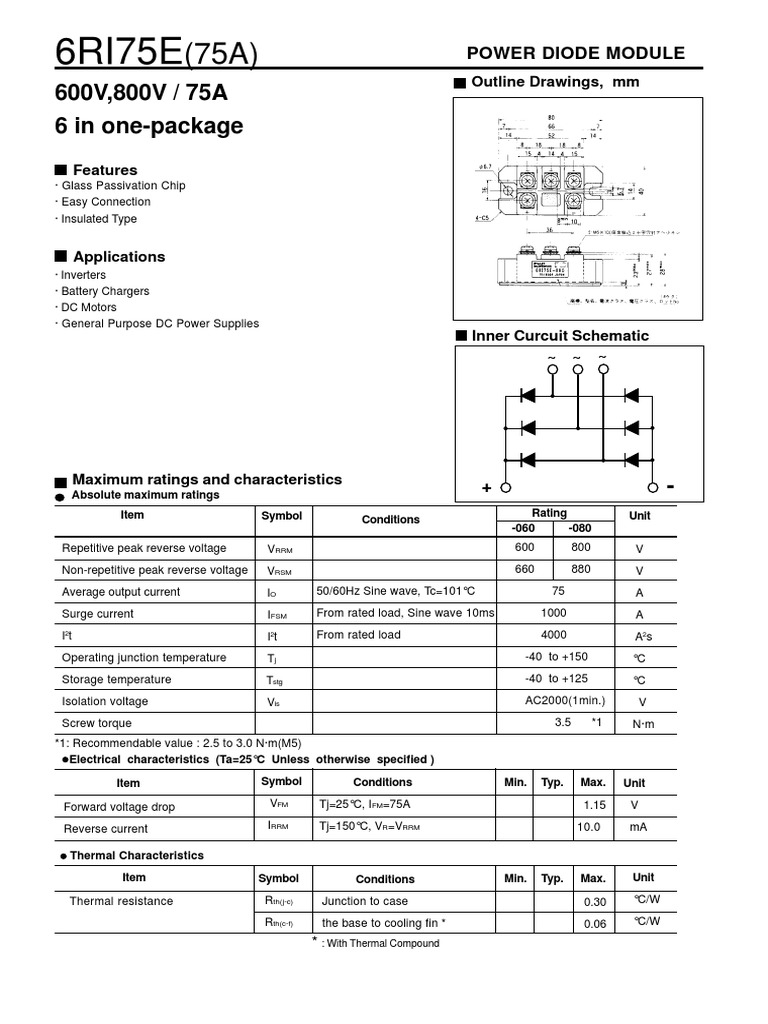

6RI75E(75A) POWER DIODE MODULE

Outline Drawings, mm
600V,800V / 75A
6 in one-package
Features
· Glass Passivation Chip
· Easy Connection
· Insulated Type

Applications
· Inverters
· Battery Chargers
· DC Motors
· General Purpose DC Power Supplies
Inner Curcuit Schematic
~ ~ ~

Maximum ratings and characteristics


Absolute maximum ratings
+ -
Item Symbol Rating Unit
Conditions
-060 -080
Repetitive peak reverse voltage VRRM 600 800 V
Non-repetitive peak reverse voltage VRSM 660 880 V
Average output current IO 50/60Hz Sine wave, Tc=101°C 75 A
Surge current IFSM From rated load, Sine wave 10ms 1000 A
2
It 2
It From rated load 4000 A2s
Operating junction temperature Tj -40 to +150 °C
Storage temperature Tstg -40 to +125 °C
Isolation voltage Vis AC2000(1min.) V
Screw torque 3.5 *1 N·m
*1: Recommendable value : 2.5 to 3.0 N·m(M5)
Electrical characteristics (Ta=25°C Unless otherwise specified )

Item Symbol Conditions Min. Typ. Max. Unit

Forward voltage drop VFM Tj=25°C, IFM=75A 1.15 V

Reverse current IRRM Tj=150°C, VR=VRRM 10.0 mA

Thermal Characteristics

Item Symbol Conditions Min. Typ. Max. Unit

Thermal resistance Rth(j-c) Junction to case 0.30 °C/W

Rth(c-f) the base to cooling fin * 0.06 °C/W


* : With Thermal Compound
6RI75E(75A) POWER DIODE MODULE

Characteristics

Forward Characteristics Forward Average Current vs. Power Loss

Type. 160
70
Max.
140
60

120
50
Forward current : IF [A]

100

Power Loss : Po [W]


40
80

30
60

20
40

10 20

0 0
0.6 0.7 0.8 0.9 1.0 1.0 1.2 1.3 0 10 20 30 40 50 60 70 80

Forward voltage : VF [V] Forward Average Current : IF [V]

Forward Average Current vs. Case Temperature Surge Current

130
1000

120 900
Surge current
(from rated load)
110 800

700
Case Temperature : TC [°C]

Surge Current : IFSM [A]

100
600
90
500

80 400

300
70
200
60
100

50 0
0 10 20 30 40 50 60 70 80 0.03 0.05 0.1 0.3 0.5 1.0

Forward Average Current : IF [V] time : t [sec.]

Transient Thermal Impedance


0.5

0.4
Thermal resistance : Zth(j-c) [°C/W]

0.3

0.2

0.1

0
10-2 10-1 100 101 102
time : t [sec.]
