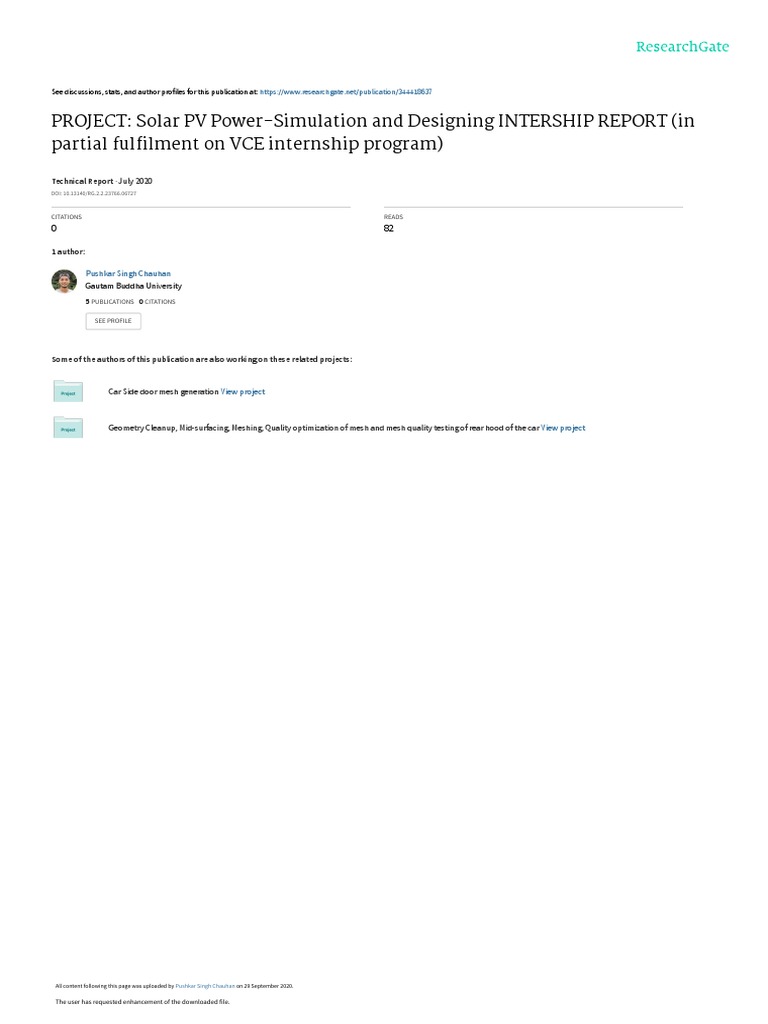

See discussions, stats, and author profiles for this publication at: https://www.researchgate.

net/publication/344418637

PROJECT: Solar PV Power-Simulation and Designing INTERSHIP REPORT (in

partial fulfilment on VCE internship program)

Technical Report · July 2020

DOI: 10.13140/RG.2.2.23766.06727

CITATIONS READS

0 82

1 author:

Pushkar Singh Chauhan

Gautam Buddha University
5 PUBLICATIONS   0 CITATIONS

SEE PROFILE

Some of the authors of this publication are also working on these related projects:

Car Side door mesh generation View project

Geometry Cleanup, Mid-surfacing, Meshing, Quality optimization of mesh and mesh quality testing of rear hood of the car View project

All content following this page was uploaded by Pushkar Singh Chauhan on 29 September 2020.

The user has requested enhancement of the downloaded file.

 1

PROJECT: Solar PV Power- Simulation and Designing

INTERSHIP REPORT
(in partial fulfilment on VCE internship program)

SUBMITTED BY: Pushkar Singh Chauhan

Department of mechanical engineering
Gautam Buddha University
Roll No. 16/IME/034
Year: 4th Sem:8th

Duration Period: 1 June to 15 July 2020 (8 weeks)

Pushkar Singh Chauhan, Gautam Buddha University

 2

ACKNOWLEDGEMENT

My experience during my internship has been memorable and influential. I have been
given guidance and opportunities that will contribute greatly in my personal growth
and development towards a successful professional career.
I express my deepest gratitude to the Vardhan Consulting Engineers for giving me
an opportunity in the facility of Solar PV Power Simulation and Design.
I express my sincere gratitude and acknowledge to my mentor Mr. Ashish S. Kumar
for his encouraging guidance, valuable suggestions and inestimable help they have
rendered during my whole Internship period.
I acknowledge Ms. Neha Kumari, HR for her kind assistance in making my
Internship possible.
Last but not the least, I also acknowledge the help and cooperation which I have
received from all the employees that I have interacted and worked with, during the
period of my Internship.

Pushkar Singh Chauhan, Gautam Buddha University

 3

ABOUT VCE

VCE is a consulting company founded by group of engineers who have strong

academic background with decades of management experience while working in
companies all across the globe. VCE is providing solutions to the complex
engineering, management and financial issues of clients.

VCE provide engineering and project management consultancy to energy projects.

Especially Solar PV power project (Utility Scale Large Sized
Projects), Pyrolysis Projects (Plastic to Oil).

VCE have different business horizons and revenue sources such as;

1. Engineering and Management Consulting.

2. Importing and Branding Pearl Jewellery.
3. Stock Market and Cross-Currency Trading.
4. Insurance and Investment Advisory.

VCE select students from various engineering and management colleges and provide
them internship and training. Our internships and training are very unique in nature
and its specially for the students of Core Engineering Sector (Electrical, Mechanical,
Civil and Energy Engineering) and Finance Management for preparing them to
corporate / industry ready. We provide them mentor from the industry.

Pushkar Singh Chauhan, Gautam Buddha University

 4

CONTENTS

1. Introduction
2. Summary of Smart Task 1, 2 and 3
3. Solar Resource Assessment
4. PV Syst Analysis
5. Annual Losses Analysis
6. Conclusion

Pushkar Singh Chauhan, Gautam Buddha University

 5

INTRODUCTION

Solar PV system

Solar photovoltaic system or Solar power system is one of renewable energy

system which uses PV modules to convert sunlight into electricity. The electricity
generated can be either stored or used directly, fed back into grid line or combined
with one or more other electricity generators or more renewable energy source. Solar
PV system is very reliable and clean source of electricity that can suit a wide range of
applications such as residence, industry, agriculture, livestock, etc.

Solar cells produce direct current (DC), therefore they are only used for DC
equipment. If alternating current (AC) is needed for AC equipment or backup energy
is needed, solar photovoltaic systems require other components in addition to solar
modules. These components are specially designed to integrate into solar PV system,
that is to say they are renewable energy products or energy conservation products and
one or more of components may be included depending on type of application.

The components of solar photovoltaic system are:

1. Solar PV Module
Solar Module is the essential component of any solar PV system that converts
sunlight directly into DC electricity.

2. Solar Charge Controller

It regulates voltage and current from solar arrays, charges the battery,
prevents battery from overcharging and also performs controlled over
discharges.

3. Battery
Battery stores current electricity that produces from solar arrays for using
when sunlight is not visible, night time or other purposes.

4. Inverter
Inverter is a critical component of any solar PV system that converts DC
power output of solar arrays into AC for AC appliances.

5. Lightning protection
It prevents electrical equipment from damages caused by lightning or
induction of high voltage surge. It is required for the large size and critical
solar PV systems, which include the efficient grounding.

Pushkar Singh Chauhan, Gautam Buddha University

 6

Fig : Flow Diag of Solar PV Eneregy Transformation

Fig : Main Components Of Solar PV System

Basic components of solar PV plant which includes solar panels, on-grid inverter,
system monitoring, transformer, input counter and external power grid.
We can simulate the required power solar PV plant on PV syst software by setting up
type of panel used, geographical location, and inverter input parameter and then
software simulate all the required result.

Solar PV system sizing

1. Determine power consumption demands
The first step in designing a solar PV system is to find out the total power and
energy consumption of all loads that need to be supplied by the solar PV system as
follows:

Pushkar Singh Chauhan, Gautam Buddha University

 7

1.1 Calculate total Watt-hours per day for each appliance used.
Add the Watt-hours needed for all appliances together to get the total Watt-
hours per day which must be delivered to the appliances.

1.2 Calculate total Watt-hours per day needed from the PV modules.
Multiply the total appliances Watt-hours per day times 1.3 (the energy lost in
the system) to get the total Watt-hours per day which must be provided by the panels.

2. Size the PV modules

Different size of PV modules will produce different amount of power. To find out
the sizing of PV module, the total peak watt produced needs. The peak watt (Wp)
produced depends on size of the PV module and climate of site location.
We have to consider panel generation factor which is different in each site location.
For Thailand, the panel generation factor is 3.43.

To determine the sizing of PV modules, calculate as follows:

2.1 Calculate the total Watt-peak rating needed for PV module

2.2 Calculate the number of PV panels for the system

Result of the calculation is the minimum number of PV panels. If more PV modules

are installed, the system will perform better and battery life will be improved. If fewer
PV modules are used, the system may not work at all during cloudy periods and
battery life will be shortened.

3. Inverter sizing
An inverter is used in the system where AC power output is needed. The input rating
of the inverter should never be lower than the total watt of appliances. The inverter
must have the same nominal voltage as your battery.
For stand-alone systems, the inverter must be large enough to handle the total amount
of Watts you will be using at one time. The inverter size should be 25-30% bigger
than total Watts of appliances. In case of appliance type is motor or compressor then
inverter size should be minimum 3 times the capacity of those appliances and must be
added to the inverter capacity to handle surge current during starting.
For grid tie systems or grid connected systems, the input rating of the inverter should
be same as PV array rating to allow for safe and efficient operation.

4. Battery sizing
The battery type recommended for using in solar PV system is deep cycle battery.
Deep cycle battery is specifically designed for to be discharged to low energy level
and rapid recharged or cycle charged and discharged day after day for years. The
battery should be large enough to store sufficient energy to operate the appliances at
night and cloudy days. To find out the size of battery, calculate as follows:

4.1 Calculate total Watt-hours per day used by appliances.

4.2 Divide the total Watt-hours per day used by 0.85 for battery loss.
Pushkar Singh Chauhan, Gautam Buddha University
 8

4.3 Divide the answer obtained in item 4.2 by 0.6 for depth of discharge.
4.4 Divide the answer obtained in item 4.3 by the nominal battery voltage.
4.5 Multiply the answer obtained in item 4.4 with days of autonomy (the number of
days that you need the system to operate when there is no power produced by PV
panels) to get the required
Ampere-hour capacity of deep-cycle battery.

Battery Capacity (Ah) = Total Watt-hours per day used by appliances x Days of
autonomy
(0.85 x 0.6 x nominal battery voltage)

5. Solar charge controller sizing

The solar charge controller is typically rated against Amperage and Voltage capacities.
Select the solar charge controller to match the voltage of PV array and batteries and
then identify which type of solar charge controller is right for your application. Make
sure that solar charge controller has enough capacity to handle the current from PV
array.
For the series charge controller type, the sizing of controller depends on the total PV
input current which is delivered to the controller and also depends on PV panel
configuration (series or parallel configuration).
According to standard practice, the sizing of solar charge controller is to take the short
circuit current (Isc) of the PV array, and multiply it by 1.3
Solar charge controller rating = Total short circuit current of PV array x 1.3

Remark: For MPPT charge controller sizing will be different.

Example: A house has the following electrical appliance usage:

 One 18 Watt fluorescent lamp with electronic ballast used 4 hours per day.
 One 60 Watt fan used for 2 hours per day.
 One 75 Watt refrigerator that runs 24 hours per day with compressor run 12
hours and off 12 hours.

The system will be powered by 12 Vdc, 110 Wp PV module.

1. Determine power consumption demands

Total appliance use = (18 W x 4 hours) + (60 W x 2 hours) + (75 W x 24 x 0.5

hours)
= 1,092 Wh/day
Total PV panels energy
= 1,092 x 1.3
needed
= 1,419.6 Wh/day.

Pushkar Singh Chauhan, Gautam Buddha University

 9

2. Size the PV panel

2.1 Total Wp of PV panel = 1,419.6 / 3.4

capacity needed
= 413.9 Wp
2.2 Number of PV panels
= 413.9 / 110
needed
= 3.76 modules

Actual requirement = 4 modules

So this system should be powered by at least 4 modules of 110 Wp PV
module.

3. Inverter sizing
Total Watt of all appliances = 18 + 60 + 75 = 153 W
For safety, the inverter should be considered 25-30% bigger size.
The inverter size should be about 190 W or greater.

4. Battery sizing
Total appliances use = (18 W x 4 hours) + (60 W x 2 hours) + (75 W x 12 hours)
Nominal battery voltage = 12 V
Days of autonomy = 3 days

Battery capacity = [(18 W x 4 hours) + (60 W x 2 hours) + (75 W x 12 hours)] x 3

(0.85 x 0.6 x 12)
Total Ampere-hours required 535.29 Ah
So the battery should be rated 12 V 600 Ah for 3 day autonomy.

5. Solar charge controller sizing

PV module specification
Pm = 110 Wp
Vm = 16.7 Vdc
Im = 6.6 A
Voc = 20.7 A
Isc = 7.5 A
Solar charge controller rating = (4 strings x 7.5 A) x 1.3 = 39 A
So the solar charge controller should be rated 40 A at 12 V or greater.

Pushkar Singh Chauhan, Gautam Buddha University

 10

SMART TASK 1
The main motive of smart task 1 is to understand and get familiar with the basic terms
and terminology of solar PV plant. Some of the terms that we learn after completing
this task are as follow :
1. PCC :- Point of Common Coupling is a point at which solar plant is connected
to the grid.
2. Charge Controller:- This regulates the electricity going into a battery, and
protects the battery charge during off hours.
3. Grid Connected System:- A grid-connected system acts much the same as
an independent PV system, but instead of running all on its own, it works
in tandem with a utility grid.
4. Pyranometer:- A pyranometer is a type of actinometer used for measuring solar
irradiance on a planar surface.
5. Solar Tracker:- Trackers direct solar panels or modules toward the sun
6. Transformer:- The system inverters typically provide power output at voltages
of the order of 480 volt AC.

Solar Charge Controller pyranometer

Fig : some components of solar PV plant.

Pushkar Singh Chauhan, Gautam Buddha University
 11

SMART TASK 2
In smart task 2 we simulate a 100 KW rooftop solar PV plant located in Delhi.
The steps of set up are as follows:
 Installation set up
 PV module selection
 Inverter selection
 Array design

After completing these steps on software the following results are obtained and
discussed briefly in this task.
 System production
 Losses in system
 Array losses
 Performance ratio
 Normalized production
The results are obtained in the form of bar graphs, charts, tables.

SMART TASK 3
In this task we understand the basic terms and terminologies used in solar PV Syst
software. At the end of this task we are familiar with the following terms:
1. Collector plate orientation* 10. Inverter losses
2. E-Grid 11. PV module
3. Shading 12. Mismatch losses
4. IAM factor* 13. Produced energy
5. Meteo database 14. Yr & Yf
6. Module quality loss 15. Glob Hor*
7. Performance ratio* 16. Glob Inc
8. Array virtual energy at MPP* 17. E-Array*
9. Specific production*

Pushkar Singh Chauhan, Gautam Buddha University

 12

SOLAR RESOURCE ASSESMENT

The process of collecting data and analyse the condition that directly influence solar
energy production rate and finally estimate the annual energy production in an
efficient manner. It provide a mean to accurately determining the availability of solar
radiation for developing cost effective solar energy.

Fig : Flow-Chart Of solar Resource Assessment

Pushkar Singh Chauhan, Gautam Buddha University

 13

LOSSES IN SOLAR POWER PLANT

Losses that occur in solar pv plant include:

 PV loss due to irradiance level
 PV loss due to temperature
 Module quality loss
 Mismatch loss
 Ohmic wiring loss
 Various inverter losses

Fig 6: Flow chart of power losses in solar PV plant

These losses are evaluated through PV Syst software for a particular plant. The
detailed evaluation of these losses for a 100 KW rooftop solar PV plant have
been studied.

Pushkar Singh Chauhan, Gautam Buddha University

 14

ANNUAL LOSSES ASSESSMENT

In smart task 4 we are provided with three projects out of which we have to
select any one of them then we must go through the case problem assessment
of the project and start analysing the project using PV Syst software.

The project is to analyse losses in Grid connected Solar PV project in

NOIDA, U.P.
We are assumed to be a Techvardhan Power Pvt. Ltd client and we get a
contract of setting up 100 KW rooftop solar PV plant based on above project.
So we have to design and simulate the project using Solar PV Syst Software
and prepare a detailed solar resource assesment and solar losses report.
We used PV Syst Software version 6.8.6 for solving the current solar pv
problem.

The detailed report of the project are described below:

As the Noida is near Delhi so we select database station as MeteoNorm 7.2

station, which is database station in Delhi.

1. Installation Setup:
 Site: Noida, U.P.
 Meteo: MeteoNorm 7.2 station
 Field Type: Fixed Tilted Plane
 Plane tilt: 30o
 Azimuth: 0o
 Planned power: 100 KWp

2. PV module selection:
 Manufacturer: Generic
 Size: Poly 60wp 36 cells
 Voltage: 14 volts
 Module needed: 1660

3. Inverter Selection :
 Manufacturer: Generic
 Output Voltage: 230 volts
 No. of inverter: 25
 Nominal AC Power: 3 KW
 Frequency: 50/60 Hz

Pushkar Singh Chauhan, Gautam Buddha University

 15

4. Array Design:
 Module in series: 20
 No. of strings: 83
 No. of modules: 1660

Fig: Installation Setup (PV Syst)

Pushkar Singh Chauhan, Gautam Buddha University

 16

Fig: PV Module, Inverter & Array Selection (PV SysT)

As our project is to analyse losses in Grid connected solar PV plant of 100 KW power
located in Noida, U.P.
Above we simulate our problem using solar PV Syst Software and now we discussed
the main result and elaborate losses in details.

1. Main Result:
 System production: 168 MWh/year
 Performance Ratio: 0.756
 Normalized Production : 4.63 KWh/KWp/day
 Array Losses: 1.33 KWh/KWp/day
 System Losses : 0.16 KWh/KWp/day

Fig : Main Results

Fig : PV input characteristics (PV Syst)

Pushkar Singh Chauhan, Gautam Buddha University

 17

Fig below shows the detailed power loss diagram which we want to conclude
in this report

Fig : Power loss diagram

Figure below shows various loss fraction and loss values which we obtained
from the software.

Pushkar Singh Chauhan, Gautam Buddha University

 18

Fig : PV array loss factors

The detailed study of above-mentioned losses in power loss diagram are studied below
with the value obtained in each case. In module 4 we have to prepare a detailed report
of losses for our client.

1. Module Quality Loss:

The Module quality loss is a parameter that should express your own confidence to the
real module's performance, with respect to the manufacturer's specifications. In our
project this loss is 2.50%.

2. PV loss due to irradiance level:

The efficiency decreases for lower irradiances: this leads to the "Irradiance loss.
Therefore, this Irradiance loss is a consequence of the intrinsic behaviour of the PV
modules, described by the "one-diode" model. In our project these losses are 0.19%.

3. PV loss due to temperature:

These losses arise because the temperature is not always at STP i.e. 250C, so losses
arises due to this called temperature losses. Most losses on pv array are due to this loss.
In our project this loss comprises of 14.60%.

4. Mismatch loss, modules and strings:

Mismatch losses are due to the interchanging of solar PV panels in series and parallel.
The modules do not have same properties from each other. In our project these losses
are around 1.10%.

5. Inverter losses:
o Global inverter losses: Sum of all inverter losses. In our project it was 4.58%
approx.

o Inverter losses during operation: The inefficiency loss computed according

to the efficiency curve. It is around 3.3% in our project.

o Inverter loss due to power threshold: loss when the power of the array is not
sufficient for starting the inverter. It is negligible around 0.01%.

o Inverter loss due to voltage threshold: It arises due to low voltage at

Maximum Power Point (MPP). These losses are also negligible.

Pushkar Singh Chauhan, Gautam Buddha University

 19

CONCLUSIONS

It had a great pleasure for me to get a chance to work in Vardhan Consulting

Engineers. At the end of my training tenure, I wish to summarize the benefits
acquired over the period of training. This training certainly helped me in bridging the
gap between theory and practical. It provides me opportunity to learn under
different environment. It’s also helped me in analyse my gaps and Benchmarks.
This internship comprises of various Technical divisions, where I had the opportunity
to work with the Solar PV system which is a growing sector in these days.

I gained quite a lot of things from this training and they are quoted below:

 I understood the scope and job responsibilities of the various departments of

an engineering organization.
 I got a chance to get the knowledge about basic components and
understanding the terms related to solar PV plant.
 During the training period I learnt working on PV Syst Photovoltaic software
to set up 100 KW solar PV rooftop plant.
I also covered some new topics which were not an academic subject like solar
resource assessment, losses in electricity generated from solar
 Photo voltaic plant, complete use of PV Syst Software.
 I also came to know the importance of responsibility & authorities allotted for
different task & successful accomplishment of the same as early as possible.

Thus, I confidently conclude that this training was the most beneficial and
enlightening experience, which is bound to help me in my future. I will forever be
grateful to VCE for this internship experience.
To be a part of this online internship conducted by Vardhman Consulting Engineers
(VCE) under the guidance of Mr. Ashish Kumar I learned a lot of new things and
commercially applicability.

Pushkar Singh Chauhan, Gautam Buddha University

View publication stats
