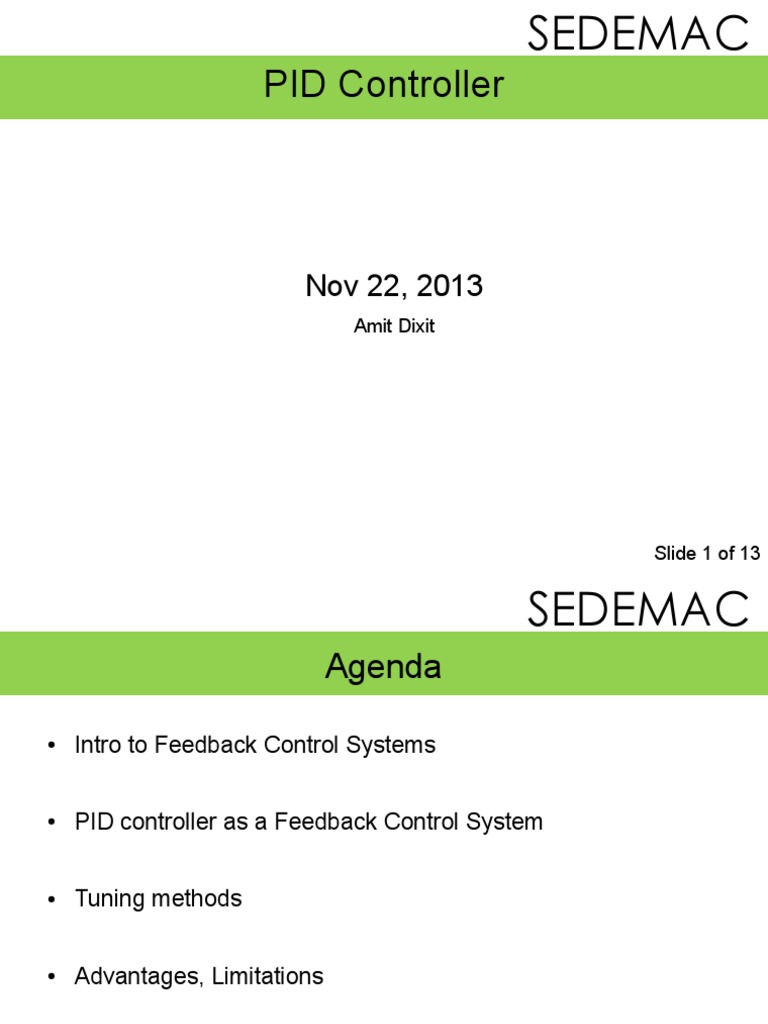

SEDEMAC

PID Controller

Nov 22, 2013

Amit Dixit

Slide 1 of 13
 SEDEMAC
Agenda

● Intro to Feedback Control Systems

● PID controller as a Feedback Control System

● Tuning methods

● Advantages, Limitations

● Practical PID control

Slide 2 of 13
 SEDEMAC
Intro: Feedback Control Systems - I
● PID Controller is a Feedback Control System
● System
– Relationship between inputs and outputs
– Inputs/Outputs: Physical quantities (speed, voltage,
air-to-fuel ratio, fuel, position…)

Inputs Outputs
System

● Control system: a system that “controls” another system

● Feedback control system: uses output of controlled system
Slide 3 of 13
 SEDEMAC
Intro: Feedback Control System - II
● Structure of a feedback control system:

Control
Reference “r” Input “u” Output “y”
Controller Plant

● Identify Controller, Plant, u and y for:

– Electronic governor
– Digital AVR
– FI ECU: Closed loop fuel control
– EGR ECU

Slide 4 of 13
 SEDEMAC
Feedback Control Problem Formulation
● Structure of a feedback control system:

Control
Reference “r” Input “u” Output “y”
Controller Plant

● Feedback control problem

– Choose u(t) = f(r(t), y(t)) such that y(t) = r(t)
– Time varying control input: real-time control
● Several possible solutions
– Studied formally under control systems theory: researched for >60 years
● Over time, A specific form of f(.) has become popular: the PID controller

Slide 5 of 13
 SEDEMAC
PID Controller Structure - I
● Error based controller
– Generic control structure: u(t) = f(r(t), y(t))
– Define e(t) = r(t) – y(t): the “error signal”
– Control input u(t) expressed as a function of e(t)

● General form of PID controller

Proportional Integral Derivative
u(t) = f1( e(t) ) + f2( ∫e(t) ) + f3( e′(t) )

● Linear PID controller

u(t) = Kp( e(t) ) + KI( ∫e(t) ) + KD( e′(t) )

Slide 6 of 13
 SEDEMAC
PID Controller Structure - II
● Block Diagram
PID Controller
∫ KI

+
r e u y
KP Plant
+ +
+
-

d KD
dt

● PID terms
– P: “present”, based on instantaneous error, fast response
– I: “past”, based on history, removes steady-state error
– D: “future”, based on estimated future, opposes future changes
Slide 7 of 13
 SEDEMAC
PID Controller: Virtues
● Criteria for a good control system
– Good closed-loop performance
– Simple to realize
● System cost should be low (hardware, software)
– Simple to tune
● Tuning is critical in a closed loop control
● Closing the loop can de-stabilize an open-loop-stable system
● Number of tuning parameters, ease of tuning important
● How PID controller fairs
– Good performance for most practical systems
– Simple equations, implementable on low-cost MCUs/ hardware
– Relatively simple to tune, plenty of experience built
Slide 8 of 13
 SEDEMAC
PID Controller Tuning Methods - I
● Tuning approaches
– Model based (automatic/semi-automatic)
– Model-free

● Model based approaches

– Mathematics based method of choosing controller gains to meet
certain performance criteria
– Methodology
●
Express Plant behavior as a mathematical model P(θ); θ : parameters
●
Express controller as a function of plant model parameters: C(θ)
●
Identify θ from experiments or from knowledge
– Several methods used in practice
● Ziegler Nicholas
● Relay feedback Slide 9 of 13
 SEDEMAC
PID Controller Tuning Methods - II
● Model free approach
– Methodology
● Define performance criteria
– Steady-state error, response time, error during step disturbance..
● Based on generic understanding of effect of tuning parameters on
performance criteria, tune manually
– Requires understanding on how tuning parameters effect
performance
Steady-state Transient error Transient Stability
error recovery time
Kp Strong decrease Strong decrease Weak decrease Weak decrease
Ki No effect No effect Strong decrease Weak decrease
Kd Weak decrease Strong decrease Weak increase Strong increase

– Used currently in our governing, AVR and FI ECU products

Slide 10 of 13
 SEDEMAC
PID Controller: Limitations/ Improvements
● “Classical PID”: A single linear equation relates u(t) to e(t) for all
operating conditions
● Limitations
– Plant behavior changes (over time, over operating conditions)
– Sometimes closed-loop control is not desired
● Start event, stop event, limiting control input, idling
– Better performance possible with
● Changes in control structure with operating conditions
● Incorporating system knowledge (calibration)
● Practical control system
– OL Strategies for start/stop + PID controller for regulation +
Gain scheduling/ OL boost modes

Slide 11 of 13
 SEDEMAC
Summary
● PID controller is a particular implementation of feedback control system

● Simple, cost-effective implementation, good performance has lead to

widespread use

● Tuning is critical in practice, model based/ model free methods used

● Practical implementation: basic PID + start/stop conditions + parameter

modification

● Used in governing (B12, Econoseek), dAVR, FI ECU, Ignition software

Slide 12 of 13
 SEDEMAC

Thank You

Slide 13 of 13
