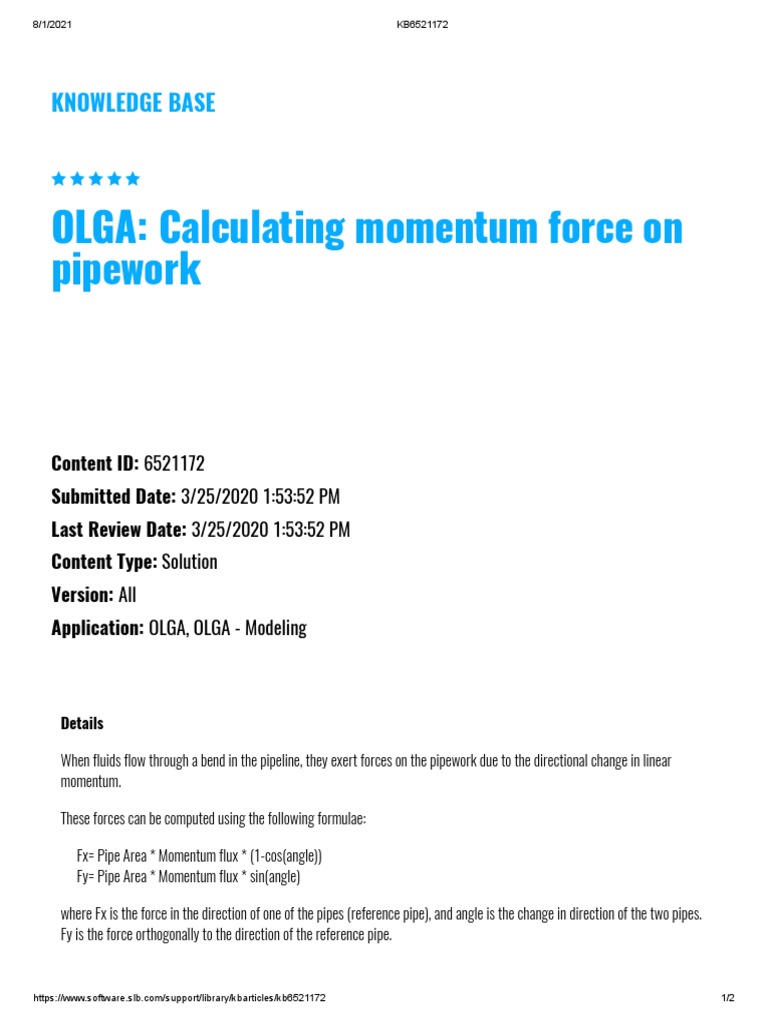

    8/1/2021 KB6521172

    KNOWLEDGE BASE






    1 Rating

    OLGA: Calculating momentum force on


    pipework
    The following describes how the momentum force on pipework can be calculated using OLGA
    output variables.

    Content ID: 6521172
    Submitted Date: 3/25/2020 1:53:52 PM
    Last Review Date: 3/25/2020 1:53:52 PM
    Content Type:
    Solution
    Version: All
    Application: OLGA, OLGA - Modeling

    Details

    When fluids flow through a bend in the pipeline, they exert forces on the pipework due to the directional change in linear
    momentum.

    These forces can be computed using the following formulae:

         Fx= Pipe Area * Momentum flux * (1-cos(angle))

         Fy= Pipe Area * Momentum flux * sin(angle)

    where Fx is the force in the direction of one of the pipes (reference pipe), and angle is the change in direction of the two pipes.
    Fy is the force orthogonally to the direction of the reference pipe.

    https://www.software.slb.com/support/library/kbarticles/kb6521172 1/2
    8/1/2021 KB6521172

    The most accurate way to calculate the momentum flux is to use the sum of the momentum fluxes of each of the individual flow
    fields.

    The total momentum flux can be constructed from the following OLGA output variables:

         momentum flux = WG*UG + WLHL*ULHL + WLWT*ULWT + WD*UD

    where WG/WLHL/WLWT/WD is gas/oil film/water film/droplet mass flux in the bend, and UG/ULHL/ULWT/UD is the gas/oil
    film/water film/droplet velocity in the bend.

    The fact that these terms evaluate to a force quantity can be verified by looking at the dimensions of the variables. The
    dimension of momentum flux is that of mass*velocity/volume, which in SI units is kg/s/m2. Multiplied with area (m2) and
    velocity (m/s) we get kg*m/s2  which is the unit of force (N). More information can be found on pages 60–65 in "Aero-
    Thermodynamics and Flow in Turbomachines", Robert E. Krieger Publishing Company, Huntington, New York, 1974.
