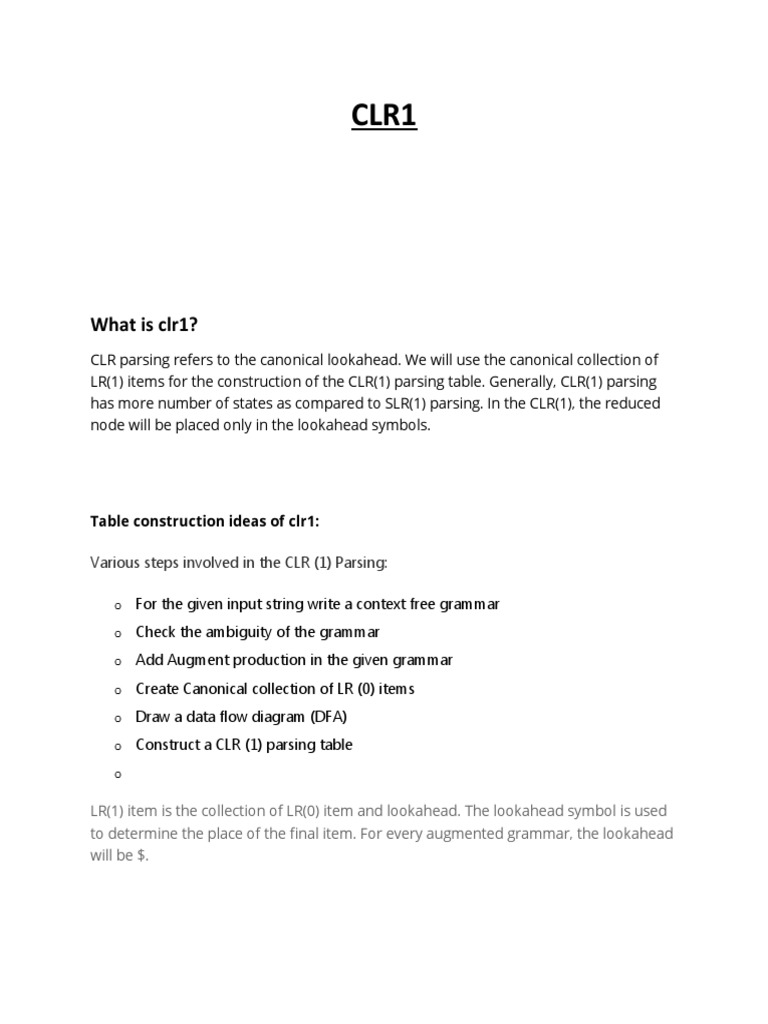

CLR1

What is clr1?
CLR parsing refers to the canonical lookahead. We will use the canonical collection of
LR(1) items for the construction of the CLR(1) parsing table. Generally, CLR(1) parsing
has more number of states as compared to SLR(1) parsing. In the CLR(1), the reduced
node will be placed only in the lookahead symbols.

Table construction ideas of clr1:

Various steps involved in the CLR (1) Parsing:

o For the given input string write a context free grammar

o Check the ambiguity of the grammar
o Add Augment production in the given grammar
o Create Canonical collection of LR (0) items
o Draw a data flow diagram (DFA)
o Construct a CLR (1) parsing table
o

LR(1) item is the collection of LR(0) item and lookahead. The lookahead symbol is used
to determine the place of the final item. For every augmented grammar, the lookahead
will be $.
Example

Grammar
E => BB
B => cB / d

Add augment production and insert ‘.’ symbol at the beginning of every production in
Grammar Add the lookahead also.

E’ => .E, $
E => .BB,$
B => .cB, c/d

I0 state

Add starting production to the I0 State and compute the closure.

I0 = closure (E’ => .E)

Add all the production beginning with E into I0 State because “.” is at the first place of
production before the non-terminal. So, the I0 State becomes:

I0 = E’ => .E, $
        E => .BB, $

Add all the production begins with “B” in the modified I0 State because “.” is at the first
place of production before the non-terminal. So, the I0 State becomes:

E’ => .E, $
E => .BB, $
B => .cB, c/d
B => .d, c/d

I1 = Go to on (I0 E) = closure (E’ => E., $)

I1 = E’ => E. , $
I2 = Go to on (I0 B) = Closure (E => B.B, $)

Add all the production beginning with B into the I2 State because “.” is at the first place
of production before the non-terminal. So, the I2 State becomes:

E => B.B, $
B => .cB, $
B => .d, $
I3 = Go to on (I0 c) = Closure (B => c.B, c/d)

Add productions beginning with B in I3.

B => c.B, c/d

B => .cB, c/d
B => .d, c/d
Goto on (I3 c) = Closure (B => c. B, c/d) (Same as I3)
Goto on (I3 d) = Cllosure (B => d., c/d)  (Same as I4)

I4 = Goto on (I0 d) = Closure (B => d. , c/d) = B => d. , c/d

I5 = Goto on (I2 B) = Closure (E => BB., $) = E => BB., c/d
I6 = Goto on (I3 c) = Closure (B =>c.B, $)

Add all the production beginning with B into the I6 State because “.” is at the first place
of production before the non-terminal. So, the I6 state becomes

B => c.B, $
B => .cB, $
B => .d, $

Go to on (I6, c) = Closure (B => c•B, $) = (same as I6)

Go to on (I6, d) = Closure (B => d•, $) = (same as I7)
I7 = Go to on (I2 d) = Closure (B => d. , $)
I8 = Go to on (I3 B) = Closure (B => cB. , c/d)
I9 = Go to on (I6 B) = Closure (B => cB. , $)

Drawing DFA

-----------------------------------draw dfa-------------------
Production to be numbered as follows:

E’ => E
E => BB (1)
B => cB(2) /d (3)

Canonical parsing table-

State Action Go-to

c d $ E B
I0 S3 S4 1 2

I1 accept
I2 S6 S7 5

I3 S3 S4 8
I4 r3 r3

I5 r1
I6 S6 S7 9

I7 r3
I8 r2 r2
I9 r2
