Design Training - Panasonic

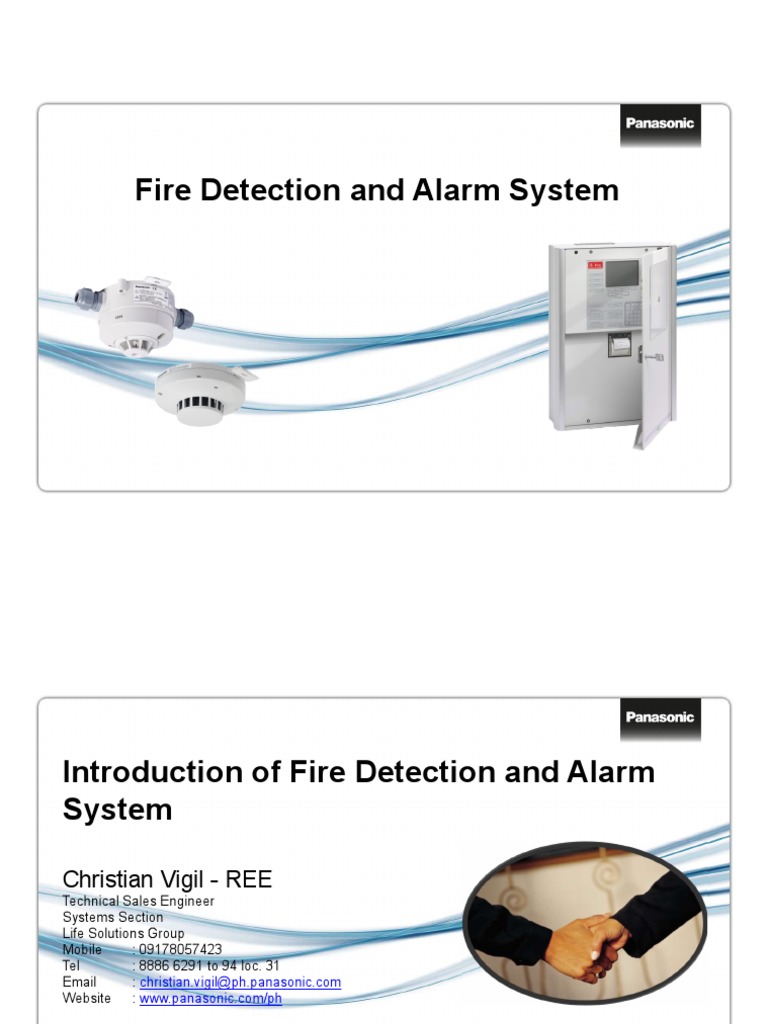

Fire Detection and Alarm System
1
Introduction of Fire Detection and Alarm
System
Christian Vigil - REE

Technical Sales Engineer
Systems Section
Life Solutions Group
Mobile : 09178057423
Tel : 8886 6291 to 94 loc. 31
Email : christian.vigil@ph.panasonic.com
Website : www.panasonic.com/ph
2
Objectives
1. To be knowledgeable with the basic of Fire Detection and Alarm
System (FDAS).
2. To know the standards, equipment and components, and principles
of Fire Detection and Fire Alarm Systems.
3. To locate, interpret, and apply standard requirements for Fire
Detection and Alarm System.
4. To understand the function of major fire alarm system components.
5. To know how to design and calculate the required spacing and
determine the correct placement of fire detection devices.
3
Introduction of Fire Detection and Alarm System
• Design Standard References

• Fundamentals of FDAS
4
What is NFPA?
The National Fire Protection Association - NFPA is a global,

non-profit organization that promotes safety standards, education,
training, and advocacy on fire and electrical-related hazards.
Established in 1896 as a way to standardize the use of fire
sprinkler systems, and the scope grew to include building design,
rescue response, electrical codes and other safety concerns
5
What is NFPA?
NFPA 70 – National Electrical Code NFPA 101 – Life Safety Code
6
What is NFPA?
NFPA 3 - Standard for

NFPA 72 Commissioning of Fire NFPA 4 - Standard for
National Fire Alarm Code Protection and Life Safety Integrated Fire Protection and
7
Systems Life Safety System Testing
RA 9514 – The Fire Code of the Philippines
Section 10.2.6.6 Fire Detection and
Communication System
1. Design shall be in accordance with NFPA

72 or the PEC
2. Notification signals for occupants to

evacuate shall be by audible and visible
signals
3. General Evacuation alarm signal shall

operate through out the entire building.
8
Type of Occupancy Manual Initiation Automatic Detection
Places of Assembly < 300 occupants > 300 occupants

Educational Occupancies Approved for manual activation If provided with automatic
system sprinkler system
Day Care Occupancies If housed in one room with Required
door/s opening directly outside.
Health Care Occupancies Not allowed Required
Residential Board and Allowed for small facilities Single Station Smoke
Care – Small Facilities Alarm in every enclosed
rooms
Residential Board and Not allowed Required
Care – Large Facilities
9
Detention and Correctional Required Optional but not required

Occupancies
Residential Occupancies – < 15 guests > 15 guests
Hotels and Dormitories
Residential Occupancies – < 3 storeys; provided with > 4 storeys or > 12
Apartment Buildings single or multi-station smoke apartment units
alarms per unit
Residential Occupancies – Shall be provided with single-
Lodging or Rooming Houses station smoke or heat detectors
Single and Two-Family Shall be provided with single-
Dwellings station smoke or heat detectors
10
Mercantile Occupancies Class A and B (> 279 sq.

meters gross area)
Business Occupancies Minimum requirement Optional
Industrial Occupancies < 25 occupants > 25 occupants
Storage Occupancies < 2,000 sq. meters low hazard All storage buildings except
building low hazard buildings
< 2,000 sq. meters
11
Introduction of Fire Detection and Alarm System
• Design Standard References

• Fundamentals of FDAS
12
What is Fire Detection and Alarm System?
Fire Detection and Alarm System (FDAS)
- a system or portion of a combination system that

consists of components and circuits arranged to monitor and
annunciate the status of fire alarm or supervisory signal-initiating
devices and to initiate the appropriate response to those signals.
13
Purpose of FDAS
D
e
t
e E
Alert
c v
t a
c
u
a
t
e
Life Safety
14
Why have a Fire Detection and Alarm System?
1. To provide for the safety of occupants in buildings,

2. To provide fire department with early notification of a fire in a
building and to direct them to the area of risk,
3. To reduce loss of property,
4. To reduce building damage,
5. To reduce the amount of business lost, and
6. Minimize risk to the public who attend unfamiliar properties.
15
Risk Assessment
The first step in the design process is the risk assessment.

It underpins the whole system strategy and therefore could be
argued as being the most important stage.
Risk assessment is the process of considering each part

of a building from the point of view of what fire hazards exist within
an area and what would happen in the event of fire or if explosion
were to occur.
16
Design Process
A fire alarm system should be designed to provide early

detection and warning of a fire. The designer must consider the
size, complexity and use of the building, and the degree of detection
and warning desired.
17
Design Process
Before looking at the details of the alarm system, it is

necessary to understand some of the concepts that are used to
assist the system designer. Buildings are divided up into sections in
three ways as far as fire safety engineering is concerned:
1. fire compartments,
2. detection zones and
3. alarm zones.
18
Design Process
Fire Compartments
A fire compartment
is a part of a building that is
separated from the rest of the
building by a fire resistant
structure so as to limit the
spread of fire within the
building.
19
Design Process
Detection Zones
Fire detection zones

are essentially a convenient way
of dividing up a building to assist
in quickly locating the position of a
fire. The zone boundaries are not
physical features of the building,
although it is normal to make the
zone boundary coincide with
walls, floors and specifically fire
compartments. 20
Design Process
Some specific recommendations with respect to detection zones are:
1. Zones should be restricted to single floors, except where the total

floor area of a building is less than 3000 ft².
2. Voids above or below the floor area of a room may be included in the
same zone as the room so long as they are both in the same fire
compartment.
3. Zones should not be larger than 20,000 ft² except for manual
systems in single storey open plan buildings, such as a warehouse,
where up to 100,000 ft² is allowed.
21
Design Process
Some specific recommendations with respect to detection zones are:
4. Fire detectors in an enclosed stairwell, lift shaft or the like should be

considered as a separate zone.
5. The search distance within a zone should be less than 300 ft in any
direction.
6. Zones should not cross fire compartments, a fire compartment can
contain several zones but a zone should not contain more than one
fire compartment.
22
Design Process
Alarm Zone
Alarm zones are only needed

in buildings where operation of the
alarms needs to be different in certain
parts of the buildings. If the only
requirement is to activate all the alarm
sounders to provide a single common
evacuate signal once a fire is
detected, then alarm zones are not
needed as the whole building is
considered one alarm zone. 23
Design Process
Some specific recommendations with respect to Alarm zones are:
1. The boundaries of all alarm zones should comprise fire-resisting

construction.
2. Signal overlap between alarm zones should not cause confusion.
3. The same alarm and alert signals should be used throughout a
building.
4. A detection zone must not contain multiple alarm zones, alarm and
detection zone boundaries should coincide. An alarm zone may
contain multiple detection zones.
24
Relevant Standards
The design, installation and testing of the fire detection and

alarm system shall comply with all state and local codes with no
exception.
Fire alarm system requirements are found in:
1. NFPA 72, National Fire Alarm Code

2. NFPA 101, Life Safety Code
3. National Building Code
4. Fire Code
25
Components of FDAS
1. Control Unit (FACP)

2. Manually activated
signaling boxes
3. Fire detectors
4. Alarm devices
5. Life Safety System
Interfaces
26
Fire Alarm Control Panel (FACP)
The Fire Alarm Control

Panel (FACP) is the "brain" of the fire
detection and alarm system. It is
responsible for monitoring the various
alarm "input" devices such as manual
and automatic detection components,
and then activating alarm "output"
devices such as horns, bells, warning
lights, emergency telephone dialers,
and building controls.
27
Fire Alarm Control Panel (FACP)
There are three main control

panel arrangements:
1. Conventional System
2. Addressable System
3. Semi-Addressable System
28
Conventional Fire Detection and Alarm System
In a conventional
system, one or more circuits
are routed through the
protected space or building.
Along each circuit, one or more
detection devices are placed.
29
Addressable Fire Detection and Alarm System
Addressable systems
represent the current state-of-
the-art in fire detection and
alarm technology. Each
intelligent fire alarm system is a
small computer overseeing and
operating a series of input and
output devices. In an
addressable system, each
initiating device is given a
specific identification or
"address". 30
Semi-Addressable Fire Detection and Alarm System
Semi-Addressable
System is the hybrid of
Conventional and Addressable
in one system.
31
Disadvantages of Conventional System
• Conventional systems can be expensive to install because of the

extensive amounts of wire that are necessary to accurately monitor
initiating devices
• Each detection device may require some form of operational test to
verify it is in working condition. Smoke detectors must be
periodically removed, cleaned, and recalibrated to prevent
improper operation.
• With a conventional system, there is no accurate way of
determining which detectors are in need of servicing.
• If a fault occurs, the "trouble" indication only states that the circuit
has failed, but does not specifically state where the problem is
32
occurring
Advantages of Addressable System
• Reduces the probability of False Alarm

• Enhanced Maintenance and Locating of Faults/Fire
• Ease of Modification
33
Initiating Devices
Smoke Detector
These devices are

designed to identify a fire
while in its moldering or early
flame stages.
34
Initiating Devices
Heat Detector
Heat detectors warn of

fire when the temperature in the
area reaches a certain level.
Placed in areas where smoke
detectors are not applicable such
as kitchens, parking, etc.
35
Initiating Devices
Beam Detector
Provide a cost effective

method of covering wide open plan
areas such as galleries and atria.
This detector consists of two
components, a light transmitter
and a receiver, that are mounted
at some distance up to 300 ft (100
m) apart.
36
Initiating Devices
Aspirating Smoke Detector
Air aspirating detectors are

extremely sensitive and are typically
the fastest responding automatic
detection method. This type of system
aspirates the smoke from various
locations into a tube where the smoke
is analyzed electro-optically by a line
of sight transmitter-receiver set.
37
Initiating Devices
Aspirating Smoke Detector
Aspirating systems should

be specified where protection is
required in areas such as cold
stores or areas where a very fast
response to fire is needed, and
while each sense point can be
considered a smoke detector
38
Initiating Devices
Flame Detector
The Optical detector is an

electronic device containing electro-
optical sensors that are sensitive to
electromagnetic radiation in the UV,
VIS, IR spectral bands. The Optical
detector "sees" the fire by detecting
the electromagnetic radiation
emitted by the combustion products
39
Initiating Devices
Flame Detector
Common uses include

locomotive and aircraft maintenance
facilities, refineries and fuel loading
platforms, and mines.
40
Detectors Sub-Classification
To further break down the detector groupings, there are
two sub-groups known as "Spot type" and "Line type" initiating
devices. The NFPA definitions of Spot and Line type are as follows:
Spot type device - A device in which the detecting element is

concentrated at a particular location. Spot type detectors have a
maximum theoretical rated coverage of 900 sq. ft (30 ft x 30 ft) in
large open rooms.
Line type device - A device in which detection is continuous along

a path. The maximum theoretical rated coverage area for the
projected beam detector can be as large 20,000 sq. ft. 41
Positioning of Smoke and Heat Detector
The number of heat and/or
smoke detectors required in a given
room will depend on the area and
geometry of the room and the
limitations of the equipment.
For general areas the
spacing between any point in a
protected area and the detector
nearest to that point should not
exceed 7.5 m for a smoke detector
and 5.3 m for a heat detector.
42
In order to ensure that coverage is provided into the corners
of rooms and to ensure that there is no gap at the junction point of
multiple detectors, spacing have to be reduced.
43
To ensure complete coverage for square layouts, spacing
between detectors and walls should be reduced to 5 m for a smoke
detector and 3.5 m for a heat detector.
44
To ensure complete coverage, spacing between detectors
should be reduced to 10 m between smoke detectors and 7 m
between heat detectors.
45
For corridors less than 2 m wide, only the center line need
be considered, therefore it is not necessary to reduce detector
spacing in order to provide complete coverage. Therefore for smoke
detectors spacing becomes 7.5 m from a wall and 15 m between
detectors. For heat detectors, the spacing becomes 5.3 m to a wall
and 10.6 m between detectors.
46
Initiating Devices
Manual Call Point
Manual call points or pull

stations allow building occupants to
signal that a fire has been observed
as they leave a building. The
general design philosophy is to
place stations within reach along
paths of escape.
47
General Guidelines on the Manual Call points
1. The height of the manual fire alarm boxes shall be a minimum of
42 inches (1067mm) and a maximum of 54 inches (1372 mm)
measured vertically, from the floor level to the activating handle or
lever of the box. Manual fire alarm boxes shall be red in color.
2. Manual call points should be located on escape routes, at all exits
from each floor at the stair and corridors.
3. Manual fire alarm boxes should be located not more than 5 feet
(1524mm) from the entrance to each exit.
4. Manual call points should be located at each door opening to the
exterior of the building.
48
General Guidelines on the Manual Call points
5. Manual call points should be located at the exit from each High-
Hazard Occupancy
6. Manual pull stations should be located so that the travel distance
to any station from any point in the building does not exceed 200
feet.
7. Manual fire alarm boxes should be located in each story including
basements.
8. All manual pull stations should be located to be readily accessible,
unobstructed, and visible.
9. For general applications, call points should be located such that
no one needs to travel more than 45 m to reach the nearest call
point. 49
Notification Devices
Upon receiving an alarm notification,

the FACP must now alert someone that an
emergency is underway. Fire alarm systems
utilize a variety of devices to alert building
occupants and fire authorities within the
protected area as well as outside that an
event or fault has occurred. These devices
include:
1. Audible alarms (horns, bells, buzzers, etc.)

2. Visual alarms (strobes, etc.)
3. Voice Evacuation systems 50
Audible Alarms
Sound levels should

generally be 65dBA or 5dBA above
persistent background noise
levels. This may be reduced to
60dBA in rooms smaller than 600 ft2,
in stairwells or in specific limited
points of the building.
51
In addition to these general requirements the following

specific requirements should also be noted:
1. A level of at least 75dBA at the bed head is required to wake

sleeping occupants.
2. At least one sounder is required per fire compartment.
3. All of the sounders utilized in a building should emit a similar
noise.
52
Voice Notification
Voice systems provide an effective means

of emergency notification, because:
1. Voice messages provide more
information than a tone or bell
2. Effective in causing a desired reaction
from occupants
3. Reduce panic during emergencies
4. Accommodates multiple threats (fire,
security, bio, weather)
53
Emergency Controls
Emergency Shutdown and Diagnostic Functions
Fire alarm systems can be designed to control the

operation of the building service equipment to minimize the spread
of fire and smoke.
54
Emergency Controls
Emergency Shutdown and Diagnostic Functions
• HVAC Shutdown
• Door Holders
• Elevator Recall
• Water Flow Detectors
• Activating smoke extract
• Activating discharge of fire extinguishing systems
• Fire Pump Supervision
• High/Low Air Pressure Supervision
• Sprinkler/Standpipe Valves
55
Supplementary Equipment
Power Units
The fire alarm system shall be provided with a reliable

primary and secondary power supply. Both shall be reliable and
have adequate capacity for the application in accordance with
NFPA 72
56
Supplementary Equipment
Power Units
The secondary power supply must supply energy to the
system within 30 seconds and can be:
1. Battery
2. Emergency generator
The secondary power supply shall have sufficient capacity

to operate a local, central station or proprietary system for 24
hours under maximum load and then, at the end of that period,
operate all alarm modification appliances used for evacuation or to
direct aid to the location of an emergency for 5 minutes.
57
| Special Announcements
58
| P R O M O M E C H AN I C S :
• Every P10,000 worth of purchase for the ff Panasonic
ELECTRICAL PRACTIONER’S items will be equivalent to One (1) Raffle Entry:
APPRECIATION RAFFLE •
•
•
Switches and Outlets Miniature Circuit Breaker (MCB)
Door Chime and Push Button
Smoke Alarm
Factory Line System
YEAR 3 • Invoice can be named either the PARTICIPANT or the

COMPANY he/she represents
• Invoice date must be from Jan 1, 2021 to Nov 30 2021
• All Raffle participants can win up to two (2) items.
• Participant who will submit a Million worth of invoice
(single or cumulative) will win a Guaranteed Prize and can
still win one (1) Major raffle prize.
• Entries will be submitted and validated thru the Google
Form Link which will be sent to all Participants.
• This raffle promo is open only for registered IIEE
Members in any classification.
• Raffle Draw : Dec. 15, 2021 - Jan. 30, 2022
• For More Info contact:
• Christian Vigil | 09178057423
christian.vigil@ph.panasonic.com
• Jeff Santiago | 09175509913
jf.santiago@ph.panasonic.com 59
• Scan the QR code to Join the Raffle
GUARANTEED
PRIZE
Thank You!
60
www.panasonic-fire-security.com
61
Panasonic Fire Alarm System Product Line up
2021
62
5
6
64
Introduction
 56 years of experience
 + 15,000 buildings installed
 Complete product portfolio
• Semi – Addressable
• Addressable
• Aspirating
• Explosion Proof / Intrinisically Safe
• Wireless
65
Product Origin
Aspirating Systems in Norway
Control panels in Sweden
Detectors in Japan
Manual call points in UK
Bases in China
66
Control and Indicating Equipment – EBL 512 G3
 4 COM loops
 1020 COM loop addresses, 512 to 1020 alarm points
 Up to 30 panels in a TLON network=> 30k alarm points
 Network in Single/Multi-master configuration
 Redundant network communication for highest security
 Remote access via any internet connected terminal
 Wide Enclosures for Batteries
 Integration with conventional systems.
67
Control and Indicating Equipment – EBL 128
 One COM loop

 255 COM loop addresses, max 512 alarm points
 Remote access via any internet connected terminal
 Wide Enclosures for Batteries
 Integration with conventional systems.
68
Display Unit
 Selectable Feature as:
 Presentation Unit
 Fire Brigade Panel
 Alert Annunciation Unit
 Color Touch Screen 10.1”
 Multi-Language Support
 Up to 30 units per Control Panel
 1200 m maximum farthest unit
 Redundant communication for highest security 69
Addressable Detectors
 State of the Art Detectors for highest Safety
 Advanced Mode for selected detectors capable of reducing nuisance alarm by 46%
 Automatic Service Signal to mimize maintenance Cost.
 Sensitivity Modes and Algorithms programmable via EBLWin
4400 4401 4402 3308 3309 3309

Analog Multidetector Analog Photoelectric Analog Analog Heat Enclosed Analog Heat Analog Mult Detector with
Smoke Detector Multidetector with Detector Detector Isolator 70
CO
Conventional Detectors
4318 4452
Combination Heat Detector Photoelectric Smoke Detector
Class A1 R
71
False Alarm Proof – Reduction of Mesh from 0.5mm to 0.3mm
18 months long comprehensive investigation showed that 78 % of all nuisance alarms were caused by dust or insects
Dust ø 0.5 mm String of Spider ø 0.5 mm Smallest Insect ø 0.5 mm
72
Advanced Mode - Learning
A special learning function will automatically adapt to the Fire Alarm Algorithm suitable for the
conditions in the area where the detector is mounted. Smoke/Steam Mode
Clean Mode Normal Mode
Cooking/Welding Mode
74
Advanced Mode – Artificial Intelligence
Secure and Real Fire Alarms and at the same time Smoke/Temp
Reduced Nuisance alarms by up to 46 %* Smoke
• Combined Smoke and Heat sensing for judgement Temp
• Variable Sensitivity and Time Delay based on ΔT and Normal

Adjusted
ΔSmoke just Before and After the alarm level is
reached Time
* Gerhard-Mercator-Universität-GH Duisburg
75
Sensitivity compensation and Service signal
Week average
value
76
Detector Bases
2324 3312 3379 4412F 4383

Conventional Base Analog Base Addressable Sounder Base Base for Isolator Type Light Indicator Base Filler
77
Addressable Manual Activation / Deactivation Devices
4433 4439 4445

Addressable Manual Call point IP66, Enclosed addressable Manual Addressable Local Alarm
with isolator Call point with isolator Acknowledge Unit
78
Addressable Audio and Visual Notification Devices
4480 4481 4482 4487 2218

Addressable Wall VAD Addressable Ceiling VAD Addressable VAD with siren Addressable Siren External Indicator (LED)
with isolator with isolator and isolator With isolator
79
Interfacing | Monitoring | Expansion Modules
4461 4462 4464 4585

Multipurpose I/O Unit Dual Input Unit 2 Voltage Output Board COM-Loop Repeater
 Built-in isolator  Built-in Isolator  Board for external supply  350mA Loop
 1*Zone line input  2*Monitored inputs  Auto Addressing  Auto Addressing
 1*Monitored input  IP65 housing  2 Monitored Voltage Output  Up to 16 per CIE
 1*Opto coupler input  1 Special Voltage output for  Up 2km extra loop
fire door closing
 2*Relay outputs
 1 Relay Output
 IP65 housing 80
 1 input
Addressable Wireless System
 Ideal in buildings where it is difficult to hide cables and where extensions are required.
 170m transmission Range | 868MHz – 869MHz | 10mWerp | TDMA/FSK | 6yrs Battery
 High Flexibility: Up to 4 Base Station per COM loop and up to 16 wireless units per station
4611 4614 4620 4613

Photoelectric Smoke Detector Manual Callpoint Base Station Sniffer Tool 81
with Sounder
Explosion Proof and Intrinsically Safe (IS) Devices
 Analog and Conventional Type Detectors
 IS Barrier unit and Galvanic Isolator Modules for panel integration..
 EX Class: II 1G Ex ia IIC T5 Ga
 Up to IP 66/67
2840 2841 2842 2842 6295 to 6298

IS Analog Photoelectric Smoke IS Analog Heat Detector Conventional IS Manual IS Enclosed Heat Derector
IS Barrier Unit
82
Detector Call Point
Flame Detectors - Talentum
• Compliant with EN54-10 Class 1 (25 m)

• Certificates from VdS and LPCB
• 3 different models
• IR3
• UV/IR2
• IR3 – IS (Intrinsically Safe)
83
Aspirating Detectors - Elotec
 Ideal for Early detection of Smoke and Fire in:
 Heavy Industries
 Agriculture
 Clean rooms
 Server Rooms
 Modules for different types and classification of
detection.
 Software based programming and commissioning.
 Can be configured as control panel Fire Alarm.
84
Beam Detectors – Fireray 50R/100R
 Single Compact Housing
 Working Optical Path for Detector Alignment
 Two Models 50m and 100m version
 12 – 24VDC Operation
 Low Current Consumption
 Robust Construction
 Approved to EN54:12 and UL268
85
Beam Detectors – Fireray 5000
 For large areas where point detectors are not suitable
 Motorised Reflective beam detector
 Configurable between 8 and 100 meters
 Programmable sensitivity
 2 detectors per controller (low level)
 Auto-align by integral laser system
 Movement and contamination compensation
 Approved according to EN54:12 by VdS
3403/3405
Reflective Beam Detector FireRay 5000
86
Beam Detectors – Fireray 3000
 End-to-end beam detector
 When the detection path is narrow or when the
building have reflective surfaces
 Configurable between 5 and 120 meters
 Programmable sensitivity
 2 detectors per controller (low level)
 Integral laser alignment system
 Automatic gain control for drift compensation 3406
End-to-end beam detector
Fireray 3000
 Approved according to EN54:12 by VdS
87
Fiber Optics Linear Heat detection – AP Sensing
DTS utilizes the Raman effect to measure temperature. An

optical laser pulse sent through the fiber results in
some scattered light reflecting back to the transmitting
end, where it is analyzed. The intensity of the Raman
scattering is a measure of the temperature along the
fiber.
The position of the temperature reading is determined by
measuring the arrival timing of the returning light pulse
similar to a radar echo. 88
Wide area of applications
Traffic Tunnels Cable Trays Parking Garages Production Halls
Utility Tunnels Coal Storages Floating Roof Tanks Subway Station

Rail Tunnels
• Warehouses / Cold Storage • Mills
• Composting Facilities • Mining
• Paint / Chemical Production • Bus Duct Monitoring / Data
Conveyor Belts Center
• (Wooden) Roof Structures 89
• Suspended Ceilings
Product Overview
90
Commissioning
 User Friendly Interface
 Auto – Addressing Function
 New installation
 Extension
 Replacing detectors
 Generate SSD (Site Specific Data)

 Simulation of Wire Length Capacity
 Computation of Battery backup rating
based on standby requirements
91
Unique Maintenance Concept
Maintenance and upgrade of any Fire Alarm systems will continue for many years after
the installation
 Only possible to service a system with a HW key

 Keys only available for trained personnel
 Possible to trace who has done changes to a
system
 Highest security for the building owner EBL Win Key
92
EBL Graphics
• Graphic presentation SW for EBL Fire Alarm

Systems
• Disable detectors or zones directly via the
graphic interface
• Automatic reenable
• View live camera feeds (onvif)
• Alarm texts and emergency instructions for
each alarm point
• Real time sensor values available
• Zoom and pan
93
EBL Web
 Connect remotely to an EBL System

 Secure log in with different user levels
 E-mail notifications at predefined events,
e.g. service, fault, alarm etc
 Presentation of:
 Fire Alarm
 Pre-warning
 Fault
 Disablement
94
EBLWeb Monitor
• Ideal for distributed installations

• Presents all information in one
browser window
• Map and list view available
• Simple configuration with
included tool
• Requires EBLnet license and
one extra WEB server 95
EBL512 G3 system overview
Modbus
96
LISTINGS
98
What we can offer:
• Full System Proposal (Supply + Install)
• Fire Alarm Design
• Full CAD Layout
• Spec-in Assistance
• Estimation for Aspirating Systems
• Installation supervision
• Training / Orientation (Pre/Post)
• Technical Support
99
PROJECT REFERENCE - LOCAL
100
JG Summit Petrochemical Corporation – Batangas
 Ongoing Installation:
 Chemical Area
 Warehouse 1 and 2
 Laboratory
 3 Control Panels EBL512
 Combination of Addressable and
Explosion proof system
 Integration with Security Management
System via Modbus 101
Bridgestone Factory - Cavite
 New Production Facility

 Installed Fully Addressable
EBL512 System
 Expolosion proof detectors on
hazardous areas.
 Phase 2 rehabilitation to old facilities
and production plant.
102
EMI-Yazaki Manufacturing Plant, Cavite
 Integration with OLD Conventional Type

Fire Alarm System
 6 Conventional Control Panels
converted into 1 Addressable Panel.
 70 Zones with ~ 500 Detectors.
 Phase 3 on going – Conversion to Fully
Addressable System and TLON
connection.
103
PEPSI-COLA Manufacturing Plant, Muntinlupa
 FDAS Installation to New Warehouse

and Building Expansion.
 EBL128 System Installed.
 ~ 100 Detectors and Accessories.
 High Ceiling installations using beam
detectors.
104
105
106
107
SM Legazpi Terminal – Bicol
 FDAS Installation to Transport terminal

and exterior area.
 EBL128 System Installed.
 3 days installation and turnover.
 Next phase integration to main building
conventional system.
108
109
110
PROJECT REFERENCE - GLOBAL
111
S-Group Logistics Center Helsinki, Finland
 Europe’s largest building

 193 000 m2 / 3 400 000 m3
 30 Control Panels
 6 000+ Point detectors
 350 + Aspirating detectors
• Operating temperatures down to - 26°C
112
Data Center Helsinki, Finland
 Office Building and 4 data halls

 500+ Aspirating Detectors
 1 000+ Point Detectors
 6 Control Units
 Class A sensitivity
113
Metro Warzsaw, Poland
 8 Stations
 22 Control Panels
 Optical TLON Network
 3 300 point detectors
 17 WEB Servers
 Advanced Fan Control System
114
Nagoya Airport, Japan
 9 million passengers yearly

 219.000 m2
 20 Control panels
 15 000 addresses
 10 000 detectors
115
Thank You!
116
117

Design Training - Panasonic

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Design Training - Panasonic

Uploaded by

Copyright:

Available Formats

Fire Detection and Alarm System

Christian Vigil - REE

• Design Standard References

The National Fire Protection Association - NFPA is a global,

NFPA 70 – National Electrical Code NFPA 101 – Life Safety Code

NFPA 3 - Standard for

1. Design shall be in accordance with NFPA

2. Notification signals for occupants to

3. General Evacuation alarm signal shall

Places of Assembly < 300 occupants > 300 occupants

Detention and Correctional Required Optional but not required

Mercantile Occupancies Class A and B (> 279 sq.

Industrial Occupancies < 25 occupants > 25 occupants

• Design Standard References

Fire Detection and Alarm System (FDAS)

- a system or portion of a combination system that

1. To provide for the safety of occupants in buildings,

The first step in the design process is the risk assessment.

Risk assessment is the process of considering each part

A fire alarm system should be designed to provide early

Before looking at the details of the alarm system, it is

Fire detection zones

Some specific recommendations with respect to detection zones are:

1. Zones should be restricted to single floors, except where the total

Some specific recommendations with respect to detection zones are:

4. Fire detectors in an enclosed stairwell, lift shaft or the like should be

Alarm zones are only needed

Some specific recommendations with respect to Alarm zones are:

1. The boundaries of all alarm zones should comprise fire-resisting

The design, installation and testing of the fire detection and

Fire alarm system requirements are found in:

1. NFPA 72, National Fire Alarm Code

1. Control Unit (FACP)

The Fire Alarm Control

There are three main control

• Conventional systems can be expensive to install because of the

• Reduces the probability of False Alarm

These devices are

Heat detectors warn of

Provide a cost effective

Aspirating Smoke Detector

Air aspirating detectors are

Aspirating Smoke Detector

Aspirating systems should

The Optical detector is an

Common uses include

Spot type device - A device in which the detecting element is

Line type device - A device in which detection is continuous along

Manual Call Point

Manual call points or pull

Upon receiving an alarm notification,

1. Audible alarms (horns, bells, buzzers, etc.)

Sound levels should

In addition to these general requirements the following

1. A level of at least 75dBA at the bed head is required to wake

Voice systems provide an effective means

Emergency Shutdown and Diagnostic Functions

Fire alarm systems can be designed to control the

Emergency Shutdown and Diagnostic Functions

The fire alarm system shall be provided with a reliable

The secondary power supply shall have sufficient capacity

YEAR 3 • Invoice can be named either the PARTICIPANT or the

 One COM loop

4400 4401 4402 3308 3309 3309

 1Zone line input  2Monitored inputs  Auto Addressing  Auto Addressing
