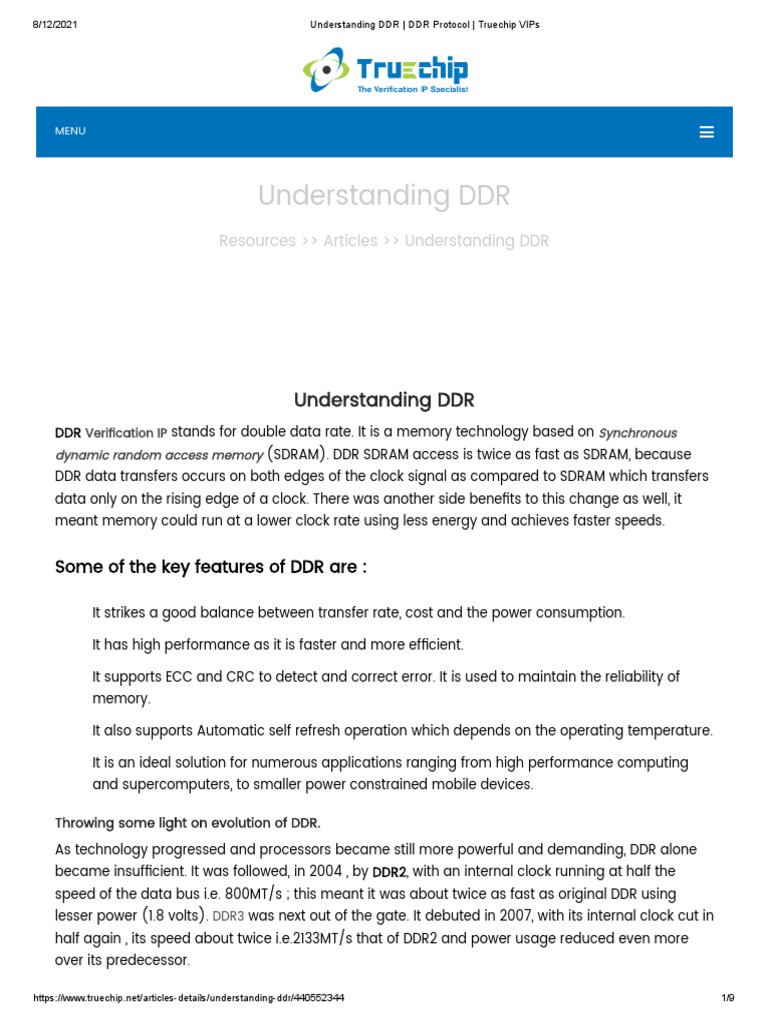

Understanding DDR
DDR Verification IP stands for double data rate. It is a memory technology based on Synchronous
dynamic random access memory (SDRAM). DDR SDRAM access is twice as fast as SDRAM, because
DDR data transfers occurs on both edges of the clock signal as compared to SDRAM which transfers
data only on the rising edge of a clock. There was another side benefits to this change as well, it
meant memory could run at a lower clock rate using less energy and achieves faster speeds.

Some of the key features of DDR are :

It strikes a good balance between transfer rate, cost and the power consumption.

It has high performance as it is faster and more efficient.

It supports ECC and CRC to detect and correct error. It is used to maintain the reliability of
memory.

It also supports Automatic self refresh operation which depends on the operating temperature.

It is an ideal solution for numerous applications ranging from high performance computing
and supercomputers, to smaller power constrained mobile devices.

Throwing some light on evolution of DDR.

As technology progressed and processors became still more powerful and demanding, DDR alone
became insufficient. It was followed, in 2004 , by DDR2, with an internal clock running at half the
speed of the data bus i.e. 800MT/s ; this meant it was about twice as fast as original DDR using
lesser power (1.8 volts). DDR3 was next out of the gate. It debuted in 2007, with its internal clock cut in
half again , its speed about twice i.e.2133MT/s that of DDR2 and power usage reduced even more
over its predecessor.

https://www.truechip.net/articles-details/understanding-ddr/440552344 1/9
8/12/2021 Understanding DDR | DDR Protocol | Truechip VIPs

The DDR4 came into existence in 2014, which has transfer rate up to 3200MT/s with voltage of 1.2
volts.

The evolution of DDR has exponential growth with applications requiring more memory, so the
bandwidth
MENU
increased multiple folds from DDR to DDR4 from 1GB to 16GB.

In 2019, the latest version of DDR i.e. DDR5 is expected to be launched.

Introduction to DIMMs
A DIMM (dual-in-line memory module) is a double SIMM (single-in-line memory module). Like
SIMM, a DIMM is a module that contains one or several random access memory chips on a small
circuit board that connect it to the computer motherboard.

A SIMM typically has 32 data bit path to the computer that requires 72-pin connector. For DDR
SDRAM chips, which have a 64 data bit connection to the computer, SIMMs must be installed in in-
line pairs, since each supports a 32 bit path.

DIMMs eliminated the practice of pairing two SIMMs as one. A single DIMM can be used instead.

As faster dynamic random access memory was developed, DIMMs circuit boards evolved. Another
evolution in DIMMs is the use of cooling fans which help vent the heat into the computer enclosure
and away from the mortherboard and CPU.

DIMMs are not backward compatible to SIMMs. Application of DIMMs is not limited to PCs, it is
applied to variety of electronic products that include printers, netbooks and networking hardware.

Different types of DIMMs

Various types of DIMMS are as follows:

Un-buffered Dual In-line memory module (UDIMM).

Small-outline Dual in-line memory module (SO-DIMM),

https://www.truechip.net/articles-details/understanding-ddr/440552344 2/9
8/12/2021 Understanding DDR | DDR Protocol | Truechip VIPs

Micro Dual In-line memory module (Micro-DIMM).

Registered Dual In-line memory module (RDIMM).

Fully Buffered Dual In-line memory module (FB-DIMM)

MENU
and Load Reduced Dual In-line memory module (LRDIMM).

Let’s see the differentiating features between the DIMMs:

UDIMM

It is a type of memory chip used mostly in desktop, laptops and mobile systems. It run faster than
Registered memory (RDIMM) and cost less, but they are not quite stable as RDIMMs. In UDIMMs each
chip of the memory module is addressed individually and in parallel by the memory controller inside
the CPU. The memory chips in use today are a type of UDIMM.

In UDIMM there is no buffering present on address and data-path between the memory controller
and the DRAM. The memory controller sends all the commands directly to the DRAMs.

SODIMM and Micro DIMMs

Space is at premium in notebook and small-form-factor desktop computers, making it difficult to

find room for full sized memory modules. As a result, these computers use memory modules with
smaller circuit boards. SO-DIMMs make it possible for a small computer to have memory capacity
comparable to full-sized computers. One can identify the SO-DIMMs primarily by their size, a
standard DIMM is slightly over five inches long and SO-DIMM is slightly over 2.5 inches long.

With the more functionality included in the next generation notebooks, the less space will remain for
DRAM itself. Therefore need for DIMMs with smaller form factors and same densities as SO-DIMMs
arose which are pre-dominantly used in notebooks. Hence, Micro-DIMM came into picture. Micro-
DIMM is a memory module with nearly 50% higher bit density which requires 35% less board space
than the SO-DIMM at the same memory density.

With the Micro- DIMM even new applications like ultra-mobile PCs and extremely slim and compact
notebook designs are enabled.

So basically, SO-DIMM and micro – DIMM are basically Un-buffered DIMMs, with smaller area and
capacity.
https://www.truechip.net/articles-details/understanding-ddr/440552344 3/9
8/12/2021 Understanding DDR | DDR Protocol | Truechip VIPs

MENU

FB-DIMMs

Fully Buffered DIMMs are used in servers to increase reliability and to access more memory within a
system. Fully buffered DIMMs have an AMB (Advanced memory buffers). The controller sends all the
memory request through AMB. Unlike other buffers this has a serial interface to the memory
controller, this allows greater data width without having to increase number of pins on the memory
controller Ideally, this approach reduces the physical number of signal lines at the input of DIMM and
therefore, uncluttered the physical wiring with increase in number of memory module per system. .
This method is only used in DDR2 modules.

RDIMMs

Registered DIMMs is dual in line memory module with improved reliability. The RDIMM uses a
hardware register known as registered clock driver (RCD) that buffers the control signals and not
the application data to the memory module. This buffering adds a clock cycle and uses more power

https://www.truechip.net/articles-details/understanding-ddr/440552344 4/9
8/12/2021 Understanding DDR | DDR Protocol | Truechip VIPs

but handles the heavier electrical loads placed on high-speed, high-density module better than
tradition DIMMs. The extra clock cycle effect is over-shadowed by buffering as it reduces the load on
memory controller as it points to the dedicated registers rather than accessing the DRAM directly.

This
MENU
improved stability and scalability comes at a higher price, thus why RDIMMs are found mostly in
servers and not desktop or laptop computers.

LRDIMMs

LRDIMMs or Load-Reduced DIMMs are a new type of industry standard memory module for servers.
They are similar to Registered DIMM which are built on a memory module printed circuit boards and
uses the same type of DRAM chips. That is where the similarities end, as LRDIMM function differently
from Registered DIMMs.

LRDIMMs add a special memory buffer chip to the bus, affixed to each module. In RDIMM the
memory bus functions in parallel mode and all DRAMs are controlled by memory controller. As more
and more DRAMs are built into a RDIMM, the electrical loading of the memory module increases
which results in memory speed drops. LRDIMMs can navigate outside of these restrictions through
the use of memory buffers. All command and control signals are transmitted to the RCD which
transfers to the memory buffer, which then handles all the reads and writes to the DRAM chips.

Basic architectural insights:

The DIMM architecture provides two unique features, namely Address Mirroring and output inversion.

Address Mirroring:

When routing connections are done it requires a lot of vias, conductor corners, long traces etc.

https://www.truechip.net/articles-details/understanding-ddr/440552344 5/9
8/12/2021 Understanding DDR | DDR Protocol | Truechip VIPs

It does not matter how you physically route RAM array, what matters is that data written to specific
location must be read from that same location, not another one.

Thus, generally, you can connect address and data pin groups of single or multiple RAM chips in any
way
MENU
which you see the best for routing to have shortest tracks and minimal number of vias.

The Command and Address bus pins on the DRAM are defined in a manner that allows for these
short trace lengths. This allows the most flexibility with these pins. Even Rank DRAM pins are wired
straight, with no mismatch between the connector pin assignment and the DRAM pin assignment.
Some of the Odd Rank DRAM pins are cross wired accordingly whether they have some special
function (secondary functions).

Address mirroring allows for easier routing by flipping specific pairs of address bits on Odd Ranks.

Memory Controller has to switch the address bits in an MRS command to accommodate address
mirroring for correctly configuring the DRAM.

Output Inversion

In RDIMMs and LRDIMMs, output inversion is enabled inside RCD i.e. Registered Clock Driver by
default. It is done to conserve power.In order to ensure that the DRAM receives the correct un-
inverted MRS bits, the host-to-register-to-DRAM MRS programming is done in two steps.

Firstly, the A-side DRAMs are programmed using non-inverted addresses from the host.

Then, B-side DRAMs are programmed using inverted addresses for the invertible address signals
and non-inverted addresses for the non-invertible address signals from the host.

https://www.truechip.net/articles-details/understanding-ddr/440552344 6/9
8/12/2021 Understanding DDR | DDR Protocol | Truechip VIPs

MENU

Configuration Schemes for DIMMs:

The table below shows different configuring methods for RDIMM and LRDIMM.

Configuring , Register Clock Driver(RCD) using Register Control Word (RCW).

There are two methods to configure RCD.

First method: The memory controller configures internal registers of RCD known as Register Control
Word by sending Mode Register 7 command. For reads, an RCW command is sent by the controller
to the RCD to move the specific register configuration into a special multi-purpose register in the
DRAM. Then the data of MPR is read out onto Controller.

Second Method is through Inter Integrated Circuit also known as I2C.There is a SPD or Serial Presence
Detect module on the DIMMs. The entire configuration is set into the SPD module. Through I2C the
configuration is sent from SPD to RCD. The memory controller sends all the command to RCD, which
sends to the DRAM.

Configuring Data Buffer using Buffer Control Word:

The memory Controller configures Data buffer through RCD.

RCD configures the internal registers of Data Buffer using Buffer Control Word.

Mode Register 7 is used for configuring DB.

When A[12] bit of Mode Register 7 is 1 , it’s used for configuring Data Buffer , otherwise for configuring
RCD.

The microcontroller can read out the DB buffers configuration by sending buffer control word
command through RCD , to read out from the multi-purpose register of data buffer.

I2C configures Data Buffer through RCD.

Configuring DRAM using MRS:

Memory Controller sends all the configuration of DRAM to RCD through MRS commands i.e MRS0 to
MRS6.
https://www.truechip.net/articles-details/understanding-ddr/440552344 7/9
8/12/2021 Understanding DDR | DDR Protocol | Truechip VIPs

RCD send all the configurations to the DRAM.

The configuration set in DRAM can be read out through Multi-Purpose Register (MPR) Read
command.

MENU
DRAM and RCD both support even parity.

Future RoadMap:

Non-volatile Dual inline memory modules are a brand new and very different storage technology.
NVDIMMs replaces the traditional memory sticks in a server and allows the data to remain in place
when the power is removed from the system. This is achieved by adding flash to the DRAM on the
DIMM. When power goes away, either deliberately or by a failure, the data from the DRAM is copied
into a NAND flash memory. This allows the data to be instantly available, without reloading from the
device, when the power is restored.

There are two distinct NVDIMM models available, both promises the huge performance benefits and
are poised to impact everything from data centers to Smartphone.

One type- NVDIMM-N uses a lot of DRAM, about 16GB per DIMM, and matches with an equal amount
of flash. This type of DIMM is fast as data transfers at DRAM speeds back and forth. It is best suited
for use where the speed of access to persistent data is very important but it is limited to around a
terabyte if total memory today.

Another type of NVDIMM, NVDIMM-F uses a small amount of DRAM as a buffer to a very large flash.
This DRAM bus is used to read and write into the large flash memory, as much as several terabytes
per DIMM pair.

NVDIMM-F is slower than NVDIMM-N. Application of Non-volatile DIMM cards is , it may be used to
extend system memory or supply high performance storage. By end of 2018 another type of
NVDIMM-P is to be launched.

For any query please contact us

Contact Now

About Truechip Quick Links Subscribe for

Truechip newsletter
Latest
News

Truechip, the Verification IP Upcoming

Your Email ID
specialist, is a leading provider Events
of Design and Verification Careers Submit
solutions - which help ?you,

https://www.truechip.net/articles-details/understanding-ddr/440552344 8/9
8/12/2021 Understanding DDR | DDR Protocol | Truechip VIPs

accelerate your
design, lowering Partners &

the cost and the risks Alliances

associated with the Terms of
development of your ASIC, FPGA Use
MENU and SOC.
Privacy
Cookies

Copyright by Truechip © 2020 All Rights Reserved.

https://www.truechip.net/articles-details/understanding-ddr/440552344 9/9
