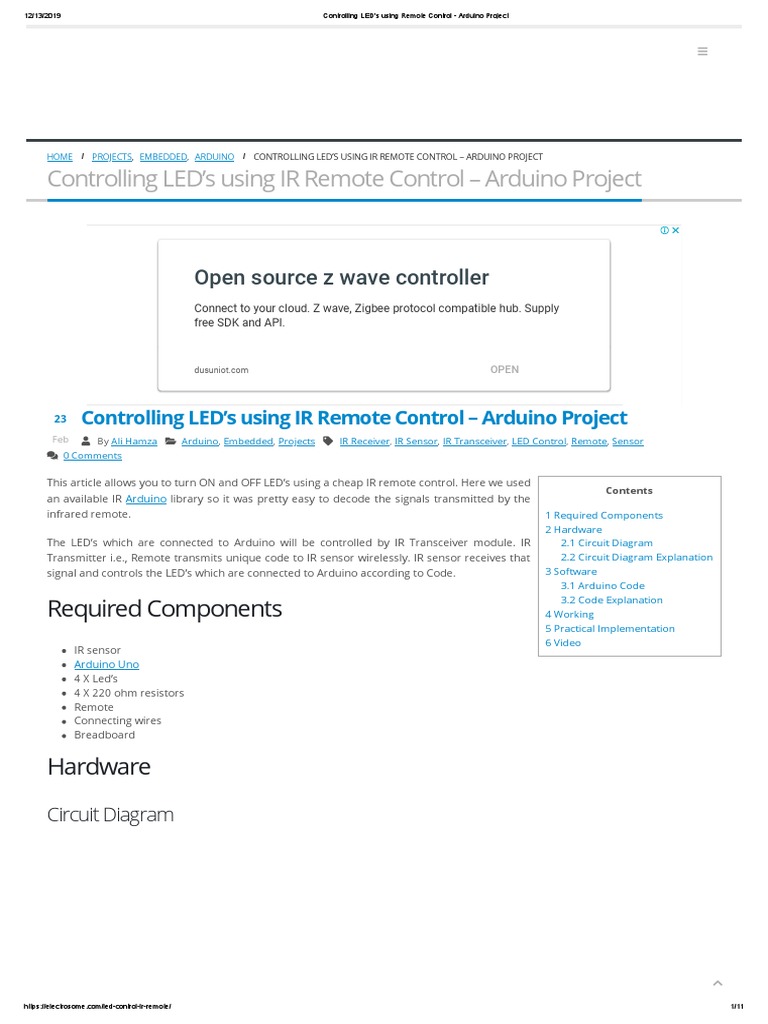

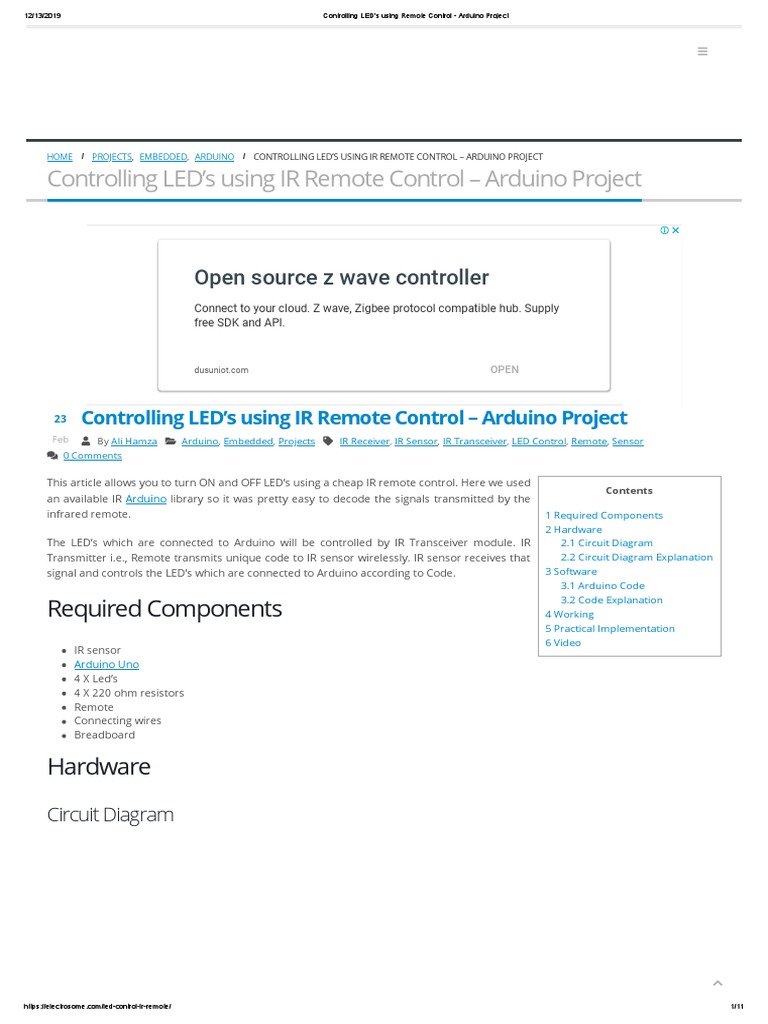

Controlling LED’s using IR Remote Control – Arduino Project

Open source z wave controller

Connect to your cloud. Z wave, Zigbee protocol compatible hub. Supply
free SDK and API.

dusuniot.com OPEN

23 Controlling LED’s using IR Remote Control – Arduino Project

Feb  By Ali Hamza  Arduino, Embedded, Projects  IR Receiver, IR Sensor, IR Transceiver, LED Control, Remote, Sensor
 0 Comments

This article allows you to turn ON and OFF LED’s using a cheap IR remote control. Here we used
Contents
an available IR Arduino library  so it was pretty easy to decode the signals transmitted by the
infrared remote. 1 Required Components
2 Hardware
The LED’s which are connected to Arduino will be controlled by IR Transceiver module. IR 2.1 Circuit Diagram
Transmitter i.e., Remote transmits unique code to IR sensor wirelessly. IR sensor receives that 2.2 Circuit Diagram Explanation
signal and controls the LED’s which are connected to Arduino according to Code. 3 Software
3.1 Arduino Code

Required Components
3.2 Code Explanation
4 Working
5 Practical Implementation
6 Video
IR sensor
Arduino Uno
4 X Led’s
4 X 220 ohm resistors
Remote
Connecting wires
Breadboard

Hardware

Circuit Diagram

https://electrosome.com/led-control-ir-remote/ 1/11
12/13/2019 Controlling LED's using Remote Control - Arduino Project

LED Control Using IR Receiver – Circuit Diagram

Circuit Diagram Explanation

First of all, connect the LED’s with Arduino. Connect the positive side of the four LED’s to the pins 7, 6, 5 and 4 of Arduino and the
negative side of LED’s to the GND of Arduino through the 220 ohm resistors. The resistors are necessary because they prevent the
excess amount of current from owing through the LED’s.

After that, make the connections of the IR sensor with the Arduino as follows

Open source z wave controller

Connect to your cloud. Z wave, Zigbee protocol compatible hub. Supply
free SDK and API.

dusuniot.com OPEN

Connect the negative of IR sensor to the GND of Arduino.

Connect the positive of IR sensor to the 5V pin of Arduino.
Connect the signal pin of IR sensor to the pin 8 of Arduino.

Software

Arduino Code

https://electrosome.com/led-control-ir-remote/ 2/11
12/13/2019 Controlling LED's using Remote Control - Arduino Project

#include <IRremote.h>

int receiver_pin = 8;
int first_light_pin = 7;
int second_light_pin = 6;
int third_light_pin = 5;
int fourth_light_pin = 4;
int led_case[] = {0,0,0,0};
IRrecv receiver(receiver_pin);
decode_results output;

#define code1 48703

#define code2 58359
#define code3 6375
#define code4 25979

void setup()
{
Serial.begin(9600);
receiver.enableIRIn();
pinMode(first_light_pin, OUTPUT);
pinMode(second_light_pin, OUTPUT);
pinMode(third_light_pin, OUTPUT);
pinMode(fourth_light_pin, OUTPUT);
}

void loop()
{
if (receiver.decode(&output))
{
unsigned int value = output.value;
switch(value)
{
case code1:
if(led_case[1] == 1)
{
digitalWrite(first_light_pin, LOW);
led_case[1] = 0;
}
else
{
digitalWrite(first_light_pin, HIGH);
led_case[1] = 1;
}
break;
case code2:
if(led_case[2] == 1)
{
digitalWrite(second_light_pin, LOW);
led_case[2] = 0;
}
else
{
digitalWrite(second_light_pin, HIGH);
led_case[2] = 1;
}
break;
case code3:
if(led_case[3] == 1)
{
digitalWrite(third_light_pin, LOW);
led_case[3] = 0;
}
else
{
digitalWrite(third_light_pin, HIGH);
led_case[3] = 1;
} 

https://electrosome.com/led-control-ir-remote/ 3/11
12/13/2019 Controlling LED's using Remote Control - Arduino Project

break;
case code4:
if(led_case[4] == 1)
{
digitalWrite(fourth_light_pin, LOW);
led_case[4] = 0;
}
else
{
digitalWrite(fourth_light_pin, HIGH);
led_case[4] = 1;
}
break;
}
Serial.println(value);
receiver.resume();
}
}

Code Explanation
First of all, we need to include the library for the IR sensor and IR remote. Then we initialized the pins where we connected the led’s
and set the initial state of the led’s as o state.

#include <IRremote.h>
int receiver_pin = 8;
int first_light_pin = 7;
int second_light_pin = 6;
int third_light_pin = 5;
int fourth_light_pin = 4;
int led_case[] = {0,0,0,0};

Then we de ned the code for each button through which we want to control the led. If you are running the Arduino code for the rst
time then upload the Arduino code as it is and open the Serial monitor. Press the button from the remote and a code will be shown
on the serial monitor for each button.

#define code1 48703

#define code2 58359
#define code3 6375
#define code4 25979

In the setup function, we have made the led pins as output pins because we will give the output to the led’s through that pins.

pinMode(first_light_pin, OUTPUT);
pinMode(second_light_pin, OUTPUT);
pinMode(third_light_pin, OUTPUT);
pinMode(fourth_light_pin, OUTPUT);

Whenever a button is pressed, a code is received by the IR sensor and is given to the Arduino. The Arduino will then compare it to
the already saved codes and if any of the code will match then it will turn on the led connected to that code. If the LED is already
light up and the same button is pressed again then the led will go down.

https://electrosome.com/led-control-ir-remote/ 4/11
12/13/2019 Controlling LED's using Remote Control - Arduino Project

if (receiver.decode(&output))
{
unsigned int value = output.value;
switch(value)
{
case code1:
if(led_case[1] == 1)
{
digitalWrite(first_light_pin, LOW);
led_case[1] = 0;
}
else
{
digitalWrite(first_light_pin, HIGH);
led_case[1] = 1;
}
break;
case code2:
if(led_case[2] == 1)
{
digitalWrite(second_light_pin, LOW);
led_case[2] = 0;
}
else
{
digitalWrite(second_light_pin, HIGH);
led_case[2] = 1;
}
break;
case code3:
if(led_case[3] == 1)
{
digitalWrite(third_light_pin, LOW);
led_case[3] = 0;

Working
Whenever a button is pressed on the IR remote, an IR led blinks thousands of time in a fraction of second and sends that data to the
IR receiver in the coded form.  The IR receiver receives this signal and sends it to Arduino.

Each button has a unique code. So we have saved the codes for the buttons to which we want to control the LED’s in the Arduino
code. Now whenever a button is pressed, then an unique code will be received by the IR receiver and sends to Arduino. Then the
Arduino compares this received unique code with the saved codes. If any of the code matches with the Arduino pre-stored code
then Arduino will turn ON the appropriate LED light.

Practical Implementation

LED Control Using IR Receiver – Practical Implementation



https://electrosome.com/led-control-ir-remote/ 5/11
12/13/2019 Controlling LED's using Remote Control - Arduino Project

Video

Controlling LED's using IR Remote Control - Arduino Uno
