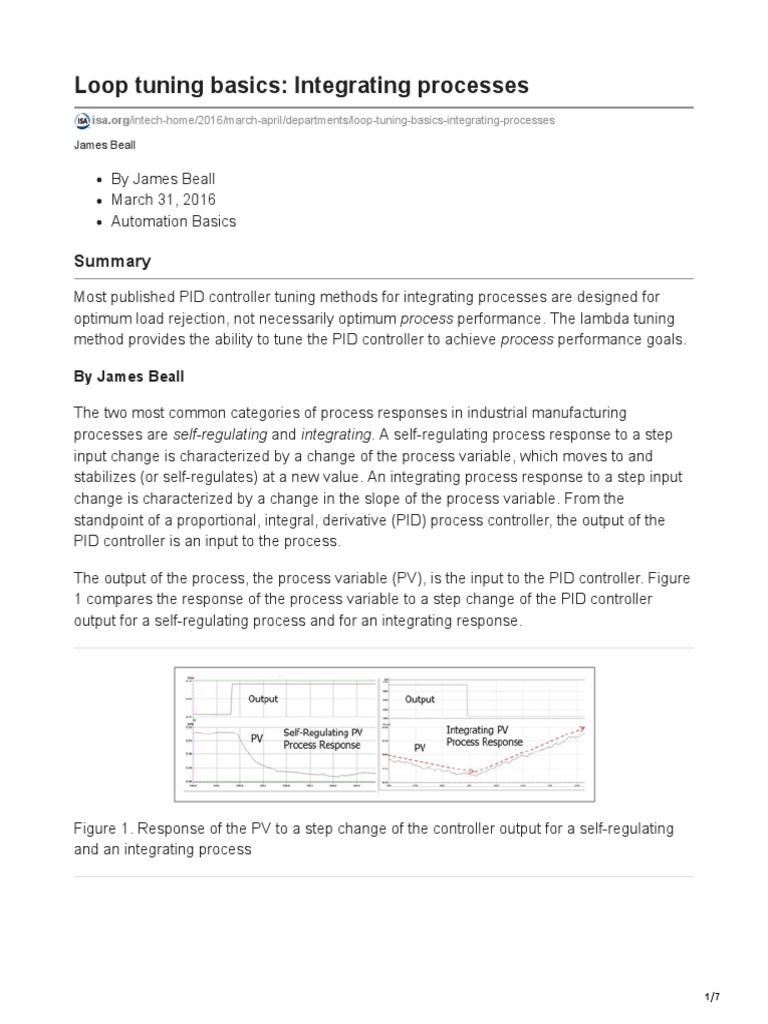

Loop tuning basics: Integrating processes

isa.org/intech-home/2016/march-april/departments/loop-tuning-basics-integrating-processes

James Beall

By James Beall
March 31, 2016
Automation Basics

Summary

Most published PID controller tuning methods for integrating processes are designed for
optimum load rejection, not necessarily optimum process performance. The lambda tuning
method provides the ability to tune the PID controller to achieve process performance goals.

By James Beall

The two most common categories of process responses in industrial manufacturing

processes are self-regulating and integrating. A self-regulating process response to a step
input change is characterized by a change of the process variable, which moves to and
stabilizes (or self-regulates) at a new value. An integrating process response to a step input
change is characterized by a change in the slope of the process variable. From the
standpoint of a proportional, integral, derivative (PID) process controller, the output of the
PID controller is an input to the process.

The output of the process, the process variable (PV), is the input to the PID controller. Figure
1 compares the response of the process variable to a step change of the PID controller
output for a self-regulating process and for an integrating response.

Figure 1. Response of the PV to a step change of the controller output for a self-regulating
and an integrating process

1/7
Level processes typically have an integrating response, the likely exception being when the
outflow of the vessel is gravity driven. Other processes can have an integrating response.
For example, a “low-pressure, large-volume” gas pressure control application can have an
integrating process. Another example of an integrating process is a reactor temperature
controller that cascades to a “jacket water inlet temperature difference” controller. This
controller controls the difference between the reactor contents’ temperature and the jacket
water inlet’s temperature based on the set point specified by the output of the reactor
contents’ temperature controller.

Challenges
One of the challenges of tuning a PID controller for an integrating process is that when the
integral action of the controller is combined with the integrator function of the process, the
control loop will oscillate if the integral action of the controller is “too fast” (i.e., the integral
time is too short). It is not intuitive to know when the integral time is too short. Another
challenge is that most PID tuning methods for integrating processes do not provide a method
to adjust the aggressiveness of the closed loop response. If the controller proportional gain
(P) is reduced to make the closed loop response less aggressive, the loop is more likely to
oscillate. This is quite the opposite result of when this tactic is used on a self-regulating
process.

Tuning for an integrating process

A tuning methodology called lambda tuning solves these challenges. The lambda tuning
method allows the user to choose the closed loop response time, called lambda, and
calculate the corresponding tuning. The lambda closed loop response time is chosen to
achieve the desired process goals and stability criteria. This could result in choosing a small
lambda for good load regulation, a large lambda to minimize changes in the controller output
and manipulated variable by allowing the PV to deviate from the set point, or somewhere in
between these two extremes. Lambda tuning for integrating processes results in tuning that
produces a “critically damped,” nonoscillatory response for a step load or set point change
(i.e., some oscillation when lambda is less than three times dead time). The response to a
set point change and a load change for an integrating response and a PID controller tuned
with the lambda method is shown in figure 2.

2/7
Figure 2. Response of lambda tuning for an integrating process for a set point and a load
step change

Procedure

The lambda tuning method for integrating processes involves three steps:

1. Identify the process dynamics.

2. Choose the desired closed loop speed of response, lambda.
3. Calculate the required PID tuning constants.

Figure 3 shows the dynamic parameters of an integrating process. The dynamic parameters
that describe the integrating response are dead time (Td), in units of time, and the integrating
process gain (Kp), in units of percent PV span/time unit/percent output span. Note that the
process variable can have a nonzero initial slope when performing the step test to measure
the process dynamics. Typically several step tests are performed; the results are reviewed
for consistency; and the average process dynamics are calculated and used for the tuning
parameter calculations. If the controller output goes directly to a control valve, any significant
dead band in the valve will cause reduced process gain if the output step was a reversal in
direction. If the controller output cascades to the set-point point of a “slave” loop, the slave
loop should be tuned first.

Integrating process gain, Kp = (final slope – initial slope)/ Δ%OUT

Figure 3. Identify the process dynamics of an integrating process.

3/7
The next step is to choose the lambda to achieve the desired process control goal for the
loop. If the goal is the best load regulation, choose a shorter lambda. If the goal is to absorb
variability in the vessel by allowing the level to vary and lessen the movement of the
controller output and manipulated variable, then choose a longer lambda. A shorter lambda
produces more aggressive tuning and less stability margin. A longer lambda produces less
aggressive tuning and more stability margin. The low limit on lambda for an integrating plus
dead time process (no lag or lead in the response) is equal to the dead time, although this
provides a very low gain margin and phase margin. A more reasonable low limit on lambda is
three times the dead time. Care should be taken to make sure the dead time does not
increase under any other conditions if the lambda is set equal to the dead time.
From a stability standpoint, there is no upper limit on the lambda. However, the lambda must
be fast enough to keep the process variable within the allowable process deviation (APD) for
the maximum load disturbance (MLD). The required lambda can be estimated with equation
1, subject to the minimum limit on lambda. Note that the time units of lambda will be the
same as the time units used for the integrating process gain, Kp.

This formula can be used regardless of whether “tight” control is desired, to provide good
load regulation, or “averaging” control is desired, to reduce variability of the manipulated
variable by reducing the controller output movement.
The final step is to calculate the tuning parameters from the process dynamics. Care should
be taken to use consistent units of time for the integrating process gain, the dead time, and
the lambda. For a pure integrator plus dead time process (no significant lag or lead), the
controller gain and reset times are calculated with the following equations. The derivative
time is set to 0. These equations are valid for the standard (sometimes called ideal,

4/7
noninteractive) and series (sometimes called classical, interactive) forms of the PID
implementation. Note that both the controller gain and integral time change as lambda (λ)
changes.

Example

Consider the distillation column feed storage tank level control process in figure 4. The level
controller, LIC-1, output is cascaded to the set point of the column feed flow controller, FIC-2.
FIC-2 has been properly tuning and responds in a nonoscillatory manner with a closed loop
response time, lambda, of 6 seconds. It is desirable to minimize the changes in the column
feed rate by using the capacity of the feed tank to attenuate the transfer of the variability of
the reactor flows into the tank to the flow out of the tank, which is the feed flow to the
distillation column.

Figure 4. Process and control diagram for distillation feed tank system

5/7
Figure 5. Analysis of a controller output step test on a feed trunk level

Figure 5 shows a step test of the level controller to identify the process dynamics. The
integrating process gain is –0.000216 percent level/second/percent out, and the dead time is
about 30 seconds. Based on the process goals, the APD selected for the level PV is 30
percent. It is often appropriate in these applications to use a fraction of the nominal controller
output as the MLD. The idea is to find the MLD for which the controller is expected to keep
the PV within the APD without operator intervention. Load changes larger than the chosen
MLD are expected to require operator intervention due to other consequences. After
reviewing the process, the maximum load disturbance is chosen to be 50 percent of the
nominal 80 percent controller output, or 40 percent. This represents the loss of two reactors
simultaneously. The required lambda and the resulting tuning parameters using the lambda
tuning method are calculated from equations 1, 2, and 3, respectively. These values are
shown below.

Lambda = 6,900 seconds

Integral time = 13,830 seconds
Controller gain = 1.34

Simulation of the process response to a step load disturbance equal to 40 percent controller
output (MLD) confirms that the recommended tuning will keep the level deviation (APD) to
less than ±30 percent and that the response is nonoscillatory. The calculated tuning was
installed in the level controller, and the system performed as desired.

Meeting process goals

6/7
Tuning PID controllers for integrating or near-integrating processes is counterintuitive when
compared to tuning for self-regulating processes. Most published PID controller tuning
methods for integrating processes are designed for optimum load rejection, not necessarily
optimum process performance. The lambda tuning method provides the ability to tune the
PID controller to achieve process performance goals, whether they are maximum load
regulation or attenuation of variability.
