    Laboratorium Digital (Kombinatorial) Encoder

    DATA HASIL PERCOBAAN

    No. Percobaan : 05 Pelaksanaan Praktikum : ONLINE


    Judul : ENCODER & DECODER Penyerahan Laporan : …………………………
    Mata Kuliah : Laboratorium Digital Nama Praktikan : SYIFA AFLA ARINDRA
    Kelas / Kelompok : TT2A/KEL06 Nama Rekan Kerja : 1. RANDA KURNIAWAN
    Tahun Akademik : 2020/2021 2. ………………………

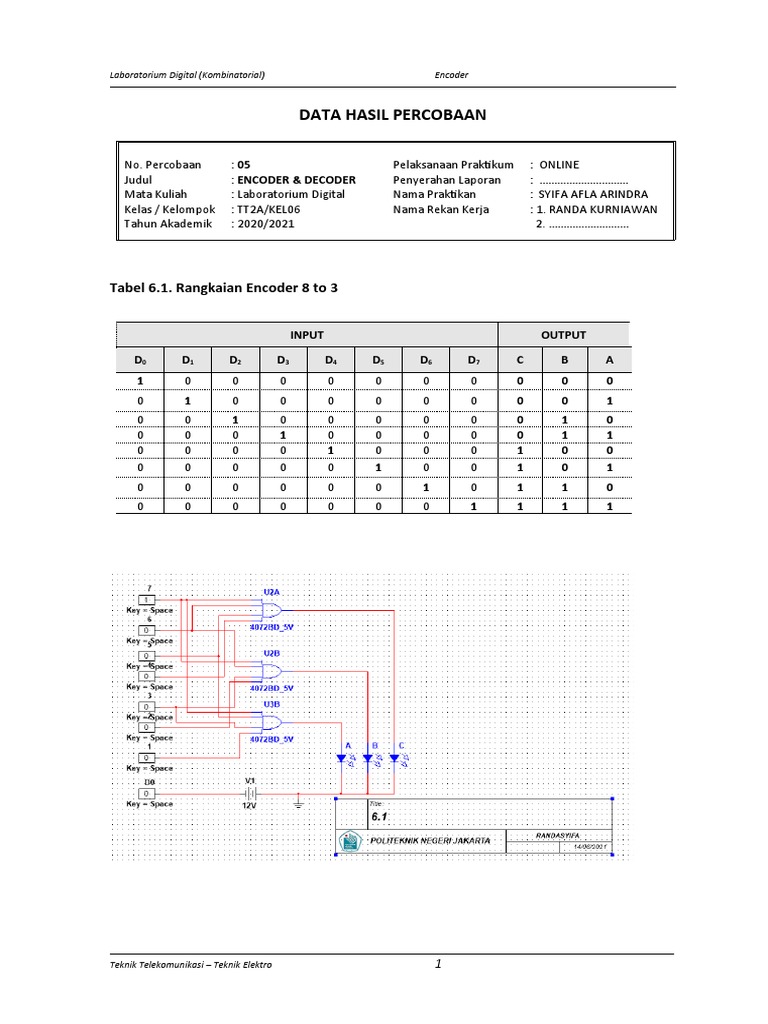

    Tabel 6.1. Rangkaian Encoder 8 to 3

    INPUT OUTPUT

    D0 D1 D2 D3 D4 D5 D6 D7 C B A
    1 0 0 0 0 0 0 0 0 0 0
    0 1 0 0 0 0 0 0 0 0 1
    0 0 1 0 0 0 0 0 0 1 0
    0 0 0 1 0 0 0 0 0 1 1
    0 0 0 0 1 0 0 0 1 0 0
    0 0 0 0 0 1 0 0 1 0 1
    0 0 0 0 0 0 1 0 1 1 0
    0 0 0 0 0 0 0 1 1 1 1

    Teknik Telekomunikasi – Teknik Elektro 1


    Laboratorium Digital (Kombinatorial) Encoder

    Tabel 6.2. Rangkaian Decoder 3 to 8

    INPUT OUTPUT

    C B A Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7

    0 0 0 1 0 0 0 0 0 0 0
    0 0 1 0 1 0 0 0 0 0 0
    0 1 0 0 0 1 0 0 0 0 0
    0 1 1 0 0 0 1 0 0 0 0
    1 0 0 0 0 0 0 1 0 0 0
    1 0 1 0 0 0 0 0 1 0 0
    1 1 0 0 0 0 0 0 0 1 0
    1 1 1 0 0 0 0 0 0 0 1

    Teknik Telekomunikasi – Teknik Elektro 2


    Laboratorium Digital (Kombinatorial) Encoder

    Tabel 6.3. Priority Encoder 10 to 4 (IC 74147)


    INPUT OUTPUT
    1 2 3 4 5 6 7 8 9 D C B A
    1 1 1 1 1 1 1 1 1 1 1 1 1
    X X X X X X X X 0 0 1 1 0
    X X X X X X X 0 1 0 1 1 0
    X X X X X X 0 1 1 1 0 0 0
    X X X X X 0 1 1 1 1 0 0 1
    X X X X 0 1 1 1 1 1 0 1 0
    X X X 0 1 1 1 1 1 1 0 1 1
    X X 0 1 1 1 1 1 1 1 1 0 0
    X 0 1 1 1 1 1 1 1 1 1 0 1
    0 1 1 1 1 1 1 1 1 1 1 1 0

    Teknik Telekomunikasi – Teknik Elektro 3


    Laboratorium Digital (Kombinatorial) Encoder

    Tabel 6.4. Priority Encoder 8 to 3 (IC 74148)

    INPUT OUTPUT
    EI D0 D1 D2 D3 D4 D5 D6 D7 A2 A1 A0 EO GS
    1 X X X X X X X X 1 1 1 1 1
    0 1 1 1 1 1 1 1 1 1 1 1 0 1
    0 X X X X X X X 0 0 0 0 1 0
    0 X X X X X X 0 1 0 0 1 1 0
    0 X X X X X 0 1 1 0 1 0 1 0
    0 X X X X 0 1 1 1 0 1 1 1 0
    0 X X X 0 1 1 1 1 1 0 0 1 0
    0 X X 0 1 1 1 1 1 1 0 1 1 0
    0 X 0 1 1 1 1 1 1 1 1 0 1 0
    0 0 1 1 1 1 1 1 1 1 1 1 1 0

    Teknik Telekomunikasi – Teknik Elektro 4


    Laboratorium Digital (Kombinatorial) Encoder

    Tabel 6.5. Decoder 4 Line BCD to 10 Line Decimal (IC SN54/74LS42)

    INPUT OUTPUT
    D C B A 0 1 2 3 4 5 6 7 8 9
    0 0 0 0 0 1 1 1 1 1 1 1 1 1
    0 0 0 1 1 0 1 1 1 1 1 1 1 1
    0 0 1 0 1 1 0 1 1 1 1 1 1 1
    0 0 1 1 1 1 1 0 1 1 1 1 1 1
    0 1 0 0 1 1 1 1 0 1 1 1 1 1
    0 1 0 1 1 1 1 1 1 0 1 1 1 1
    0 1 1 0 1 1 1 1 1 1 0 1 1 1
    0 1 1 1 1 1 1 1 1 1 1 0 1 1
    1 0 0 0 1 1 1 1 1 1 1 1 0 1
    1 0 0 1 1 1 1 1 1 1 1 1 1 0

    Teknik Telekomunikasi – Teknik Elektro 5


    Laboratorium Digital (Kombinatorial) Encoder

    LAMPIRAN

    KELOMPOK 06
    TEKNIK TELEKOMUNIKASI 2A

    SYIFA AFLA ARINDRA RANDA KURNIAWAN

    Teknik Telekomunikasi – Teknik Elektro 6
