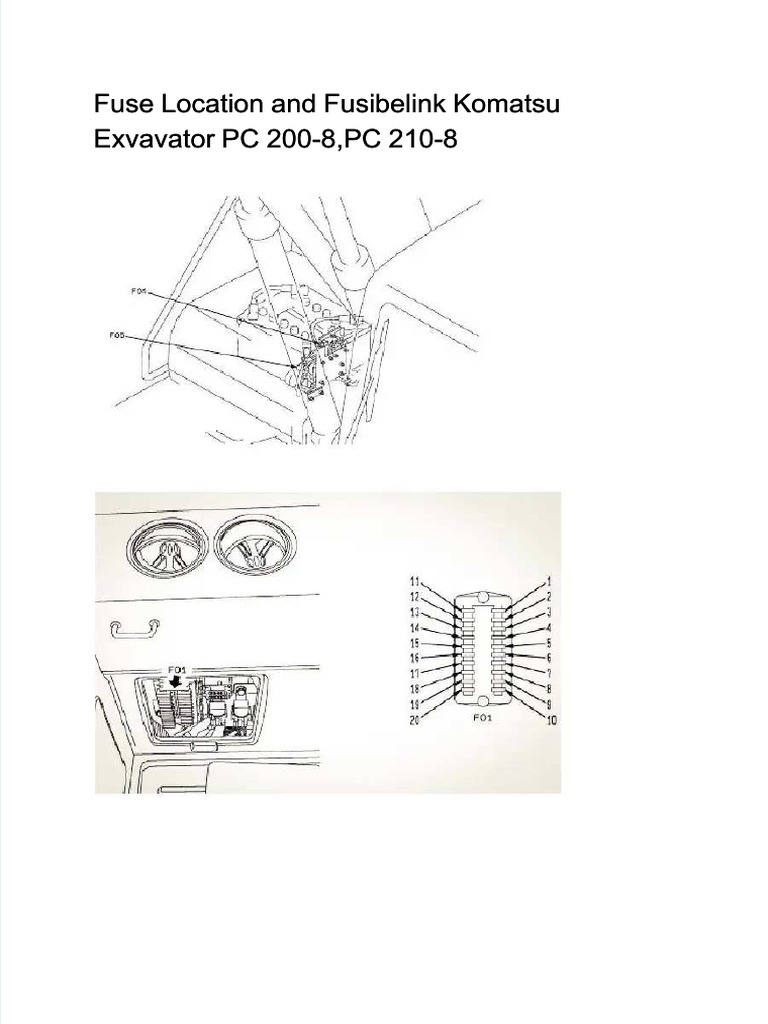

Fuse Location and Fusibelink Komatsu

Exvavator PC 200-8,PC 210-8


No. 1. 10 Amprere.
PC-EPC Solenoid valve(F),Cab Lamp relay,PC-EPC Solenoid valve (R),Swing holding brake
solenoid valve.
No. 2. 30 Ampere
Pump controller (Solenoid Power Supply)
No.3. 10 Ampere
PPC oil pressure lock solenoid valve, Starting Motot Cut Out Relay (PPC Lock), Starting motor
cut out relay
(Personal code)
No.4.10 Ampere
Cigarette Lighter, Winsheld washer motor
No.5.10 Ampere
Horn Relay, Horn
No.6.10 Ampere.
Electrical heater Relay.
No.7. 10 Ampere
Rotary Lamp
No.8.20 Ampere
Right head Lamp, Working Lamp (BOOM), Working Lamp La mp (Rear)
No.9.10 Ampere
Radio, Left knob switch.
No.10. 10 Ampere
Spare
No.11.20 Ampere.
 Air Cinditioner unit, Air Conditioner Unit Clutch
No.12.10 Ampere
Spare
No.13. 10 Ampere
Head Lamp
No.14. 10 Ampere
Optional Power Supply
No.15. 10 Ampere
Travel Alarm, Optional Power Supply (2)
No.16. 10 Ampere
Radio (Backup Power Supply), Room Lamp
No.17. 20 Ampere
Starting Swit h, Machine Monitor,Pump Controller
No.18.10 Ampere
Spare
No.19.30 Ampere  Engine Controller
No.20. 5 Ampere
Engine Controller (ACC Sugnal)
