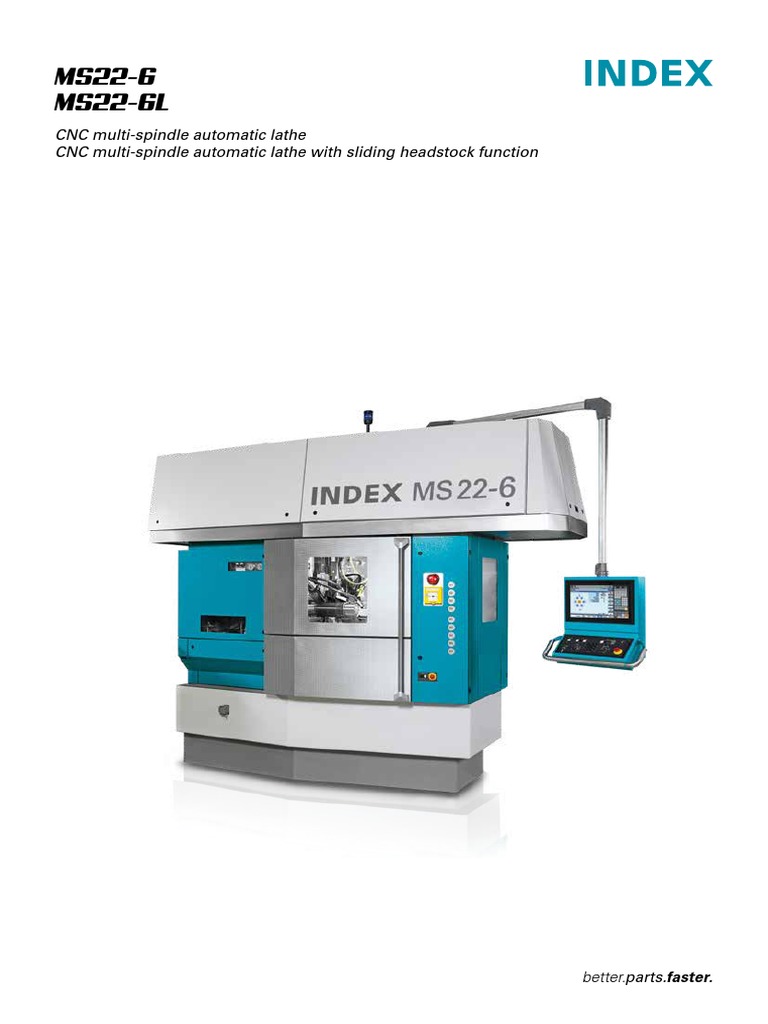

MS22-6

MS22-6L
CNC multi-spindle automatic lathe
CNC multi-spindle automatic lathe with sliding headstock function

better.parts.faster.
INDEX MS22-6/INDEX MS22-6L
INDEX CNC multi-spindle automatic lathe: the benchmark!
With the INDEX MS22-6 / MS22-6L multi-spindle automatic
turning machines, configurable as desired, INDEX offers a
machine concept that meets all requirements and the highest
standards.
Six main spindles, up to two swiveling synchronous spindles
and up to 11 tool carriers, which can be configured in the X, Y
and Z directions, allow for unimagined machining possibilities.
2 3
The highest degree of productivity and efficiency in
multi-spindle automatic lathes, combined with the accuracy
and flexibility of CNC single-spindle lathes, is the formula
for the success of the INDEX MS22-6 and INDEX MS22-6L
multi-spindle automatic lathes.
The INDEX MS22-6 machine
concept has been systematically
designed according to user needs
Machine design
• Compact front-opening machine for bar machining
• Freely accessible, making it extremely user-friendly
• Six high-precision motorized spindles
• Highly dynamic slide with sliding guide (X axis)
• Non-wearing Z axis, thanks to hydrostatically supported
tailstock quills
• Integrated swiveling synchronous spindle for rear-end
machining, and placement of finished parts on conveyor
without risk of damage
• Each working spindle includes two tool carriers
• Includes iXpanel Cockpit solution (based on Siemens
S840D sl)
INDEX MS22-6/INDEX MS22-6L

The key element: it’s original when it originates from INDEX

The key element More than just turning

The compact spindle drum provides maximum precision in INDEX CNC multi-spindle automatic lathes with live tooling,
any position, thanks to its three-part Hirth coupling. C axis, and Y axis, give you access to entirely new processes,
The central module is made up of six air-cooled motorized such as:
spindles, integrated in the drum. An infinitely variable speed • off-center bores and threads
range, high tractive force, compact design, low maintenance, • inclined bores
and the latest synchronous drive technology – these are the • contour milling
criteria that make an INDEX CNC multi-spindle automatic • hobbing
lathe stand out. • polygon turning

Independent speeds
The spindle speed for each spindle position and each tool
edge can be optimized, even while cutting is in progress.
The results are optimum chipping, maximum surface quality,
short production times per piece, and extended tool life.
You can also machine materials that, until now, were largely
unsuited to multi-spindle automatic lathes.

4 5
Precise, fast, and flexible
Versatility is a strength of the INDEX MS22-6.
Whether complex parts or many different processes –
almost anything is possible
• 11 tool carriers with 1 or 2 travel axes
• 1 or 2 synchronous spindles
• Insertion of up to 18 tools on main spindles
• Variable use of tool carriers for internal and external
machining
• Cross machining with live tools
• C axis and multi-edge turning for extended use options
Machine structure
The modular INDEX system allows you to build the
MS22-6 according to your exact requirements.
6 7
Rear-end machining with swiveling synchronous
spindle
• Up to 6 tools, 3 of which are live
• Fast swiveling motion and hydraulic synchronous spindle
clamping
• Efficient chip fall, as machining takes place outside the
main work area
• A variety of machining possibilities: drilling, outside
turning, facing, thread chasing, thread stripping, off-center
machining, cross drilling
• X axis back-boring slide movement
The double three-spindle machine for maximum work
output
• Additional part production time reduction due to
simultaneous manufacturing of 2 identical workpieces
• 10 tool carriers with 1 or 2 axes
• 2 synchronous spindles
• 2 back-boring slides
• Rear-end machining with 6 tools per synchronous spindle,
2 of which are live
INDEX MS22-6/INDEX MS22-6L
Simply more possibilities
The work area – virtually
limitless machining
options for each spindle
position
The tool carrier arrangement
in the work area, without
longitudinal sliding block,
allows more than one tool
to be used on each spindle.
Available machining opera-
tions are therefore limited
only by the toolholder.
As a result, you can specify
all production steps in
all spindle positions.
Another advantage:
They have free chip fall.
Performance, as we
understand it
Maximum productivity
and cost-effectiveness of
multi-spindle automatic
lathes, combined with the
precision and flexibility of
CNC single-spindle lathes,
is the formula for success
of the INDEX MS22-6
multi-spindle automatic
lathes.
8 9
INDEX MS22-6/INDEX MS22-6L
For the most diverse technologies
Machining examples Gear cutting, hobbing
1. External turning – • Coupled with electronic
internal turning precision
• Provides maximum
S
stability
• Gears in correct position
relative to other surfaces
or shaped elements
2. External turning – • Any angular offset can be
external turning programmed
Y X
• Greater tool service life
due to shifting with Y axis Z
Milling
3. External live –
Milling with live tooling in
internal live
the following variants
• Disk milling cutter in X Y
conjunction with C axis
Z
operation (transmit function)
• End milling cutter in
conjunction with Y axis
operation
4. External turning –
• Plunge milling
internal live
(graphic)
(sequential)
5. External live – Elliptical deburring of
internal turning cross-drilled holes
X
(sequential) Uniform deburring (even
chip removal) of cross- S
Z
drilled holes based on
interpolation of the C axis,
X axis, and Z axis with
live tooling.
6. External live –
external turning
(sequential)
INDEX MS22-6/INDEX MS22-6L
INDEX MS22-6L – high-productivity manufacture
of straight-turned parts
The multi-spindle automatic lathe with straight
turning function
The newly developed INDEX MS22-6L sliding headstock
turning unit enables highly productive machining of typical
straight-turned parts, on a multi-spindle automatic lathe.
The sliding headstock automatic lathes are inspired by
the INDEX MS22-6, which is known for its reliability.
10
By simultaneous use of up to 11 tools (2 cutting edges per
spindle) on the total of 6 work spindles, the INDEX MS22-6L
is the world's most productive solution for producing straight-
turned parts of all kinds. A synchronous spindle also makes
rear-end machining possible with up to 6 tools (2 of which
are live).
11
INDEX MS22-6/INDEX MS22-6L

INDEX multi-spindle sliding headstock principle

The core of the newly designed sliding headstock turning unit is the centered guide block, set up on the spindle
drum, on which the 6 long turning sleeves move.

• Solid guide block with Main spindle

6 high-precision hydro- collet Guide bushing

dynamic slideways for

the utmost machining Tool 1

accuracy
• Ball-bearing guide bushing
unit with double-cone
guide collet and program-
mable pressures Tool 2

• The guide bush unit is

moved during straight-
turning by a tool carrier
towards the work spindle. Guide slide

• Workpiece length up
to 200 mm Longitudinal slide

Parts range – straight-turned parts

On the INDEX MS22-6L, parts with a diameter of 5 to 22 mm such as injection components, shafts, pistons for the auto-
and a turning length of up to 200 mm can be machined. motive and machine building industries, and as components
The range of parts includes workpieces from all industries, for electric drives and medical instruments.

Control slider Drive shaft Screw Shaft

Dimensions, mm Ø 18 x 120 Dimensions, mm Ø 14 x 100 Dimensions, mm Ø 11 x 64 Dimensions, mm Ø 16 x 180

Material 1.4305 Material 1.4305 Material Titanium Material 1.4305

12 13
INDEX MS22-6/INDEX MS22-6L

Workpiece handling systems

Parts feed and discharge by 6-axis robot via the swivel

disk interface to the external handling system

The workpiece handling system for chuck parts and bar

segments can be used for 6-spindle machining with and
without synchronous spindle, as well as for double 3-spindle
machining.
A 3 x OP10 (first side) and 3 x OP20 (second side) variant,
with external turning station, is also available.

Parts routing via a shoot with built-in parts conveyor

The parts fall onto the internal conveyor belt through a

chute and are then deflected 90° by another chute to reach
a second external conveyor belt

Linear shuttle with intermediate gripper for directed

parts removal

Zero damage, fast, position-oriented removal by a linear and

rotary motion. The workpiece is transferred from the synchro-
nous spindle, from spindle position 6 on the linear shuttle;
this transfers the workpiece to the external handling system.

14 15
 APPLICATION
NETWORK

SERVER
The cockpit for easy integration of the machine
in your business organization.

Focus on production and control – Industry 4.0 included.

The iXpanel operating concept provides access to networked
production. With iXpanel, your staff always has all relevant
CUSTOMER
information for efficient production right at the machine.
iXpanel is already included a standard and can be individually
extended. You can use iXpanel as you want it for your business
organization – that’s Industry 4.0 tailored to your needs.

Future-proof.
18.5" TOUCHSCREEN
iXpanel integrates the latest control generation SIEMENS S840D sl. MONITOR
Use iXpanel intuitively through an 18.5” touch monitor.

Productive. Intelligent. Virtual & open.

Machine performance is maximized
by optimally tuned processes in
machine cycles with clear control
screens. In addition, technology
cycles are provided for frequently
The machine always starts with the
control home screen. Other functions
can always be displayed on a second
screen, and the operator enjoys direct,
activity-related assistance already in the
With the optional VPC box (industrial
PC), iXpanel opens up the world of STANDARD included as standard OPTION
Virtual Machine and of simulation
directly at the control (VM on Board).
Thanks to the VPC-box (option), the
Industry 4.0 features

recurring machining operations and standard version, such as workpiece machine can also be integrated easily
Order Customer Workpiece Production Drawings Setup sheet VPC Box Virtual machine
safe machine operation as well as drawing, setup lists, programming and fully into IT networks and struc- documents data counter Status 3D simulation
for optimum machining quality. tools, documentation, etc., right at the tures. You determine what additional
machine. applications are used on the VPC box!

Notes Information Maintenance User Technology Programming VirtualPro Custom

index-werke.de/ixpanel center & care management computer help Programming applications
Studio

16 17
+ many more standard features
Technical data INDEX MS22-6
Working spindles 6
Max. bar diameter mm 22 (24)
Speed * rpm 10,000
Power (at 100%/25% duty cycle) kW 8.7/15
Torque (at 100% / 25% duty cycle) Nm 10 / 18
Tool carrier 11
Slide travel X mm 62
Slide travel Z mm 85
Slide travel Y mm ±12
Synchronous spindle 1/2
Max. clamping diameter 22
Speed * rpm 10,000
Power (at 100%/40% duty cycle) kW 9.2/12
Torque (at 100% / 40% duty cycle) Nm 11 / 14
Synchronous spindle swivel angle degrees 132 (165)
Slide travel Z mm 120
Number of tools for rear-end machining 6
Back-boring slides 1+2 (optional)
Tool carriers for rear-end machining 1/2
Slide travel X mm 62
Number of tools for rear-end machining 3/6
of which are live max. 2/4
Technical data INDEX MS22-6L
Working spindles 6
Max. bar diameter mm 22 (24)
Speed rpm 7,500
Turning length mm 200
Tool carrier 11
Slide travel X mm 62
Slide travel Z mm 85
Slide travel Y mm ±12
Synchronous spindle 1
Slide travel Z mm 120
Speed: rpm max. 10,000
Number of tools for rear-end machining 6
of which are live 2
Guide bushing unit
Displacement mm > 200
Dimensions, mass, and connected power (for maximum configuration level, without bar guide or loading magazine)
Mass kg approx. 6,000
Length mm 3,330
Width mm 1,830
Height mm 2,854
Connected power 62 kW, 75 kVA, 105 A, 400 V, 50/60 Hz

Dimensions, mass, and connected power (for maximum configuration level, without bar guide or loading magazine)
Control Siemens Sinumerik 840D Solution Line
Mass kg approx. 6,000
Length mm 3,330
Width mm 1,830
Height mm 2,854
Connected power 62 kW, 75 kVA, 105 A, 400 V, 50/60 Hz

Control Siemens Sinumerik 840D Solution Line

Options
Polygon turning, hobbing, tool monitoring, Y axis, transmit function

*Speed limitations are necessary, depending on bar diameter, bar guide, and workpiece clamping.

INDEX MS22-6/INDEX MS22-6L

IEMCA SIR 22/3300

4590 3144
669
341

1830
3336

3330

18 19
BRAZIL // Sorocaba FRANCE // Paris

Technical changes reserved

INDEX Tornos Automaticos Ind. e Com. Ltda. INDEX France Sarl
Rua Joaquim Machado 250 1A, Avenue du Québec/Z.A. de Courtabœuf
18087-280 Sorocaba - SP 91940 Les Ulis/Villebon, France
Phone +55 15 2102 6017 Phone +33 1 69187676
vendas@indextornos.com.br info@index-france.fr
br.index-traub.com www.index-france.fr

CHINA // Shanghai FRANCE // Bonneville

INDEX Trading (Shanghai) Co., Ltd. INDEX France Sarl

Printed in Germany
No.526, Fute East 3rd Road 399, Av. de La Roche Parnale
Shanghai 200131 74130 Bonneville Cedex
Phone +86 21 54176637 Phone +33 4 50256534
china@index-traub.com info@index-france.fr
www.index-traub.cn www.index-france.fr

CHINA // Dalian NORWAY // Oslo

P – EN – 9737 – 09.19 –
INDEX DALIAN Machine Tool Ltd. INDEX TRAUB Norge
17 Changxin Road Postbox 2842
Dalian 116600 0204 Oslo
Phone +86 411 8761 9788 Phone +46 8 505 979 00
dalian@index-traub.com h.sars@index-traub.se
www.index-traub.cn www.index-traub.no

DENMARK // Langeskov RUSSIA // Toglyatti

INDEX TRAUB Danmark INDEX RUS
Havretoften 1 Lesnaya street 66
5550 Langeskov 445011 Toglyatti
Phone +45 30681790 Phone +7 8482 691 600
b.olsen@index-traub.dk info@index-rus.ru
www.index-traub.dk ru.index-traub.com

GERMANY // Esslingen SWEDEN // Stockholm

INDEX-Werke GmbH & Co. KG Hahn & Tessky INDEX TRAUB Nordic AB
Plochinger Strasse 92 Fagerstagatan 2
73730 Esslingen 16308 Spånga
Phone +49 711 3191-0 Phone +46 8 505 979 00
info@index-werke.de h.sars@index-traub.se
www.index-werke.de www.index-traub.se

GERMANY // Deizisau SWITZERLAND // St. Blaise

INDEX-Werke GmbH & Co. KG Hahn & Tessky INDEX Werkzeugmaschinen (Schweiz) AG
Plochinger Strasse 44 Av. des pâquiers 16
73779 Deizisau 2072 St. Blaise, Switzerland
Phone +49 711 3191-0 Tel. +41 (32) 756 96 10
info@index-werke.de info@index-traub.ch
www.index-werke.de www.index-traub.ch

GERMANY // Reichenbach SLOVAKIA // Malacky

INDEX-Werke GmbH & Co. KG Hahn & Tessky INDEX Slovakia s.r.o.
Hauffstrasse 4 Vinohrádok 5359
73262 Reichenbach 901 01 Malacky, Slovakia
Phone +49 7153 502-0 Phone +34 654 9840
info@index-werke.de info@index-werke.de
www.index-werke.de sk.index-traub.com

FINLAND // Helsinki U.S.A. // Noblesville

INDEX TRAUB Finland INDEX Corporation
Hernepellontie 27 14700 North Point Boulevard
00710 Helsinki Noblesville, IN 46060
Phone +35 8 108432001 Phone +1 317 770 6300
pekka.virkki@index-traub.fi sale@index-usa.com
www.index-traub.fi www.index-usa.com

INDEX-Werke GmbH & Co. KG

Hahn & Tessky
Plochinger Strasse 92
73730 Esslingen, Germany

Phone +49 711 3191-0

Fax +49 711 3191-587
info@index-werke.de
better.parts.faster. www.index-werke.de
